LED Tube Luminaires

Workplace lighting

LED tube luminaires of the INROLED_70 series from LED2WORK are designed for installation inside machine chambers, transport housings and system tables. The range is available in five lengths: 354 mm (8 W / 10 W), 513 mm (12 W / 14 W), 650 mm (13 W / 15 W), 921 mm (20 W / 23 W) and 1,214 mm (24 W / 28 W). The beam angle is 125°. For each 24 V DC version, a corresponding 230 V AC mains version is available (suffix -02), requiring no external controller.

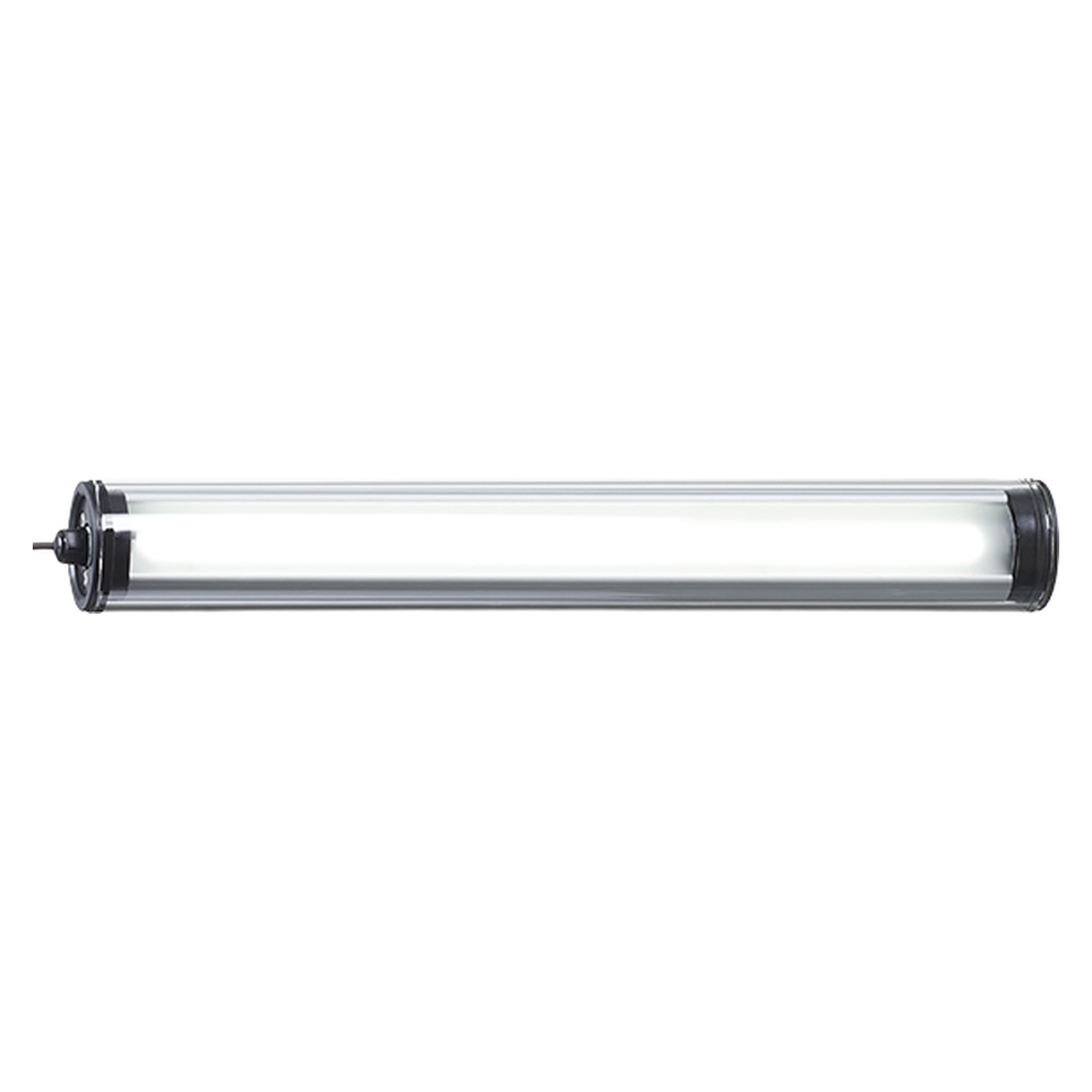

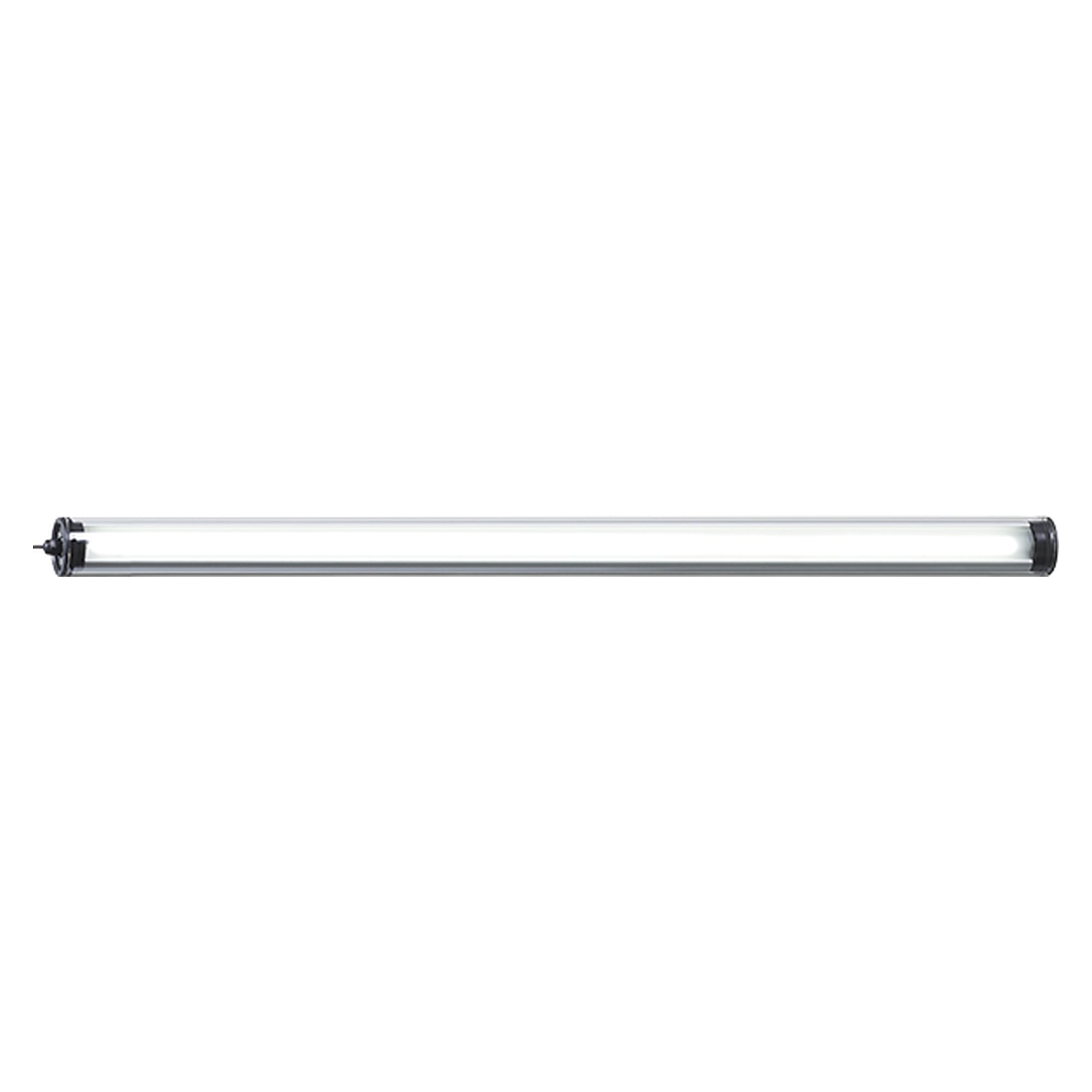

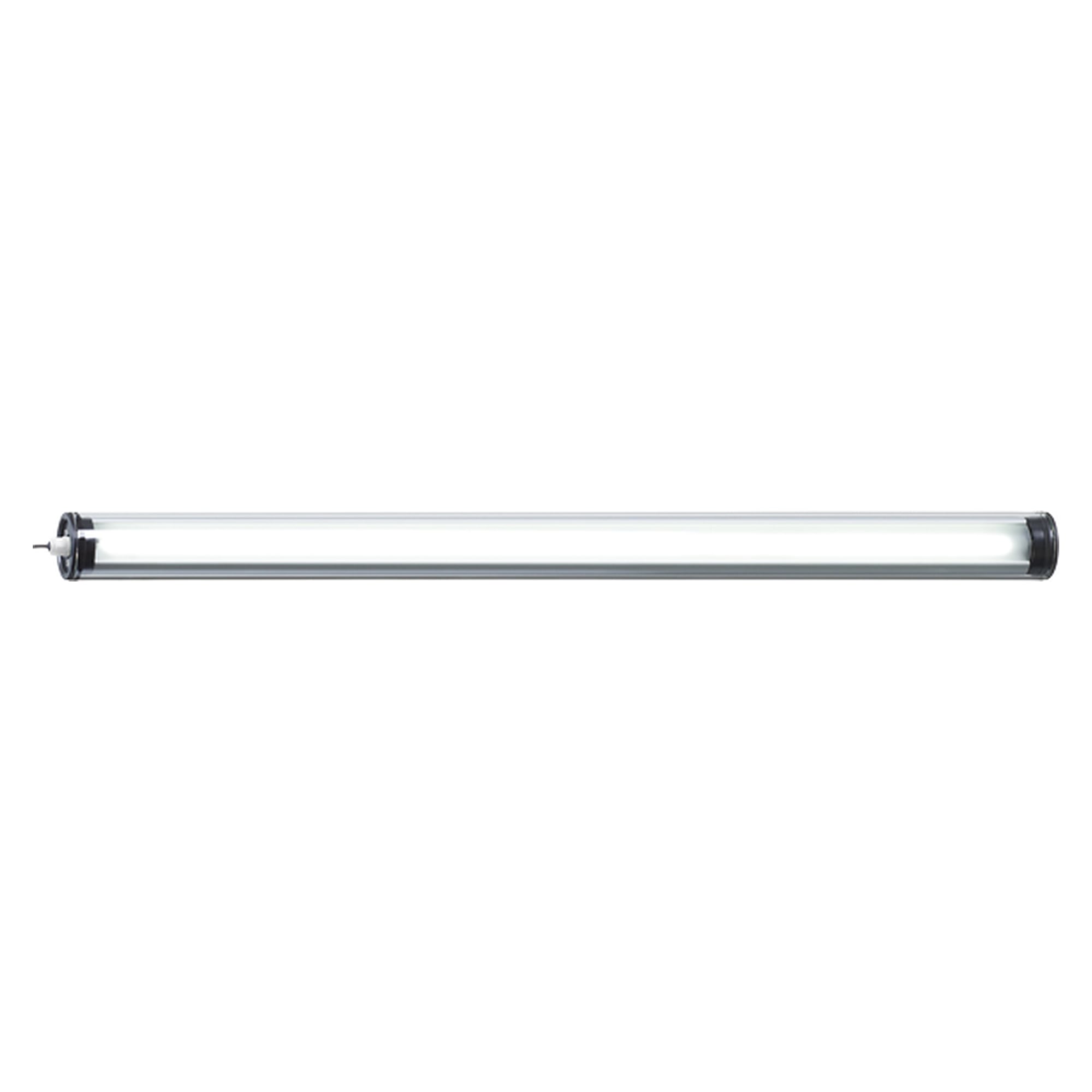

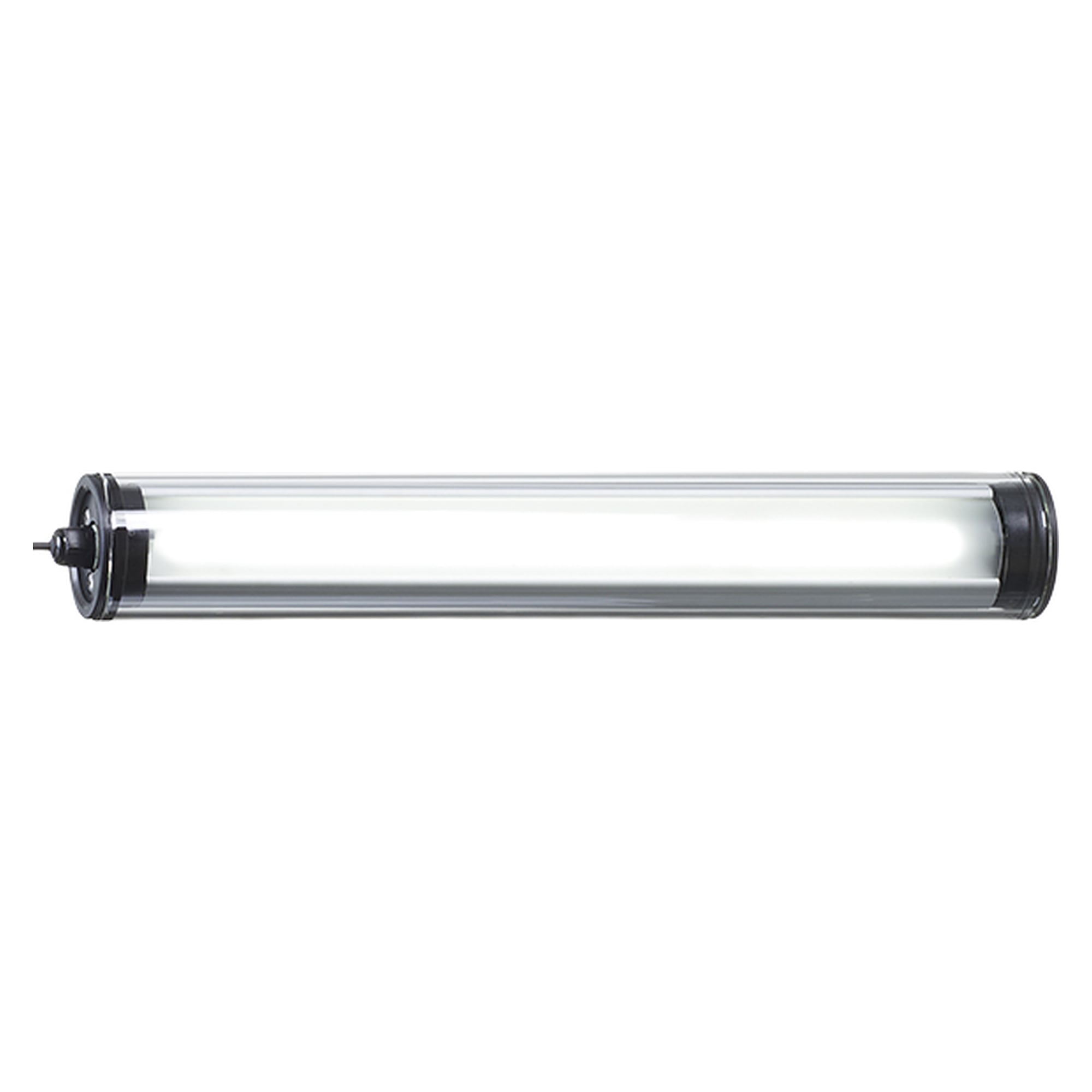

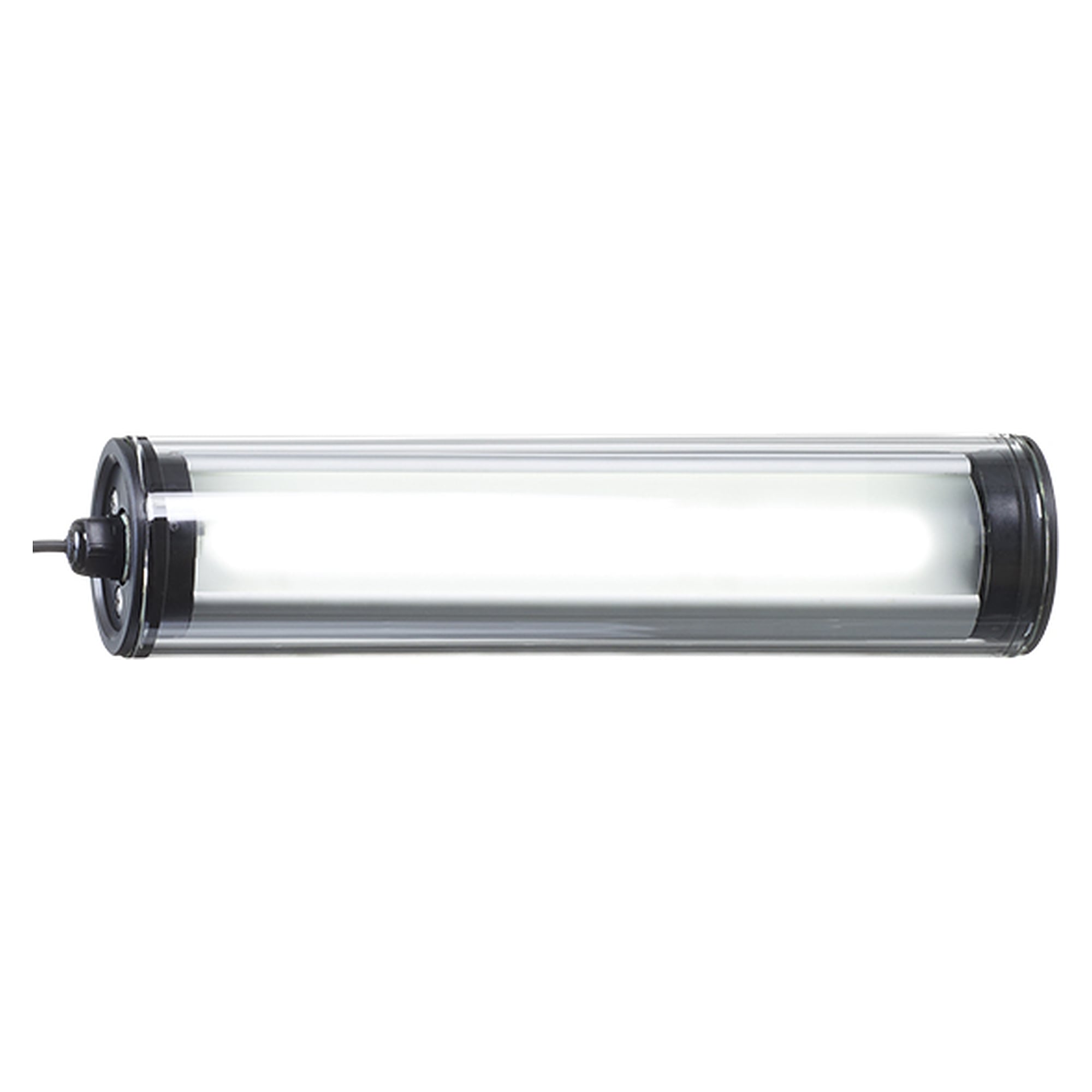

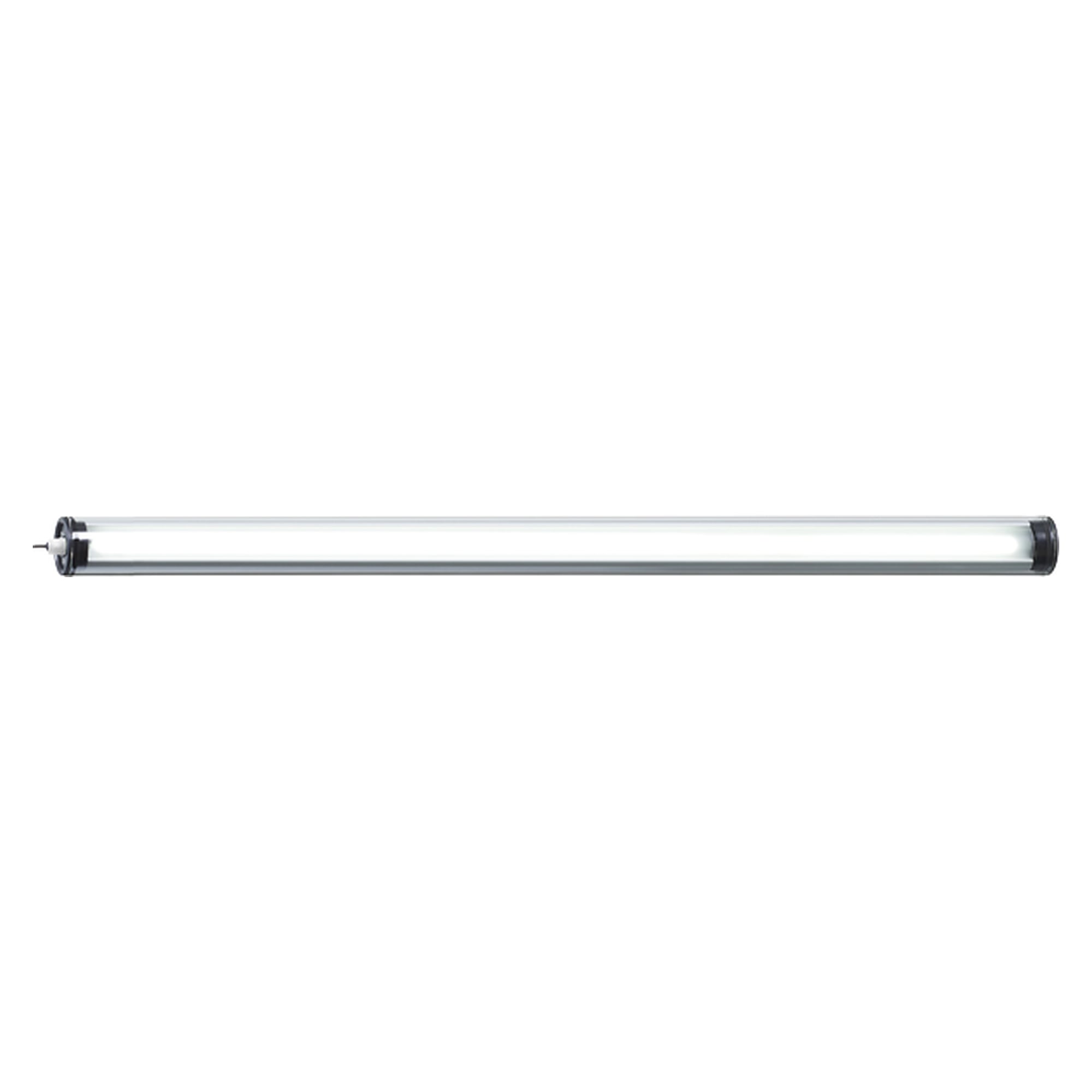

Waldmann extends the range with the RL70LE tube luminaire in 108-LED and 48-LED configurations (30 W / 2,750 lm and 25 W / 1,900 lm). For mounting, aluminium brackets (210200-02) and V4A stainless steel brackets in food-and-beverage-compliant construction (210200-09) are available. The mains connection cable (201200-01) is a 5 m PVC lead with angled connector for 230 V AC versions.

Length	24 V DC (W)	230 V AC (W)	Beam angle
354 mm	8 W (115010-01)	10 W (115010-02)	125°
513 mm	12 W (115110-01)	14 W (115110-02)	125°
650 mm	13 W (115210-01)	15 W (115210-02)	125°
921 mm	20 W (115310-01)	23 W (115310-02)	125°
1,214 mm	24 W (115410-01)	28 W (115410-02)	125°

⚙ Aluminium bracket (210200-02) - 1 pair, for standard mounting on machine frames and profiles

🛡 V4A stainless steel bracket (210200-09) - food-and-beverage compliant, corrosion-resistant

📦 Mains connection cable (201200-01) - PVC 5 m, angled connector, for 230 V AC INROLED versions

✓ Waldmann RL70LE-108D (113180000-00694637) - 30 W, 2,750 lm, for higher illumination requirements

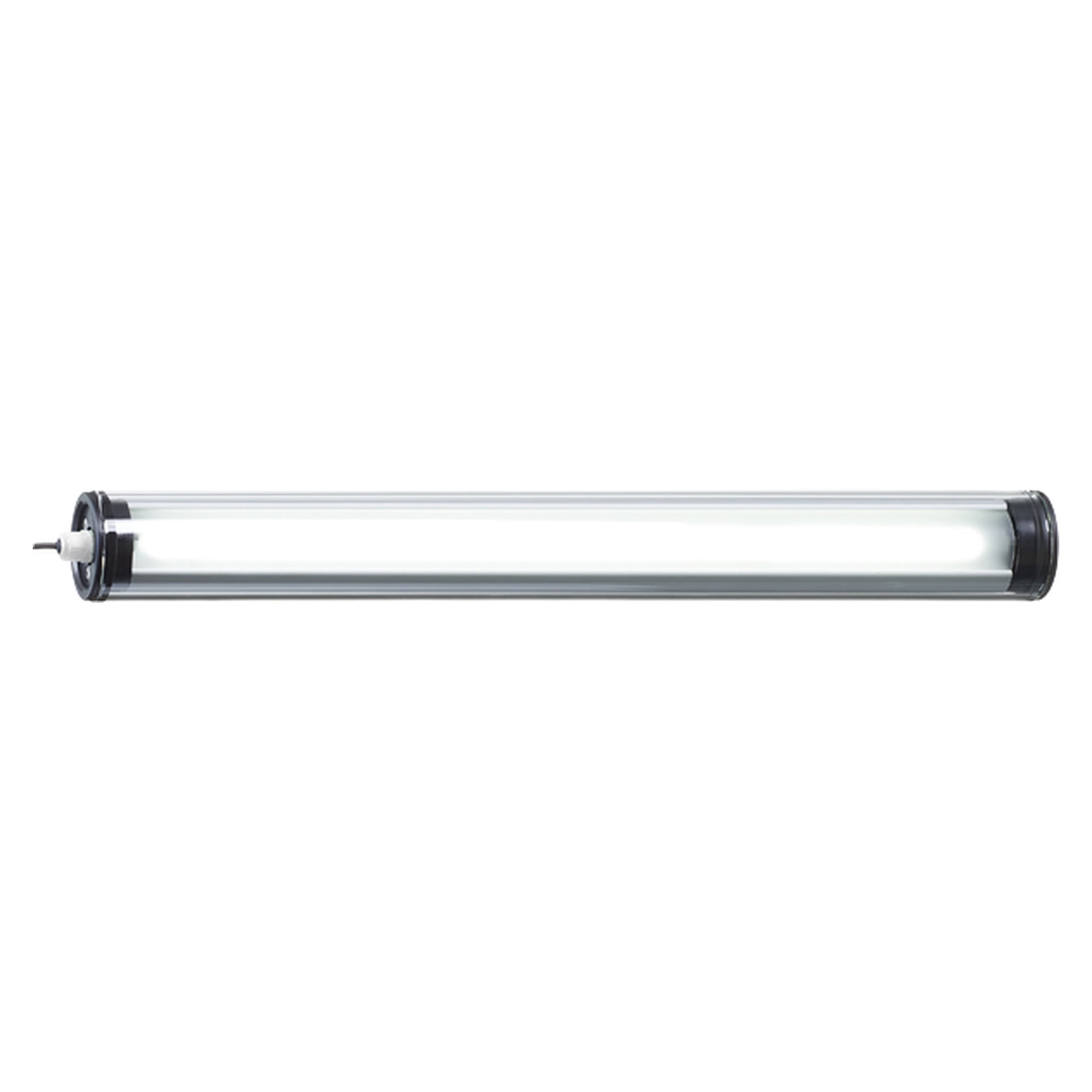

✦ Waldmann RL70LE-48N (113281000-00712026) - 25 W, 1,900 lm, compact design

Typical applications: Interior lighting of machine chambers (CNC, laser, pick-and-place machines), illumination of transport housings and roller conveyors, system tables with 24 V supply via power unit, food and pharmaceutical environments using V4A stainless brackets, and retrofitting existing machine lighting to LED technology.

What are LED tube luminaires and what industrial applications require these lighting systems?

LED tube luminaires are linear lighting fixtures designed for industrial workplaces, assembly lines, and technical environments where consistent illumination across extended work surfaces is critical. These systems typically deliver 1900-2750 lumens output with power consumption ranging from 8W to 30W, making them ideal for electronics manufacturing, precision assembly operations, quality control stations, and ESD-sensitive work areas. The 125-degree beam angle configuration provides uniform light distribution essential for detailed inspection tasks and component handling in manufacturing environments.

What technical criteria should engineers consider when selecting LED tube luminaires for industrial applications?

Industrial LED tube luminaire selection requires evaluating luminous flux output ranging from 1900-2750 lumens, power consumption specifications between 8W-30W, and available lengths from 354mm to 1214mm to match workspace dimensions. Voltage compatibility is critical with options for 24V DC low-voltage systems and 220-240V AC mains supply, while the 125-degree beam angle ensures adequate light distribution for precision work. The INROLED_70 series demonstrates these parameters with models like the 1214mm variant delivering 28W at 220-240V AC or 24W at 24V DC operation.

Which lighting standards and certifications apply to industrial LED tube luminaires in European markets?

Industrial LED tube luminaires must comply with EN 12464-1 workplace lighting standards specifying minimum illuminance levels for different task categories, typically 500-1000 lux for precision assembly work. IEC 60598 series standards govern luminaire safety requirements including electrical insulation and mechanical construction, while EN 55015 addresses electromagnetic compatibility to prevent interference with sensitive electronic equipment. ESD-compliant variants require adherence to IEC 61340-5-1 standards for electrostatic discharge control in electronics manufacturing environments where static-sensitive components are handled.

How do AC mains-powered and DC low-voltage LED tube luminaires differ in industrial applications?

AC mains-powered LED tube luminaires operate at 220-240V and typically deliver higher power output, such as the INROLED_70 1214mm model providing 28W compared to its 24V DC counterpart at 24W for the same length fixture. DC low-voltage systems at 24V offer enhanced safety in wet or hazardous environments and integrate directly with industrial control systems, while AC variants provide simpler installation using standard electrical infrastructure. The power differential becomes more pronounced in longer fixtures, with the 921mm AC model consuming 23W versus 20W for the equivalent DC version.

What installation requirements and connection methods apply to industrial LED tube luminaires?

Industrial LED tube luminaire installation requires compatible mounting hardware such as the INROLED_50 luminaire holders available in V4A stainless steel or aluminum construction for secure fixture attachment to workbenches or overhead structures. Connection methods utilize standard 5-meter PVC cables rated for 220V-240V applications with proper strain relief and environmental sealing appropriate for the installation environment. The mounting systems accommodate the 50mm diameter constraint typical of industrial lighting rails, ensuring proper mechanical support for fixtures ranging from 354mm to 1214mm lengths while maintaining electrical safety clearances.

What safety ratings and environmental specifications should be verified for LED tube luminaires in industrial settings?

Industrial LED tube luminaires require verification of IP protection class ratings typically IP54 or higher to ensure dust and moisture resistance in manufacturing environments, though specific IP classifications vary by manufacturer and application requirements. Operating temperature ranges generally span -20°C to +50°C for standard industrial applications, while specialized variants may accommodate extended temperature ranges for harsh environments. Electrical safety compliance includes protection against overcurrent and thermal runaway conditions, with double insulation construction meeting Class II safety requirements eliminating the need for protective earth connections in many installations.

What maintenance schedules and service life expectations apply to industrial LED tube luminaires?

Industrial LED tube luminaires typically provide 50,000-hour operational life expectancy under normal conditions, translating to approximately 5-7 years of continuous operation or 10-15 years with standard work shift patterns. Maintenance schedules should include quarterly cleaning of lens surfaces to maintain light output efficiency and annual inspection of electrical connections and mounting hardware to ensure continued safe operation. The solid-state LED technology eliminates lamp replacement requirements associated with traditional fluorescent systems, reducing maintenance costs while periodic luminance measurements verify maintained illumination levels meet workplace standards throughout the service life.
