Accessories Weller

Weller Soldering tools

Weller accessories and spare parts cover 216 articles for ongoing operation and maintenance of Weller soldering stations and handpieces. The range includes heating elements for MAGNASTAT TCP stations (T0051011299N, T0051011399N), heating elements for the FE50M version (T0051012199N), and magnetic switches for the TCP (T0051020199N) and W60/W61 stations (T0051130099N). Maintenance with original parts preserves calibration accuracy and standard-compliant operation of the stations throughout their service life.

⚙ MAGNASTAT heating elements - T0051011299N (TCP), T0051011399N (TCP-12), original components

✓ Magnetic switches TCP / W60/W61 - T0051020199N and T0051130099N as original spare parts

⚡ FE50M heating element - T0051012199N for the MAGNASTAT FE50M version

↕ 216 articles - complete Weller accessories and spare parts range in stock

Part number	Component	Compatible station
T0051011299N	Heating element	MAGNASTAT TCP
T0051011399N	Heating element	MAGNASTAT TCP-12
T0051012199N	Heating element	MAGNASTAT FE50M
T0051020199N	Magnetic switch	TCP
T0051130099N	Magnetic switch	W60 / W61

Typical applications: Maintenance and repair of Weller MAGNASTAT soldering stations in continuous operation, replacement of heating elements and magnetic switches following thermal overload or wear, servicing in electronics production and repair workshops using certified Weller original parts, and spare parts provision for EPA-compliant workstations.

What are Weller soldering accessories and what industrial applications do they serve?

Weller soldering accessories are precision support equipment including PCB holders, preheating plates, heating elements, and specialized tools designed for professional electronics manufacturing and repair operations. These accessories serve SMT assembly lines, electronics repair workshops, aerospace manufacturing, automotive electronics production, and medical device assembly facilities where precise temperature control and component positioning are critical. The WBH-3000 PCB holders and WHP series preheating plates ranging from 80W to 1000W enable complex multilayer board assembly processes requiring controlled thermal profiles and mechanical stability during soldering operations.

What are the key technical selection criteria for Weller preheating plates and PCB holders?

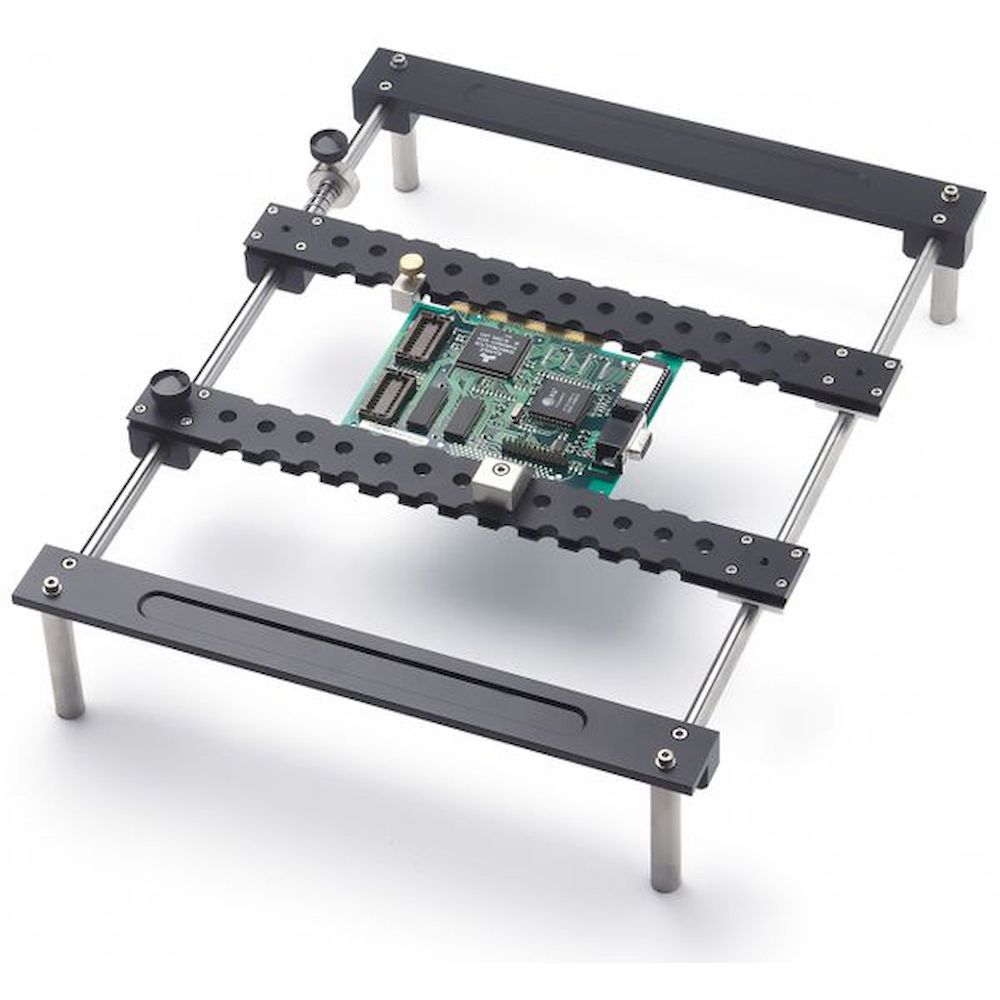

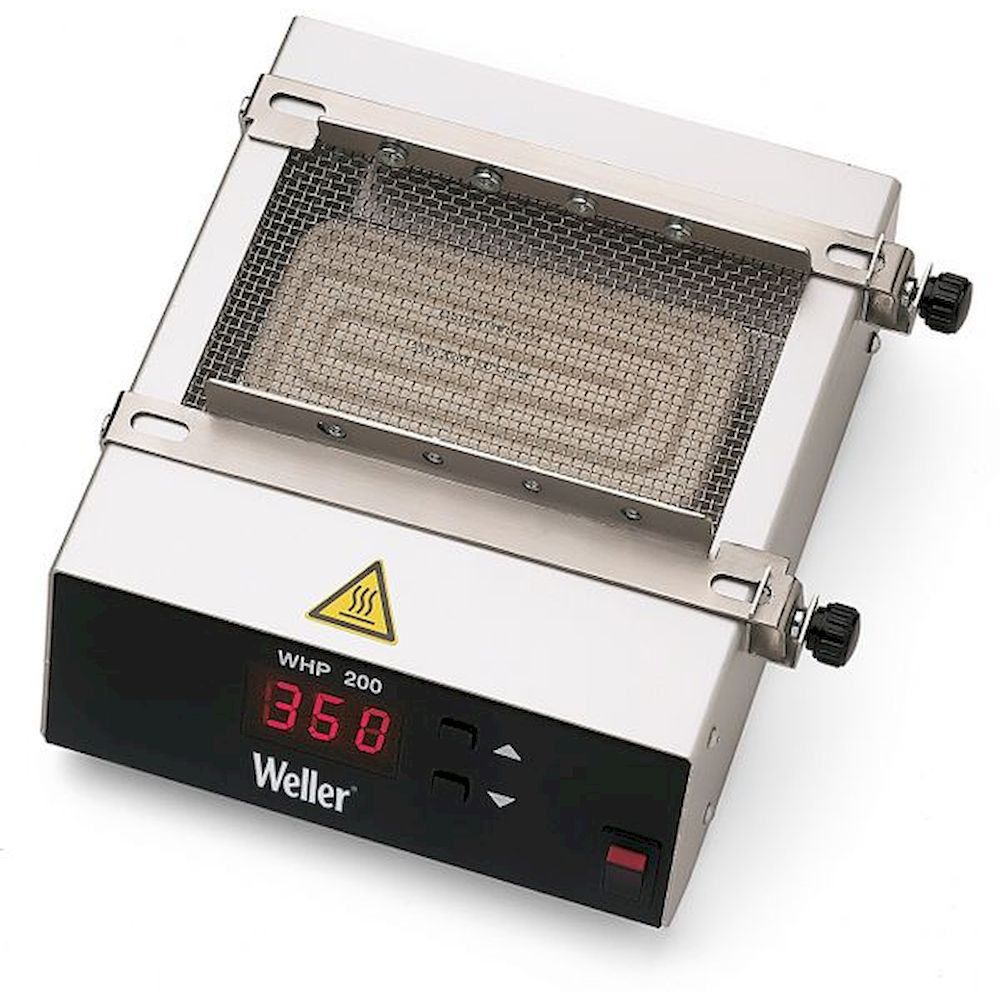

Selection of Weller preheating accessories depends on board size, power requirements, and thermal management needs with preheating plates available in 80W, 120W, 200W, 600W, and 1000W power ratings. The WHP-3000 infrared preheating plate delivers 600W with Easy Fix PCB holder integration for automated positioning, while the WHP 1000 provides 1000W heating capacity for large assemblies. PCB holder selection between WBH-2, WBH-3000, and WBHS models depends on board dimensions, component height clearance, and whether stand mounting or benchtop integration is required for the specific production environment.

Which international standards apply to Weller soldering accessories for professional use?

Weller soldering accessories comply with IEC 60950-1 for electrical safety in information technology equipment and ISO 9001 quality management standards for consistent manufacturing processes. The heating elements and preheating plates meet EN 61000-6-2 electromagnetic compatibility requirements for industrial environments and RoHS directive compliance for lead-free soldering applications. Temperature control systems in preheating plates adhere to IEC 61010-1 safety requirements for electrical equipment used in measurement and laboratory environments, ensuring reliable operation in professional electronics manufacturing facilities.

What are the differences between WHP series preheating plates and WXHP models?

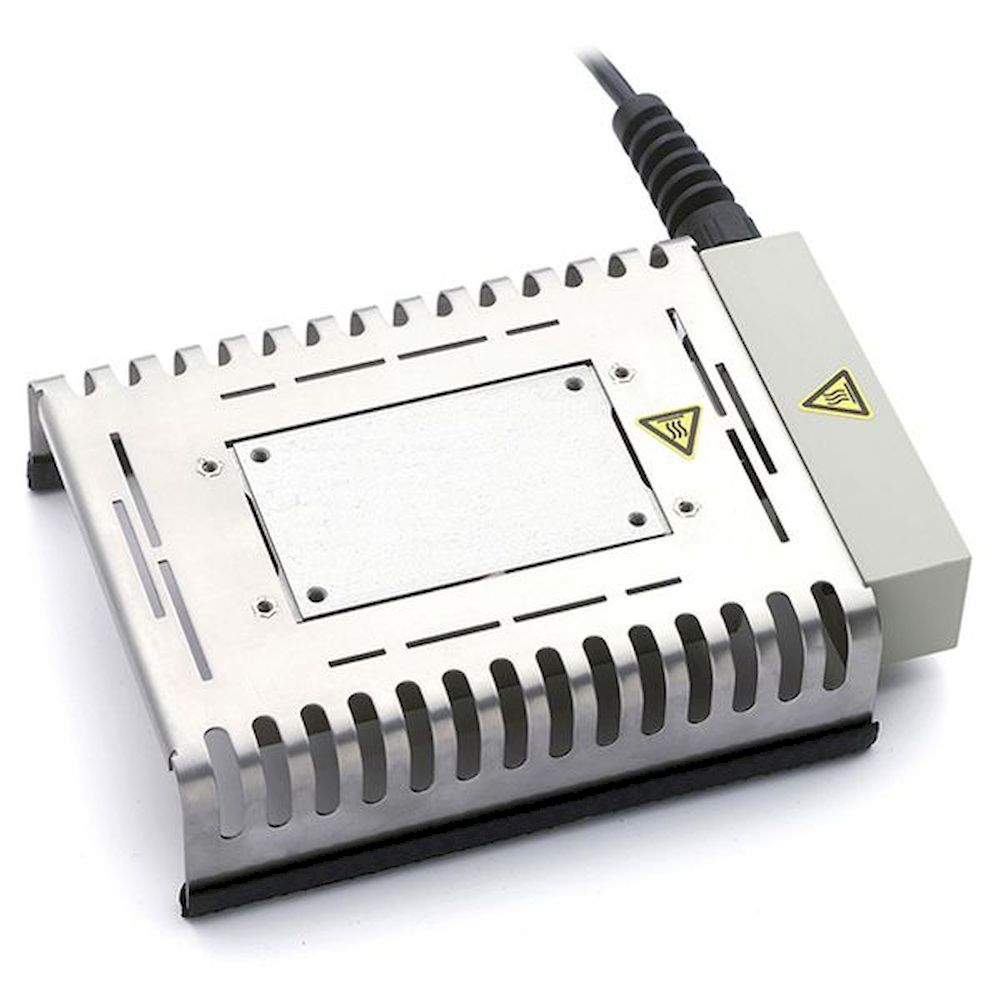

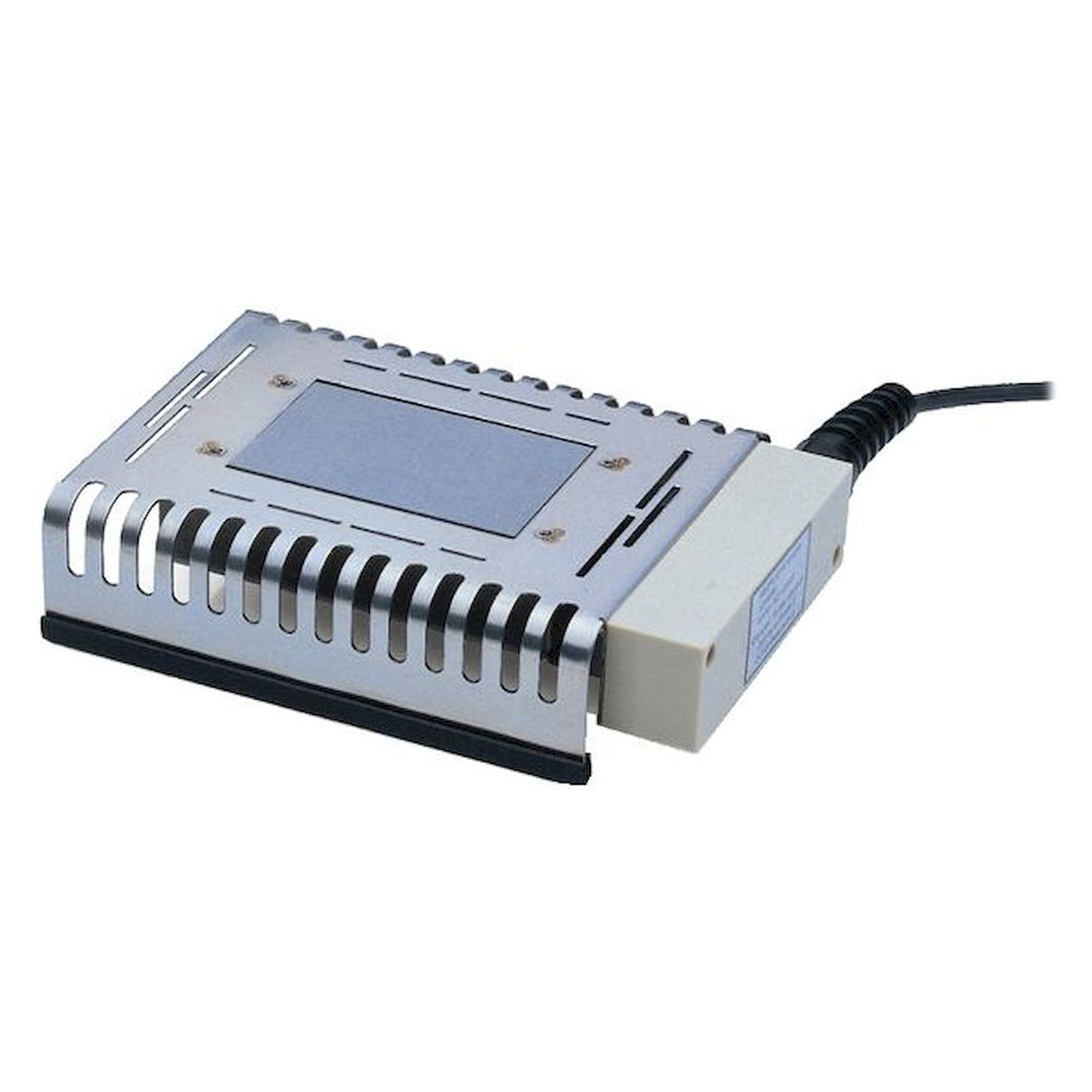

WHP series preheating plates feature infrared heating technology with power ratings from 200W to 1000W and integrated Easy Fix PCB holder systems for automated board positioning and consistent thermal transfer. The WXHP-120 model delivers 120W heating specifically designed for assembled PCB rework applications with direct contact heating rather than infrared radiation. WHP-3000 operates at 600W with infrared heating for uniform temperature distribution across large board areas, while WHP 80 provides metal plate contact heating at 80W for smaller assemblies requiring precise localized heating control.

What installation requirements and system compatibility considerations apply to Weller accessories?

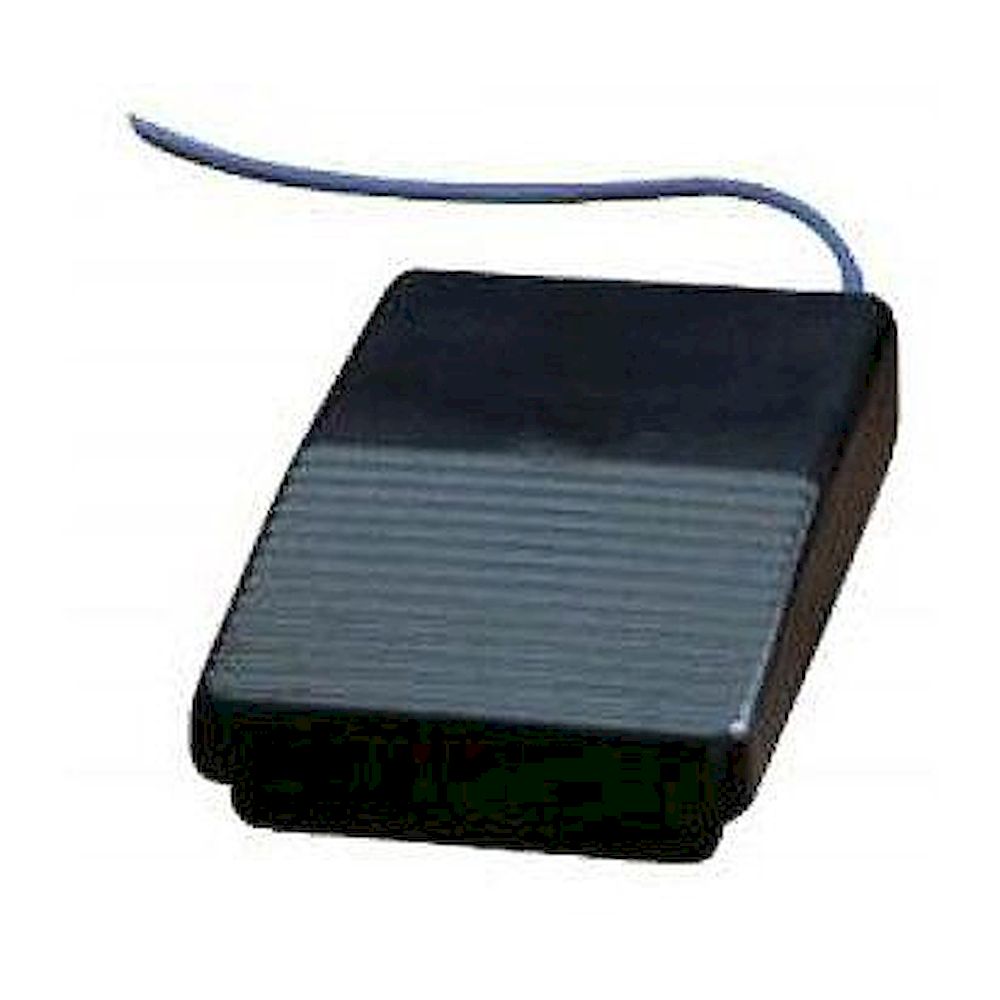

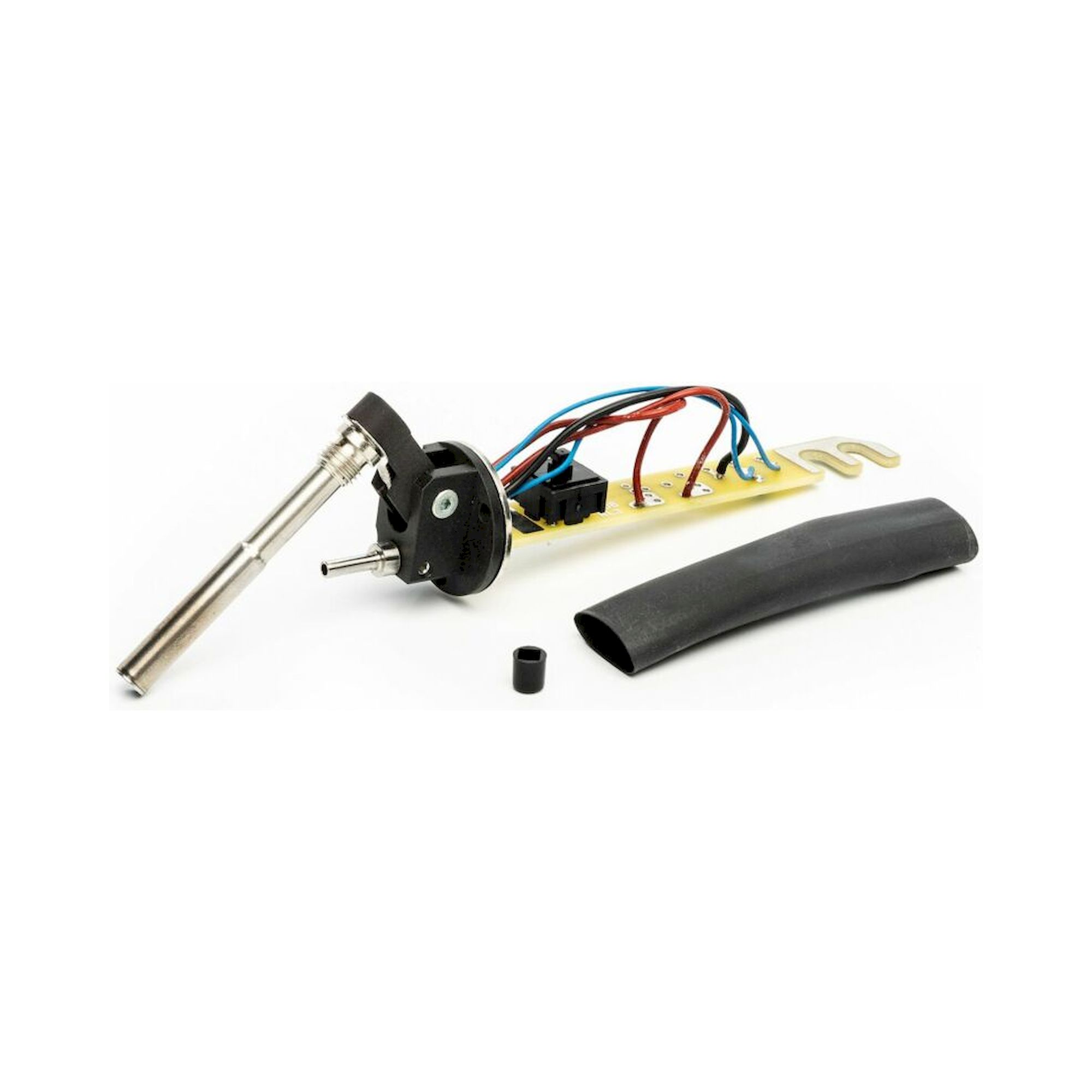

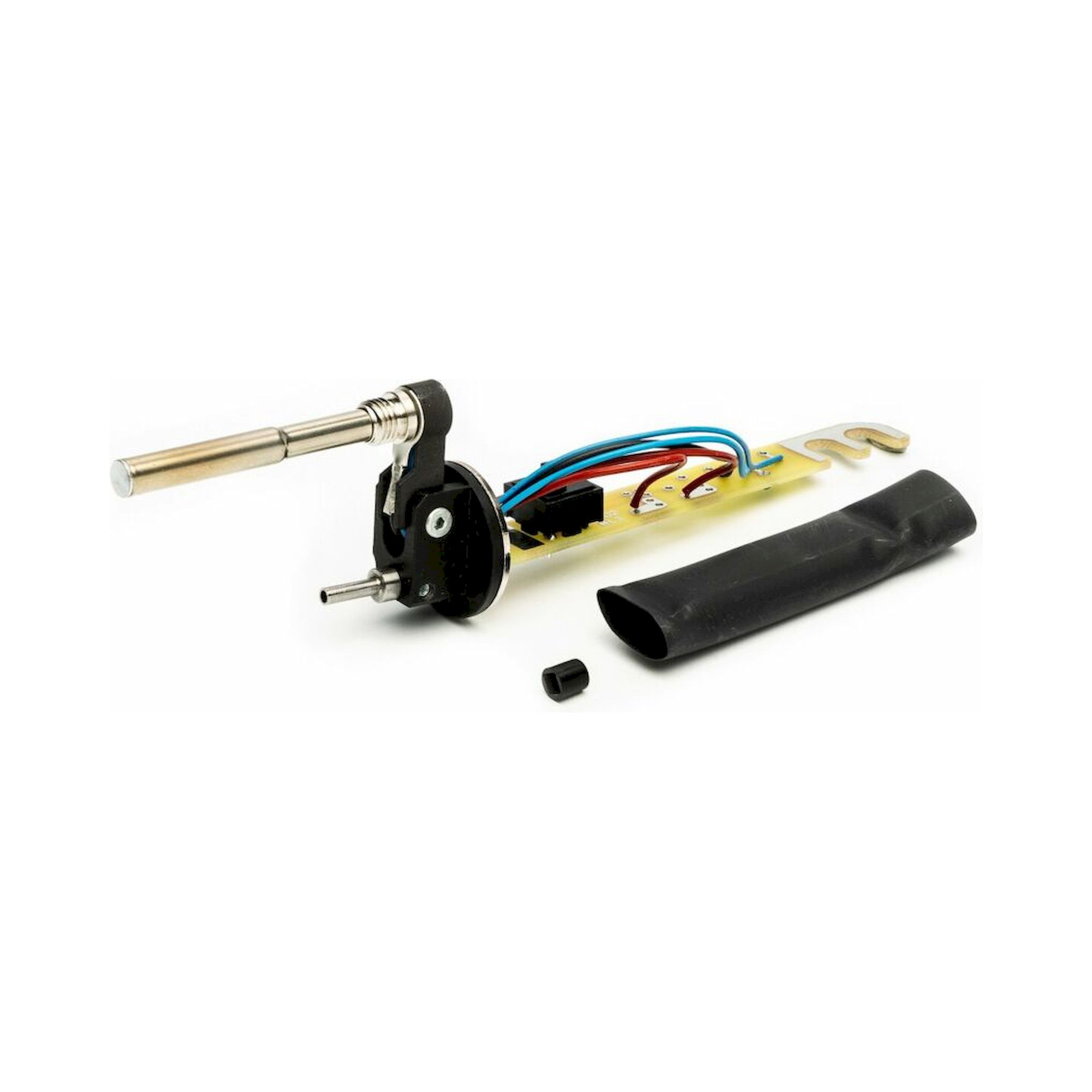

Weller preheating plates require 230V AC power supply with dedicated circuit protection and proper ventilation clearance of minimum 100mm on all sides for infrared models like WHP-3000 and WHP 1000. PCB holders including WBH-3000 and WBHS models integrate with WHA 3000P, WHA 3000V, and WTHA 1 soldering stations through standardized mounting interfaces and require stable benchtop surfaces capable of supporting 15kg static load. Heating elements for WSFP-5 and WSFP-8 systems connect via proprietary quick-disconnect terminals and require compatible temperature controller modules for proper thermal regulation and safety shutdown functions.

What safety ratings and operating temperature ranges apply to Weller soldering accessories?

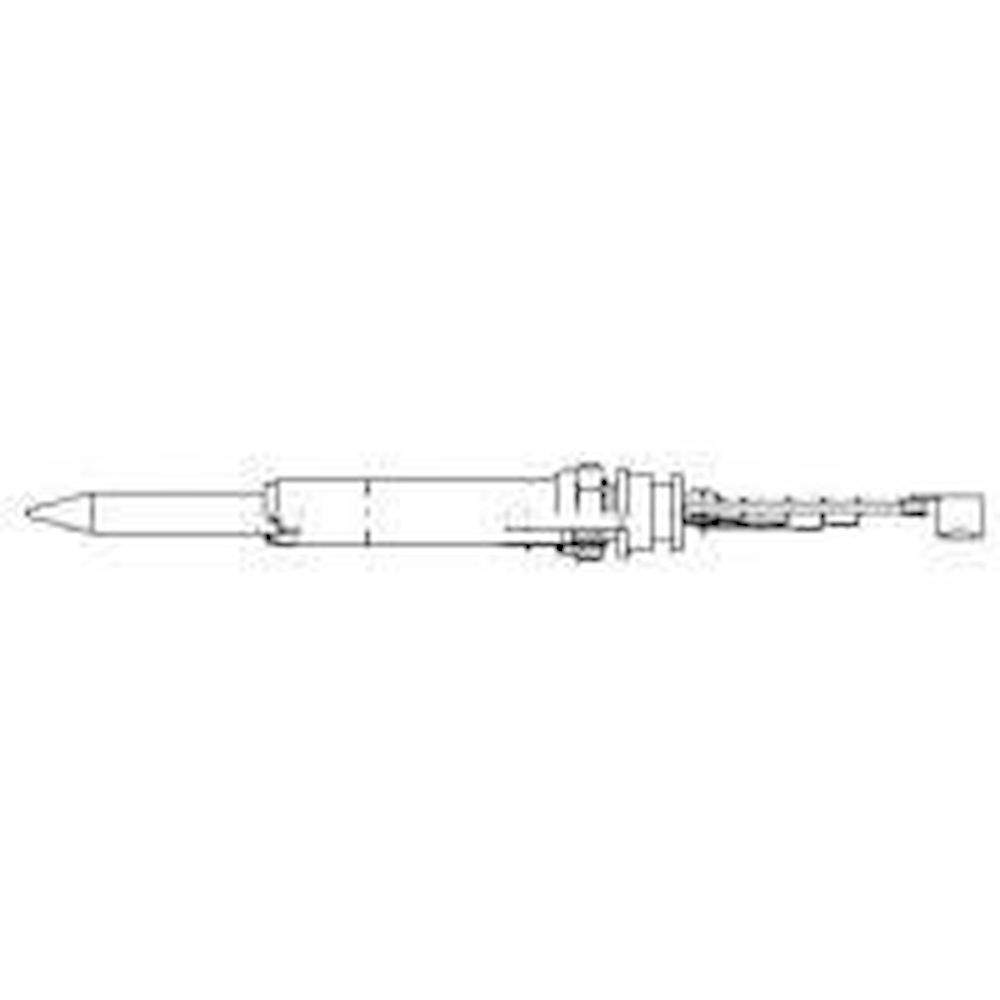

Weller preheating plates operate safely in ambient temperatures from 5°C to 40°C with surface temperatures reaching 200°C for the WHP 1000 model and 180°C for lower wattage variants. The heating elements including HERX 120 maintain IP20 ingress protection rating suitable for controlled workshop environments and incorporate thermal cutoff protection at 250°C maximum operating temperature. PCB holders and mechanical accessories function reliably in industrial environments with operating humidity up to 80% relative humidity non-condensing and vibration resistance meeting IEC 60068-2-6 standards for transportation and installation handling.

What maintenance schedules and service life expectations apply to Weller soldering accessories?

Weller preheating plates require monthly cleaning of heating surfaces using isopropyl alcohol and quarterly inspection of power cord integrity and temperature calibration verification using certified reference thermometers. Heating elements in WSFP systems typically provide 2000-3000 hours service life under normal operating conditions and require replacement when temperature deviation exceeds ±5°C from setpoint. PCB holders and mechanical accessories need semi-annual lubrication of adjustment mechanisms and annual inspection of clamping force consistency, with replacement of wear components like springs and friction pads recommended every 18-24 months in high-volume production environments.
