What are ERSA desoldering tips used for?

ERSA desoldering tips are used for precise solder removal in electronic repairs and assembly.

Are ERSA desoldering tips durable?

Yes, ERSA desoldering tips are known for their durability and reliability in professional electronics work.

Where can I buy ERSA desoldering tips 228?

ERSA desoldering tips 228 can be purchased at ESD Equipment's online store.

What size are the ERSA desoldering tips 228?

The ERSA desoldering tips 228 are designed for precise and efficient solder removal.

Can I use ERSA desoldering tips for all soldering stations?

ERSA desoldering tips are compatible with specific ERSA soldering stations. Check compatibility before purchasing.

How do I maintain ERSA desoldering tips?

To maintain ERSA desoldering tips, clean them regularly and store them in a dry place after use.

What materials are ERSA desoldering tips made of?

ERSA desoldering tips are made of high-quality materials for effective heat transfer and longevity.

Soldering and desoldering tips

Ersa Soldering Technology

Ersa soldering and desoldering tips are precision-machined from copper alloy and coated with iron-clad nickel-chrome layers for tip life spans exceeding 50,000 solder joints under continuous operation. Each series is model-specific - tip geometry, bore diameter, and thermal mass are matched to the iron's heating element to deliver tip temperatures stable within ±2 °C at set point. Operating temperatures range from 150 °C to 450 °C depending on series and iron model, covering fine-pitch SMT rework down to 0.3 mm pitch as well as heavy through-hole desoldering on leads up to 3.5 mm diameter. All Ersa tips comply with IEC 61010-1 for hand-held soldering tools and meet ESD-safe handling requirements per IEC 61340-5-1 when used with properly grounded Ersa stations.

As an authorised Ersa distributor, esd.equipment stocks 250 soldering and desoldering tip references spanning 11 dedicated series - from the i-Tool Series 102 and i-Tool TRACE/MK2 Series 142 through to the X-Tool Series 722 and CT80 Series 662 desoldering nozzles. Each series is listed by compatible iron or desoldering tool, making cross-referencing straightforward for service technicians, PCB rework specialists, and production engineers operating under IPC-7711/7721 rework standards.

Ersa Tip Series - Product Overview by Compatible Iron

Tip Series	Compatible Iron / Tool	Application	Key Spec
Series 102	i-Tool (80 W)	General SMT & through-hole soldering	Multiple geometries, ±2 °C stability
Series 142	i-Tool TRACE & MK2	Traceable rework (IPC-7711/7721)	Traceability ID chip, ±2 °C

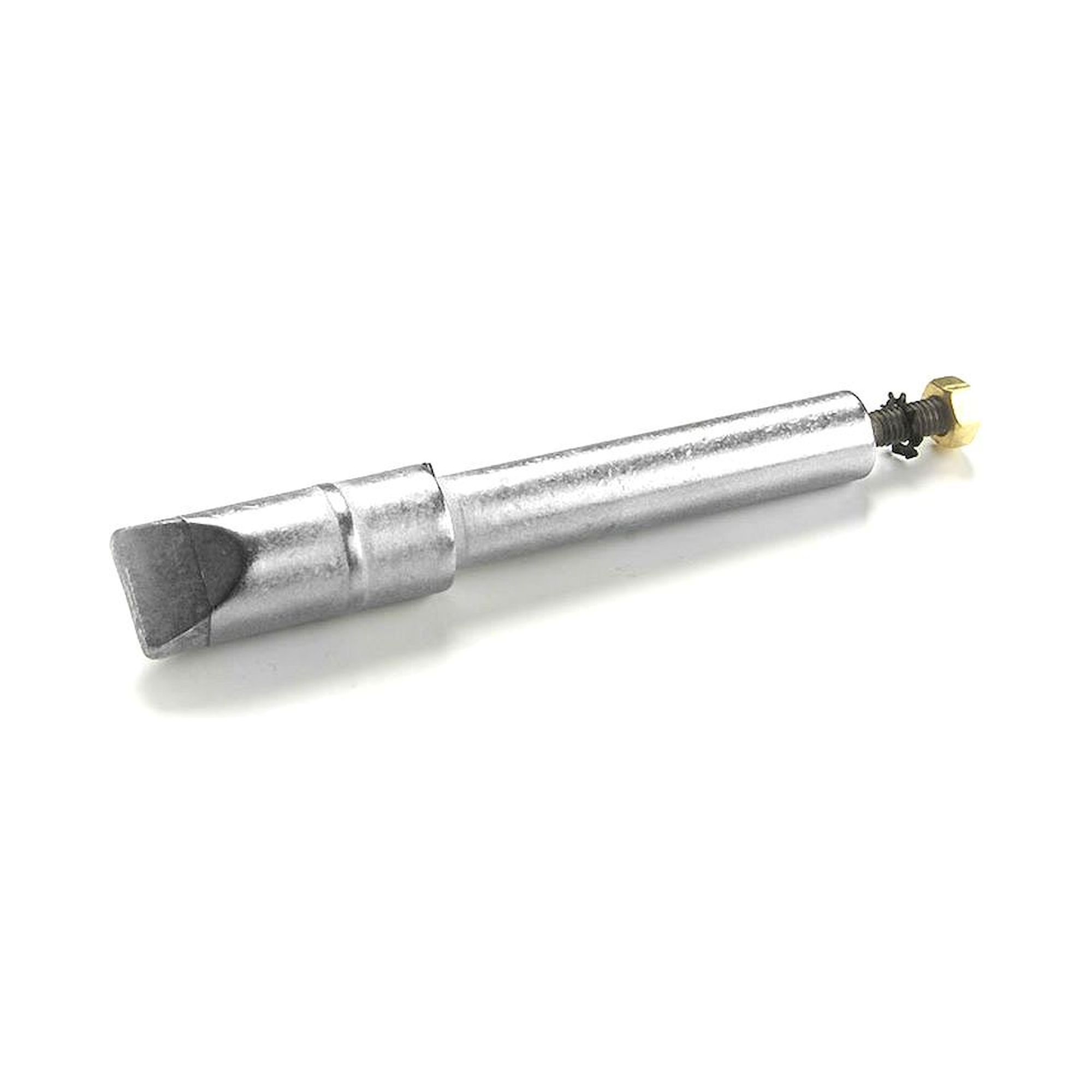

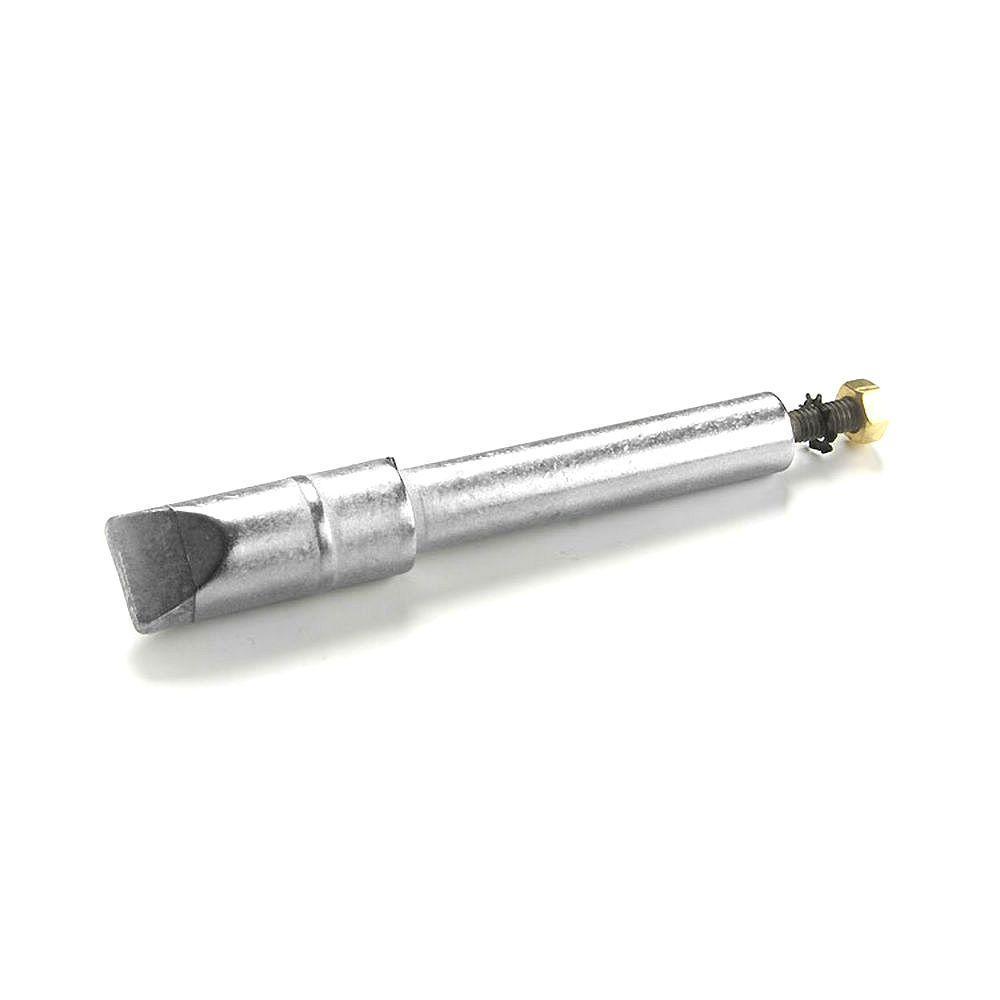

Series 202	200er Hammer Iron	Medium through-hole & connector soldering	Chisel, bevel, conical tips, 150-450 °C

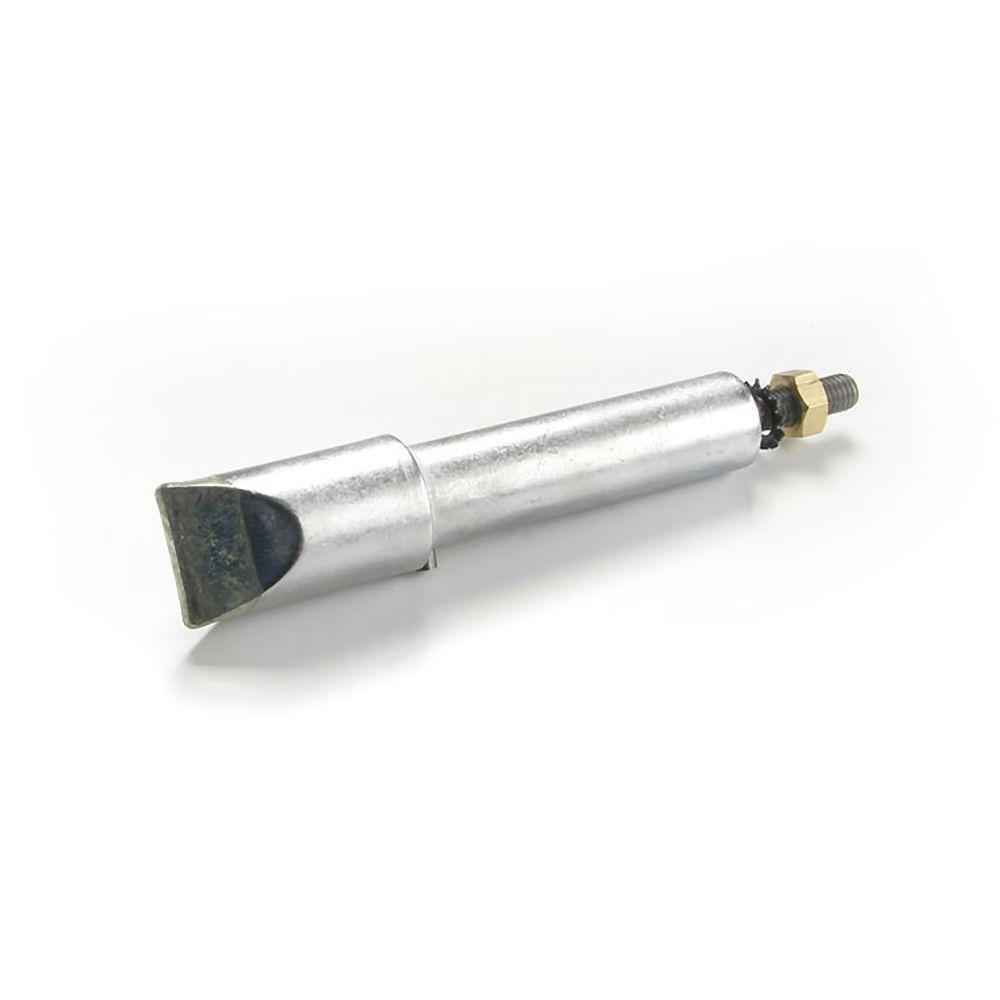

Series 302	300er Hammer Iron	Heavy through-hole, bus bars, terminals	Lead diameter up to 3.5 mm
Series 552	550er Hammer Iron	High-mass assemblies, connectors	High thermal mass tips, sustained heat transfer

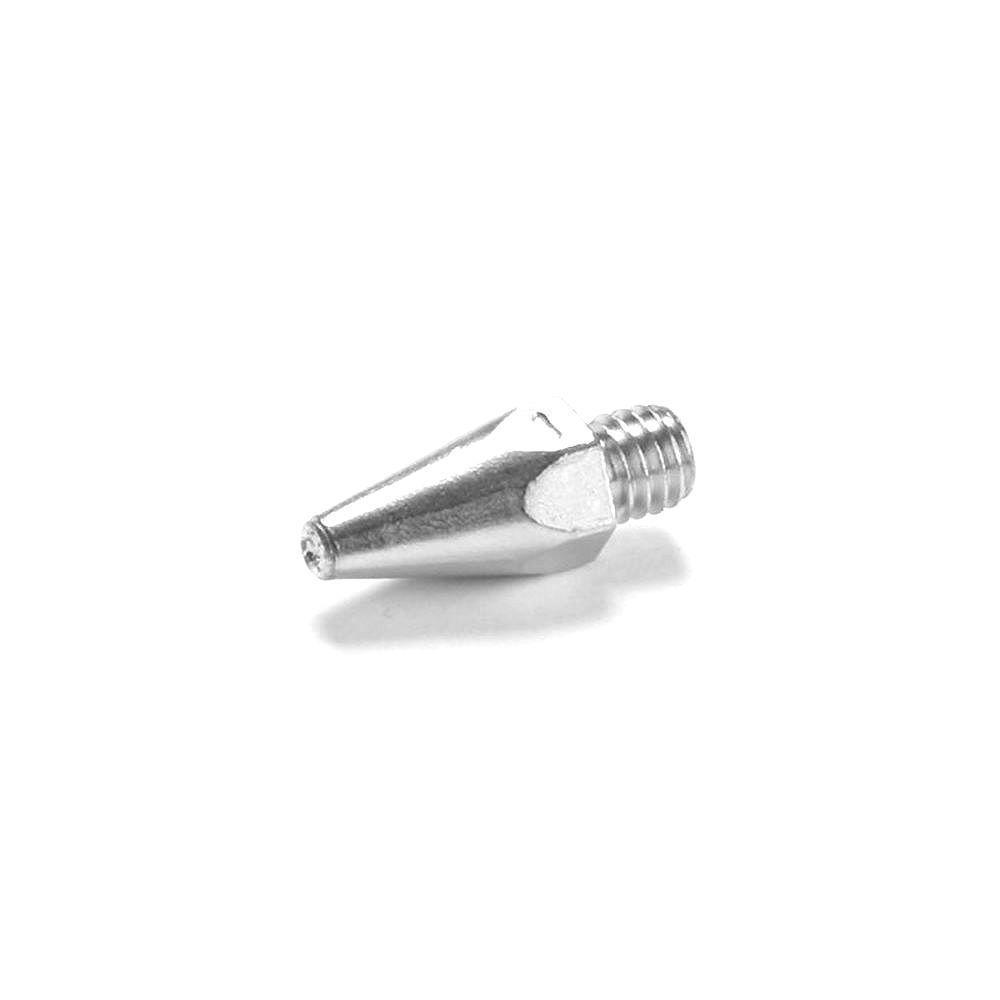

Series 662	CT80 Desoldering Tool	Vacuum desoldering, PCB rework	Bore 0.8-2.4 mm nozzle tips
Series 722	X-Tool Desoldering Station	High-volume through-hole desoldering	Bore 0.8-3.0 mm, ESD-safe
Series 422/452	Chip-Tool Tweezers	SMD chip placement & removal	Matched pairs, 0402 to 1206 packages

Typical application areas: Electronics manufacturing SMT rework (IPC-7711/7721, IPC-A-610), through-hole PCB repair and rework (IEC 61010-1), semiconductor device assembly (SEMI S1/S2), automotive electronics production (IATF 16949, VDA 6.3), medical device PCB assembly (ISO 13485), aerospace avionics rework (AS9100), laboratory & prototype soldering, field service and maintenance repair operations

✓ Authorised Ersa Distributor250 Ersa tip references - Series 012, 102, 142, 202, 302, 422/452, 552, 662, 722, 832 & G072

???? Model-Matched Tip SelectionEvery tip series keyed to a specific Ersa iron or desoldering unit - no compatibility guesswork

???? IEC 61010-1 & ESD SafeCertified for use in ESD-protected areas (IEC 61340-5-1) - tip-to-ground <1 Ω with grounded station
