What are ESD warning vests and where are they primarily used in industrial applications?

ESD warning vests are high-visibility safety garments manufactured with conductive materials to prevent electrostatic discharge while maintaining worker visibility in industrial environments. These specialized garments combine EN ISO 20471 high-visibility requirements with IEC 61340-5-1 electrostatic discharge protection, making them essential for electronics manufacturing, semiconductor facilities, petrochemical plants, and pharmaceutical production areas where both static control and worker safety visibility are mandatory. The conductive fibers woven into the fluorescent fabric create a controlled path for static electricity dissipation while meeting workplace safety regulations for high-traffic industrial zones.

What technical specifications should be considered when selecting ESD warning vests for industrial use?

ESD warning vest selection requires evaluating surface resistance values typically between 10^6 to 10^9 ohms per square, fabric weight ranging from 120-180 g/m², and retroreflective tape placement meeting Class 2 or Class 3 visibility standards. The Safeguard series available in sizes from S/M through 4XL/5XL demonstrates proper sizing considerations, while material composition must balance conductivity with durability for industrial washing cycles. Critical parameters include charge decay time under 2 seconds per IEC 61340-2-3 testing, fabric tear strength exceeding 40N, and colorfast properties maintaining fluorescent visibility after minimum 50 wash cycles at 60°C industrial laundry standards.

Which international standards and certifications apply to ESD warning vests in industrial environments?

ESD warning vests must comply with IEC 61340-5-1 for electrostatic discharge control in electronics handling areas and EN ISO 20471 for high-visibility warning clothing performance requirements. Additional relevant standards include ANSI/ESD S20.20 for ESD control programs, EN 1149-5 for electrostatic properties of protective clothing, and EN ISO 14116 for limited flame spread properties when used in environments with ignition risks. ATEX Directive 2014/34/EU applies when these garments are used in explosive atmospheres, requiring specific material certification and regular testing protocols to maintain compliance across European industrial facilities.

What are the key differences between orange and neon yellow ESD warning vest variants available?

Orange ESD warning vests typically meet EN ISO 20471 Class 2 requirements with photopic luminance factor of 0.2 minimum, while neon yellow variants like the Safeguard SG-WE-GB-PVC series achieve higher visibility coefficients of 0.4-0.7 photopic luminance for Class 3 applications. The color selection impacts workplace compliance, with orange preferred in construction and road work environments per local regulations, while neon yellow provides superior visibility in warehouse and manufacturing settings with artificial lighting. Both variants maintain identical electrostatic properties with surface resistance values between 10^7-10^8 ohms, but differ in retroreflective tape configuration and fabric treatment processes affecting durability in specific industrial washing protocols.

What installation and system compatibility requirements exist for implementing ESD warning vests in industrial facilities?

ESD warning vest implementation requires integration with existing facility grounding systems through conductive flooring rated at 2.5 x 10^4 to 10^9 ohms and proper grounding straps or heel grounders maintaining skin-to-ground resistance below 3.5 x 10^7 ohms per ANSI/ESD S20.20 protocols. The garments must be compatible with clean room environments meeting ISO 14644 classifications, requiring specialized laundering with antistatic detergents and ionized rinse water to maintain surface conductivity. Installation procedures include establishing controlled access points with resistance testing equipment, implementing daily continuity checks using ESD meters calibrated to IEC 61340-5-1 standards, and ensuring proper storage in antistatic garment bags to prevent contamination between use cycles.

What safety ratings and environmental operating limits apply to ESD warning vests in industrial use?

ESD warning vests maintain electrostatic protection properties within operating temperature ranges of -10°C to +60°C with relative humidity levels between 12% to 90% per IEC 61340-5-1 environmental testing standards. The retroreflective tape components retain minimum 330 cd/lx/m² coefficient of retroreflection after 25 wash cycles at 60°C, while the conductive fabric maintains surface resistance stability within one order of magnitude across this temperature range. Safety ratings include flame resistance to EN ISO 14116 Index 1 for limited flame spread, chemical resistance to common industrial solvents per EN 374 testing, and UV degradation resistance maintaining fluorescent properties for minimum 100 hours xenon arc exposure equivalent to 12 months outdoor service life.

What maintenance schedules and inspection requirements are necessary for ESD warning vests in industrial applications?

ESD warning vests require daily visual inspection for fabric damage, retroreflective tape integrity, and surface contamination, with formal electrical testing using calibrated ESD meters every 30 days to verify surface resistance remains within 10^6 to 10^9 ohm specifications per IEC 61340-5-1 protocols. Industrial washing must occur every 5-10 wear cycles using antistatic detergents at maximum 60°C with complete air drying to prevent thermal damage to conductive fibers, while quarterly audits should document resistance measurements and photometric testing of retroreflective elements. Service life typically extends 18-24 months under normal industrial conditions with proper maintenance, requiring replacement when surface resistance exceeds specification limits, retroreflective performance drops below 150 cd/lx/m², or fabric shows signs of permanent contamination affecting electrostatic properties.

Other ESD clothing

ESD clothing

ESD warning vests combine high-visibility safety requirements with electrostatic discharge protection in a single garment - surface resistance values of 10⁵-10⁹ Ω (per IEC 61340-5-1) ensure that wearers remain within EPA-compliant charge dissipation limits while retaining the retroreflective strips mandated by EN ISO 20471 Class 1-2. Lightweight polyester-grid constructions keep volume resistivity below 1 x 10⁷ Ω/sq, preventing charge accumulation even during rapid movement in pick-and-place or conveyor-side assembly tasks.

esd.equipment stocks 12 ESD warning vest variants from established ESD apparel manufacturers, each verified against IEC 61340-5-1 and IEC 61340-5-2 for use within controlled EPA (Electrostatic Protected Area) environments. All garments meet CE marking requirements and are suitable for integration into full ESD workwear programs alongside coats, smocks, and wrist strap systems.

Key technical advantages - ESD Warning Vests at a glance

⚡ 10⁵-10⁹ Ω surface resistance - IEC 61340-5-1 compliant EPA garment

🛡 EN ISO 20471 retroreflective strips - high-visibility Class 1-2 safety requirement met

🛠 Polyester-grid construction - breathable, lightweight, suitable for long shifts

⚙ EPA system grounding ready - compatible with wrist straps and ESD footwear programs

✓ IEC 61340-5-2 verified - user guide compliance for controlled ESD protected areas

🔍 CE marked - fully documented for quality-system integration (ISO 9001, ISO 13485)

ESD Warning Vest - Product Overview

Feature	ESD Warning Vest	Standard Warning Vest	ESD Smock / Coat
Surface resistance	10⁵-10⁹ Ω	Not specified	10⁵-10⁹ Ω
High-visibility strips	Yes - EN ISO 20471	Yes - EN ISO 20471	No
EPA suitability (IEC 61340-5-1)	Yes	No	Yes
Typical application	Logistics, warehouse, conveyor-side EPA	General warehouse / traffic areas	Cleanroom, assembly benches
Garment coverage	Upper body - open front, adjustable	Upper body - open front	Full upper body with sleeves
CE marking	Yes	Yes	Yes

Typical applications: Electronics manufacturing and SMT line logistics (IEC 61340-5-1, IPC-A-610), semiconductor fab material handling (SEMI S1/S2), automotive assembly and intralogistics (IATF 16949, VDA 6.3), medical device production and warehouse operations (ISO 13485), aerospace component kitting and stores (AS9100)

✓

IEC 61340-5-1 Compliant Surface resistance 10⁵-10⁹ Ω - verified for EPA use

📦

12 Variants in Stock Ready to ship - multiple sizes and configurations available

🛡

Dual Safety Compliance EN ISO 20471 high-visibility and IEC 61340-5-2 ESD user guide in one garment

Add to Wish List Add to Compare

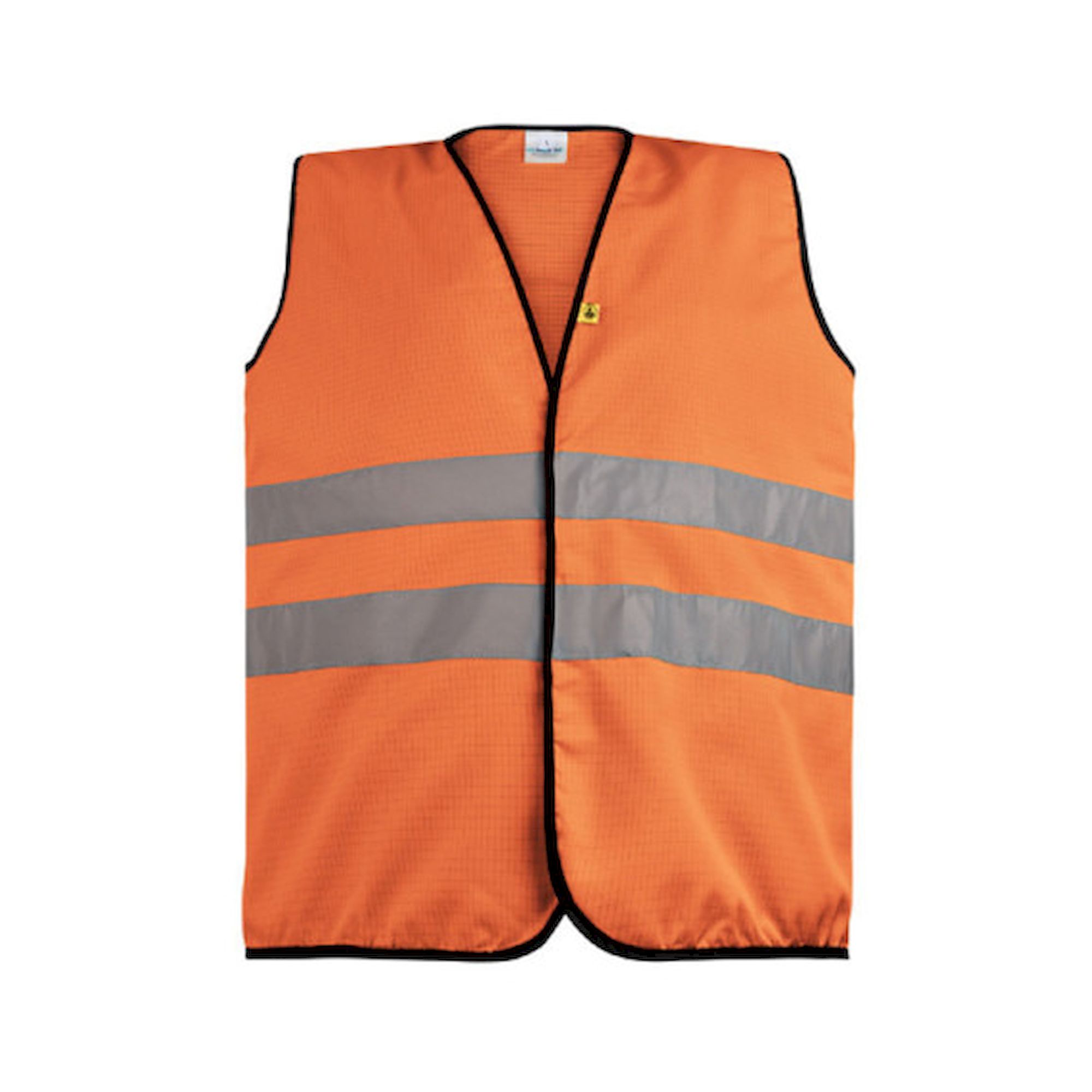

ESD-Warnweste orange
€30.92
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste orange
€30.92
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste orange
€30.92
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste orange
€30.92
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

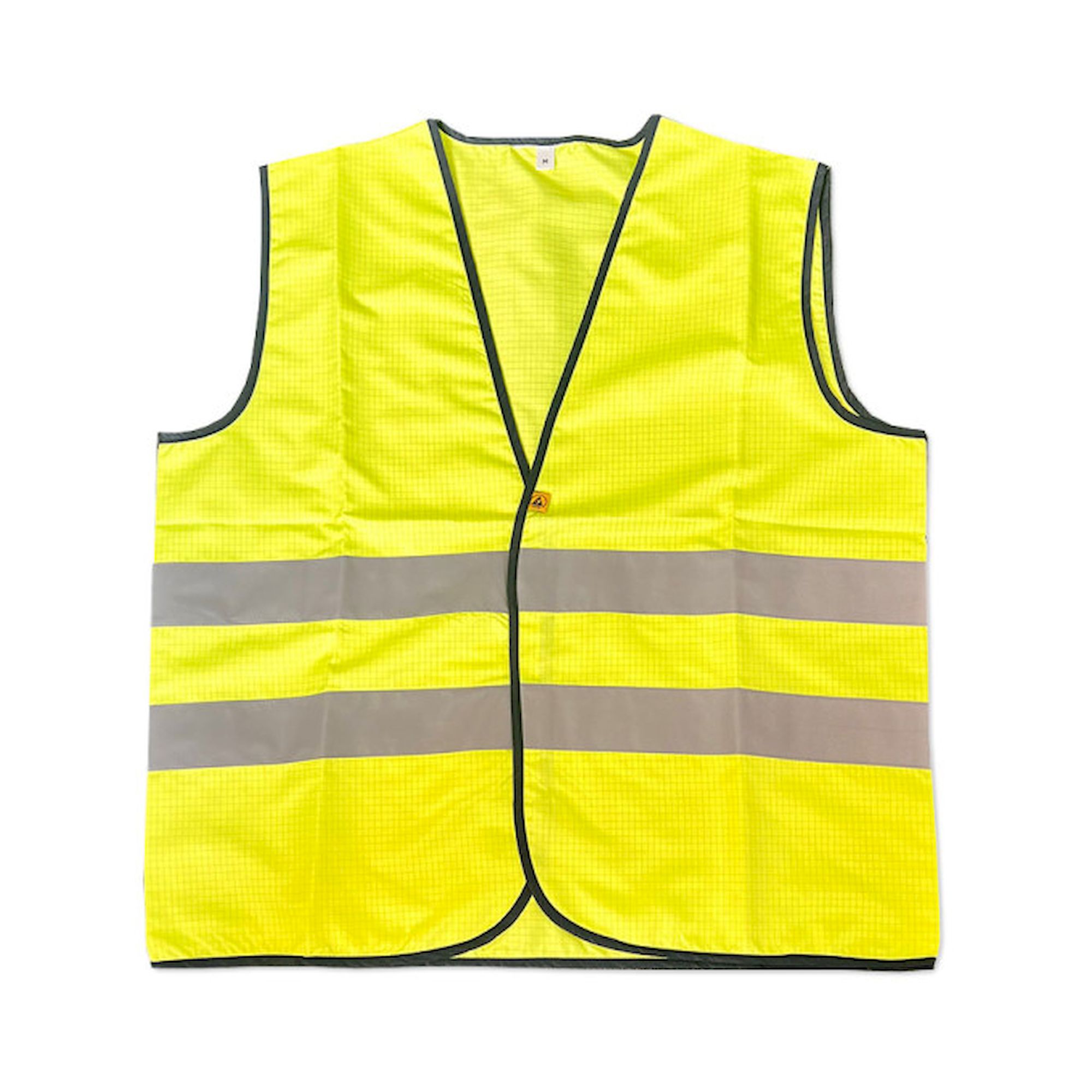

ESD-Warnweste neongelb
€28.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste neongelb
€28.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste neongelb
€28.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste neongelb
€28.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD-Warnweste neongelb
€28.90
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

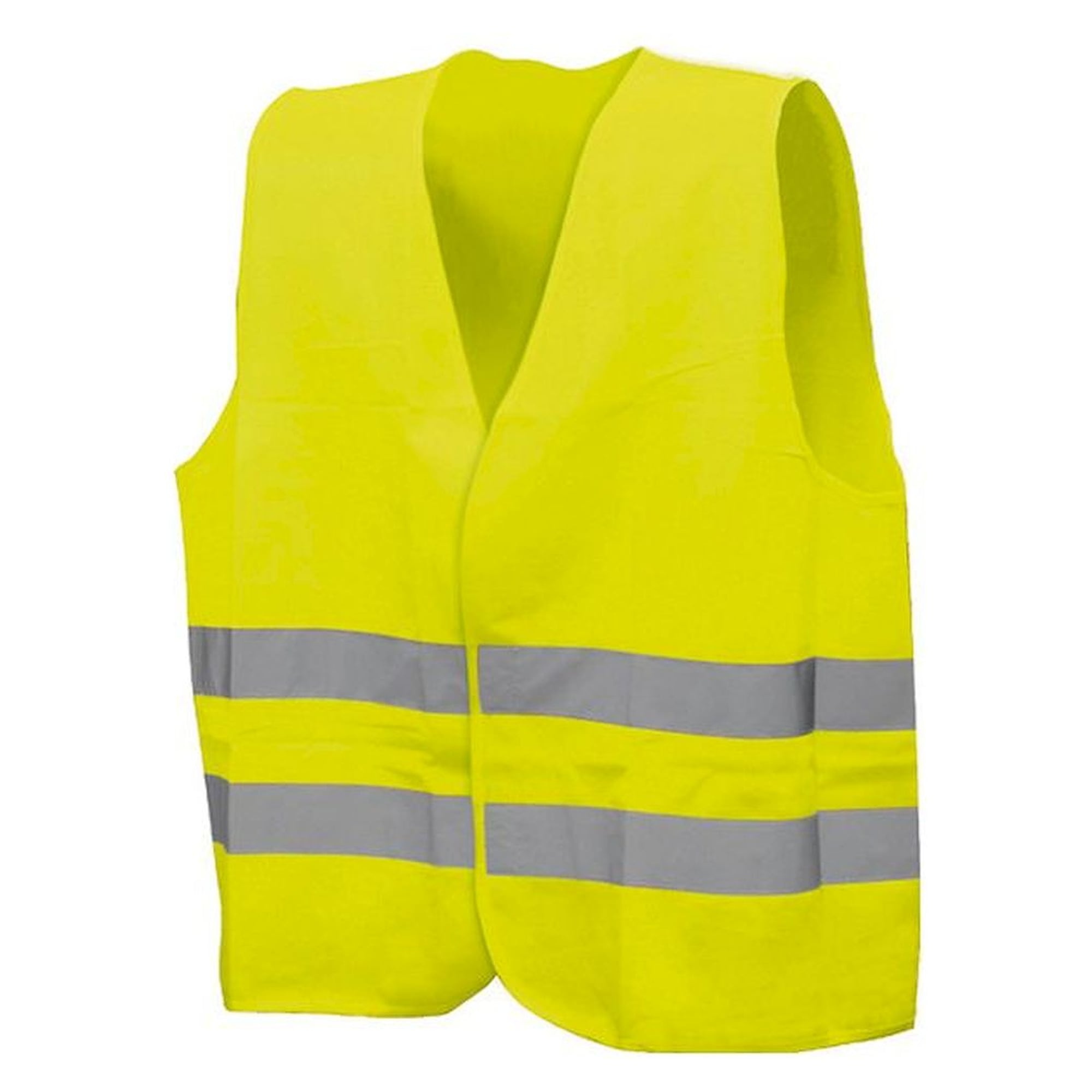

Safeguard SG-WE-GB-PVC-M/S. ESD warning vest, neon yellow, size 1 (S/M)
€20.79
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Safeguard SG-WE-GB-PVC-L/XL. ESD warning vest, neon yellow, size 2 (L/XL)
€20.79
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

Safeguard SG-WE-GB-PVC-4XL/5XL/XXL/3XL. ESD warning vest, neon yellow, size 3 (2XL–5XL)
€20.79
Excl. 19% VAT , excl. Shipping Cost
