Only shielding bags form a Faraday cage. Conductive and dissipative packaging prevents charging inside, but does not protect the contents against an external field.

Browse containers

Shipping boxes

ESD Packaging

ESD shipping boxes protect sensitive electronic components during external transport through a combination of mechanical protection and electrostatic shielding. The range covers the Warmbier SAFESHIELD series (5510902-5510918, some with 6 mm PE pin foam) for general shipping requirements and flat storage boxes for IC tubes (5510095, 5510195), as well as the blue Hans Kolb boxes with ESD warning print in 14 sizes (40 x 40 x 15 mm to 420 x 220 x 65 mm), designated 01-TVS to 65-TVS.

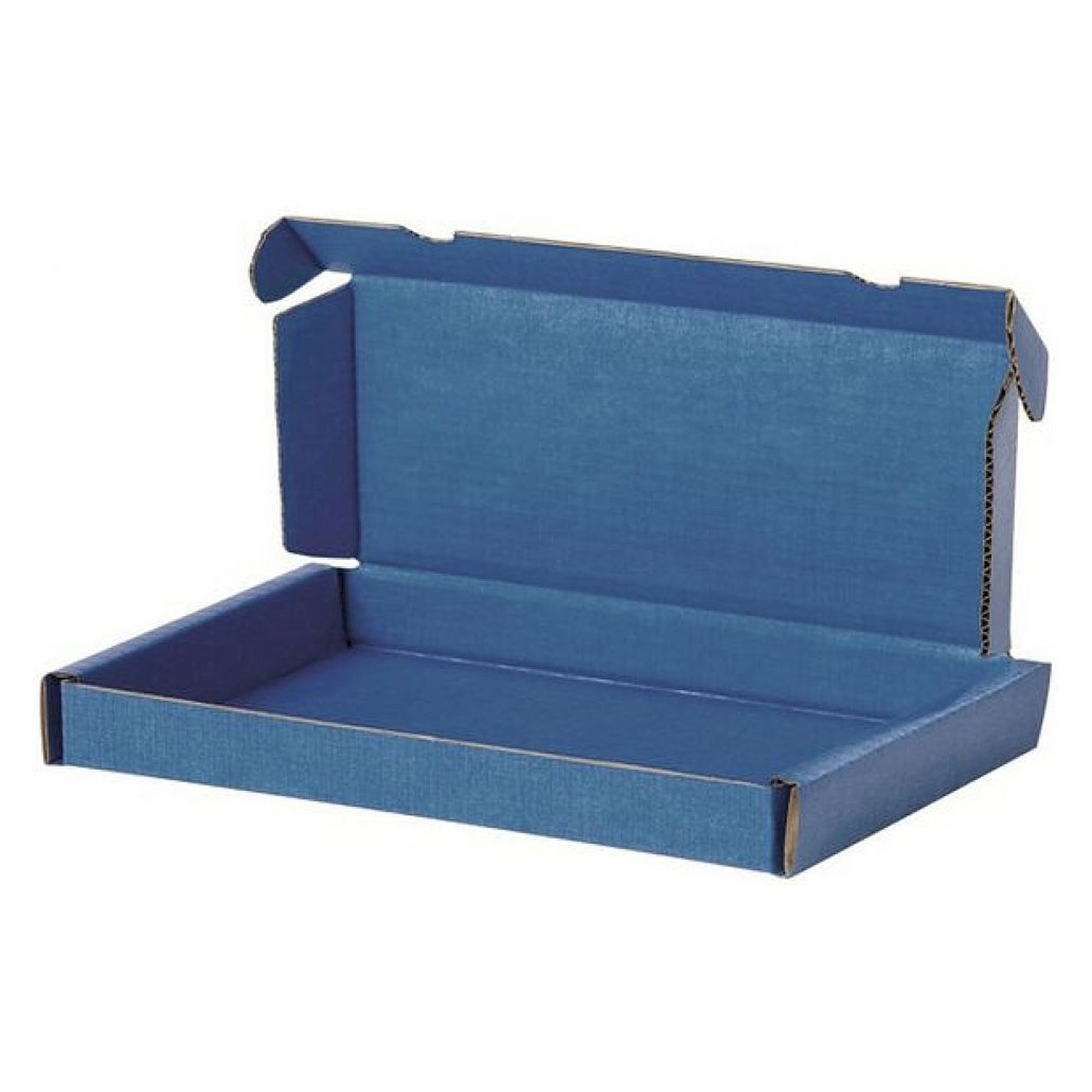

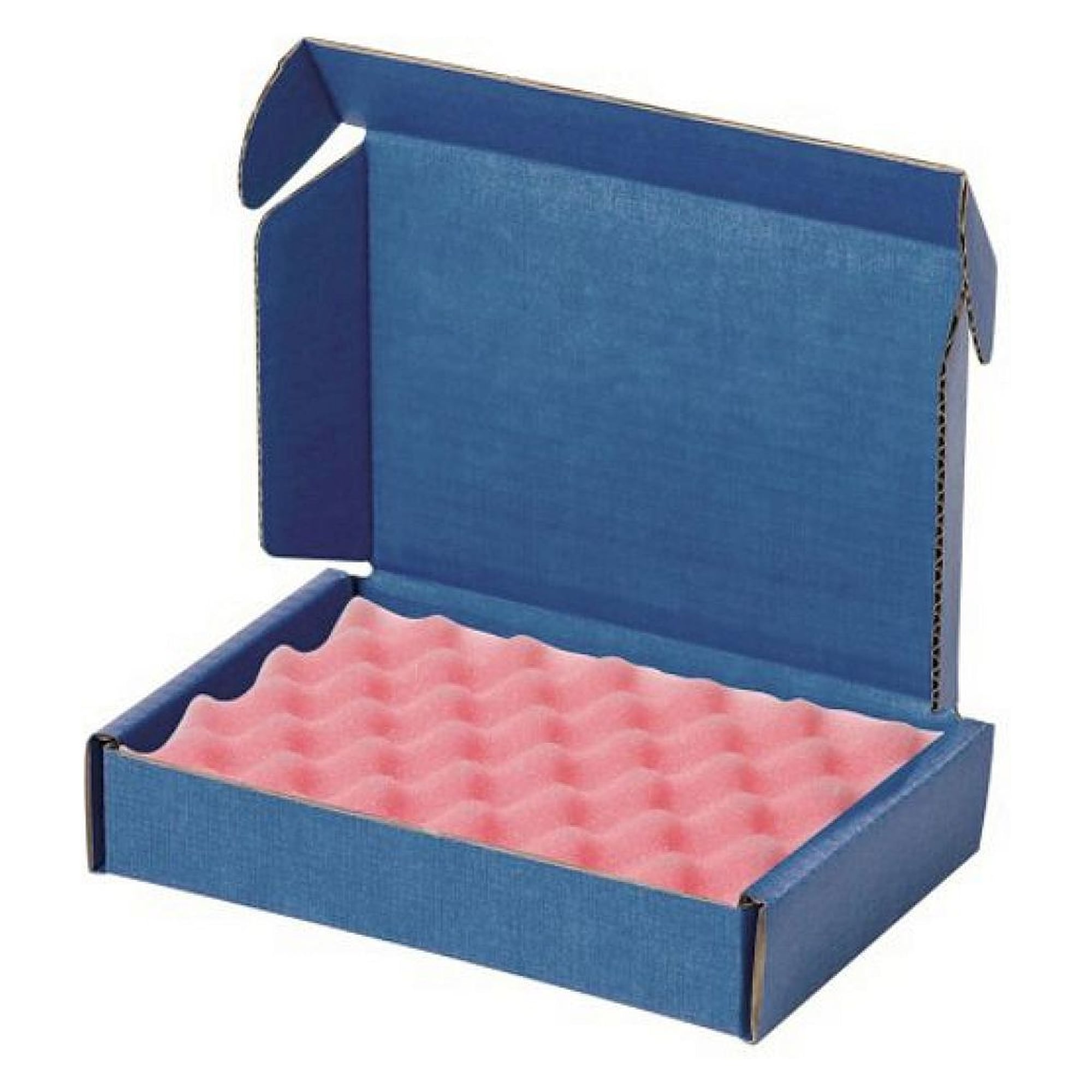

⚡ ESD shielding (SAFESHIELD) - carton with conductive inner lining, prevents charge build-up inside the parcel

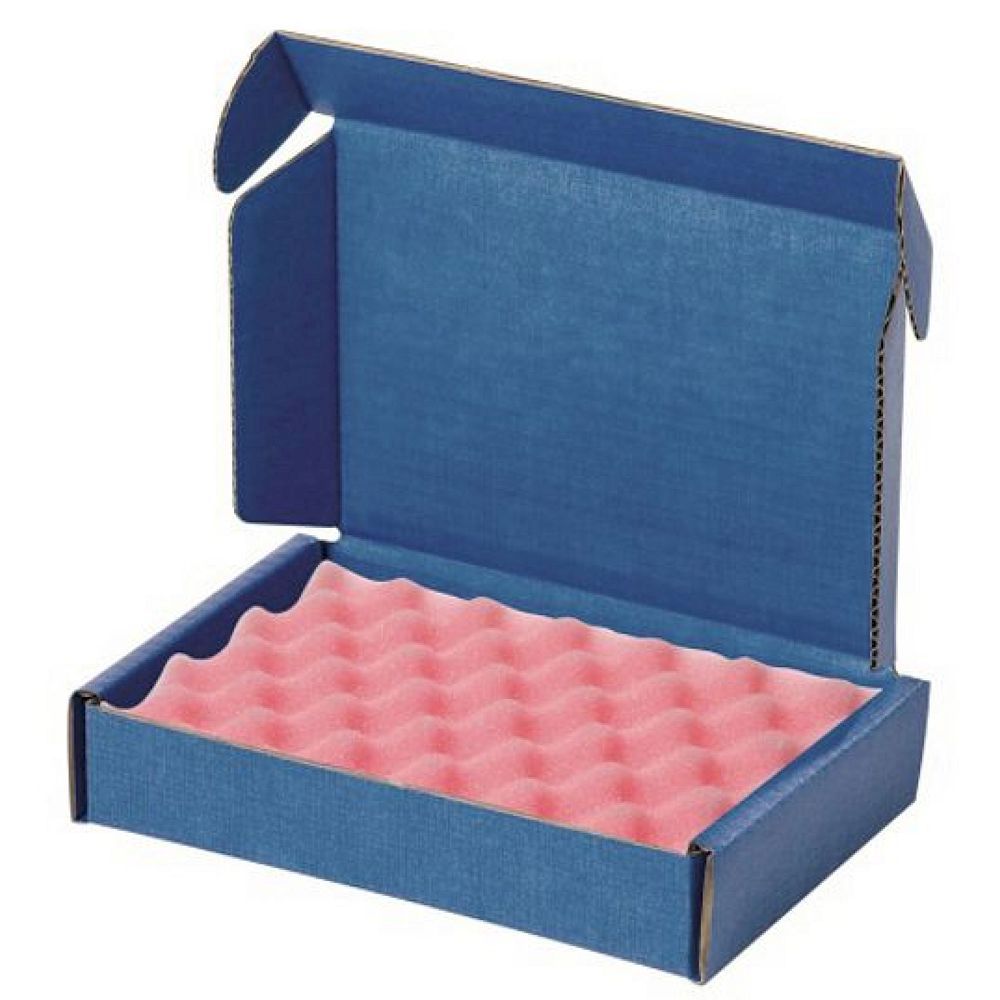

⚙ PE pin foam (6 mm) - dissipative foam fixes components and absorbs shock loads during shipping

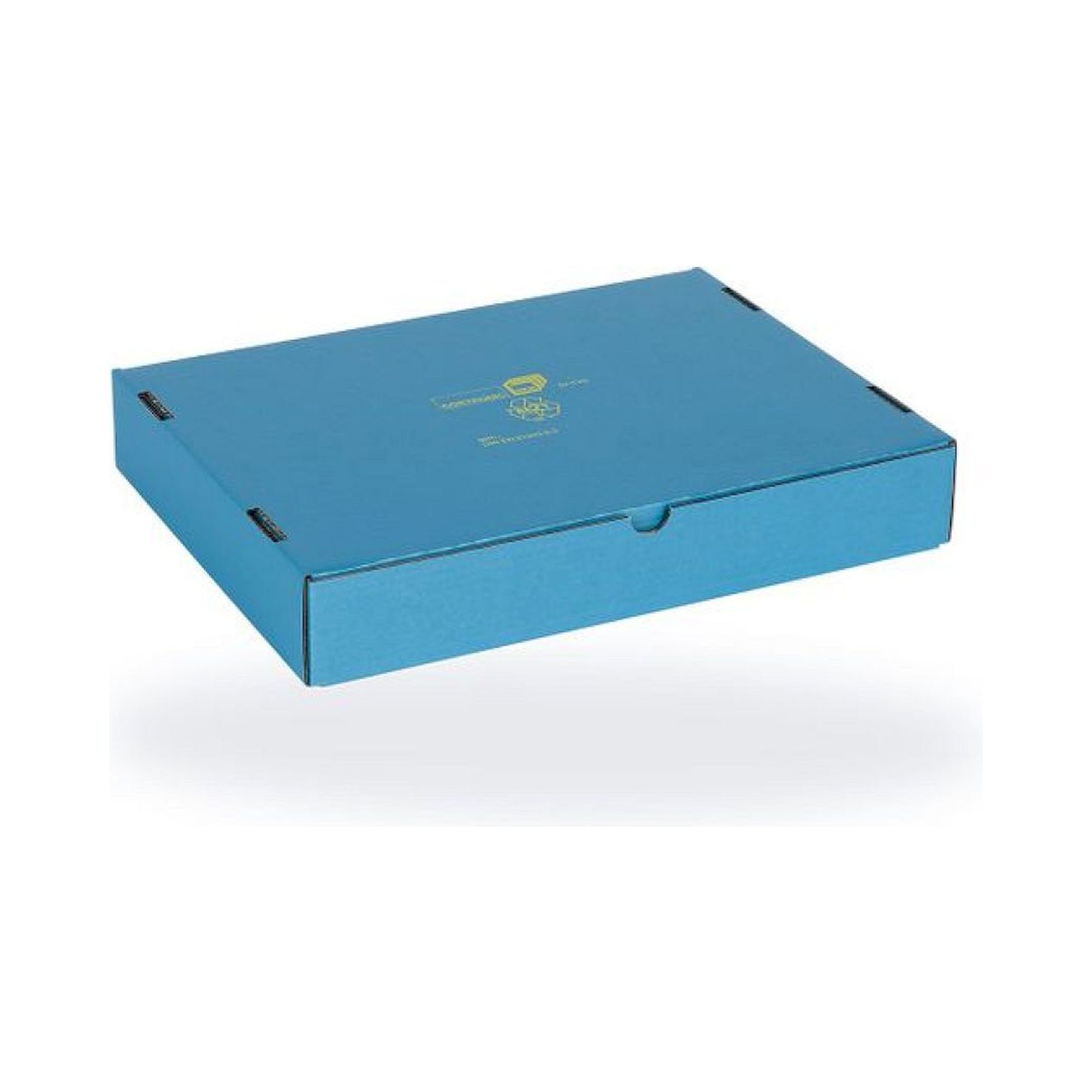

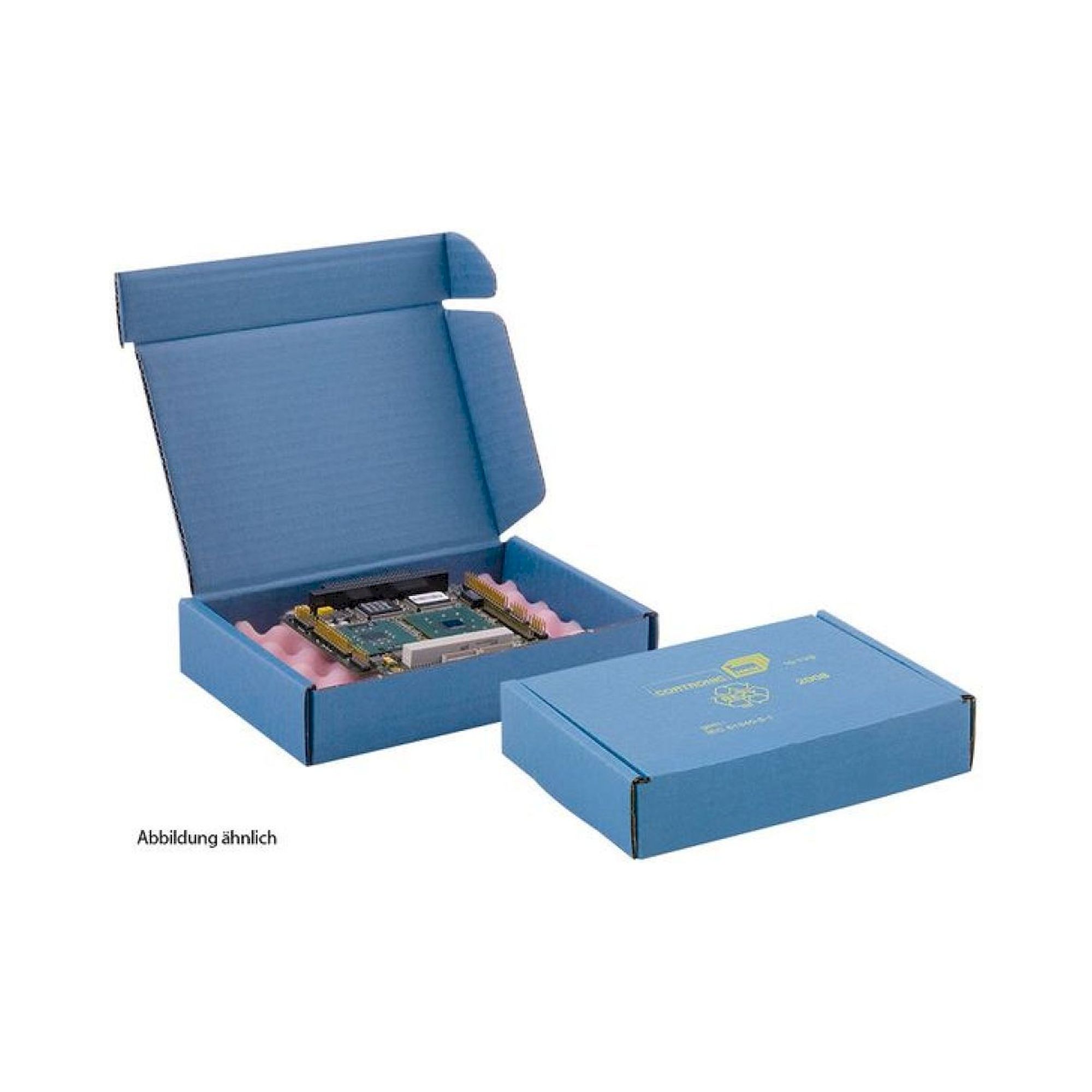

✦ Hans Kolb blue with warning print - 14 formats 40 x 40 x 15 mm to 420 x 220 x 65 mm, TVS nomenclature

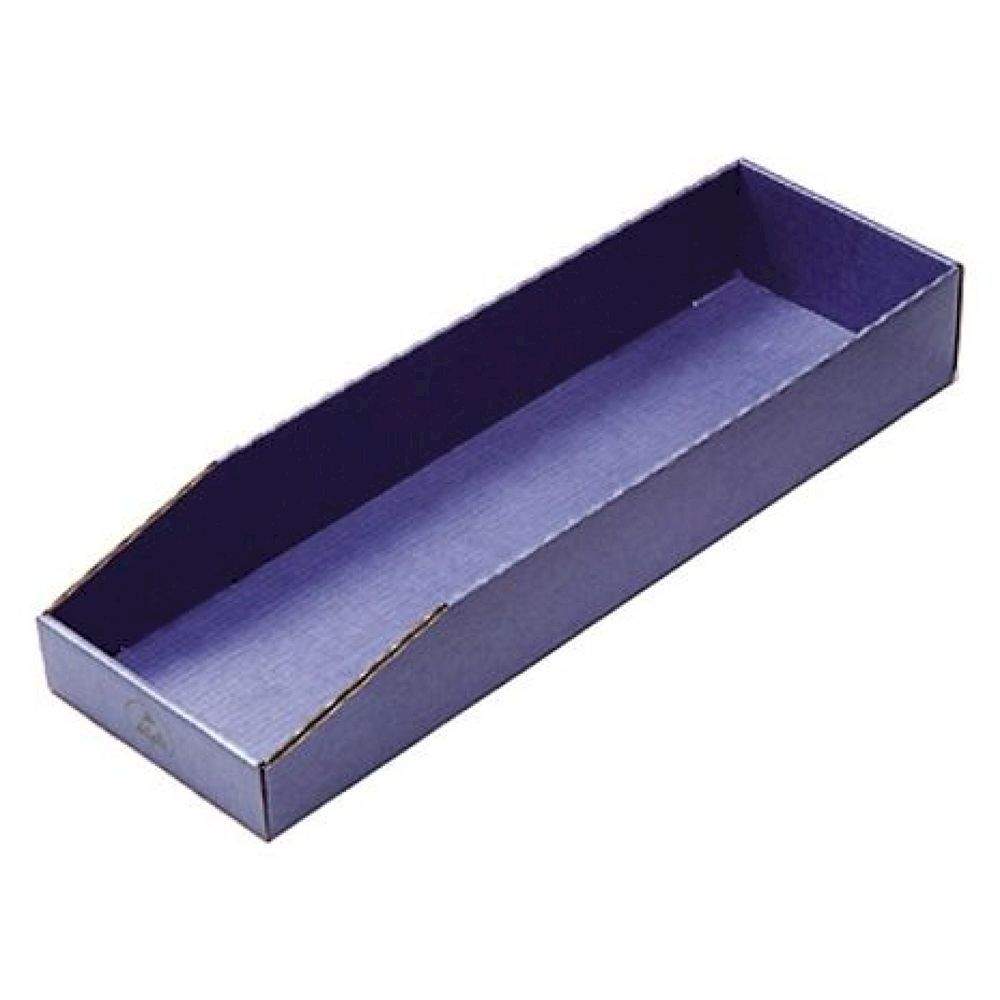

↕ IC tube storage boxes - flat-lying boxes (5510095/5510195) specifically for IC carrier tubes

✓ Single-use packaging - for ESD-compliant individual shipments, DIN EN 61340-5-1 requirements

Type	Outer dimension (mm)
01-TVS	40 x 40 x 15
02-TVS	60 x 60 x 24
05-TVS	100 x 55 x 25
10-TVS	183 x 127 x 38
20-TVS	190 x 135 x 40
30-TVS	250 x 191 x 38
40-TVS	250 x 191 x 64
45-TVS	250 x 191 x 110
50-TVS	267 x 216 x 64
55-TVS	300 x 300 x 100
57-TVS	380 x 280 x 60
60-TVS	420 x 220 x 40
65-TVS	420 x 220 x 65

Typical applications: End-customer shipments of electrostatic sensitive components (ICs, modules, sensors) via parcel carriers, return packaging for RMA processes, storage and shipping of IC carrier tubes, and packaging stations in electronics mail-order and after-sales service.
