What is ESD system lighting?

ESD system lighting refers to specialized lighting solutions designed to prevent static electricity buildup in sensitive environments.

Why is ESD lighting important?

ESD lighting is crucial in preventing damage to sensitive electronic components by minimizing static electricity in work environments.

What types of ESD lights are available?

Available types include LED lights, task lights, and ergonomic lighting solutions suitable for industrial and laboratory settings.

How do ESD lights enhance workplace safety?

They reduce static buildup, thus protecting electronic components and ensuring a safer working environment.

Are ESD lights energy efficient?

Yes, most ESD lights, particularly LED options, are designed to be energy efficient while providing effective lighting.

Can ESD lighting be used in laboratories?

Yes, ESD lighting is ideal for laboratories where static-sensitive processes occur, as they help maintain a controlled environment.

Where can I purchase ESD system lights?

ESD system lights can be purchased from specialized equipment suppliers or online platforms providing industrial lighting solutions.

System lights

Workplace lighting

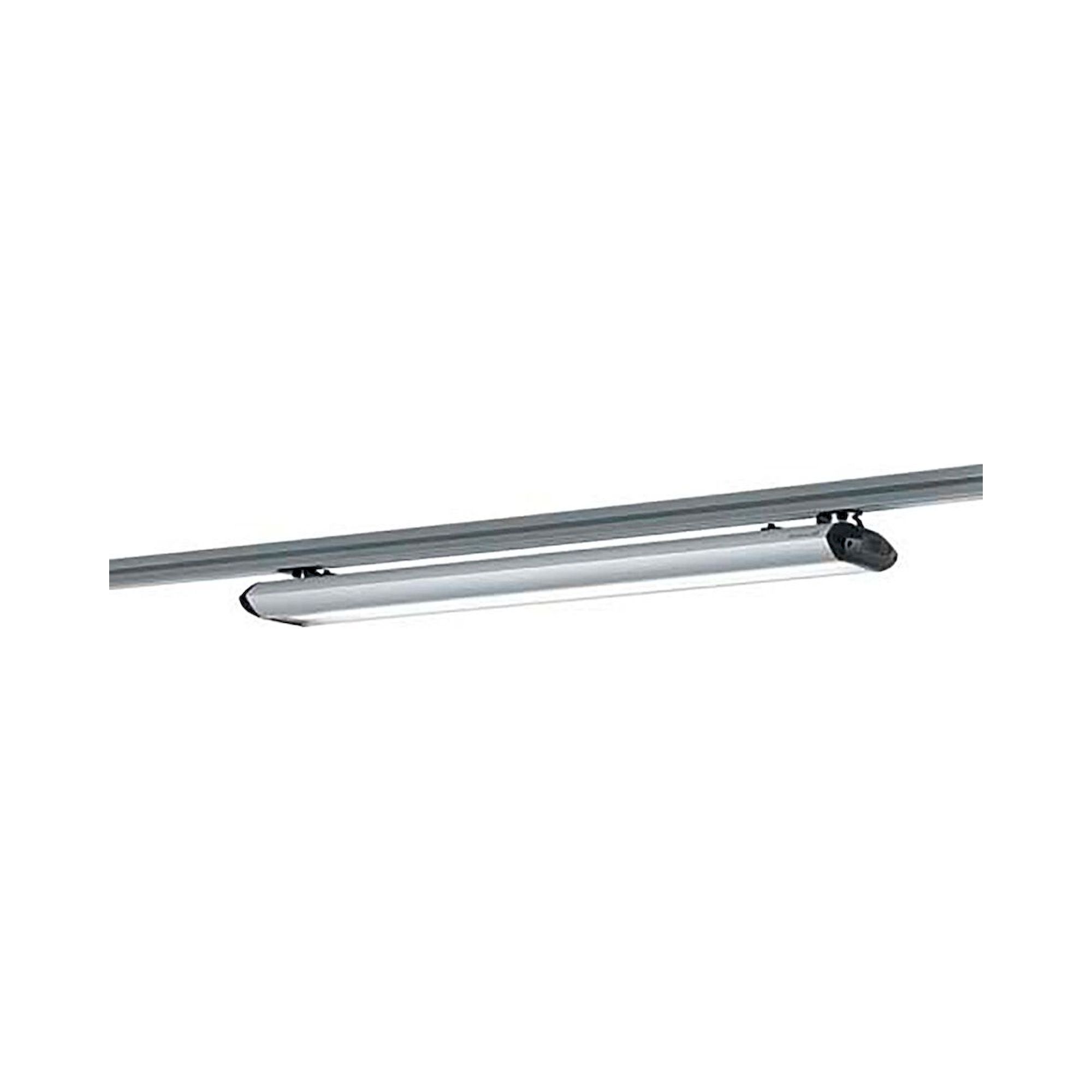

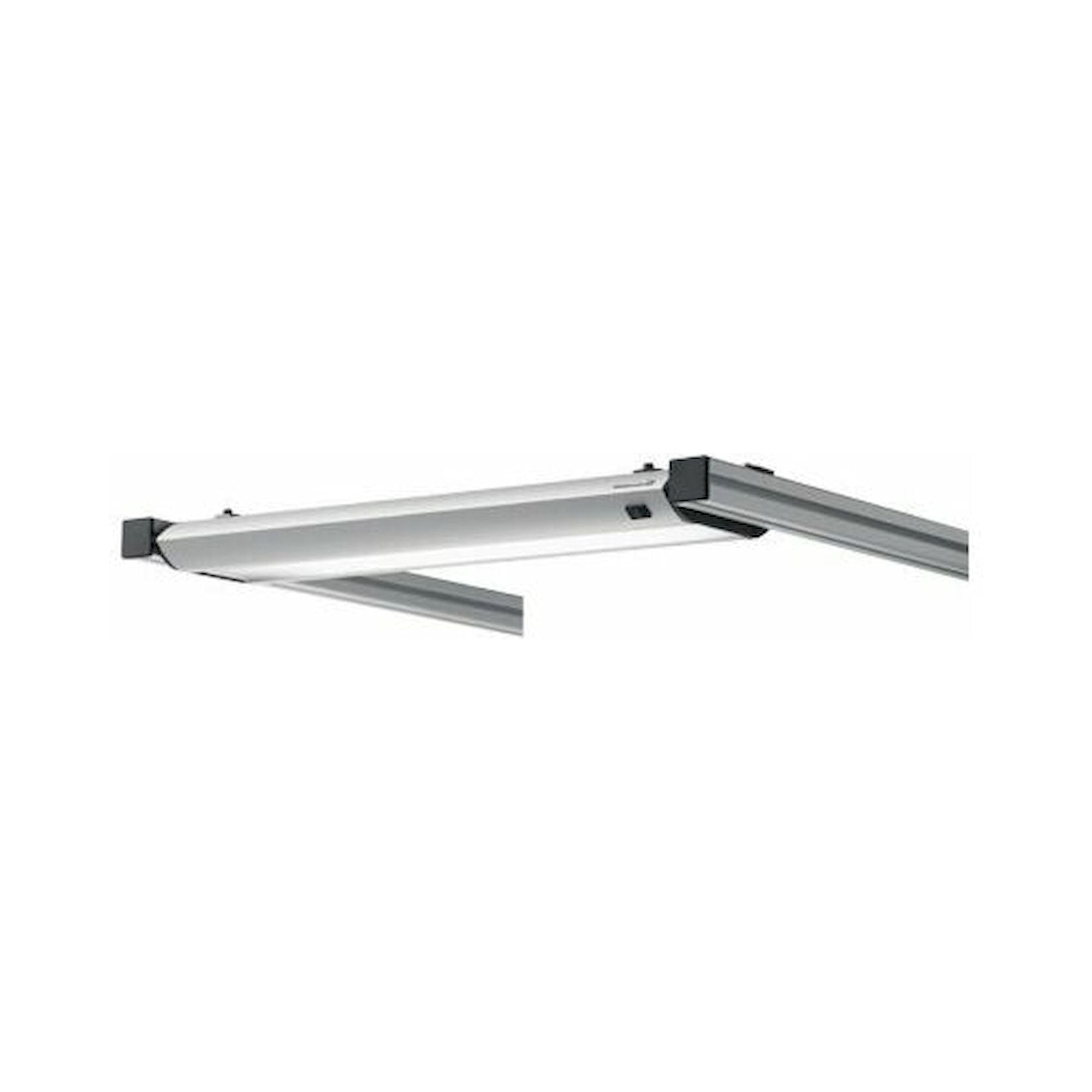

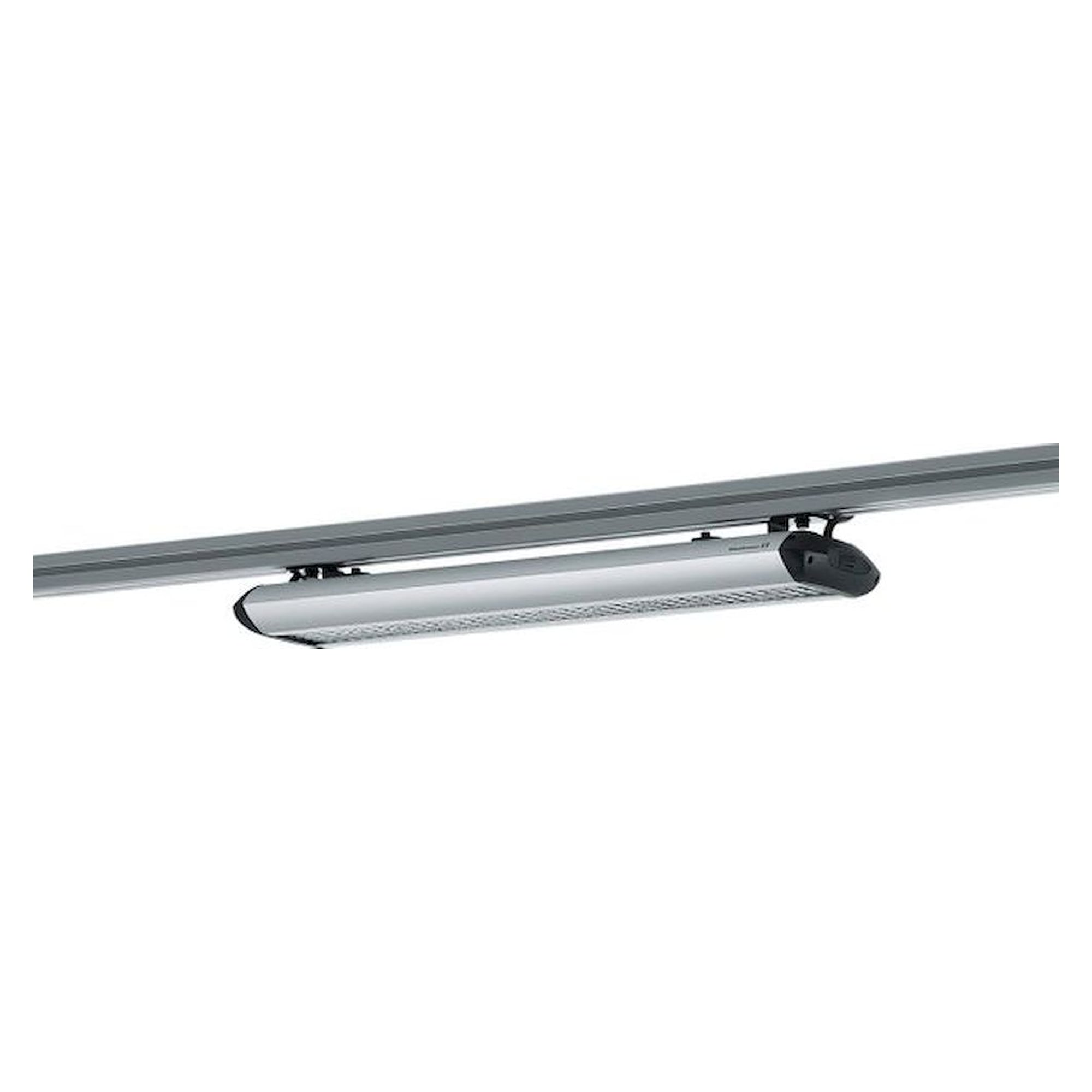

System lights for workstations are mounted directly on the machine structure or workstation system and provide targeted illumination of the immediate work surface. The range includes the Waldmann TAMETO and UNILED SL series, PSESD system luminaires, and Glamox FX45 variants. Waldmann's UNILED SL is available in lengths from 295 to 1,545 mm (15-72 W, 24V DC, 100° beam angle); connection is via Wieland GST18 cables. The Waldmann TAMETO series (SAHQ/SAHKQ) covers top-mounted fixed, laterally mounted and dimmable variants at 4000 K and 5000 K.

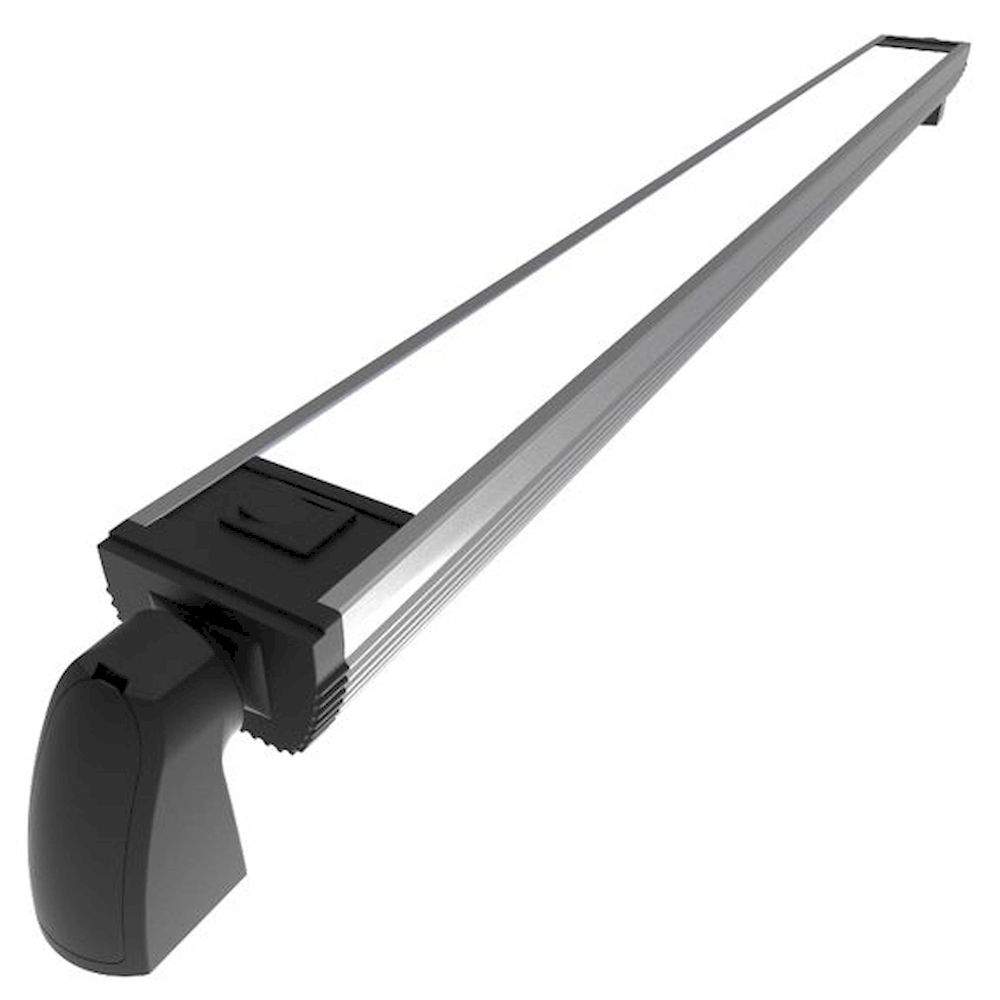

PSESD PS WorkLED SE luminaires are available in rotatable and lateral orientations, with models 1040, 3040, 4040 and 5040 to choose from. The Glamox FX45-P2023 in AL/OP configuration with 4,000 lm, DALI 840 completes the programme for larger work surfaces.

💡 UNILED SL: 15-72 W, 24V DC, 100° - lengths 295/545/1045/1545 mm, cascadable via Wieland GST18

⚙ TAMETO SAHQ: dimmable, 4000 K / 5000 K - top-mounted fixed (SAHQ 88 R) or through-wired (SAHQ 88 D), lateral mount SAHKQ 60 A

✦ PSESD WorkLED SE: rotatable and lateral - models 1040-5040 for different workstation geometries

✓ Wieland GST18 connection - socket/angle plug and extension cables 1-5 m for quick installation

📦 Glamox FX45-P2023: 4,000 lm, DALI 840 - AL/OP version, 0/100 light distribution for area illumination

Series	Mounting	Voltage	Feature	Example part
UNILED SL	Top, cascadable	24V DC	100°, 295-1,545 mm, 15-72 W	110914-11

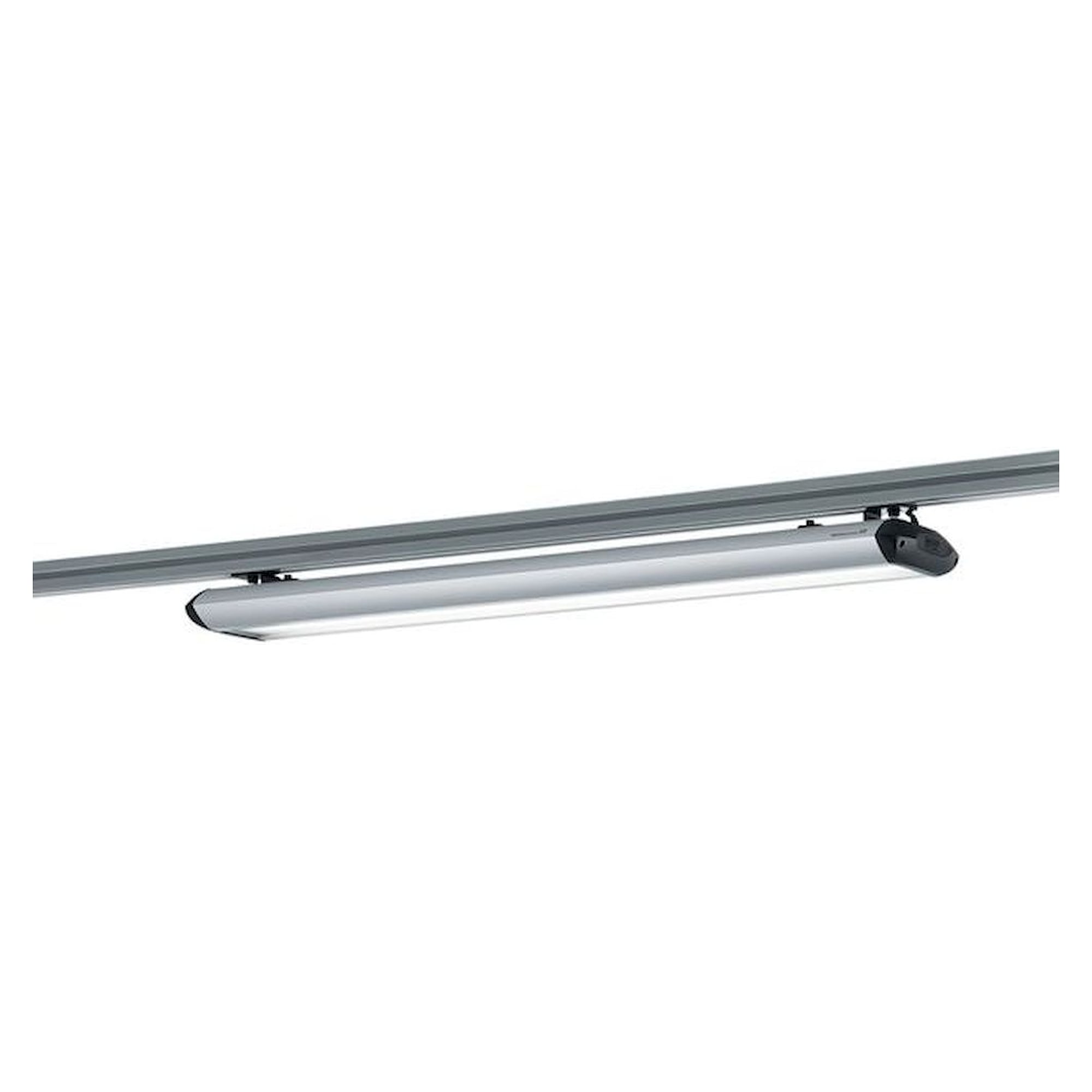

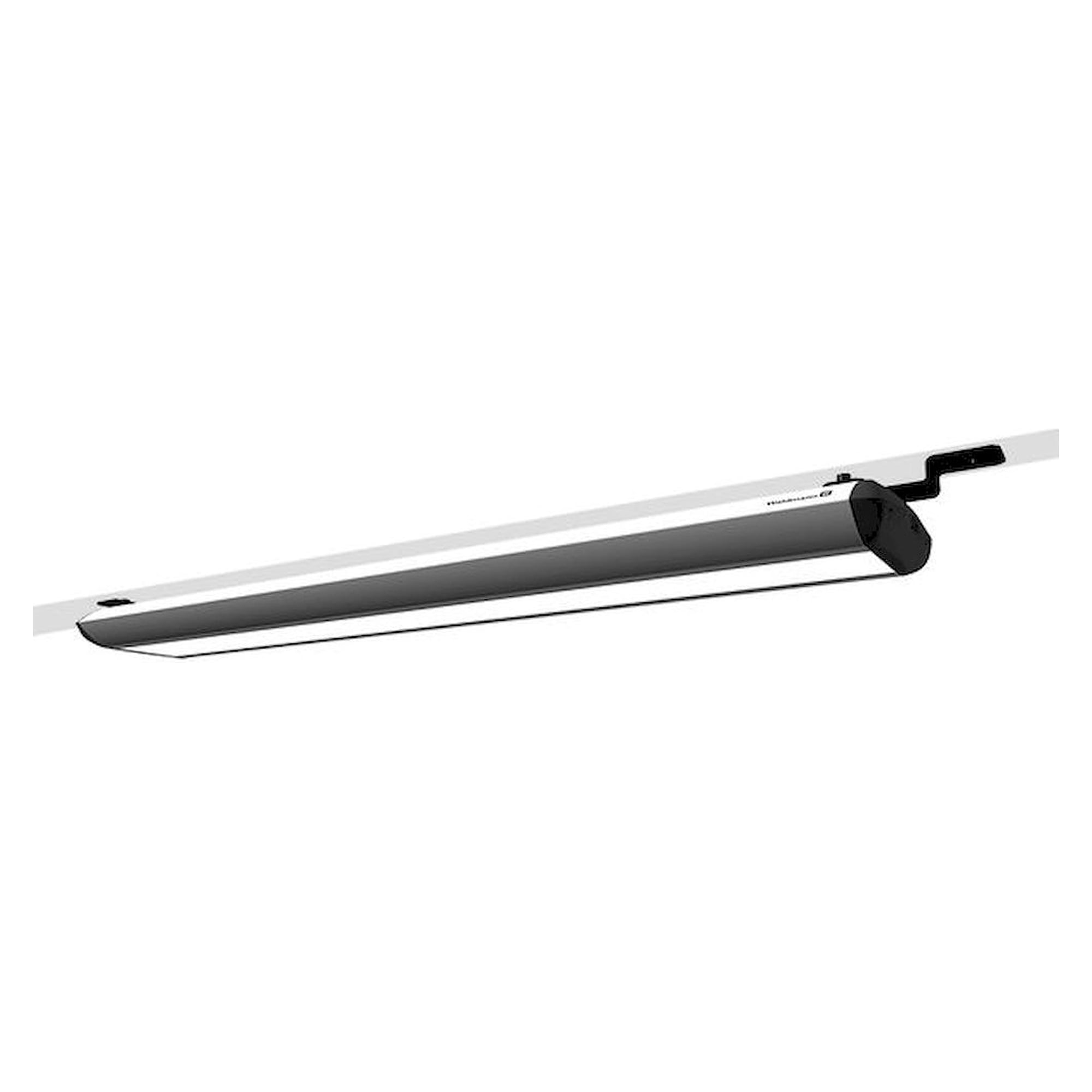

TAMETO SAHQ 88 R	Top, fixed	230V AC	Dimmable, 4000/5000 K	Waldmann TAMETO SAHQ 88 R
TAMETO SAHQ 88 D	Top, through-wired	230V AC	4000 K	Waldmann TAMETO SAHQ 88 D
TAMETO SAHKQ 60 A	Lateral, ESD	-	ESD-certified, lateral mount	Waldmann ESD SAHKQ 60 A
WorkLED SE 1040	Rotatable/lateral	-	Models 1040-5040	PSESD WorkLED SE 1040
FX45-P2023	Pendant/surface	230V AC	4,000 lm, DALI 840, 0/100	Glamox FXX589336

Typical applications: Electronics assembly and SMT workstations with ESD-certified system luminaire (TAMETO SAHKQ), machine operator stations with 24V DC system lights (UNILED SL), inspection and testing workstations requiring high illuminance, and industrial workstations with DALI-controlled lighting (FX45, TAMETO dimmable).
