Soldering tips
JBC soldering technology
JBC soldering tips are precisely matched to the respective handpieces and soldering irons in the JBC system line. Each tip series carries its own designation: C210 for the T210 handpiece, C245 for the T245, C470 for the high-power T470, R245/R470 for rework handpieces, C105/C115 for Nano handpieces, and W140/W440 for the WS140 and WS440 desoldering tweezers. The key-hole mounting system provides a positive-locking fit allowing tool-free tip changes when cold.
The CLASSIC series covers tips for older stations including 14ST, 30ST/40ST, 150 S LD and 325 S LD, plus the desoldering gun series 3040000. Gas soldering iron tips are available in DF 2.4 mm and DF 3.2 mm. The range spans standard geometries (conical, chisel, bevel, angled) through to special forms for drag soldering, QFP, PLCC, tunnel and socket desoldering.

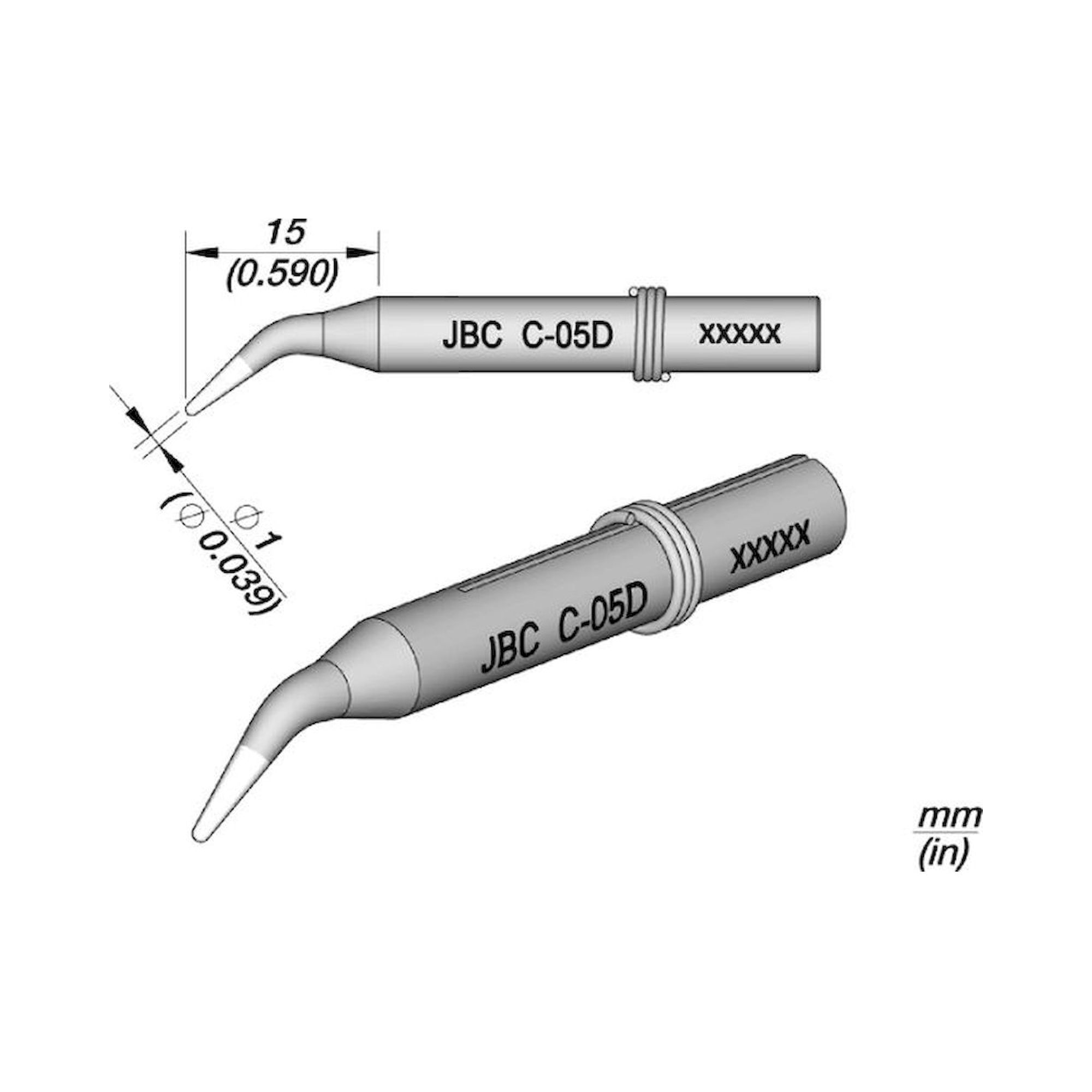

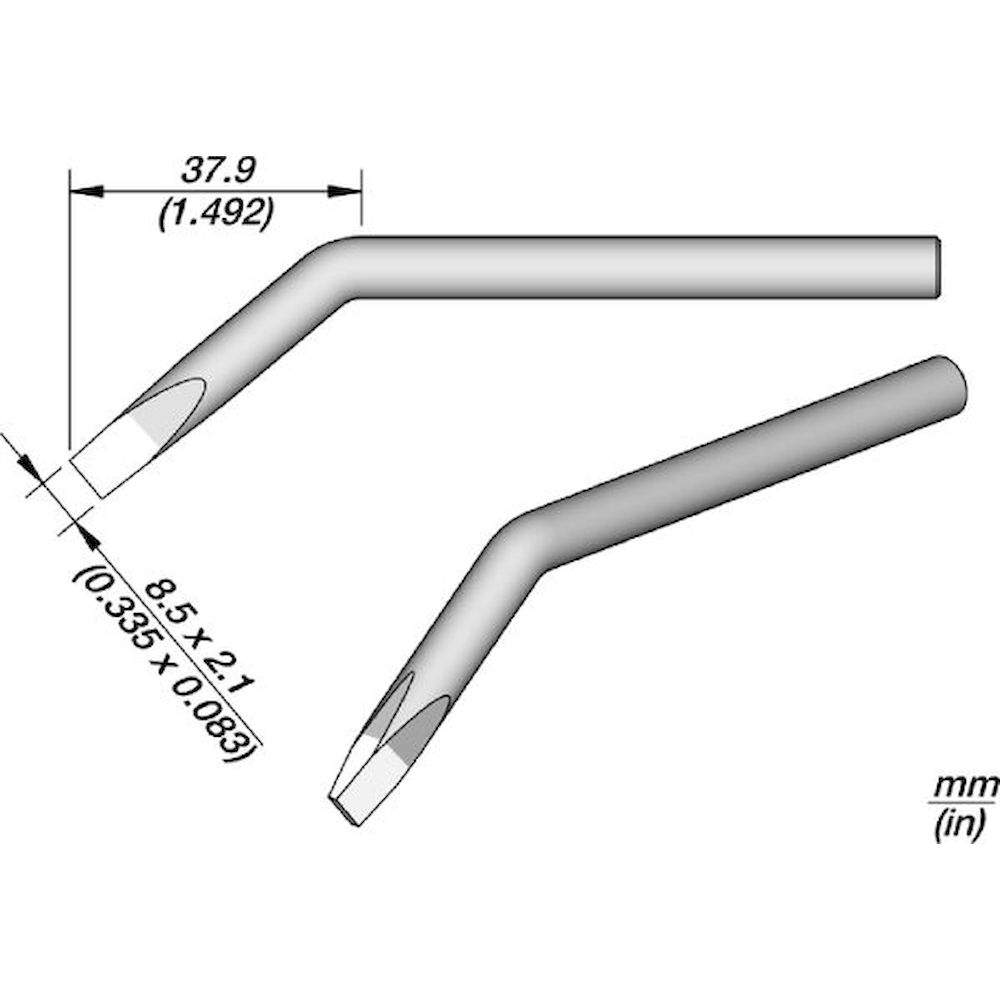

Soldering tips for soldering ironsCLASSIC series for 14ST, 30ST/40ST, 150 S LD and gas irons
Soldering tips C210Conical, chisel, blade, special form, 33 variants

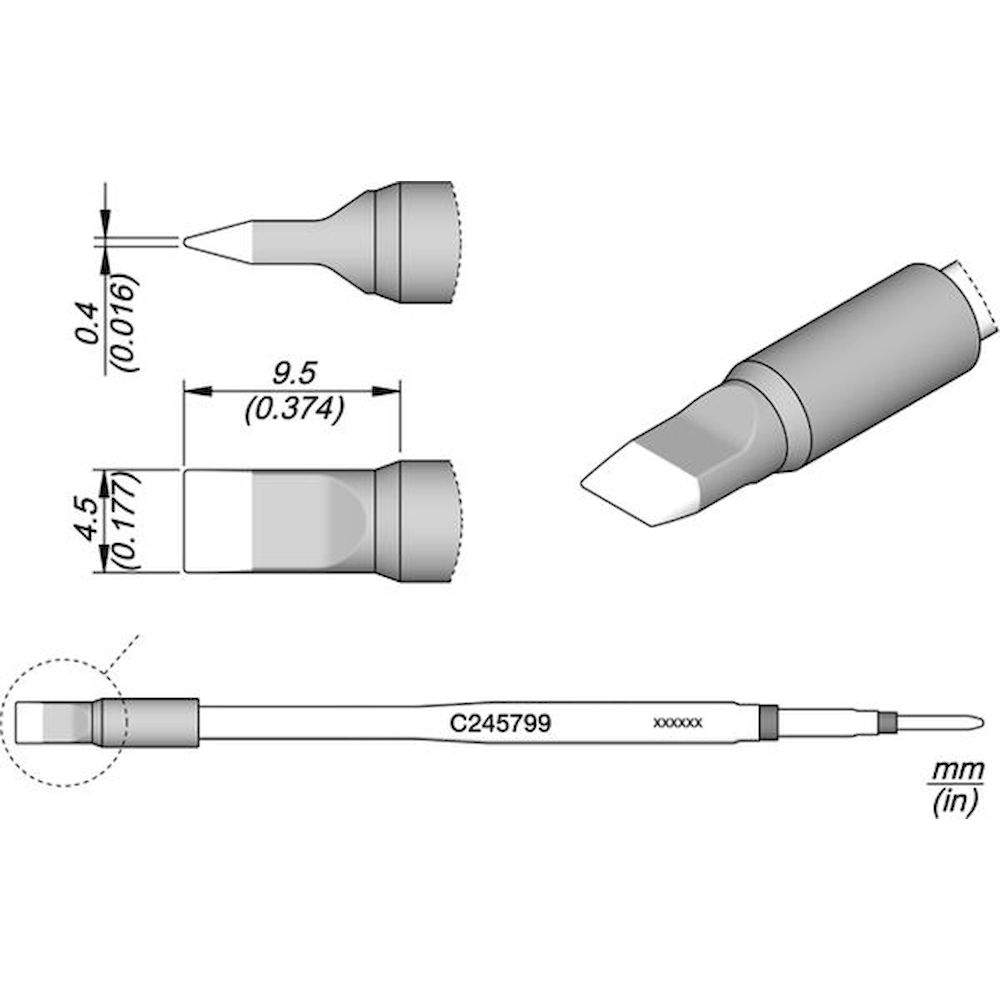

Soldering tips C245Conical D: 0.3-3.5 mm, chisel, QFP/PLCC, 117 items

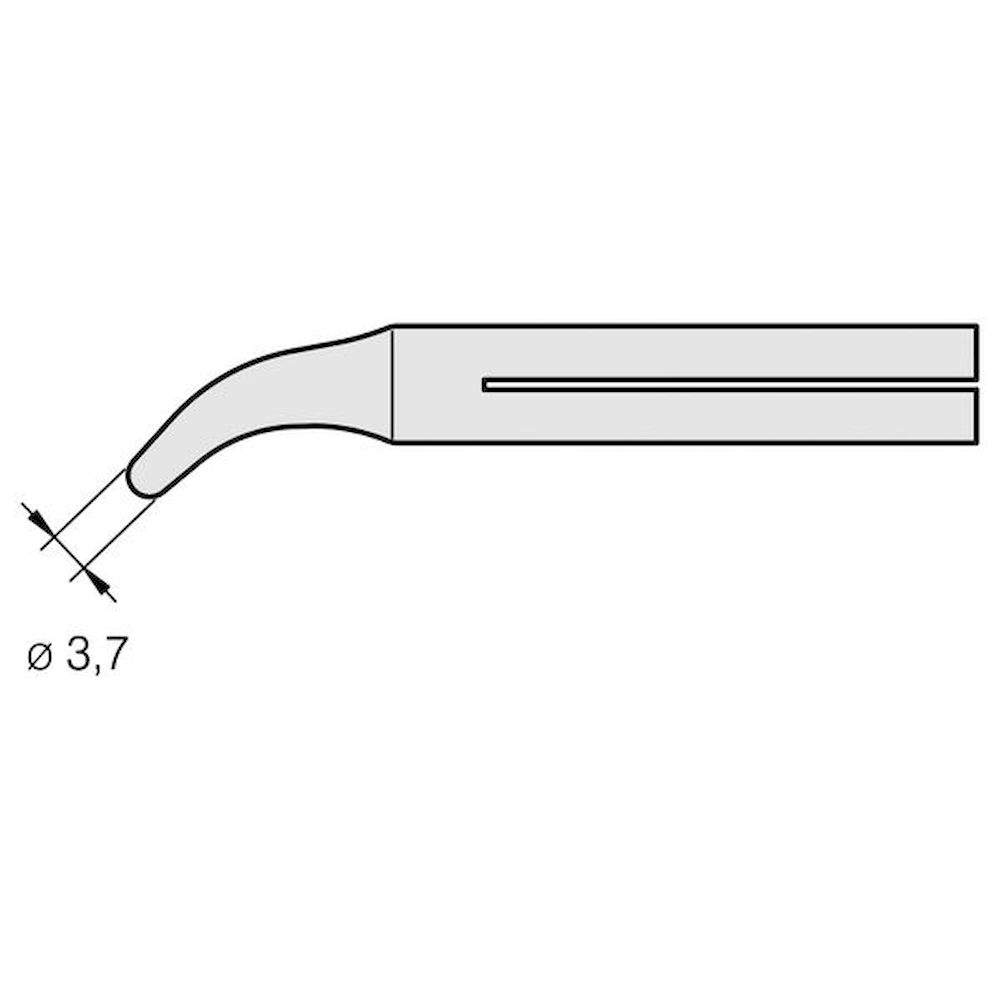

Soldering tips PulsmaticCLASSIC tips 550300-550707 for PULSMATIC 55N and TB-3220

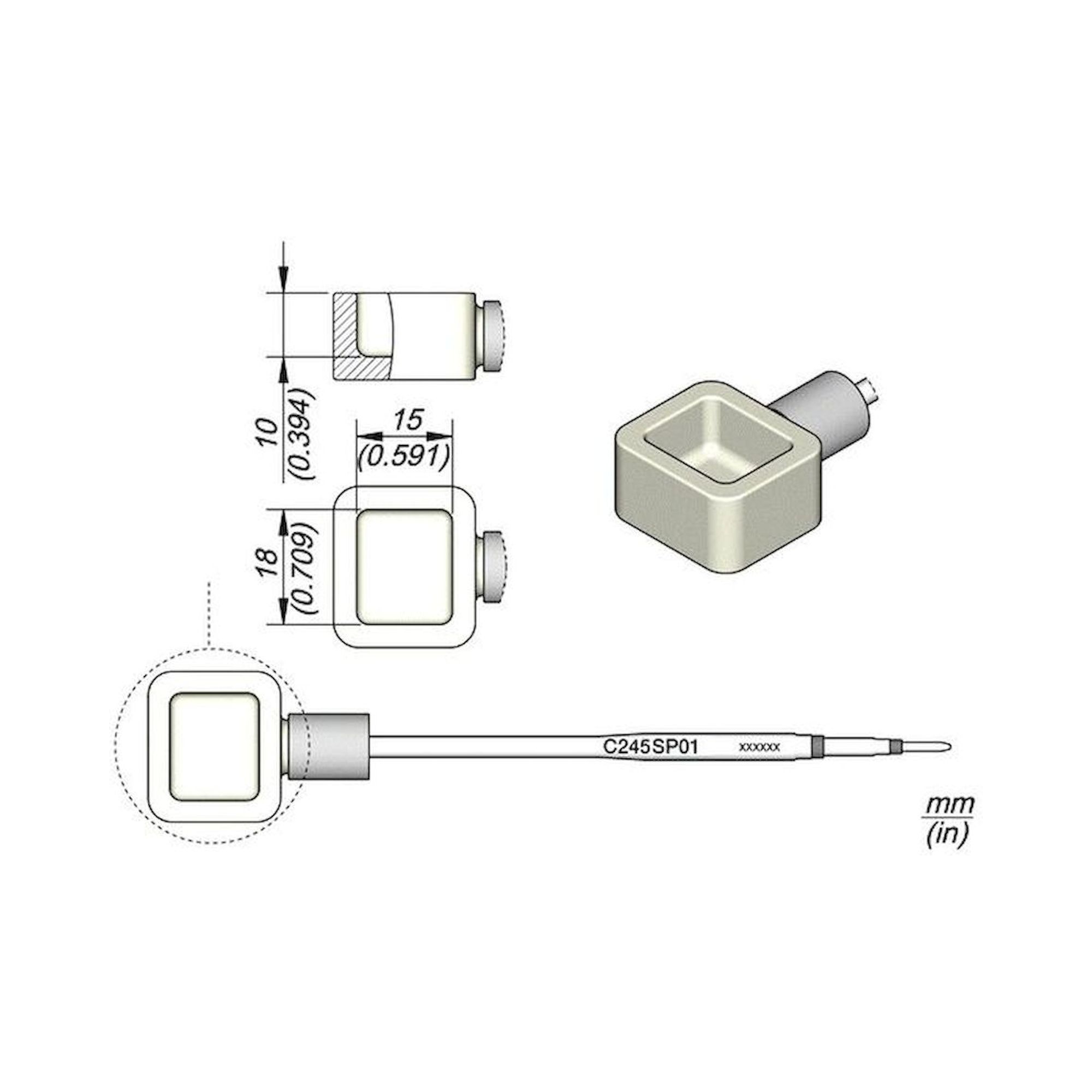

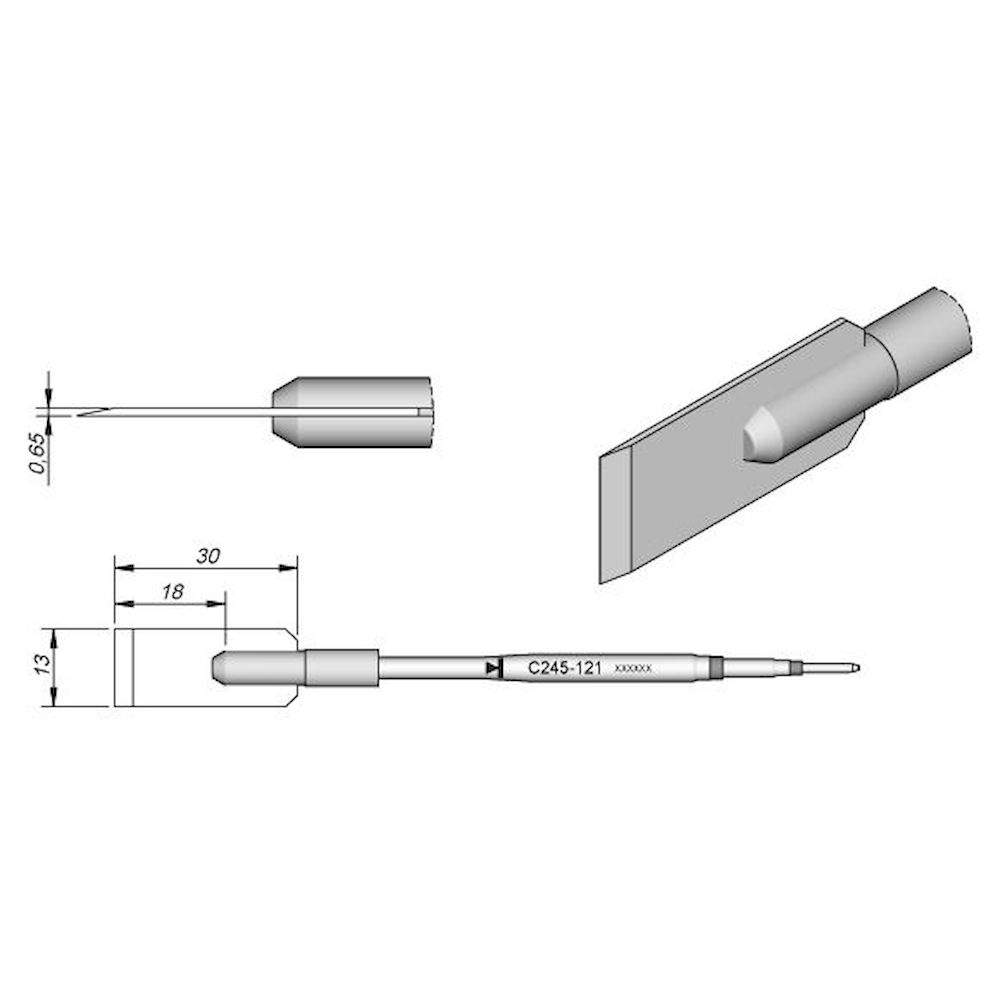

Soldering tips C245Drag soldering 0.75-1.25 mm, special forms, 43 variants

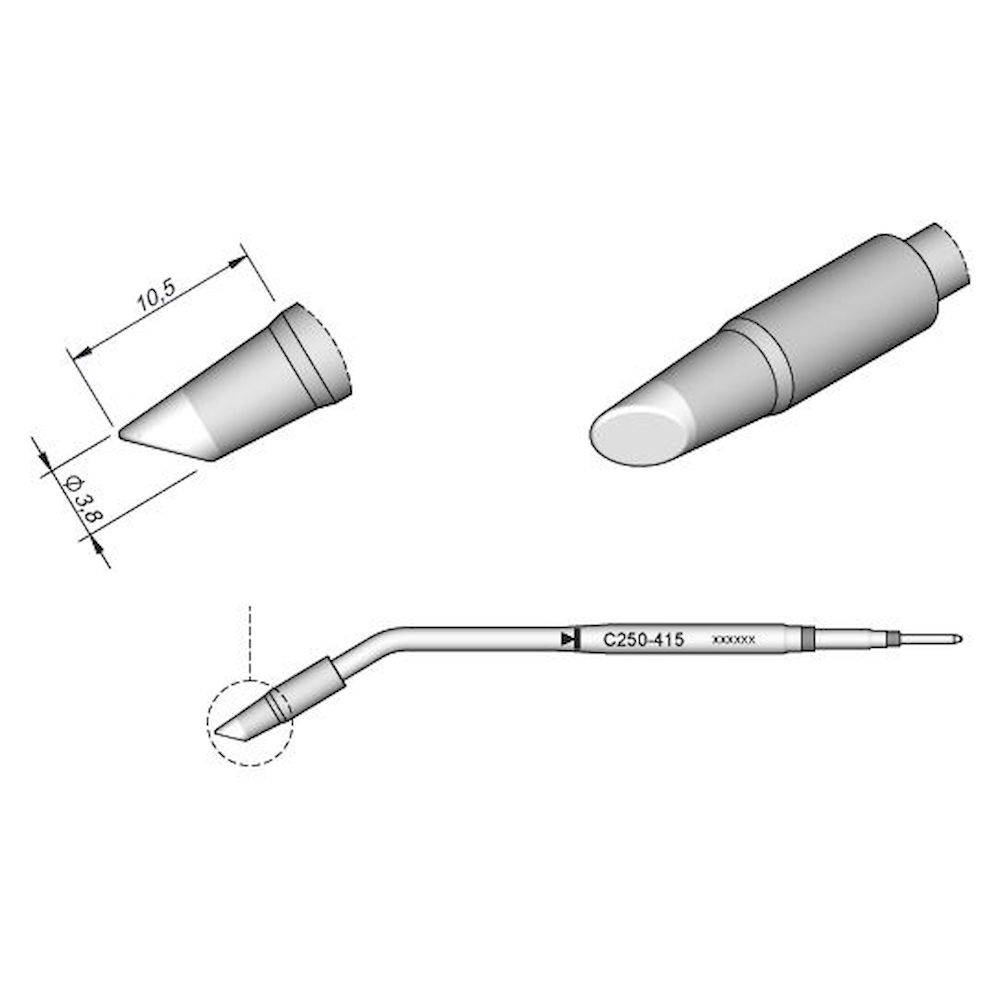

Soldering tips C250Bent and straight forms, conical D: 0.6-2.2 mm, chisel

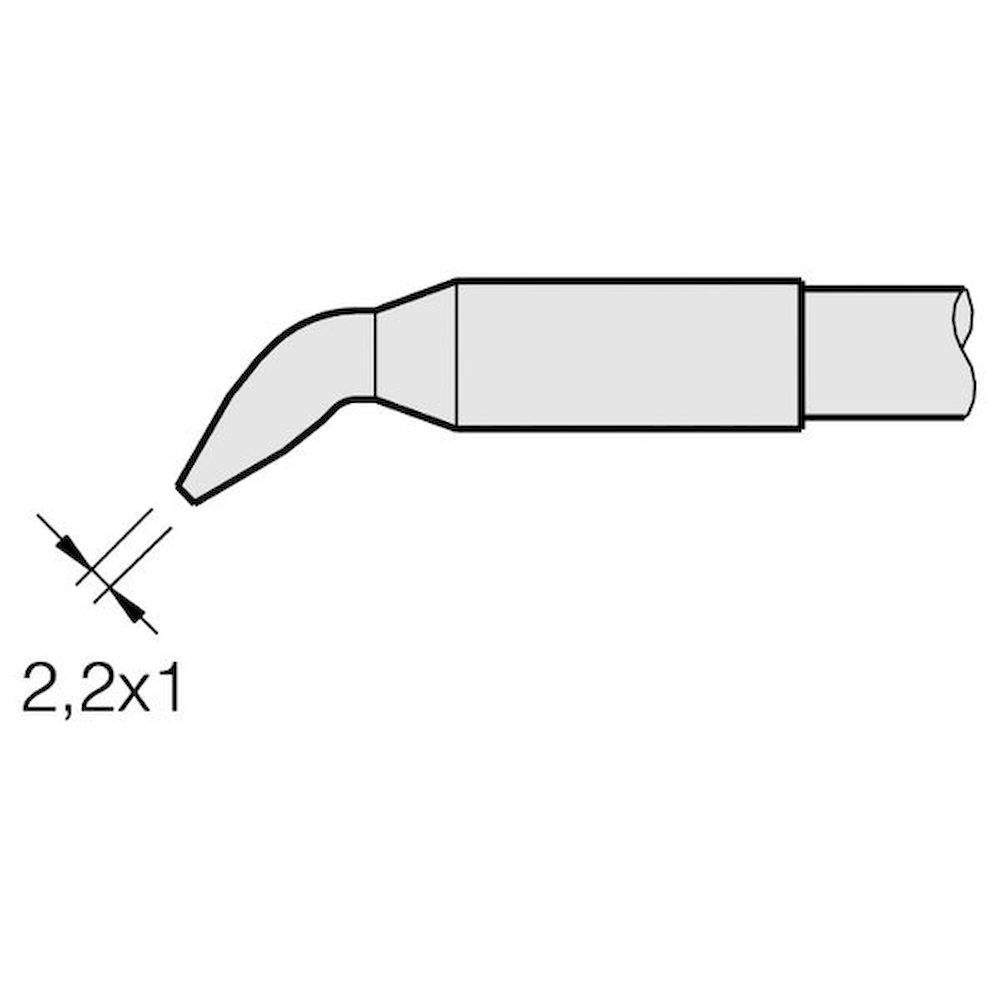

Soldering tips C130Bent tips conical D: 0.6-4 mm, chisel up to 4.8x1.5 mm

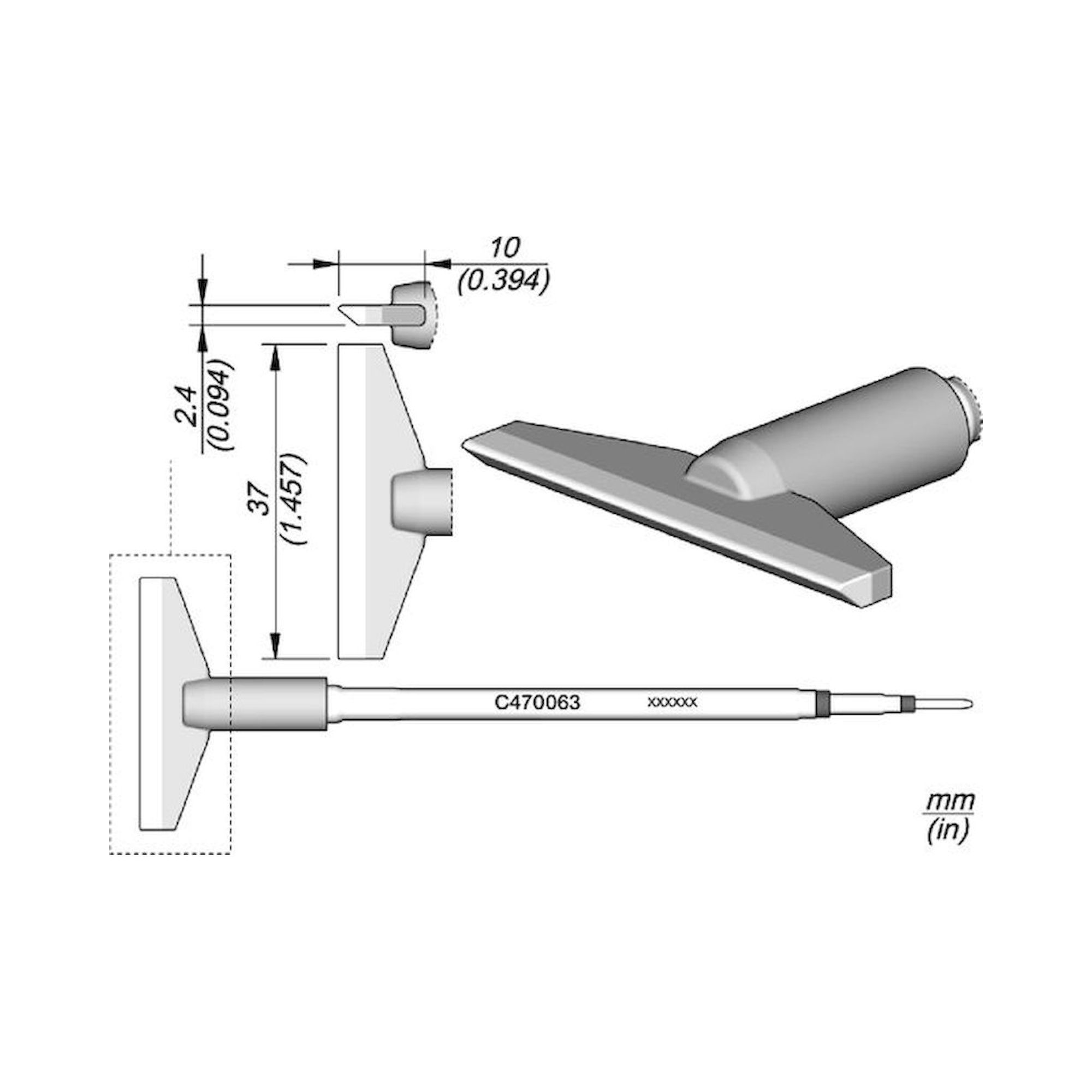

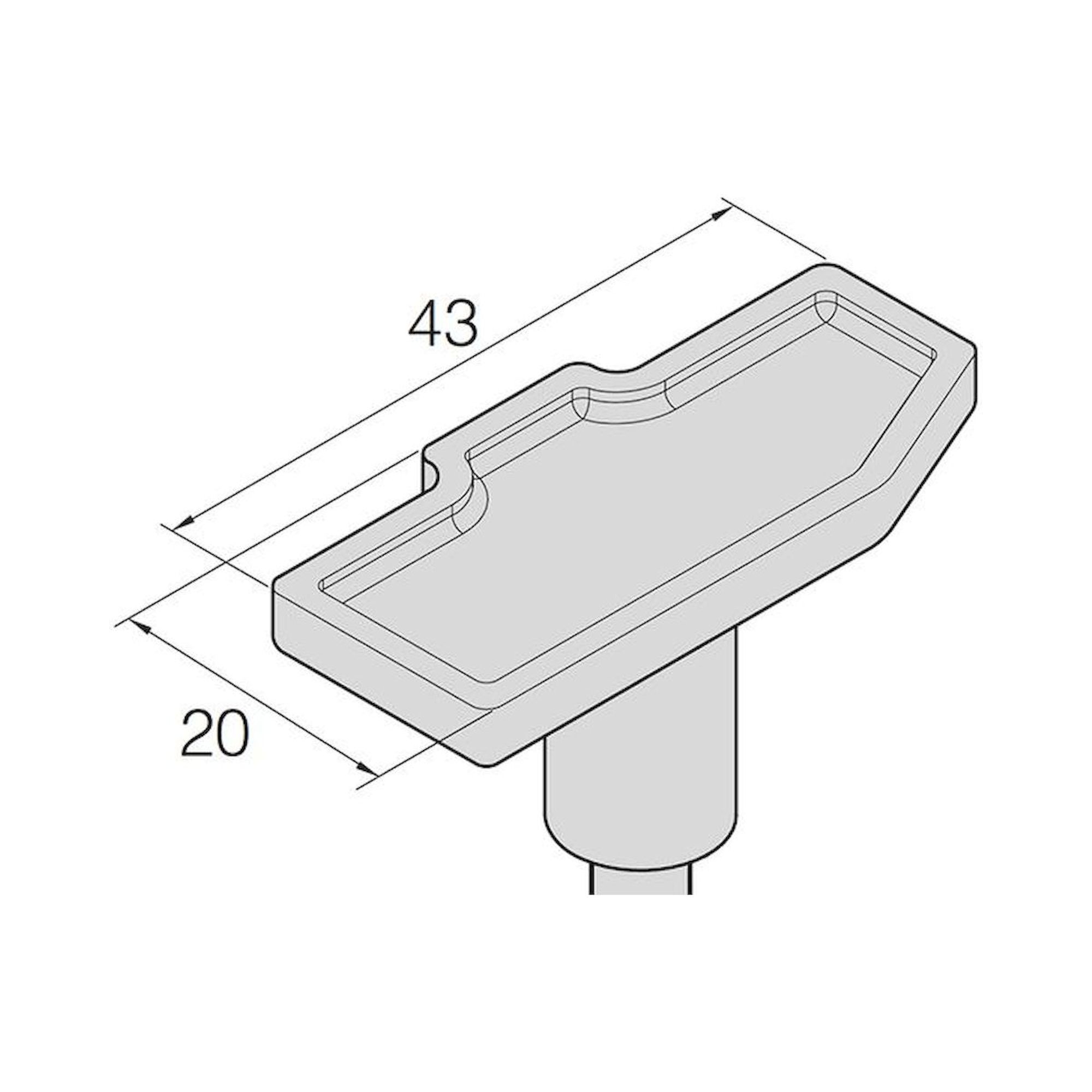

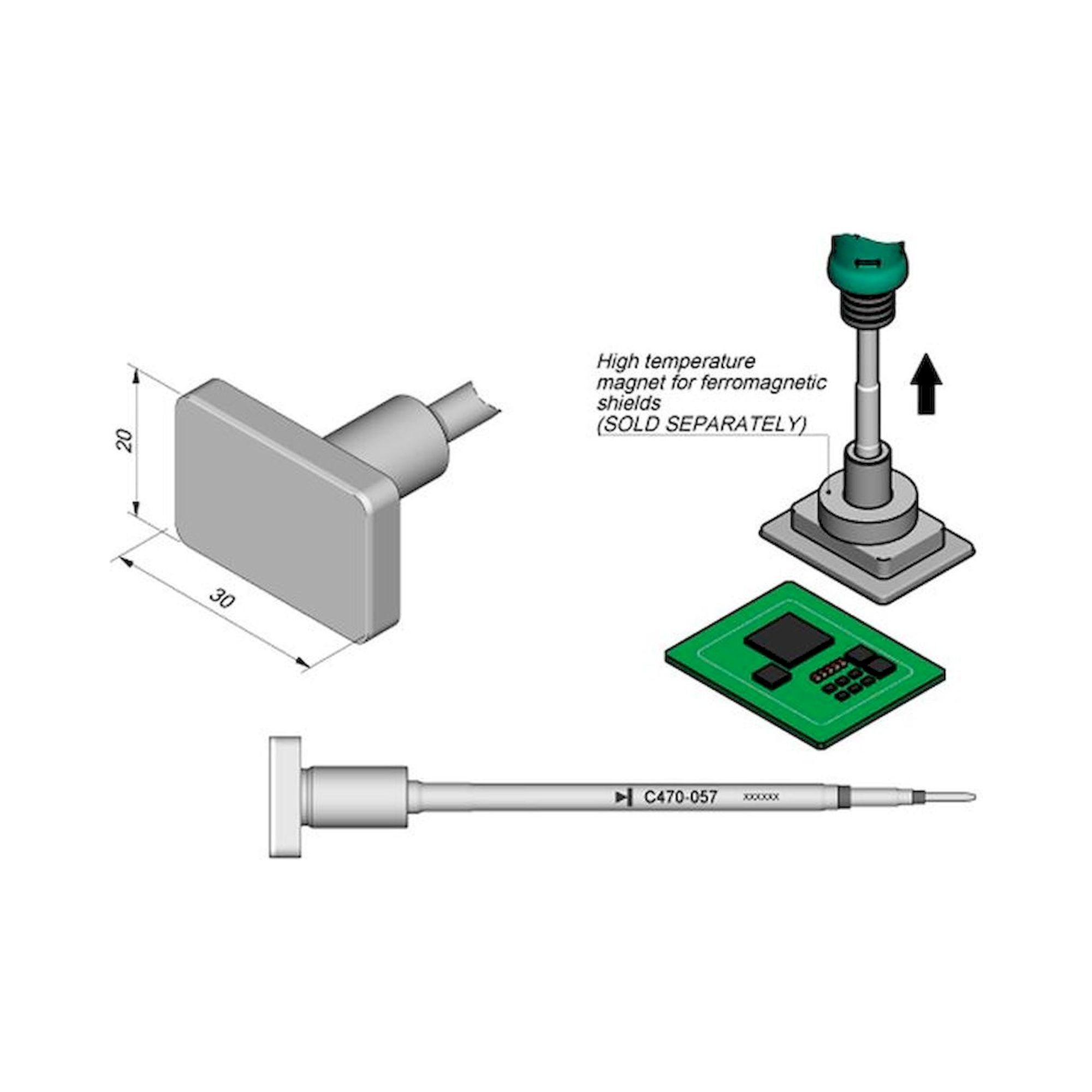

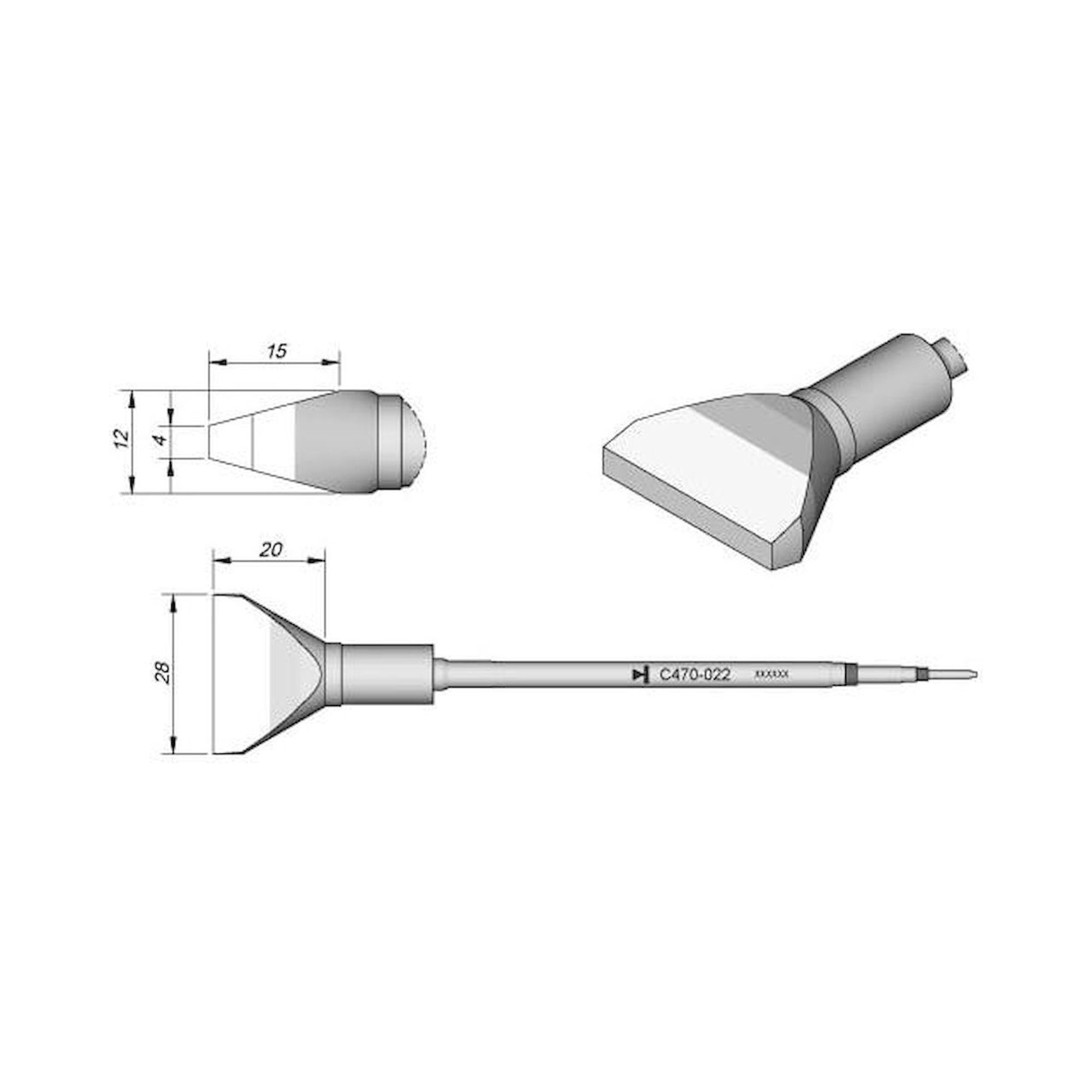

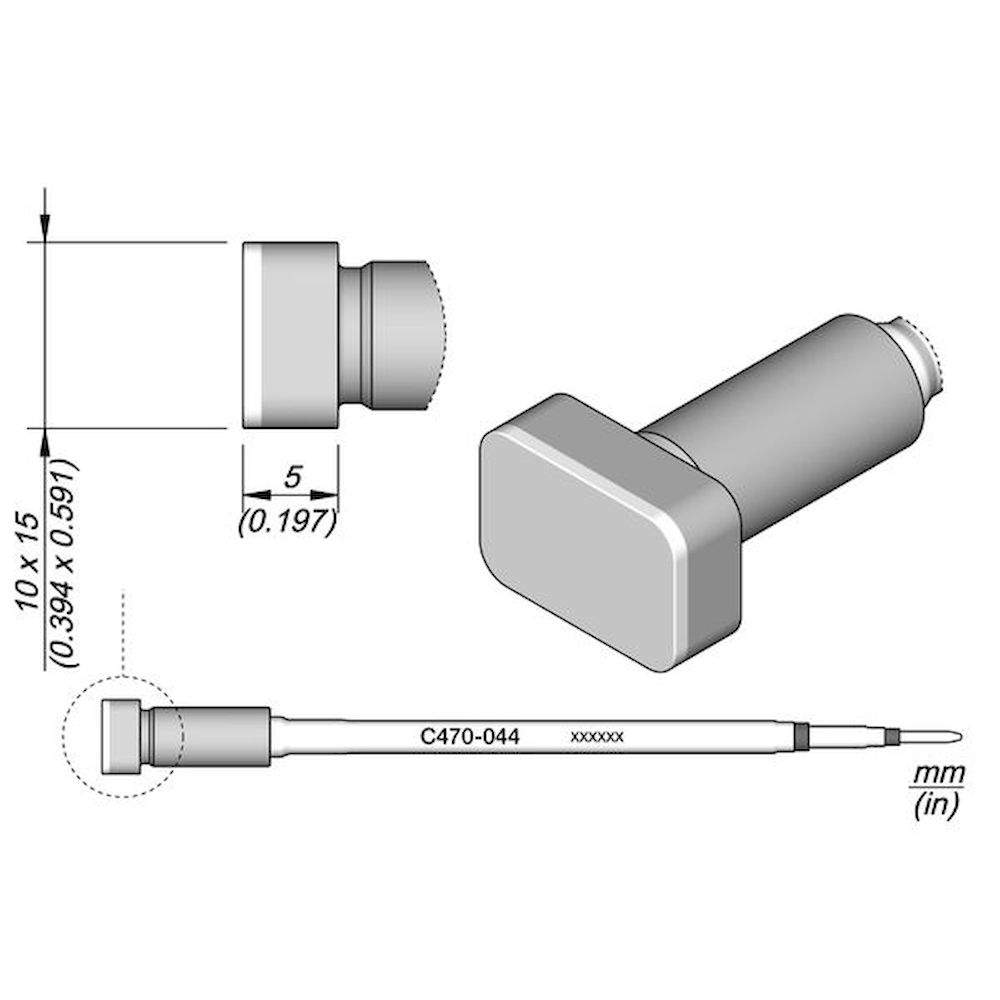

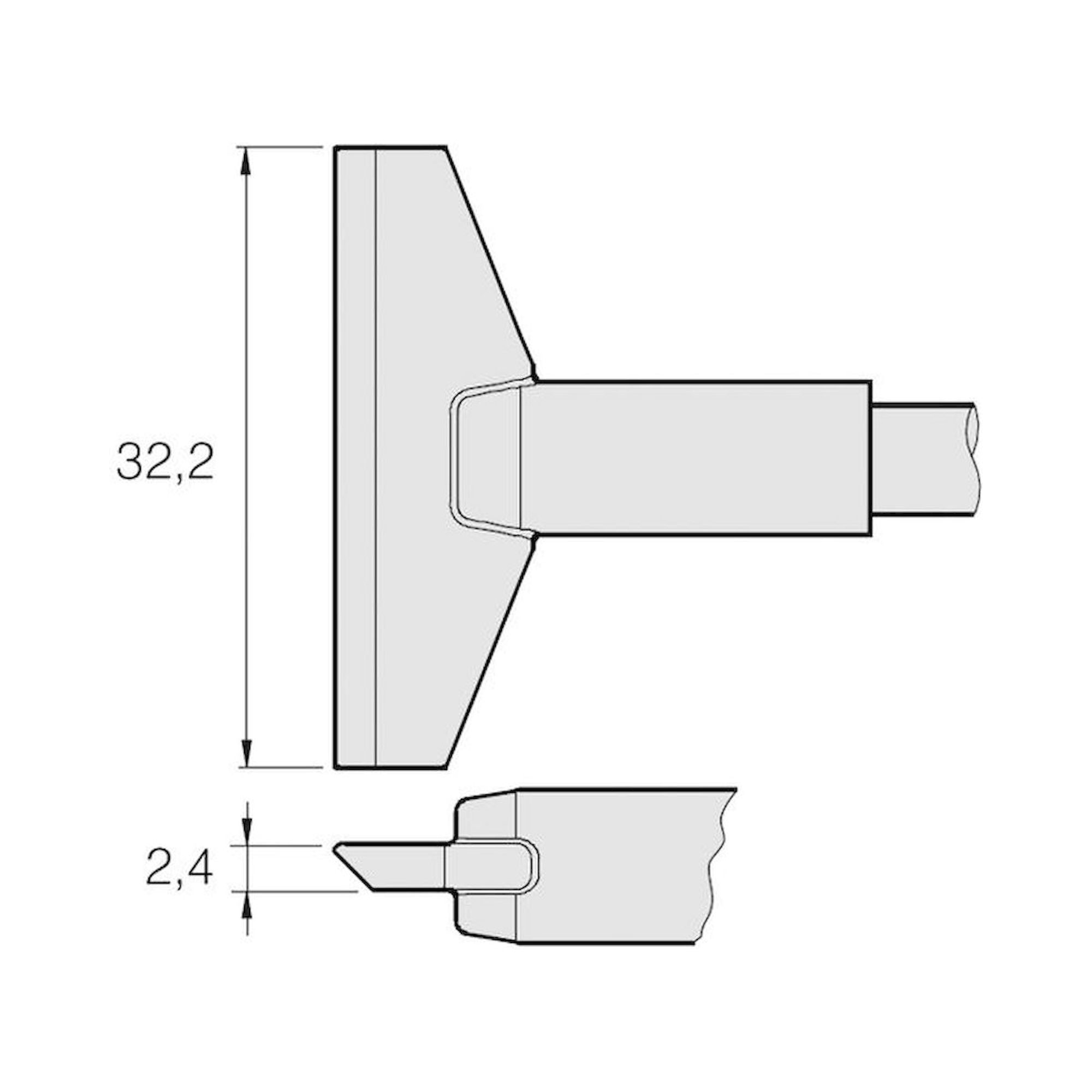

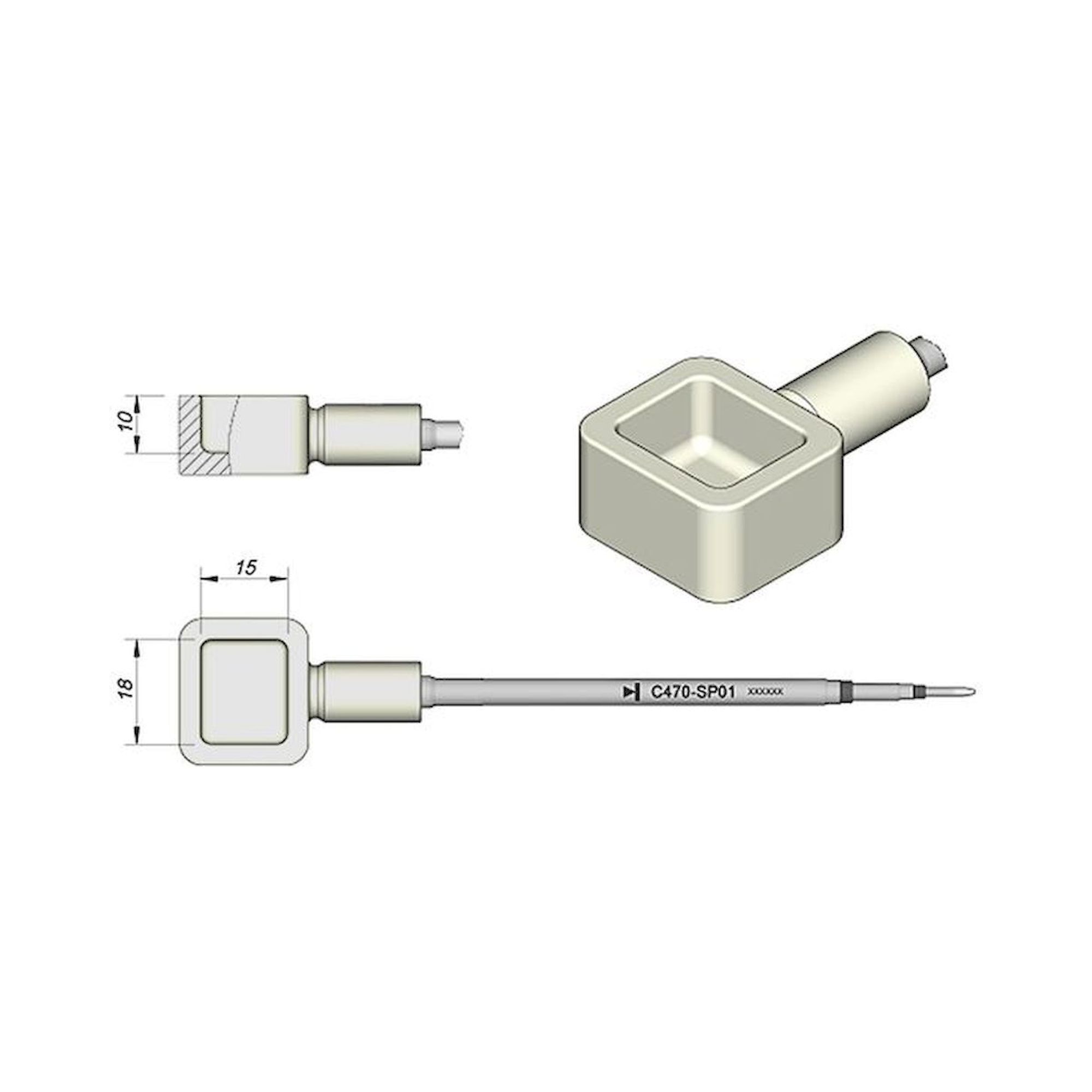

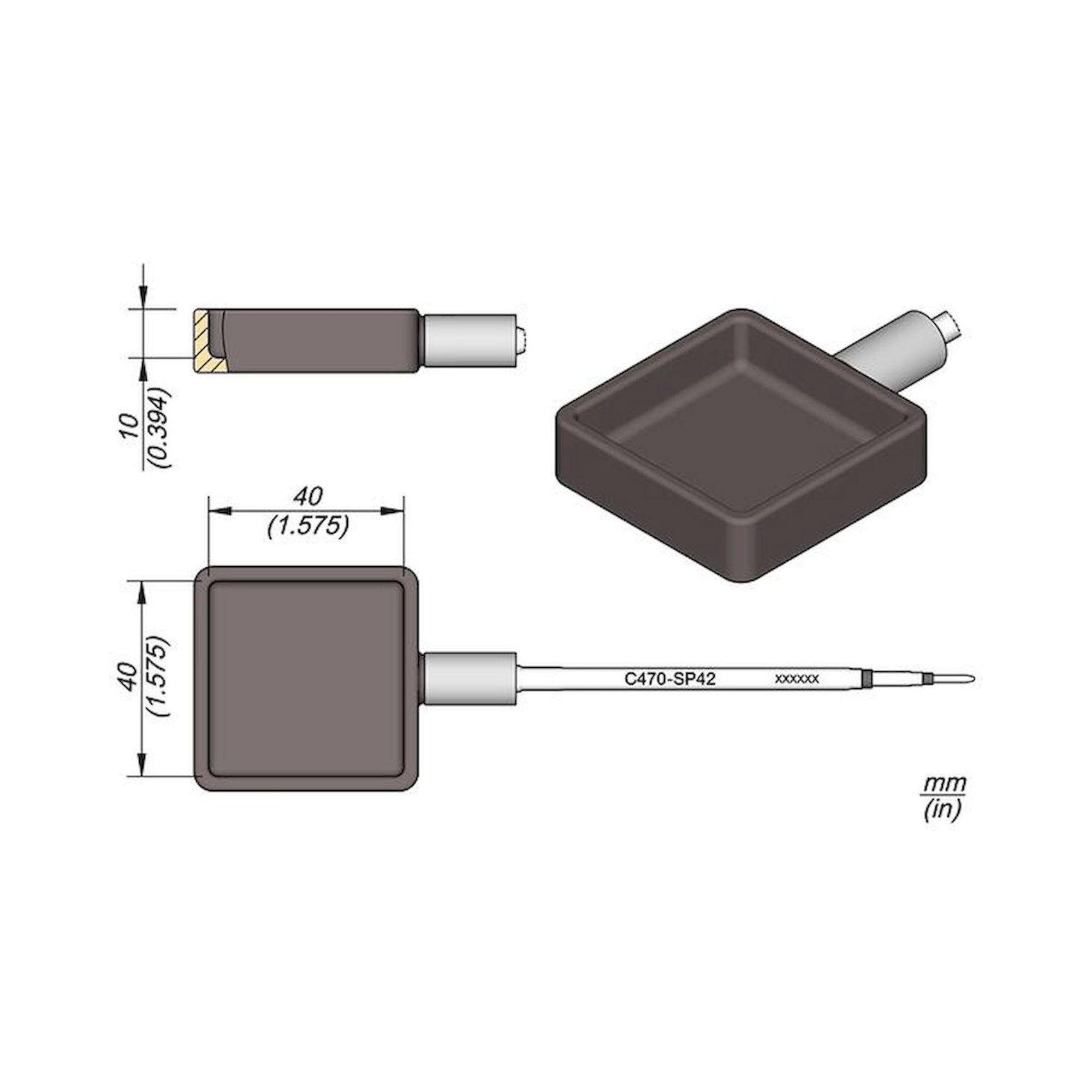

Soldering tips C470High-power iron tips, chisel up to 28x4 mm, 58 variants

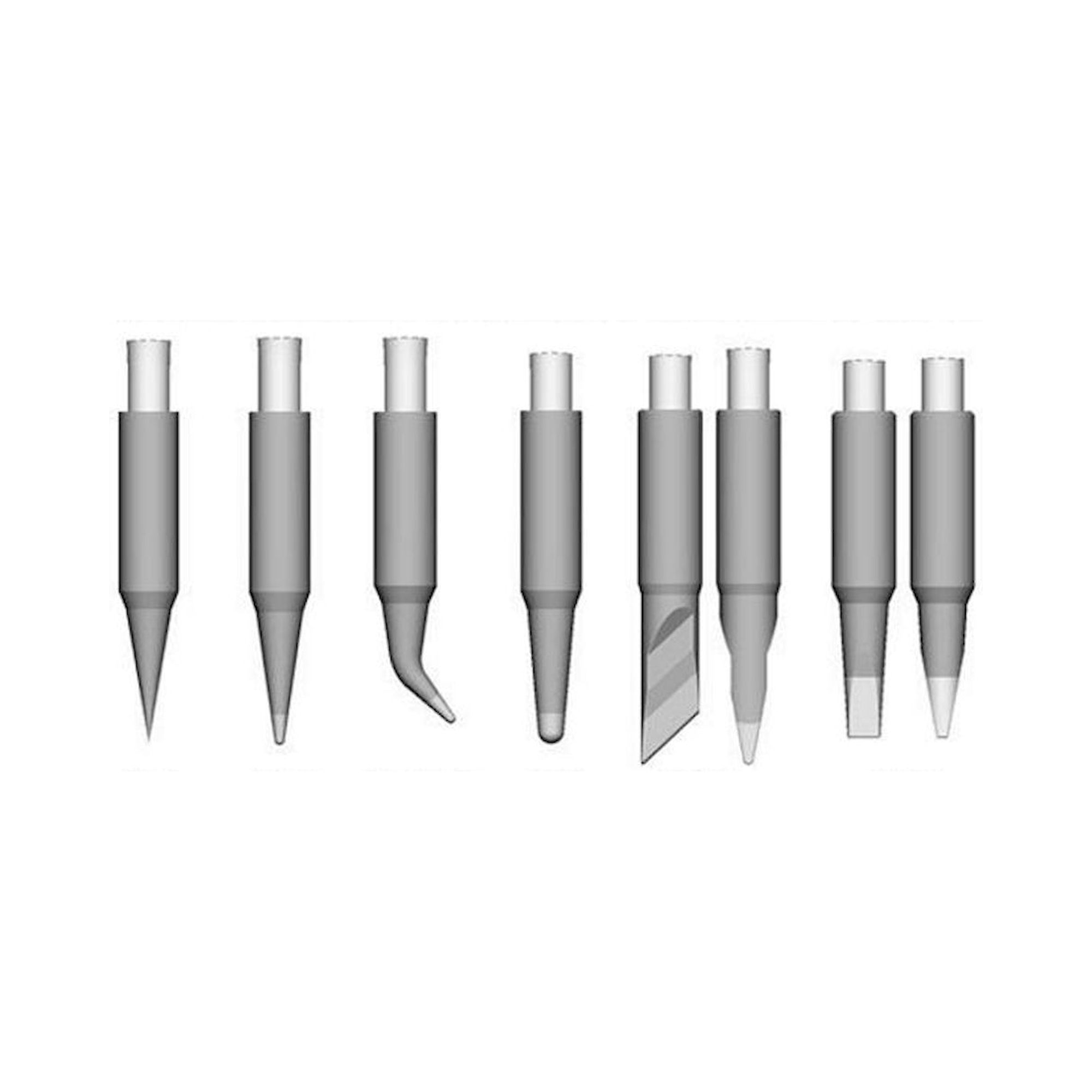

Soldering tips C105Nano tips from D: 0.1 mm, knife, blade, 31 items

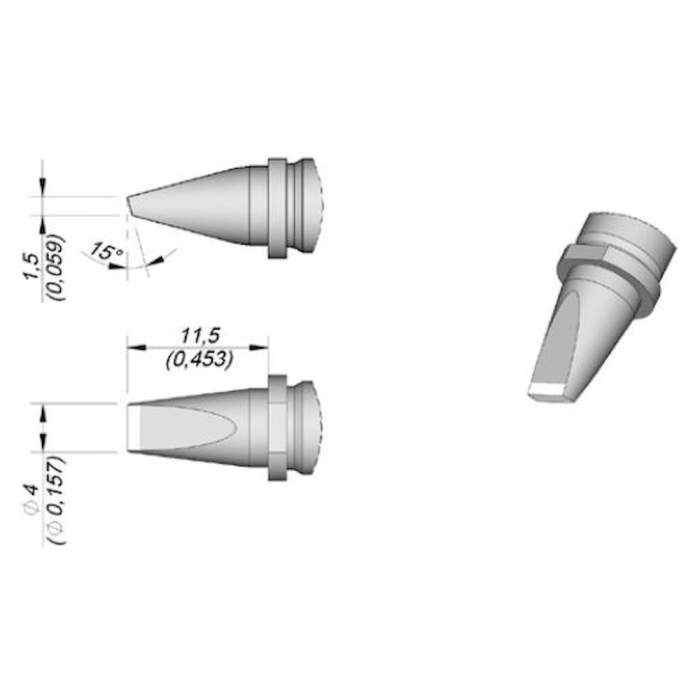

Soldering tips R245Rework chisel tip 1.5x4 mm for TR245 handpiece
Soldering tips C115Nano tips D: 0.1-0.8 mm, chisel from 0.2x0.1 mm, 32 variants

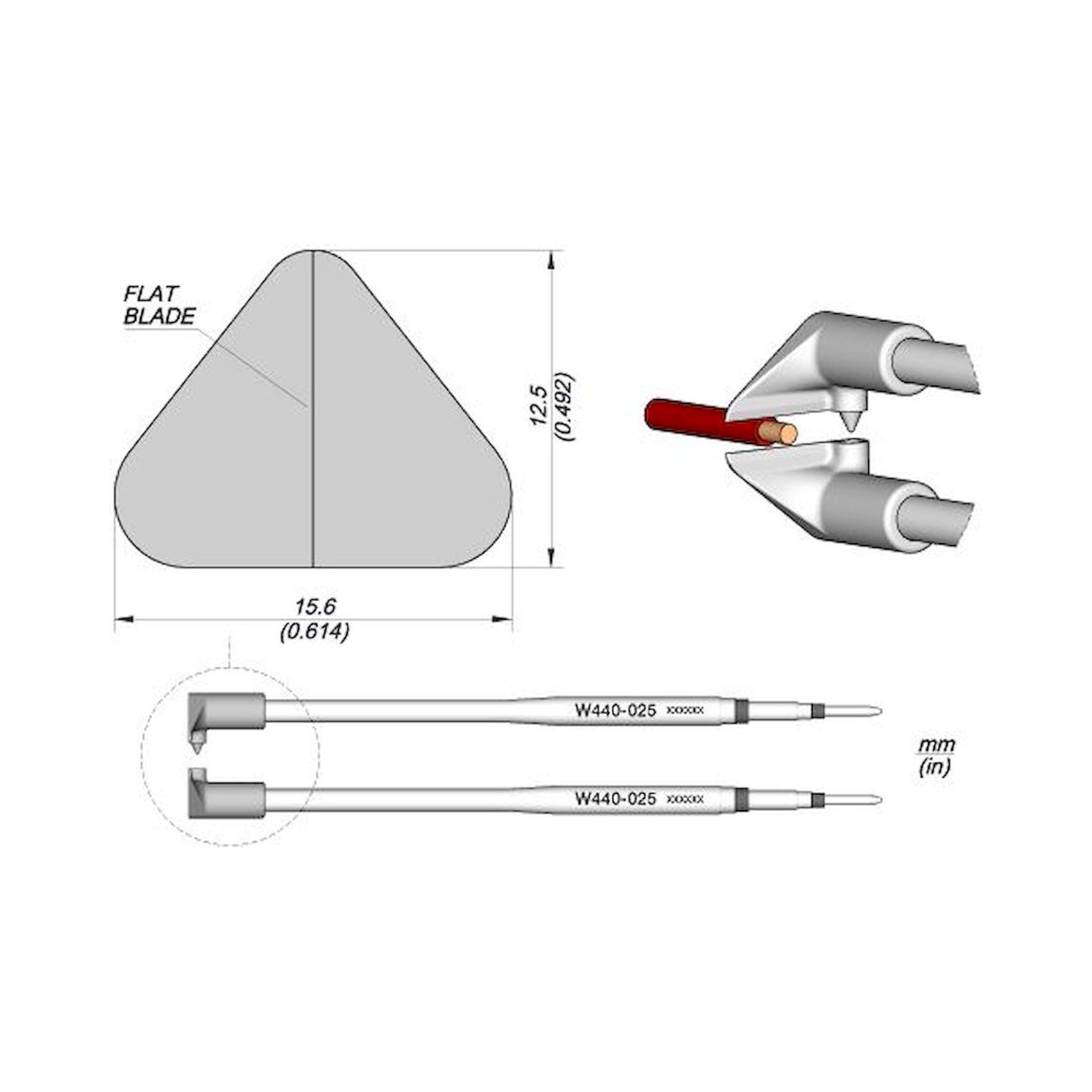

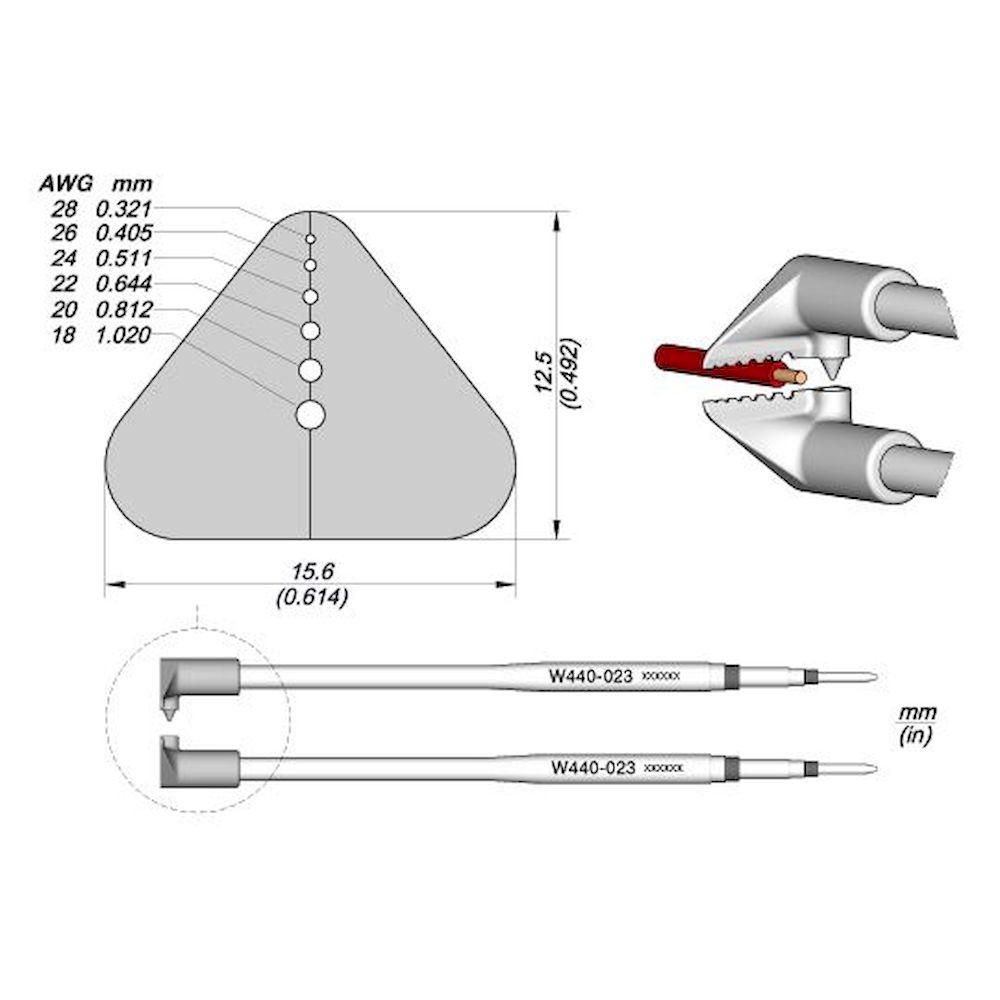

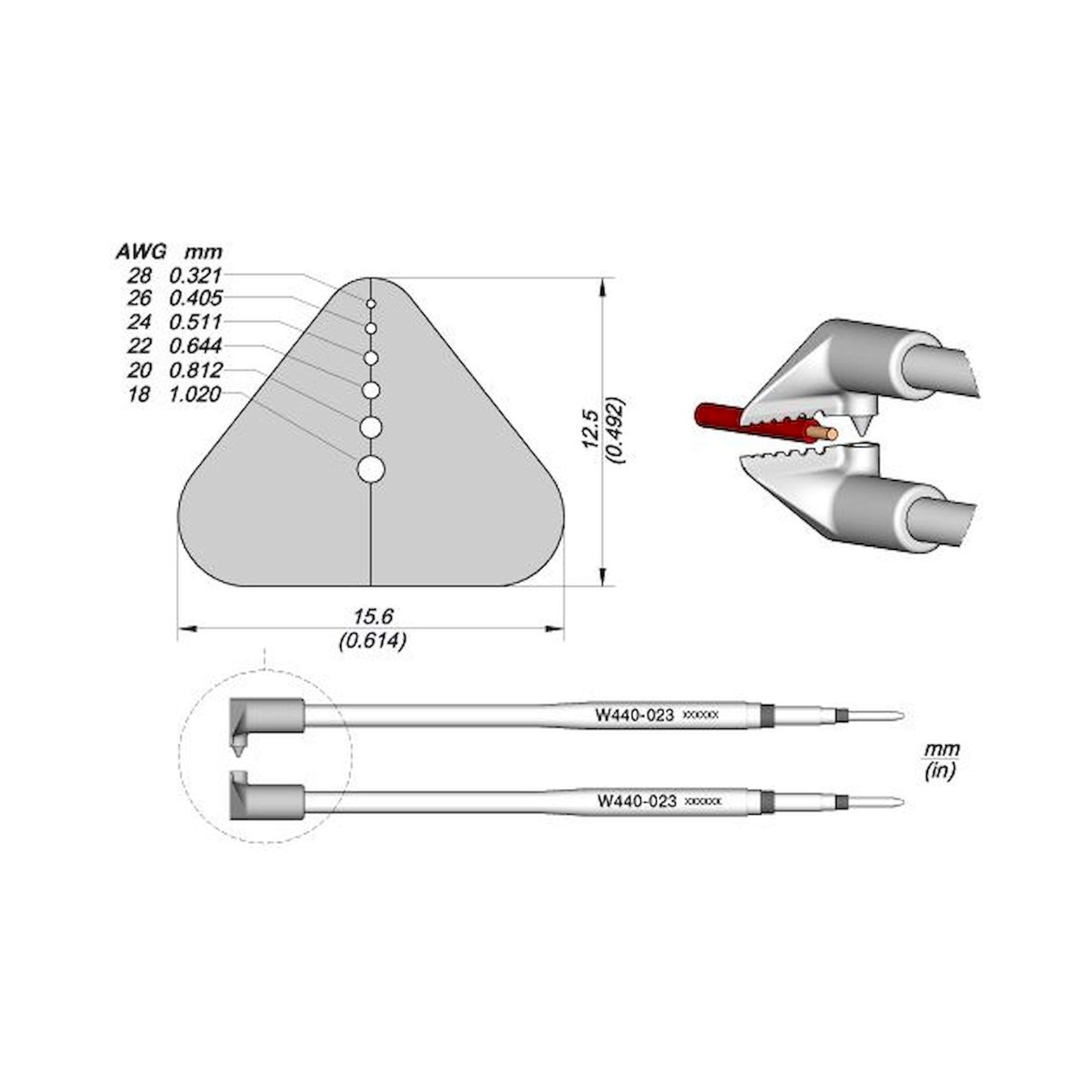

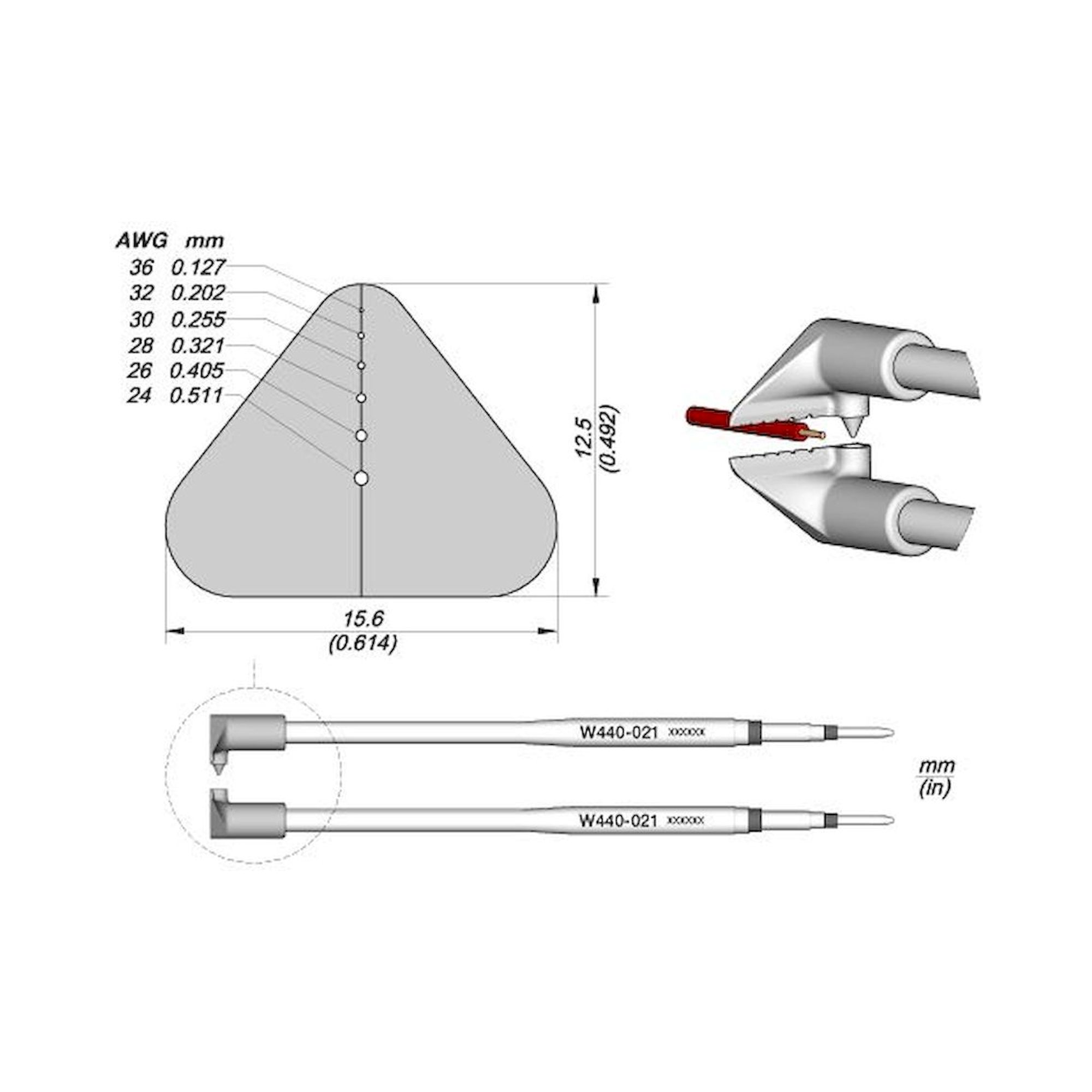

Soldering tips W440Tweezer tips AWG 36-18 and flat blade

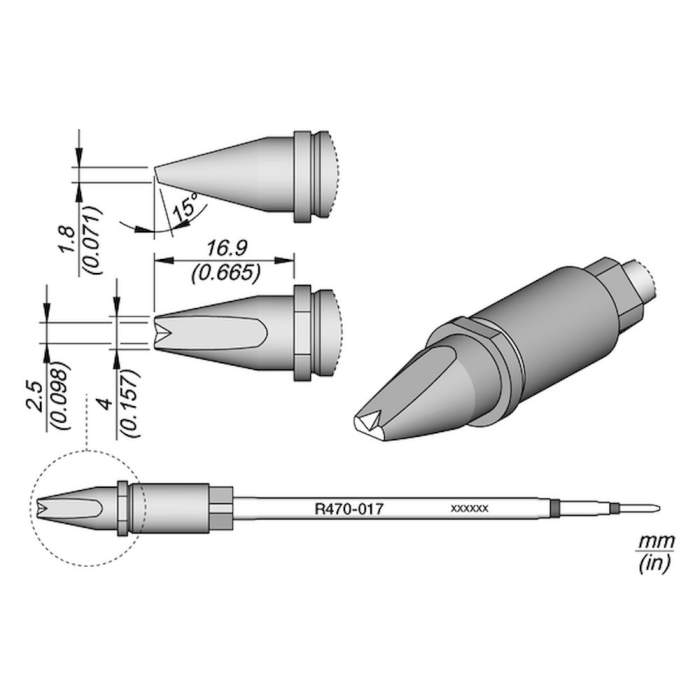

Soldering tips R470Rework chisel tip 4x1.8 mm for TR470 handpiece

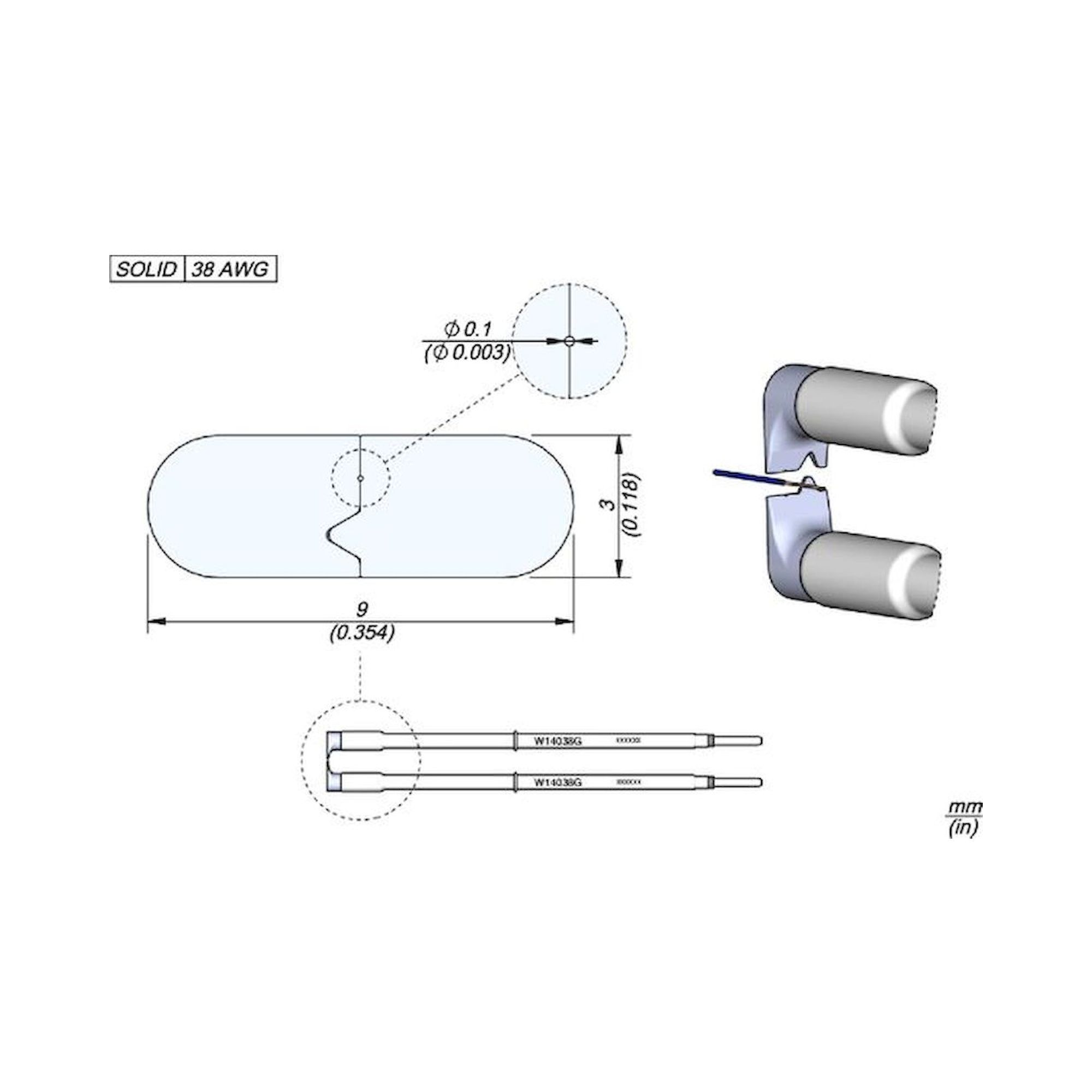

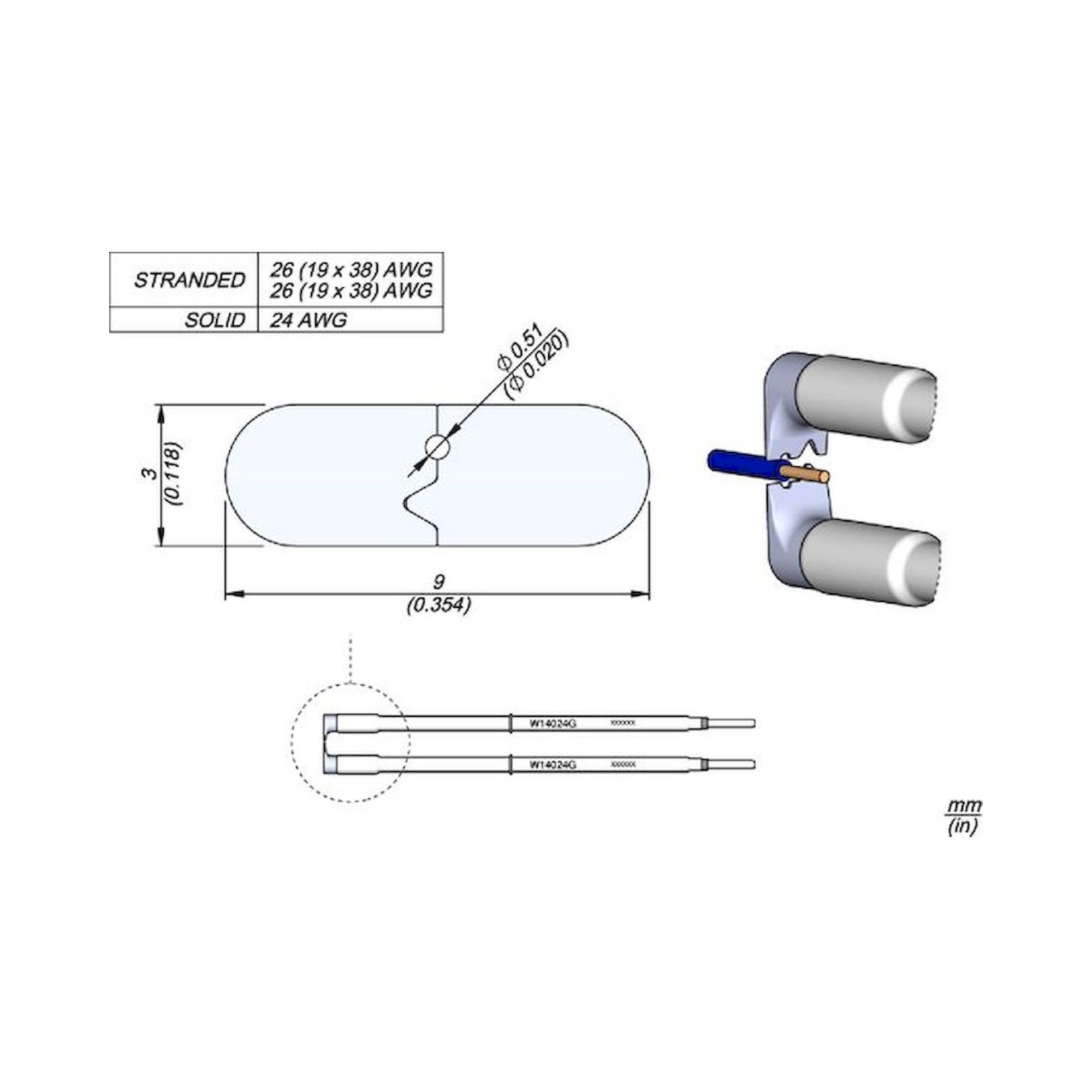

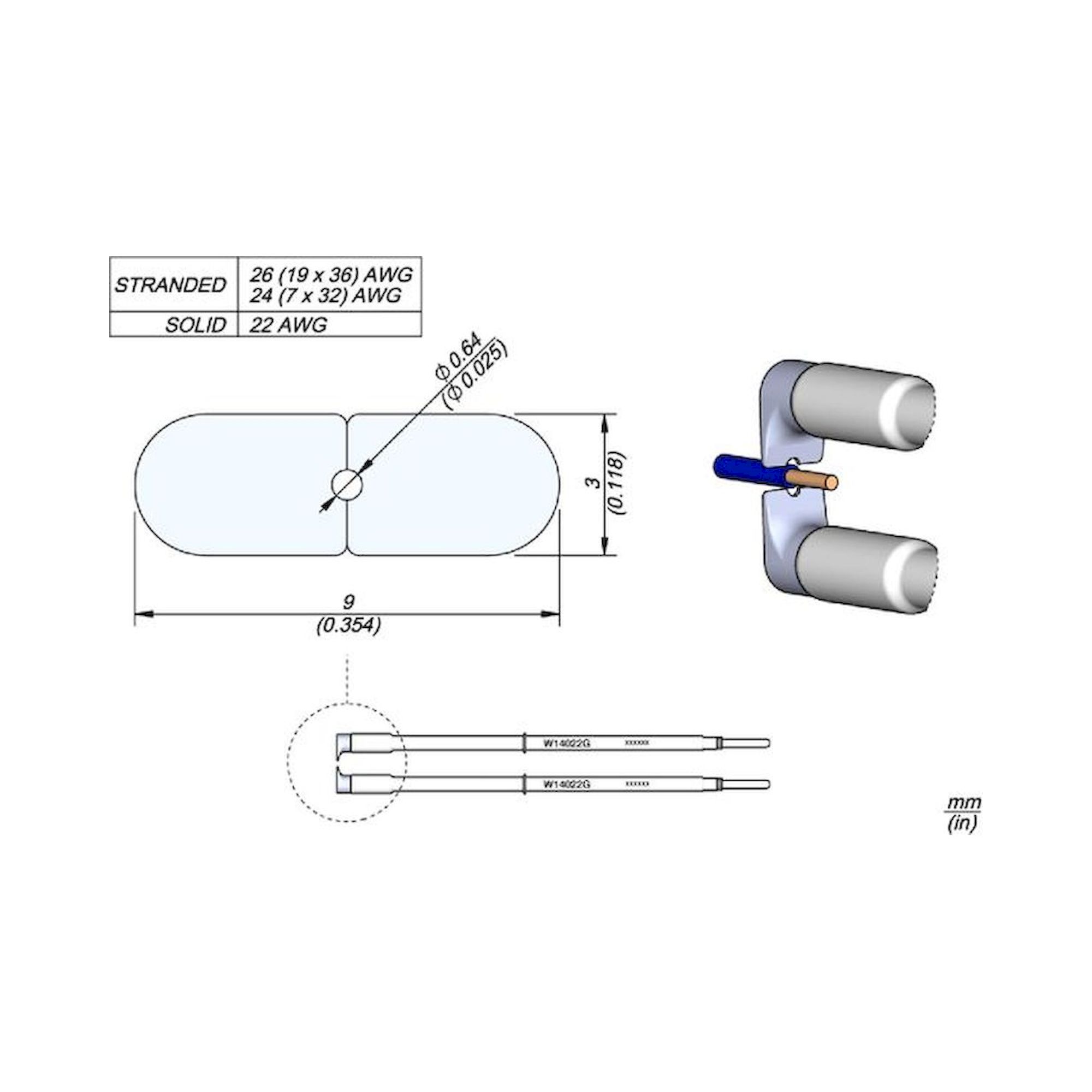

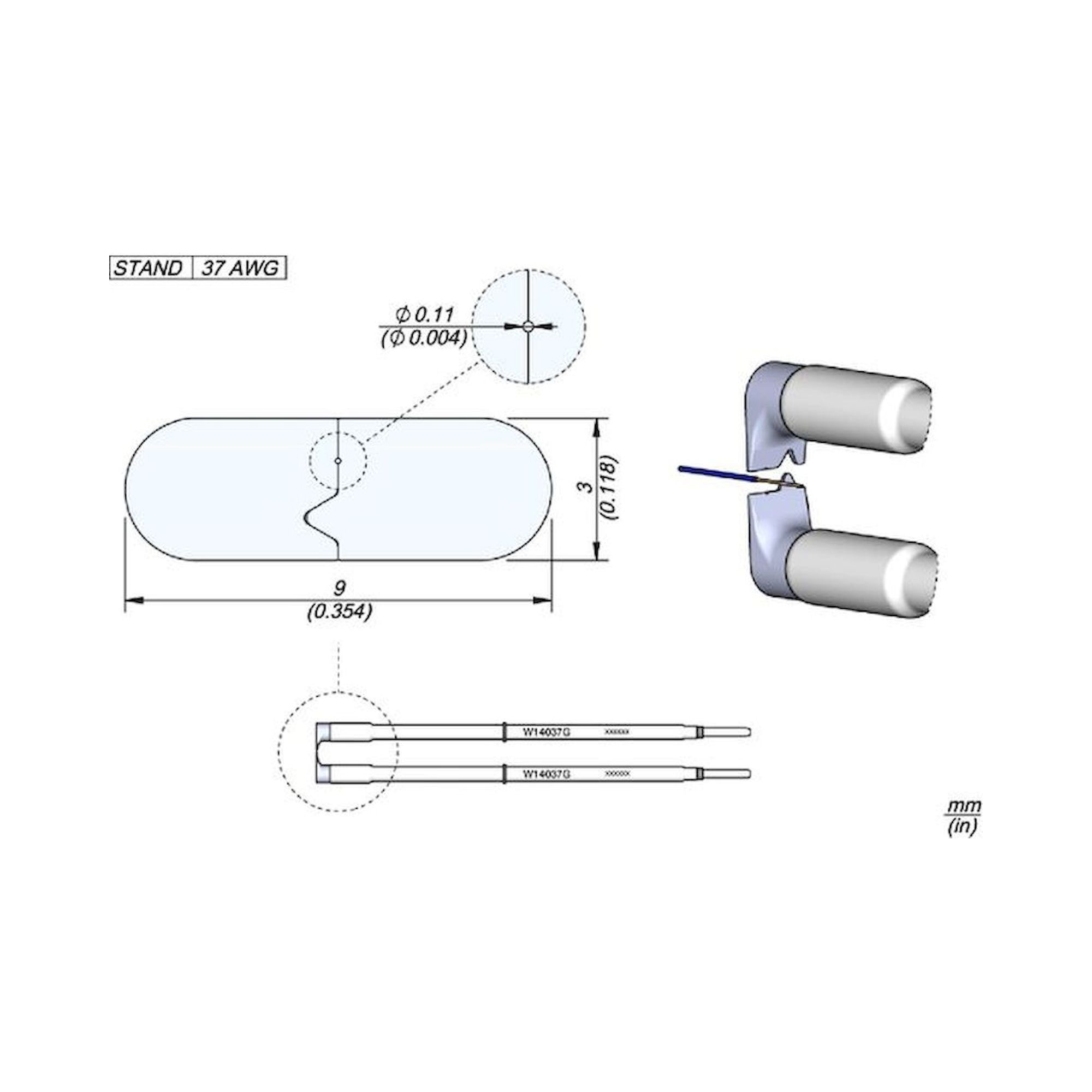

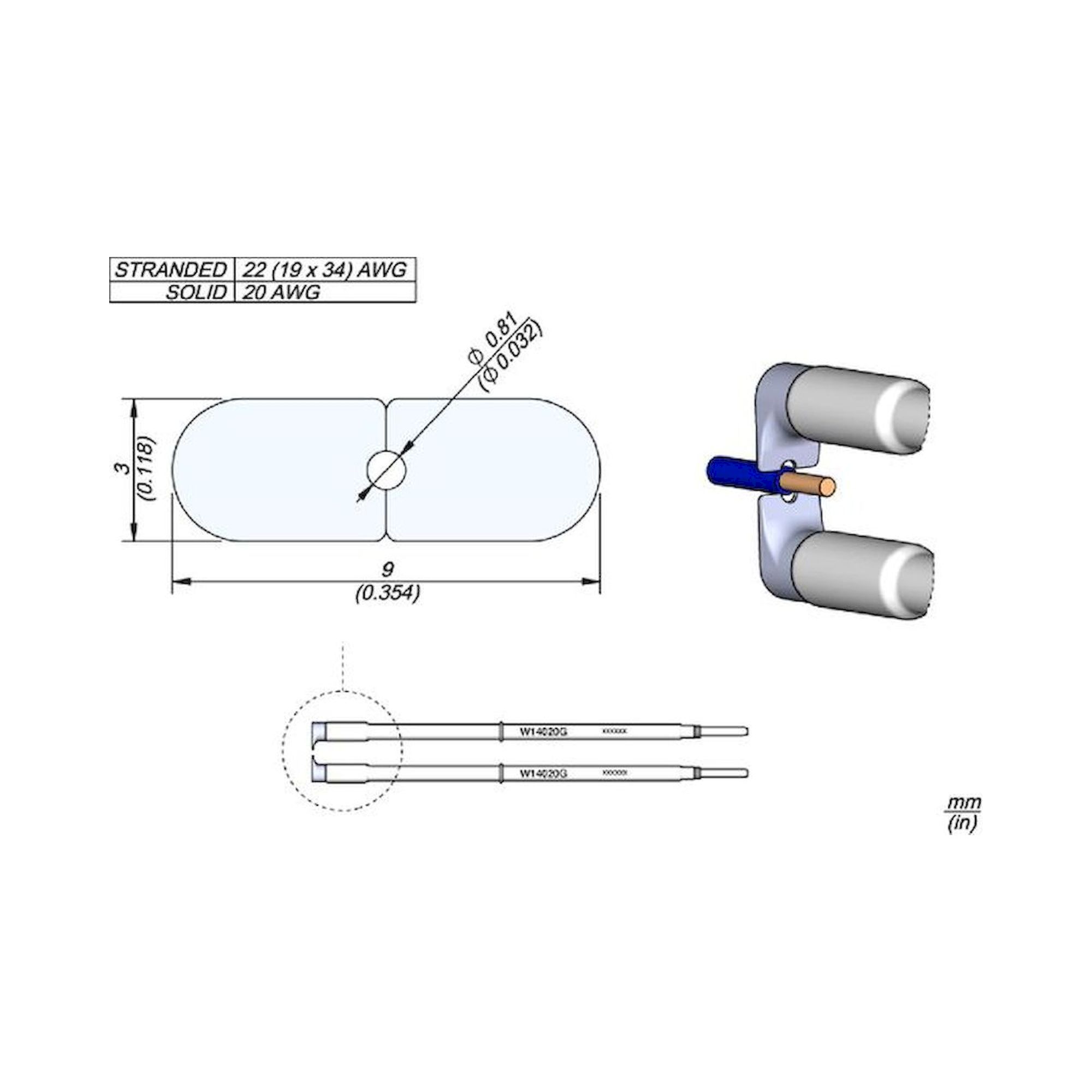

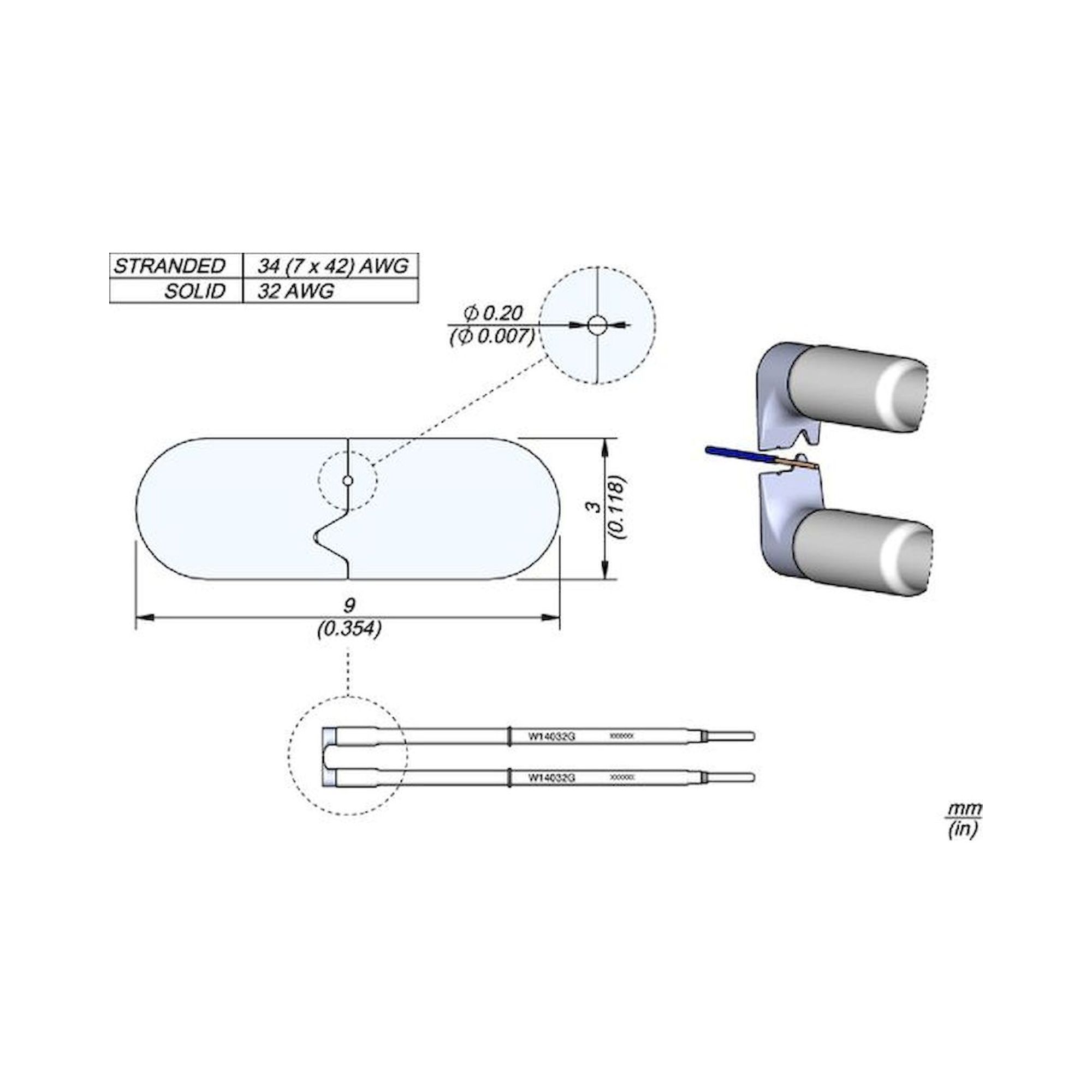

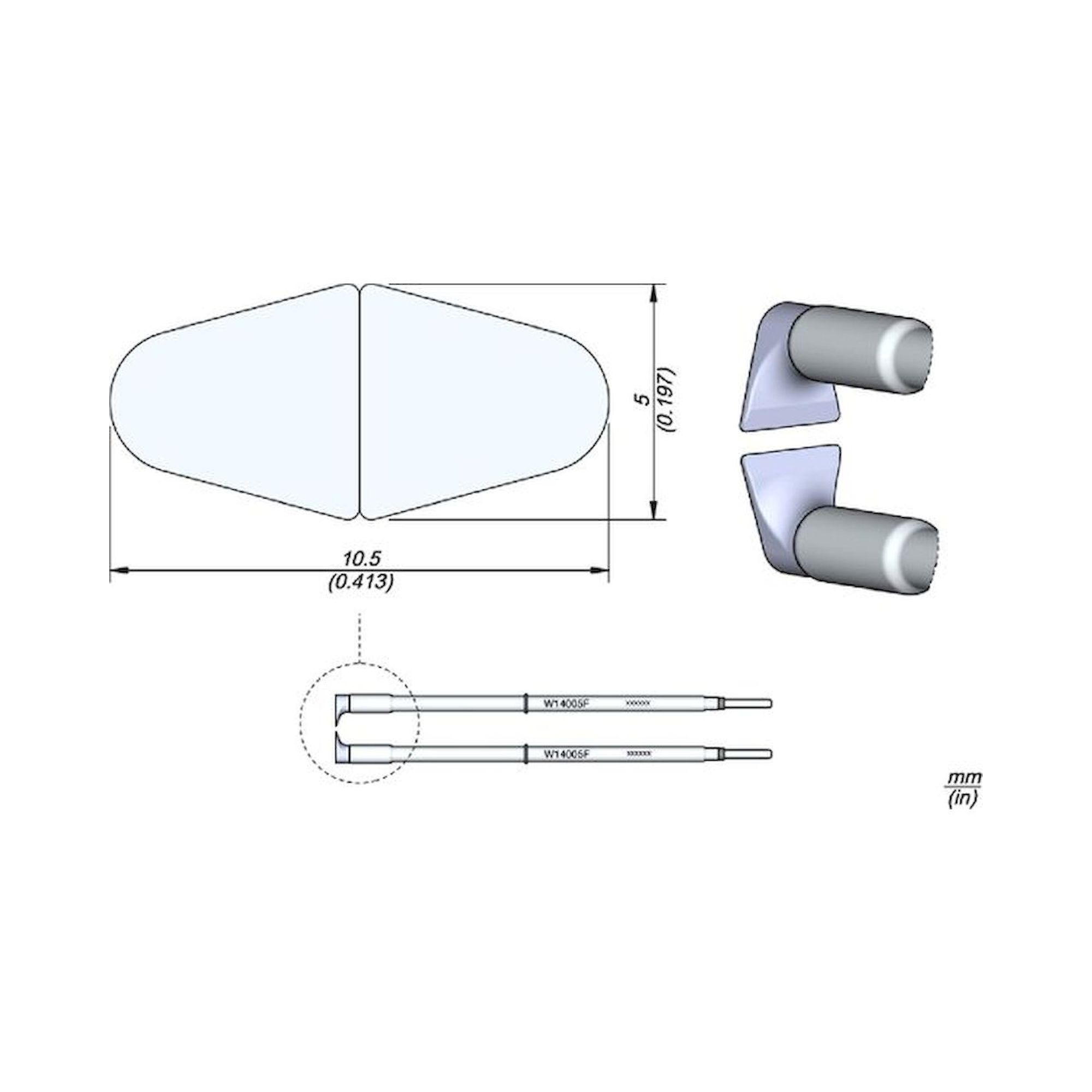

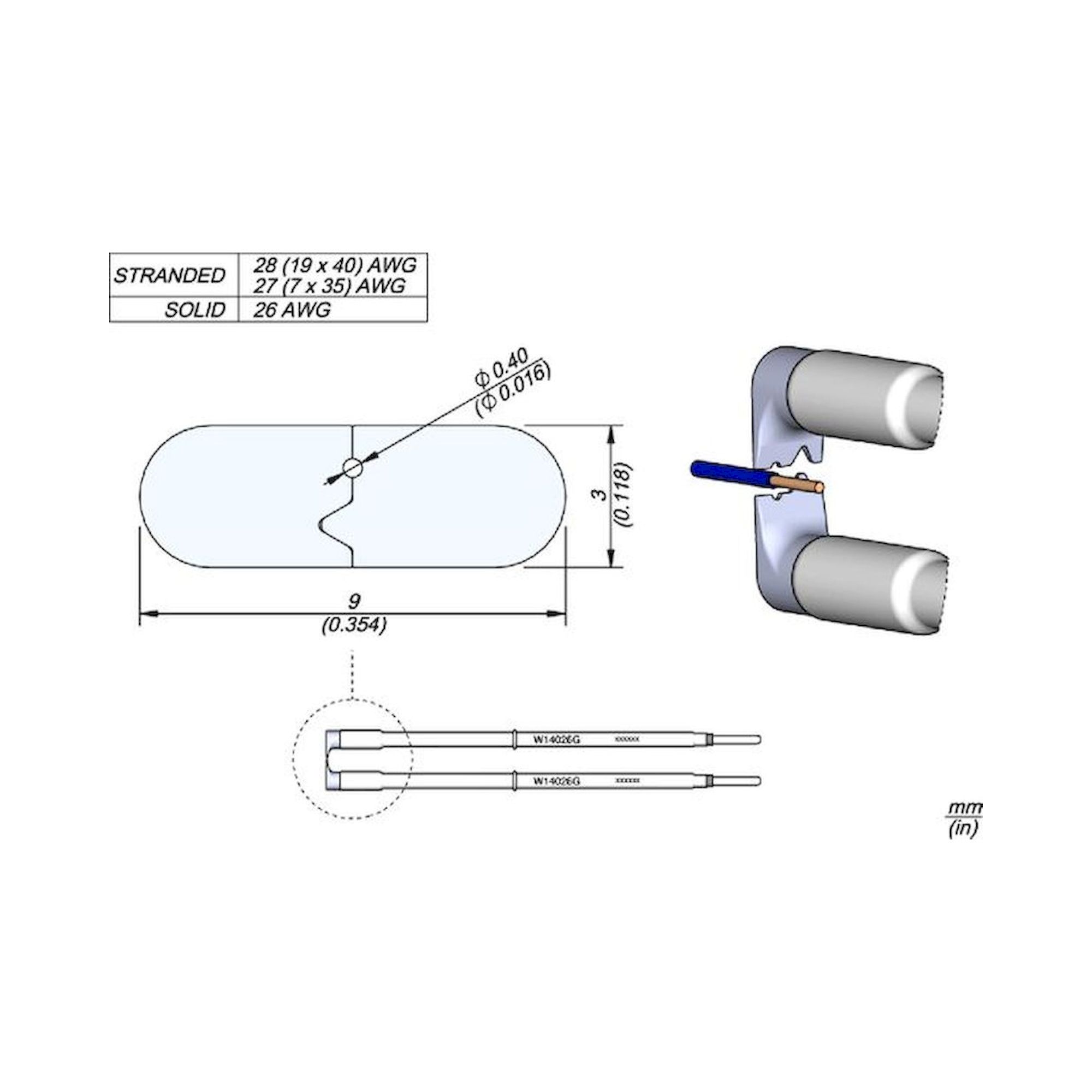

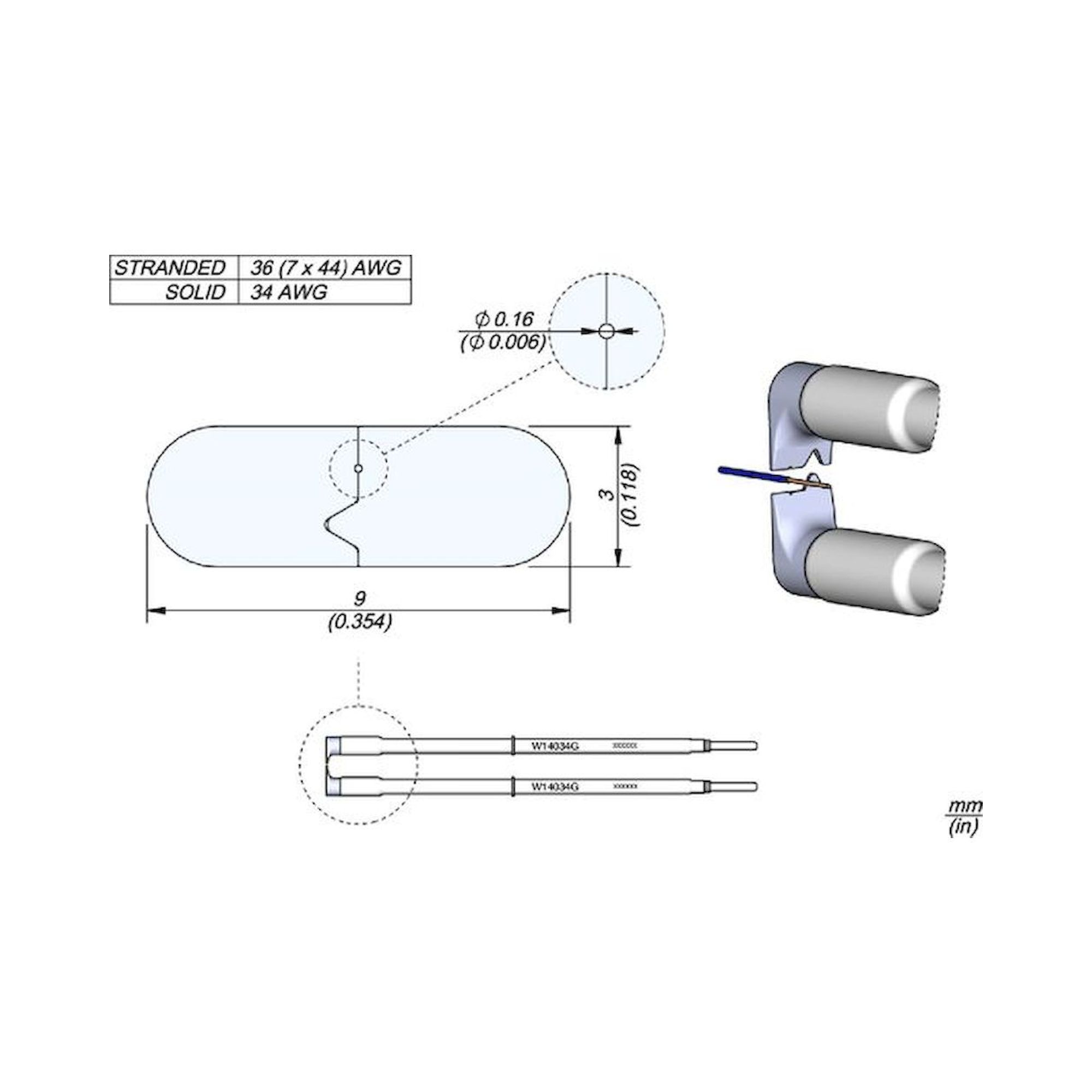

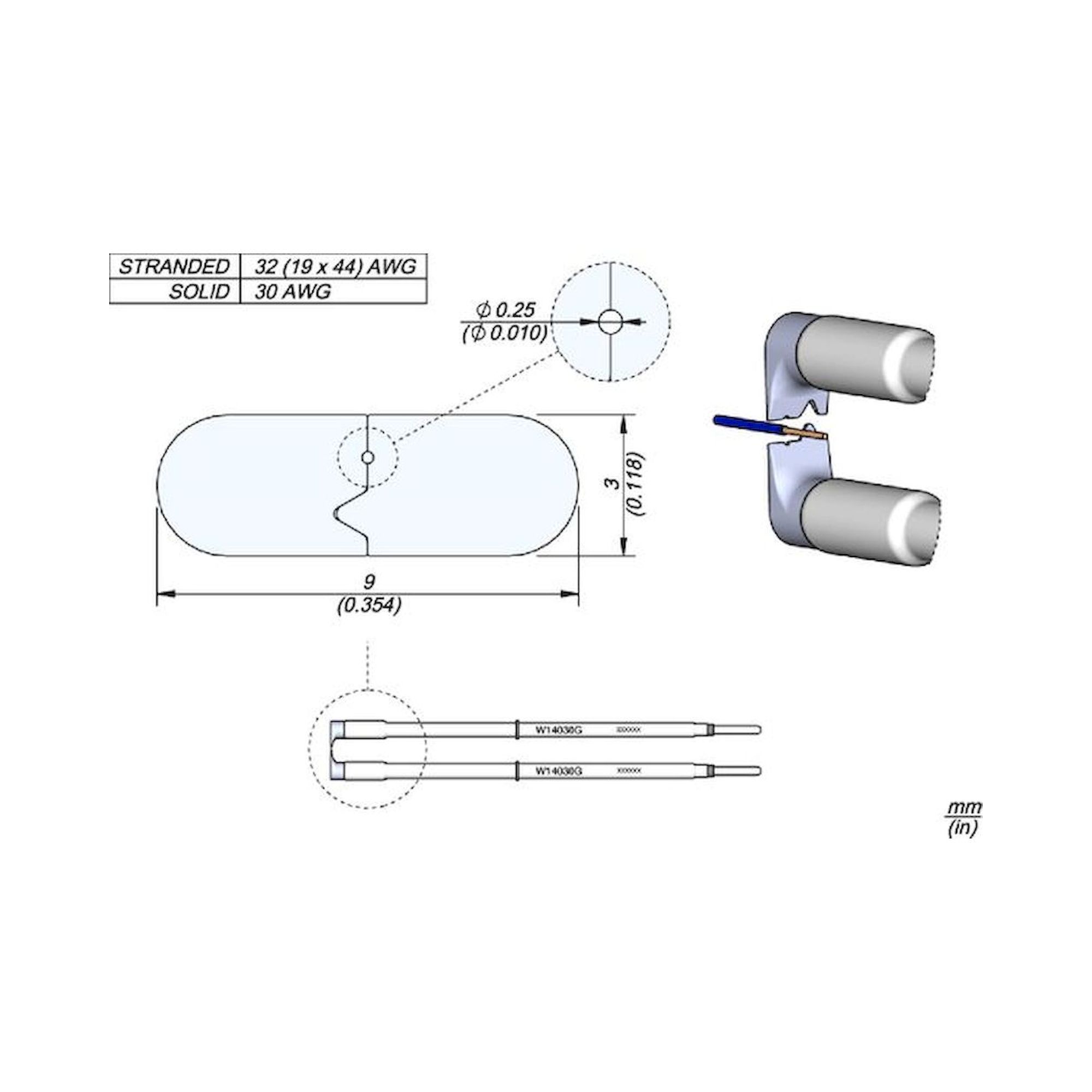

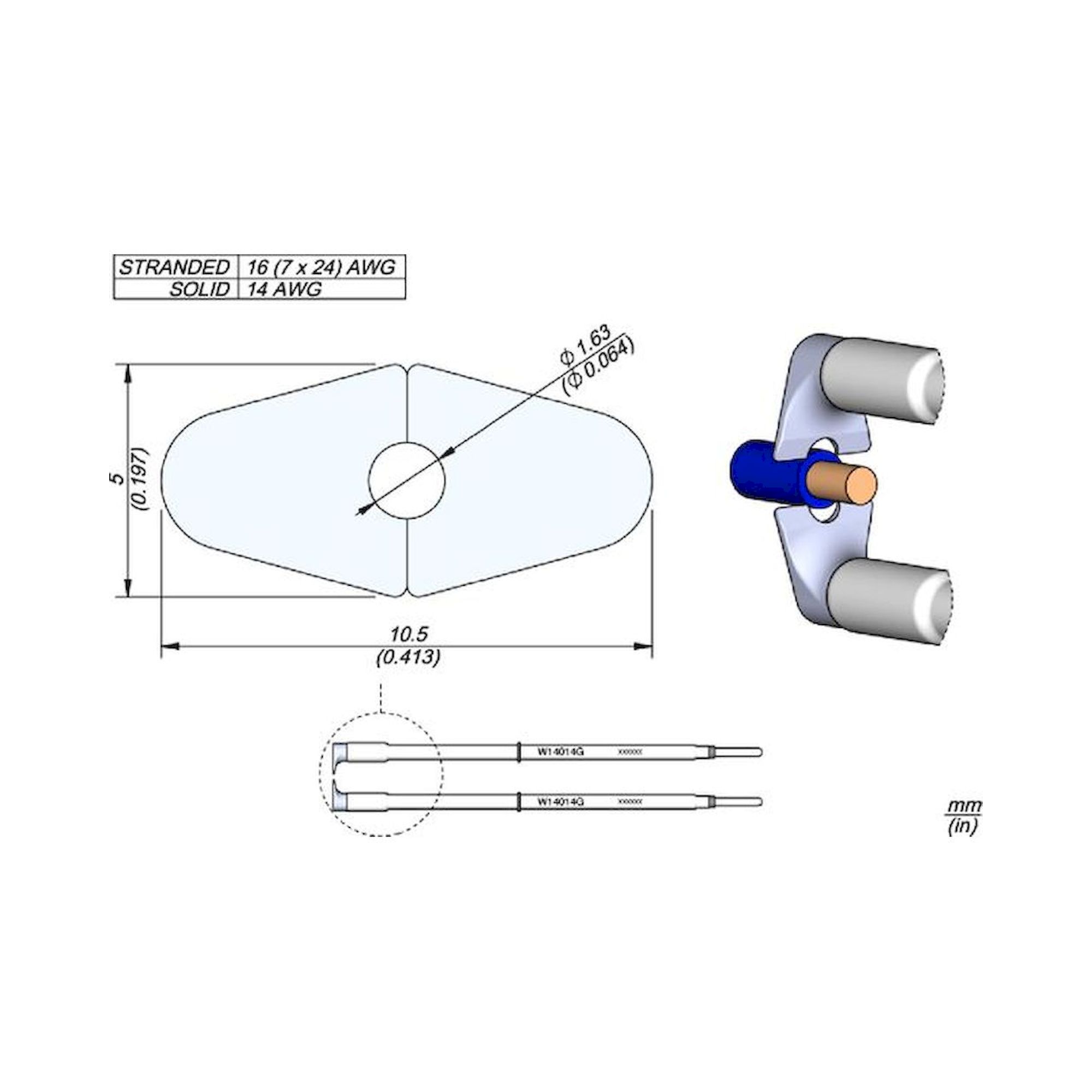

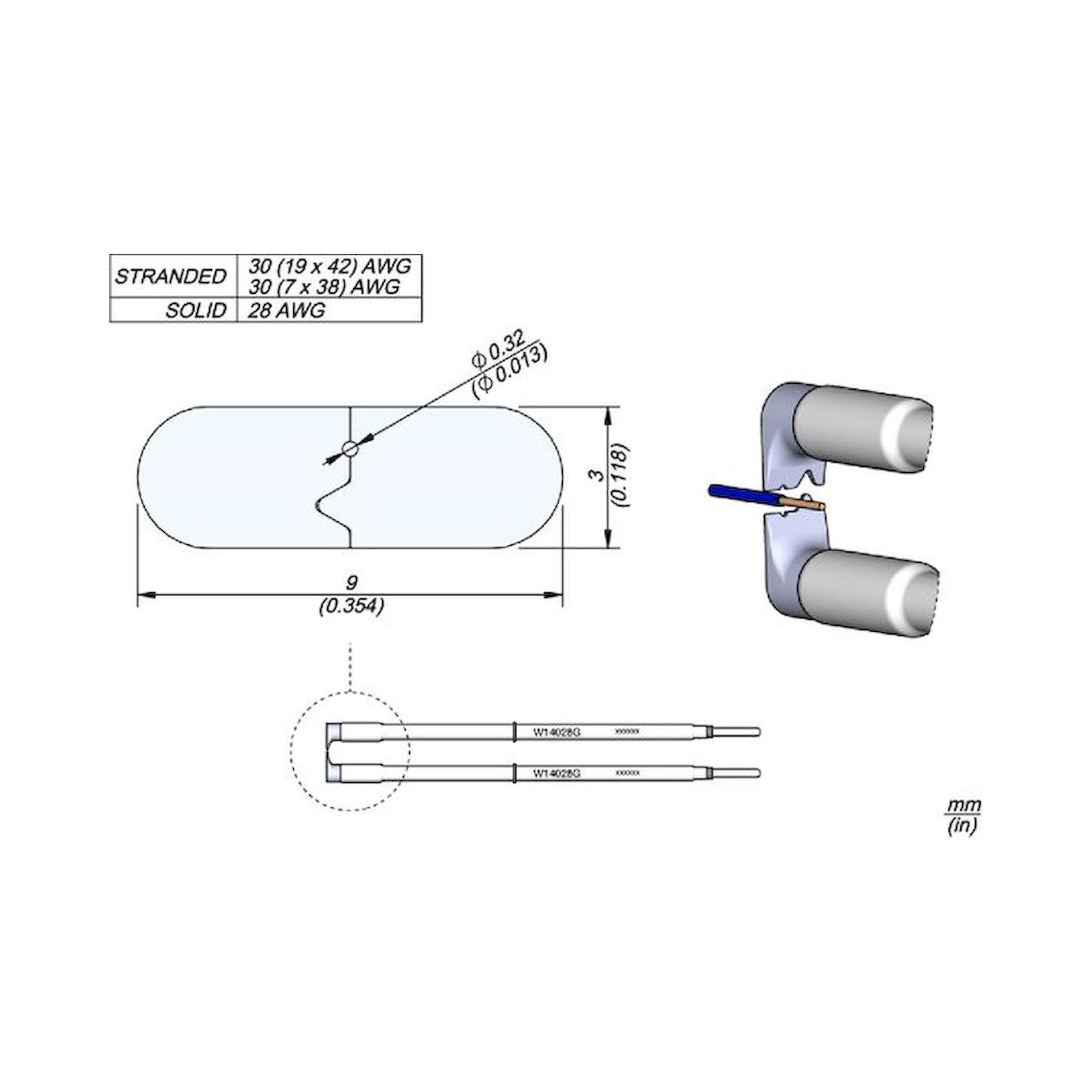

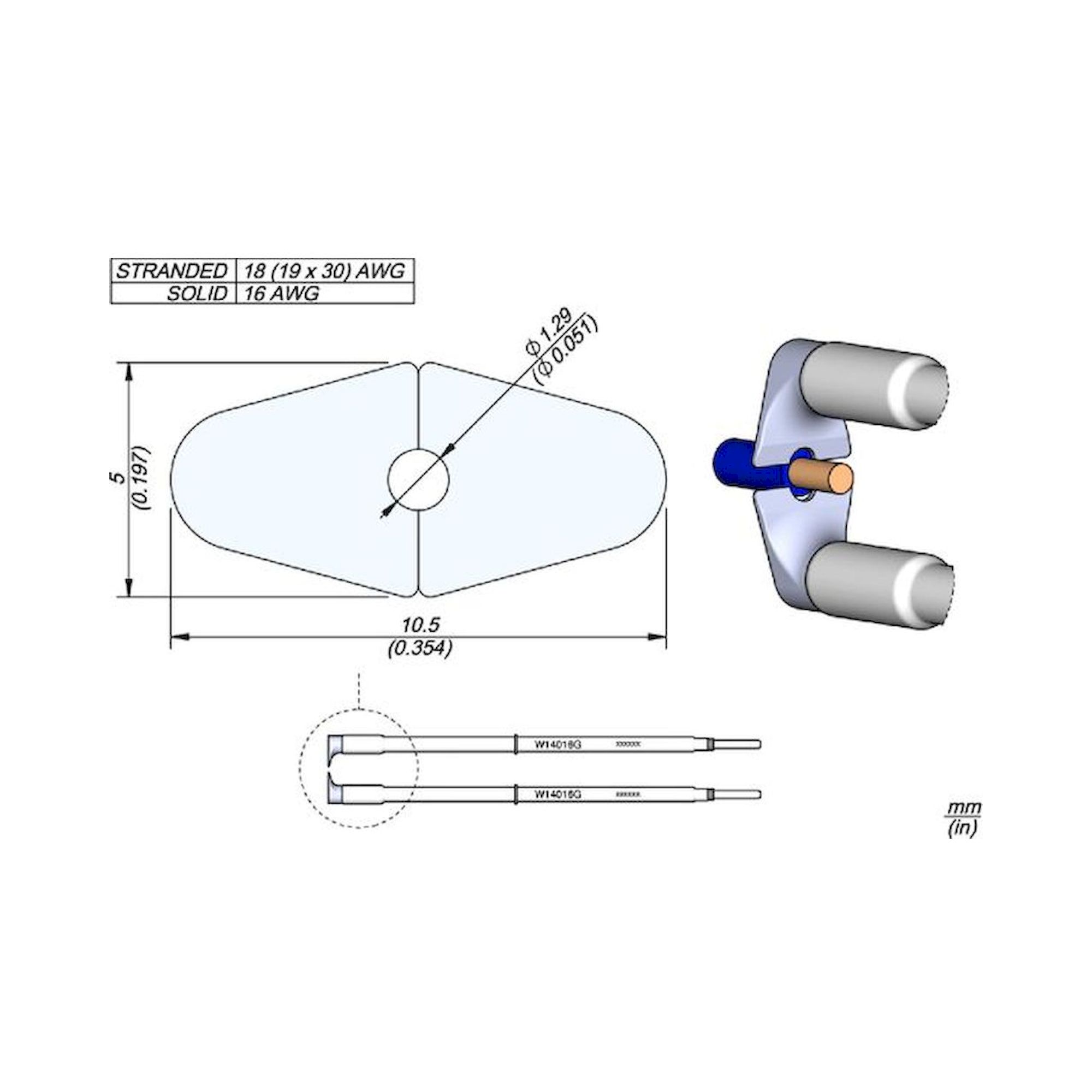

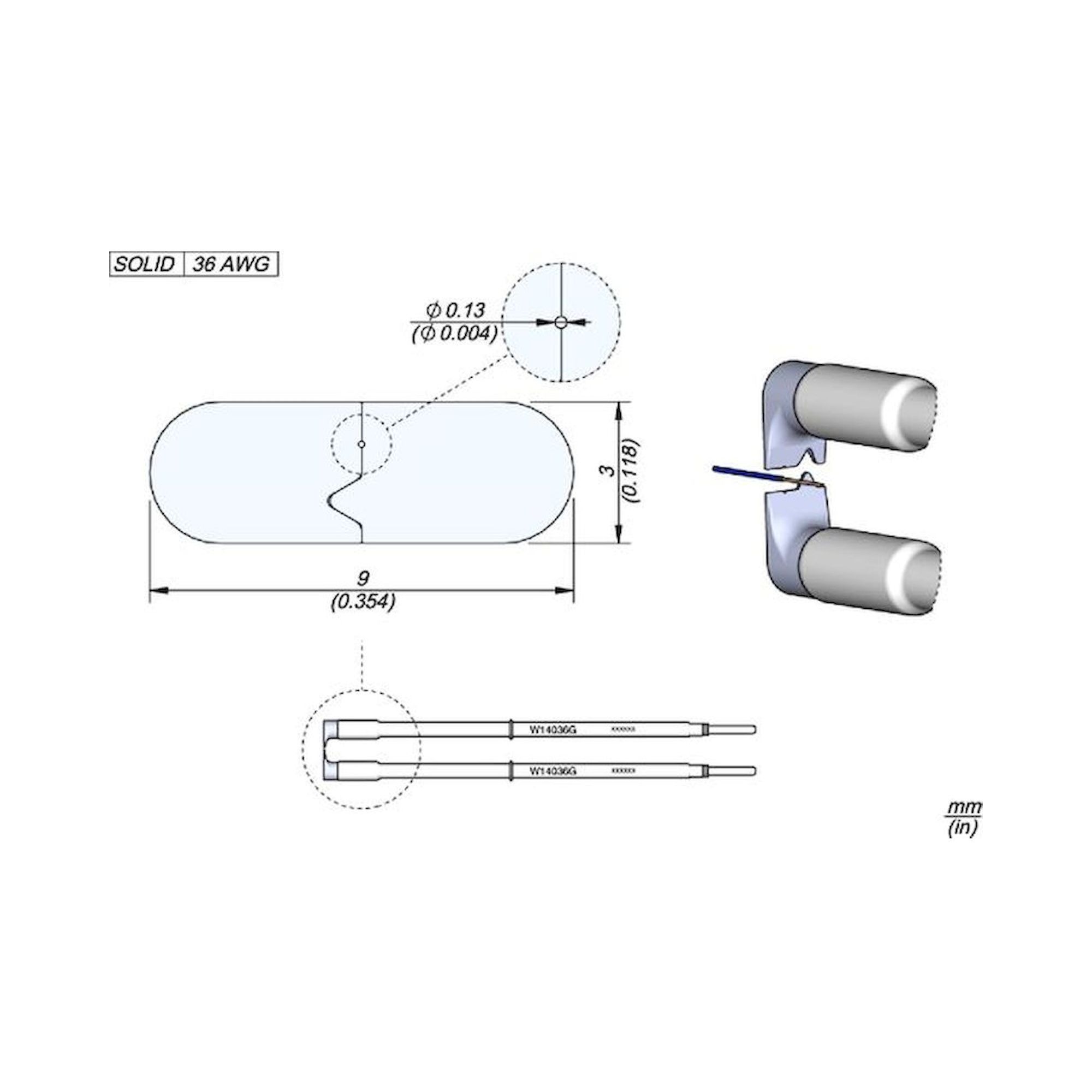

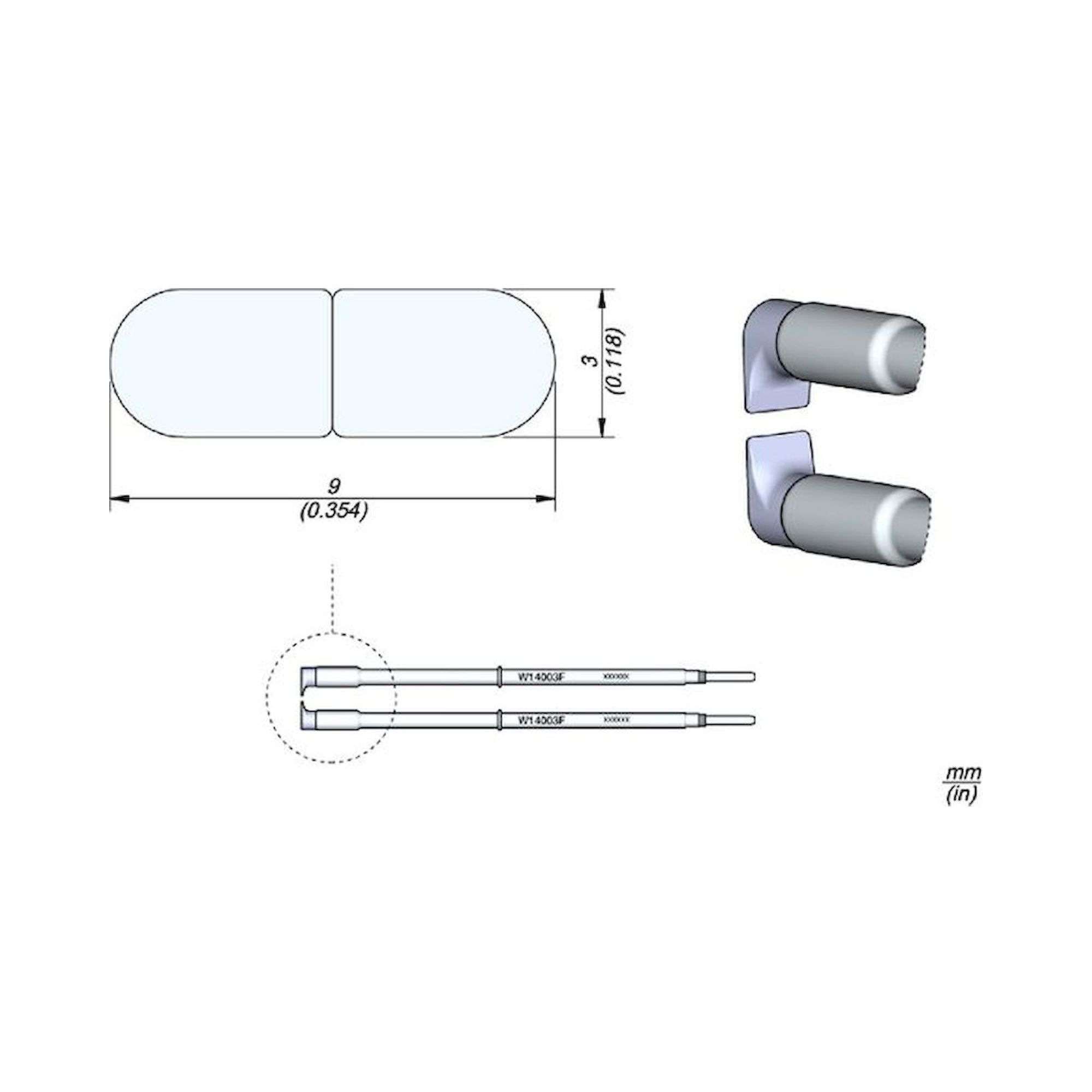

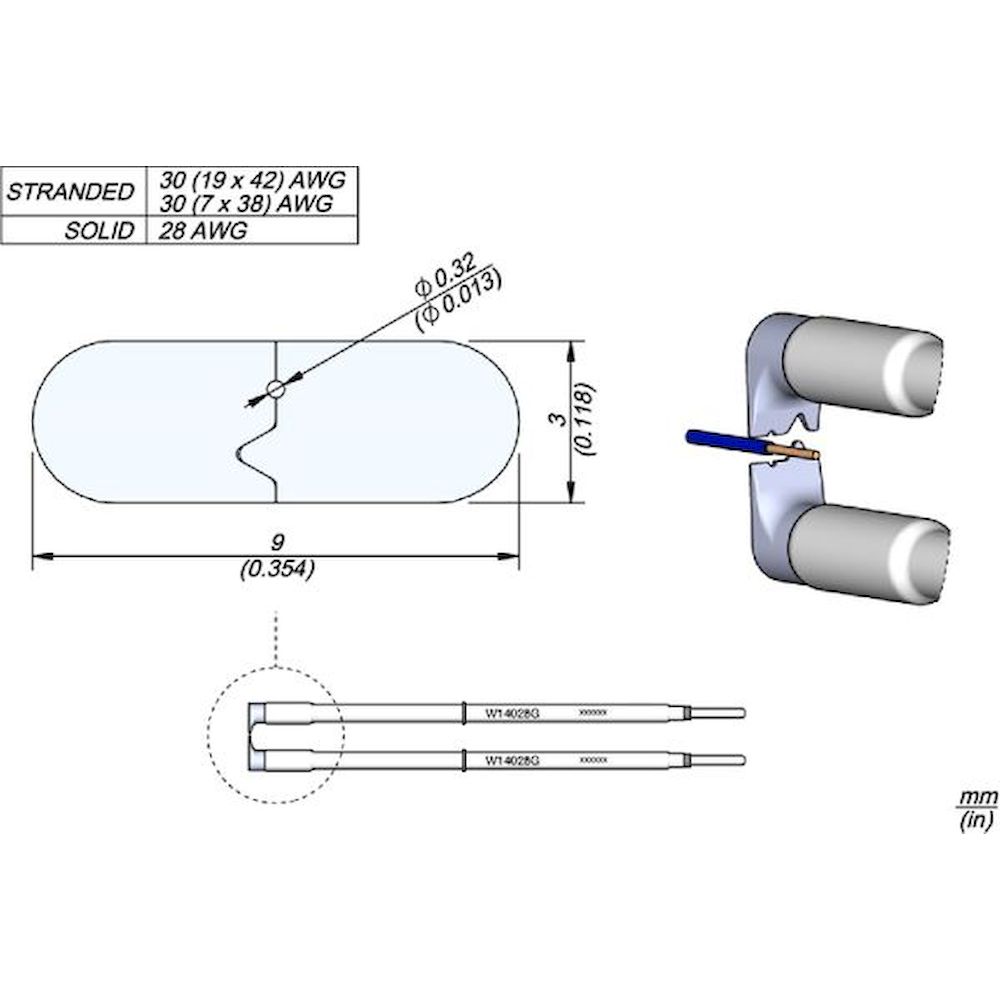

Soldering tips W140Desoldering tweezer tips AWG 14-40 G and flat blades
| Geometry | Typical size | Application |
|---|---|---|
| Conical, straight | D: 0.1-3.5 mm | THT and SMD, general purpose |
| Conical, bent | D: 0.3-4 mm | Restricted-access locations |
| Chisel | 0.2x0.1 to 28x4 mm | Pad soldering, bridging, heat transfer |
| Bevel | D: 1.3-7.5 mm | Large pads, through-hole connections |
| Blade | 3.5-32.2 mm | Drag soldering, SMD rows |
| Drag (Schlepp) | 0.75/1.25 mm | IC lead rows, SOIC, QFP |
| QFP/PLCC desoldering | 8.5x8.5 to 17x17 mm | SMD chip rework, BGA-adjacent |
Typical applications: SMD assembly and THT soldering in electronics manufacturing, rework and repair of QFP, PLCC and chip components, micro-soldering and coating removal with Nano handpieces (NT105/NP105, NT115/NP115), cable and connector soldering with W440 tips, and manual soldering stations in laboratory and development environments.
