ESD Probes

ESD Measuring

ESD probes and electrodes are the measurement accessories for resistance meters and electrostatic field meters, enabling standards-compliant testing of surfaces, floor coverings, table mats and clothing per DIN EN 61340-5-1 and ANSI/ESD S1.1. The Warmbier range includes hand electrodes (Model 45, stainless steel), point-to-point electrodes (Model 860), ring electrodes (Models 880 and 850), backrest electrodes (Model 900), tripod electrodes (Model 1081), reversible electrodes (Model 890 in carry case), clamp electrodes, and footwear electrodes for the PGT2000 footwear tester. Electrostatic sensors from SMC (IZD10-110, IZD10-510) and DESCO (Concentric Ring Probe 222002) extend the offering.

Model	Type	Application
Warmbier 7220.45.N	Hand electrode Model 45	Stainless steel, 25 mm, for surface resistance
Warmbier 7220860	Point-to-point electrode Model 860	Point-to-point resistance measurement

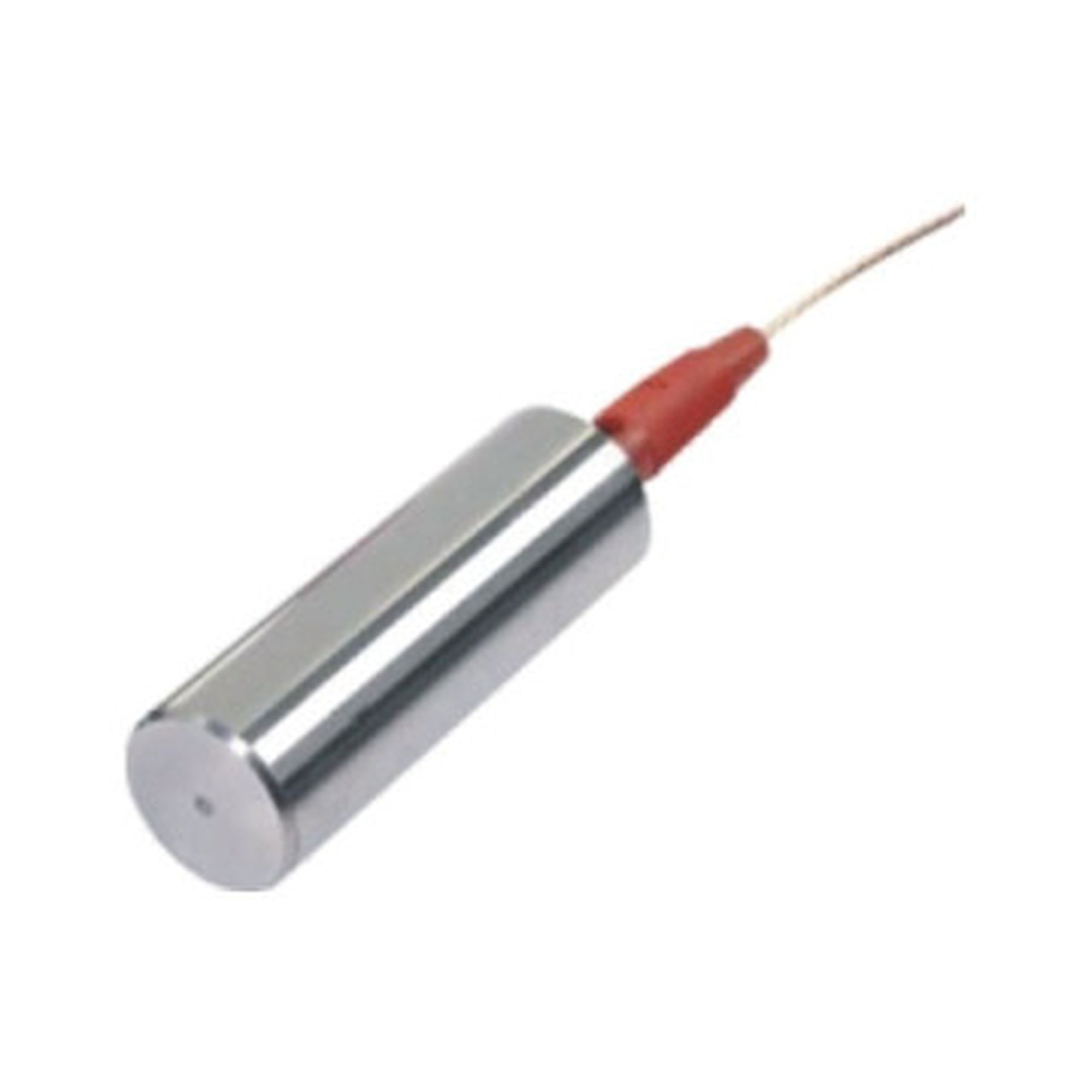

Warmbier 7220850	Hand electrode Model 850	25 mm diameter, 75 mm long
Warmbier 7220.880.SET	Ring electrode Model 880	Concentric rings, surface resistance
Warmbier 7220900	Backrest electrode Model 900	Measurement on chairs and backrests
Warmbier 7220.1081	Tripod electrode Model 1081	Floor covering resistance (standing)
Warmbier 7220.890.WE.SET	Reversible electrode Model 890	Complete in carry case
Warmbier 7100.PGT2000.S	Footwear electrode for PGT2000	Footwear resistance measurement
SMC IZD10-110 / IZD10-510	Electrostatic sensor	10-50 mm / 25-75 mm measuring distance
DESCO 222002	Concentric Ring Probe	Surface resistance per ANSI/ESD

⚙ Point-to-point or surface - Model 860 for point-to-point, Models 880/850 for surface resistance with concentric rings

✓ Application-specific shapes - tripod for floors, backrest electrode for chairs, footwear electrode for PGT2000

↕ Extension rods - Warmbier 7220.870.V 3-piece set for floor measurements without kneeling

⚡ Temperature/humidity probe - Warmbier 7100.3000.TF for Metriso 3000, simultaneous climate recording during measurement

Typical applications: Acceptance testing and periodic monitoring of ESD floor coverings, table mats and protective clothing per DIN EN 61340-5-1, measuring dissipative resistance of ESD chairs and workstation systems, footwear testing per ANSI/ESD STM97.1, incoming and periodic checks in EPA zones, and calibration verification of test instruments (Warmbier Metriso series).
