What are ESD transport trolleys and where are they primarily used in industrial environments?

ESD transport trolleys are specialized wheeled platforms designed to safely transport electrostatic discharge-sensitive components and assemblies within manufacturing environments. These antistatically protected transport systems are essential in electronics manufacturing, semiconductor fabrication, automotive electronics assembly, and medical device production facilities where static electricity can damage sensitive components valued at thousands of euros. The trolleys feature conductive materials and grounding connections that dissipate static charges while providing mobile storage and transport capability for ESD-protective containers and sensitive assemblies.

What are the key technical specifications to consider when selecting ESD transport trolleys?

Critical selection parameters for ESD transport trolleys include platform dimensions, with standard sizes like 81.08x61.18x17.69 cm for models such as the ESD RO 86.6 HD, load capacity ratings typically ranging from 150-300 kg, and surface resistance values between 10^6 to 10^9 ohms to ensure proper static dissipation. The wheel configuration affects maneuverability, with four-wheel designs providing stability while six-wheel variants offer enhanced load distribution. Construction materials must maintain consistent conductivity across temperature ranges from -10°C to +60°C, and the trolley height should accommodate ergonomic handling requirements while fitting through standard industrial doorways.

Which international standards apply to ESD transport trolleys and what certifications are required?

ESD transport trolleys must comply with IEC 61340-5-1 standard for electrostatic discharge protection in electronics manufacturing environments, which defines surface resistance measurement protocols and grounding requirements. The trolleys require EN 100015 certification for transport packaging systems and must meet ISO 8655 standards for precision handling equipment in laboratory environments. Additional certifications include compliance with ATEX directive 2014/34/EU for potentially explosive atmospheres in chemical and pharmaceutical applications, and conformity with DIN EN 61340-4-1 for test methods measuring electrostatic properties of materials used in ESD-sensitive areas.

What are the main differences between ESD RO 86.6 HD and ESD RO 64 transport trolley models?

The ESD RO 86.6 HD features heavy-duty construction with platform dimensions of 81.08x61.18x17.69 cm designed for higher load capacities up to 300 kg, while the ESD RO 64 series offers more compact dimensions suitable for lighter loads up to 200 kg in space-constrained environments. The HD designation indicates reinforced wheel assemblies with precision ball bearings rated for continuous operation, whereas standard RO 64 models use industrial-grade polymer wheels suitable for intermittent transport applications. The RO 64 FE variant includes additional grounding features and enhanced static dissipation capabilities required in more sensitive electronic assembly areas.

What installation and system compatibility requirements apply to ESD transport trolleys?

ESD transport trolleys require integration with facility grounding systems through dedicated grounding straps or conductive flooring connections maintaining resistance values below 10^9 ohms to building ground. The trolleys must be compatible with standard ESD flooring systems meeting EN 61340-4-1 requirements, and wheel materials should match the conductivity characteristics of the facility's static control flooring. Installation involves verifying that doorway clearances accommodate the trolley dimensions plus 10 cm safety margin, and establishing grounding test points accessible for routine resistance verification using calibrated megohmmeters per IEC 61340-5-1 protocols.

What safety ratings and environmental operating conditions apply to ESD transport trolleys?

ESD transport trolleys typically operate within temperature ranges of -10°C to +60°C with relative humidity between 45-75% to maintain optimal static dissipation properties according to IEC 61340-5-1 specifications. The trolleys achieve IP20 protection rating against solid particles larger than 12.5mm, with conductive surfaces maintaining resistance values between 10^6-10^9 ohms across the full operating temperature range. Load capacity safety factors of 2:1 are standard, meaning a 200 kg rated trolley safely handles 100 kg working loads, and wheel assemblies must withstand 50,000 operational cycles while maintaining structural integrity and electrical continuity.

What maintenance schedule and inspection requirements are necessary for ESD transport trolleys?

ESD transport trolleys require monthly electrical resistance testing using calibrated megohmmeters to verify surface resistance remains within 10^6-10^9 ohm specifications per IEC 61340-5-1 protocols, with test results documented in facility ESD control logs. Quarterly mechanical inspections include wheel bearing lubrication, structural joint tightness verification, and platform integrity assessment to ensure continued load capacity compliance. Annual comprehensive servicing involves complete wheel assembly replacement or refurbishment, grounding strap continuity testing, and recalibration of static dissipation properties, with properly maintained trolleys providing 8-12 years service life in typical manufacturing environments when operated within specified load and environmental parameters.

ESD transport trolleys

ESD Boxes

Add to Wish List Add to Compare

ESD RO 86.6 HD. ESD-Transportroller, 81,08x61,18x17,69 cm
€143.12
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

ESD RO 86.4 HD. ESD-Transportroller, 81,08x61,18x17,69 cm
€108.92
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

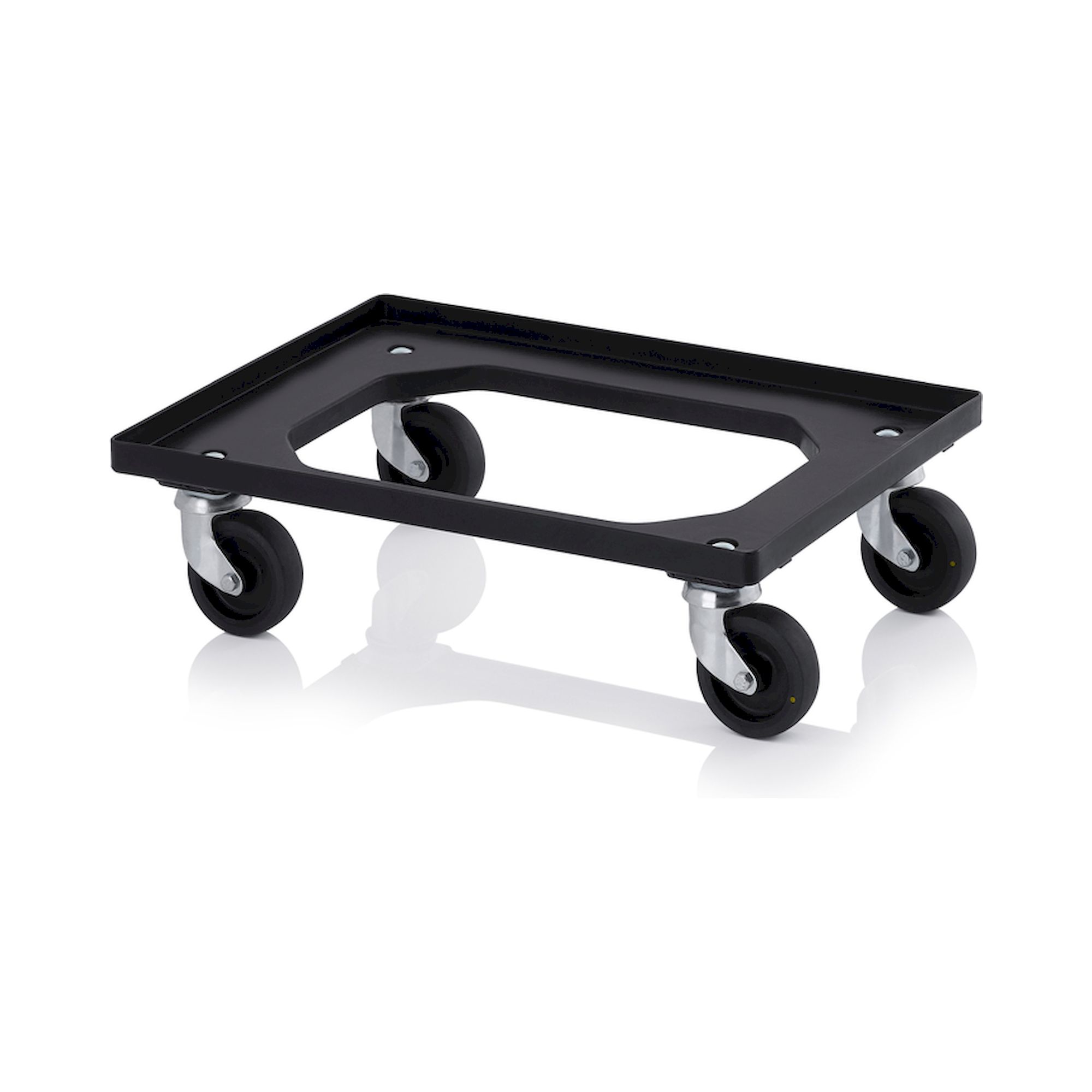

ESD RO 64. ESD transport trolleys
€45.21
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

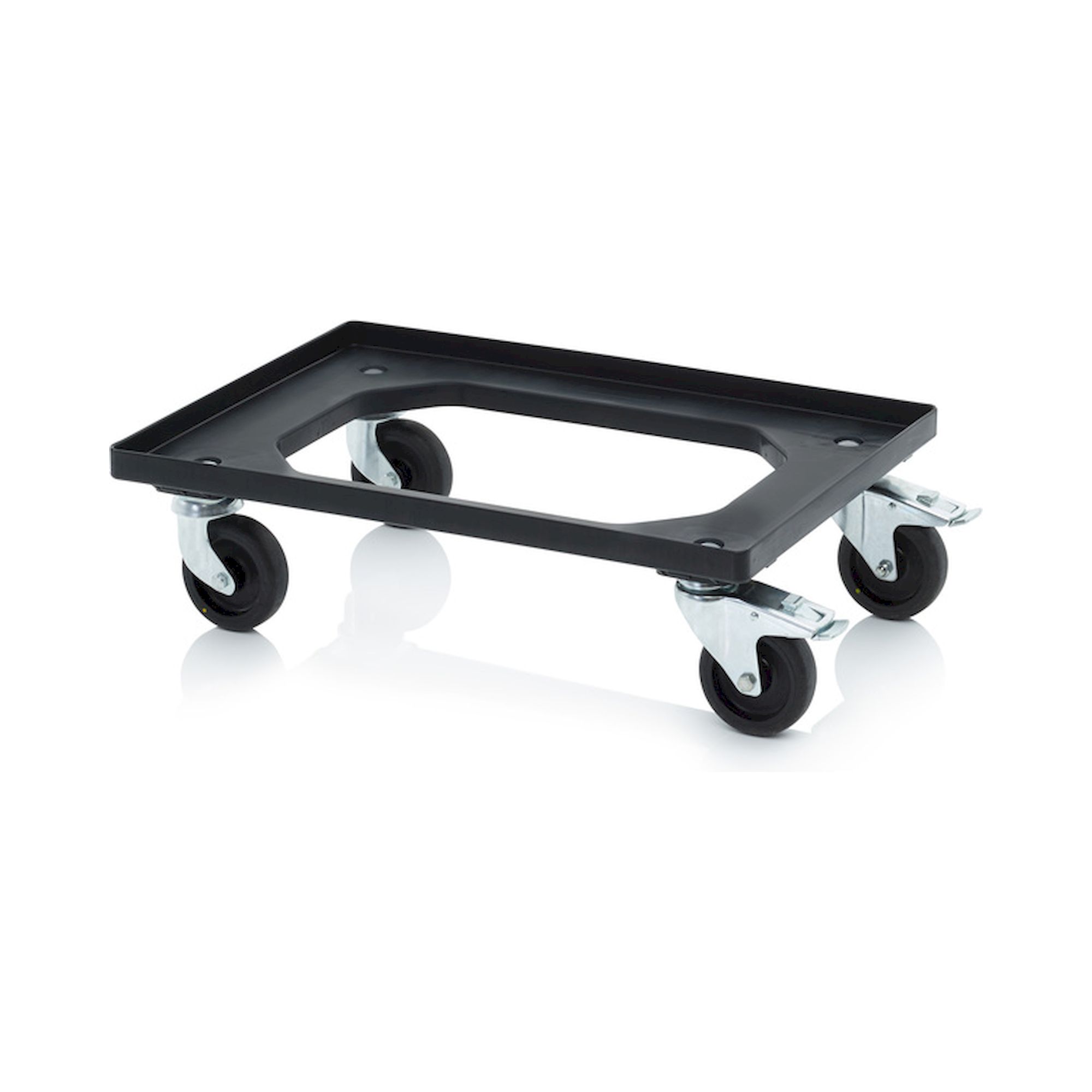

ESD RO 64 FE. ESD transport trolleys
€45.21
Excl. 19% VAT , excl. Shipping Cost

ESD transport rollers provide controlled electrostatic discharge across the entire handling chain, maintaining surface resistance values of 10ⁱ - 10⁹ Ω in compliance with IEC 61340-5-1. Designed for moving sensitive PCBs, components, and sub-assemblies between workstations and storage areas, these units typically carry loads up to 150 kg on conductive or dissipative caster sets with a ground contact resistance of < 10⁷ Ω to the EPA floor system.

Our range brings together 4 specialist products for intra-facility ESD logistics, all verified to DIN EN 61340-5-2 and ready for integration into certified EPA environments. Each unit ships from stock, supported by full technical documentation for quality audits under IPC-A-610, ISO 13485, and IATF 16949.

Key technical advantages - ESD Transport Rollers at a glance

⚡ 10ⁱ - 10⁹ Ω surface resistance - IEC 61340-5-1 compliant dissipative or conductive finish

🛡 EPA-integrated earthing - ground contact resistance < 10⁷ Ω via conductive caster to floor

🛠 Load capacity up to 150 kg - steel frame construction with anti-tip geometry

⚙ Modular shelf levels - adjustable pitch for trays, PCB magazines, and component bins

📦 In-stock availability - all 4 units held in warehouse, same-day despatch

✓ DIN EN 61340-5-2 verified - full audit documentation included for EPA compliance

Typical fields of application: Electronics manufacturing and SMT line feeding (IEC 61340-5-1, IPC-A-610), semiconductor fab inter-bay transport (SEMI S1/S2), medical device assembly logistics (ISO 13485), automotive electronics production (IATF 16949, VDA 6.3), aerospace component handling (AS9100), and laboratory or R&D EPA environments requiring fully traceable ESD transport solutions.

✓

IEC 61340-5-1 Compliant Surface and system resistance verified for certified EPA operation

📦

In-Stock - Ready to Ship All 4 ESD transport roller models available from warehouse stock

🛡

Full Audit Documentation DIN EN 61340-5-2 test records supplied for ISO 13485 and IATF 16949 audits
