Pneumatically actuated valves from Airtec are switched by a compressed air control signal without requiring electrical power. The Airtec programme covers 3/2-way and 5/2-way designs (NC, NO, impulse) for port sizes M 5 to G 1/2" in Standard (B) and Precision series, plus ATEX-approved variants (-X) for use in potentially explosive atmospheres. Time delay valves VZ with adjustable delay times (0.25-300 s) and two-hand safety blocks SZ/SZS for safety-related applications are also part of the range.
3/2 and 5/2-way valves - Precision (Airtec L/P) and Standard (B) series, NC/NO and impulse switching
ATEX approval (-X) - M 5 to G 1/2", all switching functions available for Zone 1/2 and 21/22
Time delay valves VZ - 3/2-way, 0.25-5 s (VZ 25), 0.5-10 s (VZ 18 310), 1-20 s (VZ 18 310/20), up to 300 s (VZ 25 310/300)
Two-hand safety blocks SZ/SZS - G 1/8" (3/2-way NC) and G 1/4" (5/2-way), self-holding port on SZS 14 510
5/3-way with mid-position - Airtec P 07 533-X, mid-position exhausted, ATEX; also G 1/4" standard
| Type | Port | Function | Variants |
|---|---|---|---|
| Airtec L 25 | M 5 | 3/2-way, 5/2-way (impulse, spring) | Standard, ATEX-X, air spring |
| Airtec L 28 | G 1/8" | 3/2-way, 5/2-way (impulse, spring) | Standard, ATEX-X |
| Airtec P 05 | G 1/8" | 3/2-way air spring (NC) | ATEX-X |
| Airtec P 07 | G 1/4" | 3/2-way and 5/3-way (exhausted) | Standard, ATEX-X |
| Airtec P 12 | G 1/2" | 3/2-way, 5/2-way (impulse, spring) | Standard, ATEX-X, dominant |
| VZ 25 / VZ 18 | M 5 / G 1/8" | Time delay valve 3/2-way | 0.25-300 s adjustable |
| SZ / SZS 14 510 | G 1/4" | Two-hand safety block | Precision, self-holding port |
Typical applications: Pure compressed air controls without electrical power in potentially explosive atmospheres (ATEX Ex Zone 1/2, 21/22), pneumatic cascade controls in process engineering, two-hand safety circuits on presses and punch presses (SZ/SZS), time-delayed sequence controls (VZ), and applications where no power supply is available.
- Airtec L 28 311-X. 3/2-Wege Pneumatikventil, G 1/8", Feder (NC/NO), ATEX-Zulassung€68.61Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 510-X. 5/2-Wege Pneumatikventil G 1/8", Luftfeder, ATEX-Zulassung€67.75Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 522. 5/2-Wege Pneumatikimpulsventil, G 1/4", dominierend, Standard€67.60Excl. 19% VAT , excl. Shipping Cost
- Airtec L 28 320. 3/2-Wege Pneumatikimpulsventil, G 1/8", Standard€67.60Excl. 19% VAT , excl. Shipping Cost
- Airtec L 28 511. 5/2-Wege Pneumatikventil G 1/8", Feder, Standard€66.18Excl. 19% VAT , excl. Shipping Cost

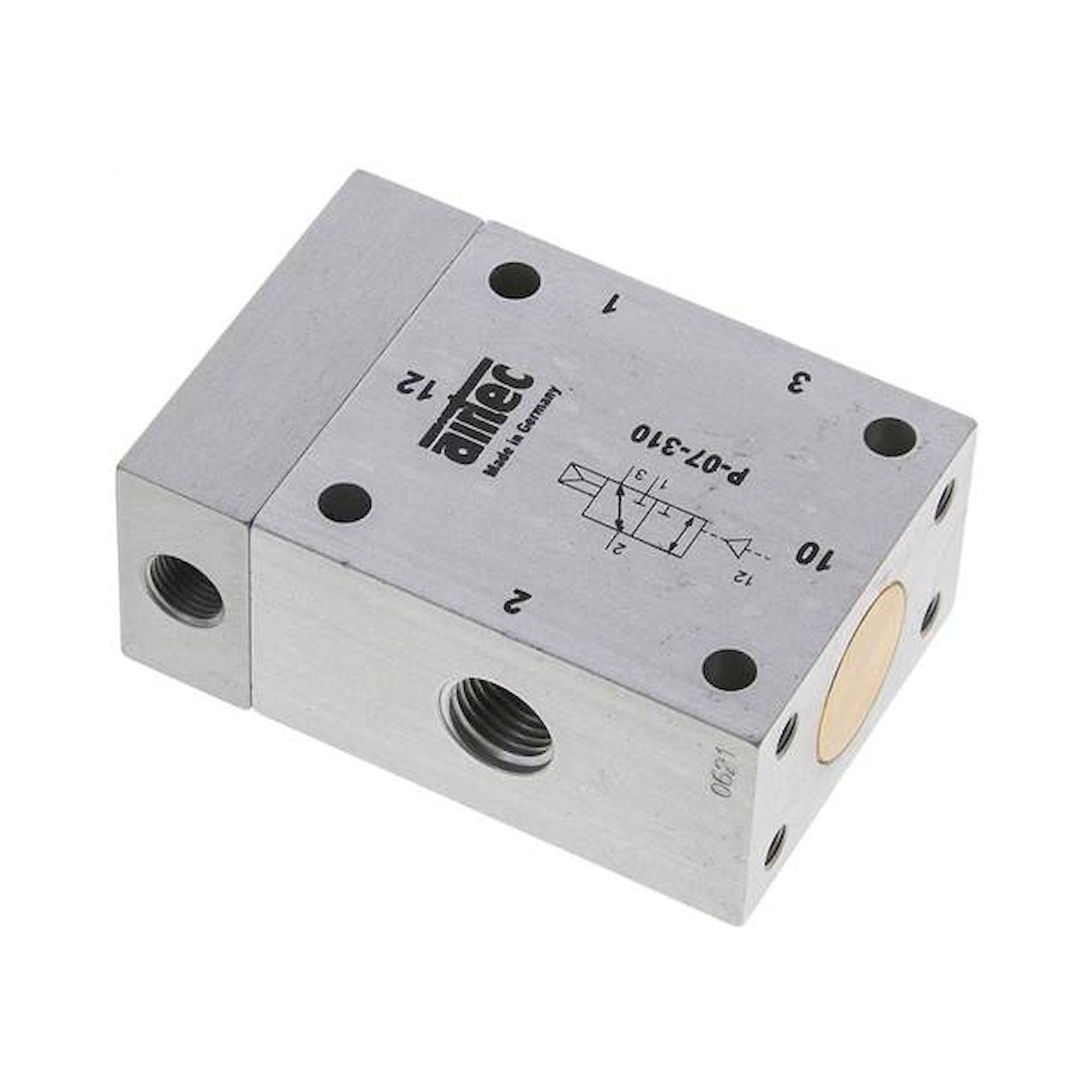

- Airtec P 07 310-X. 3/2-Wege Pneumatikventil, G 1/4", Luftfeder (NC), ATEX-Zulassung€63.74Excl. 19% VAT , excl. Shipping Cost
- Airtec L 28 311. 3/2-Wege Pneumatikventil, G 1/8", Feder (NC/NO), Standard€63.70Excl. 19% VAT , excl. Shipping Cost
- Airtec L 25 510-X. 5/2-Wege Pneumatikventil M 5, Luftfeder, ATEX-Zulassung€63.37Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 533. 5/3-Wege Pneumatikventil, G 1/8", Mittelstellung entlüftet, Standard€63.23Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 510. 5/2-Wege Pneumatikventil G 1/4", Luftfeder, Standard€62.18Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 522. 5/2-Wege Pneumatikimpulsventil, G 1/8", dominierend, Standard€61.73Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 520. 5/2-Wege Pneumatikimpulsventil, G 1/4", Standard€61.18Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 511. 5/2-Wege Pneumatikventil G 1/4", Feder, Standard€60.00Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 322. 3/2-Wege Pneumatikimpulsventil, G 1/4", dominierend€59.87Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 511-X. 5/2-Wege Pneumatikventil G 1/4", Feder, ATEX-Zulassung€59.71Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 510. 5/2-Wege Pneumatikventil G 1/8", Luftfeder, Standard€56.17Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 310-X. 3/2-Wege Pneumatikventil, G 1/8", Luftfeder (NC), ATEX-Zulassung€54.45Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 310. 3/2-Wege Pneumatikventil, G 1/4", Luftfeder (NC), Standard€52.32Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 511-X. 5/2-Wege Pneumatikventil G 1/8", Feder, ATEX-Zulassung€51.80Excl. 19% VAT , excl. Shipping Cost
- Airtec P 07 320. 3/2-Wege Pneumatikimpulsventil, G 1/4", Standard€51.69Excl. 19% VAT , excl. Shipping Cost
- Airtec P 05 511. 5/2-Wege Pneumatikventil G 1/8", Feder, Standard€48.91Excl. 19% VAT , excl. Shipping Cost
