Complete soldering station 50 W with SHP-K handpiece for K series tips - Thermaltronics TMT-2000S-K (UPG)

This bundle turns an empty bench into a working soldering station. At its centre sits the TMT-2000PS power supply with Curie control at 470 kHz, joined by the SHP-K handpiece for K series tips, the SHH-4 stand and the usual cleaning set.

Benefits

• Idle temperature stability of +/- 1.1 °C with no manual correction
• Maximum power output 50 W at an output frequency of 470 kHz
• Tip to ground voltage below 2 mV and resistance below 2 Ohms DC, suitable for ESD sensitive assemblies
• Enclosure surface resistance 10^5 to 10^9 Ohms/sq, maximum enclosure temperature 50 °C
• No training needed for calibration or operation, no extra cost for coil mounting

Technical data

Applications

Production soldering and board rework, setting up repair benches, training and laboratory stations, and any work with ESD sensitive components where tip potential has to be documented.

Compatibility and scope of delivery

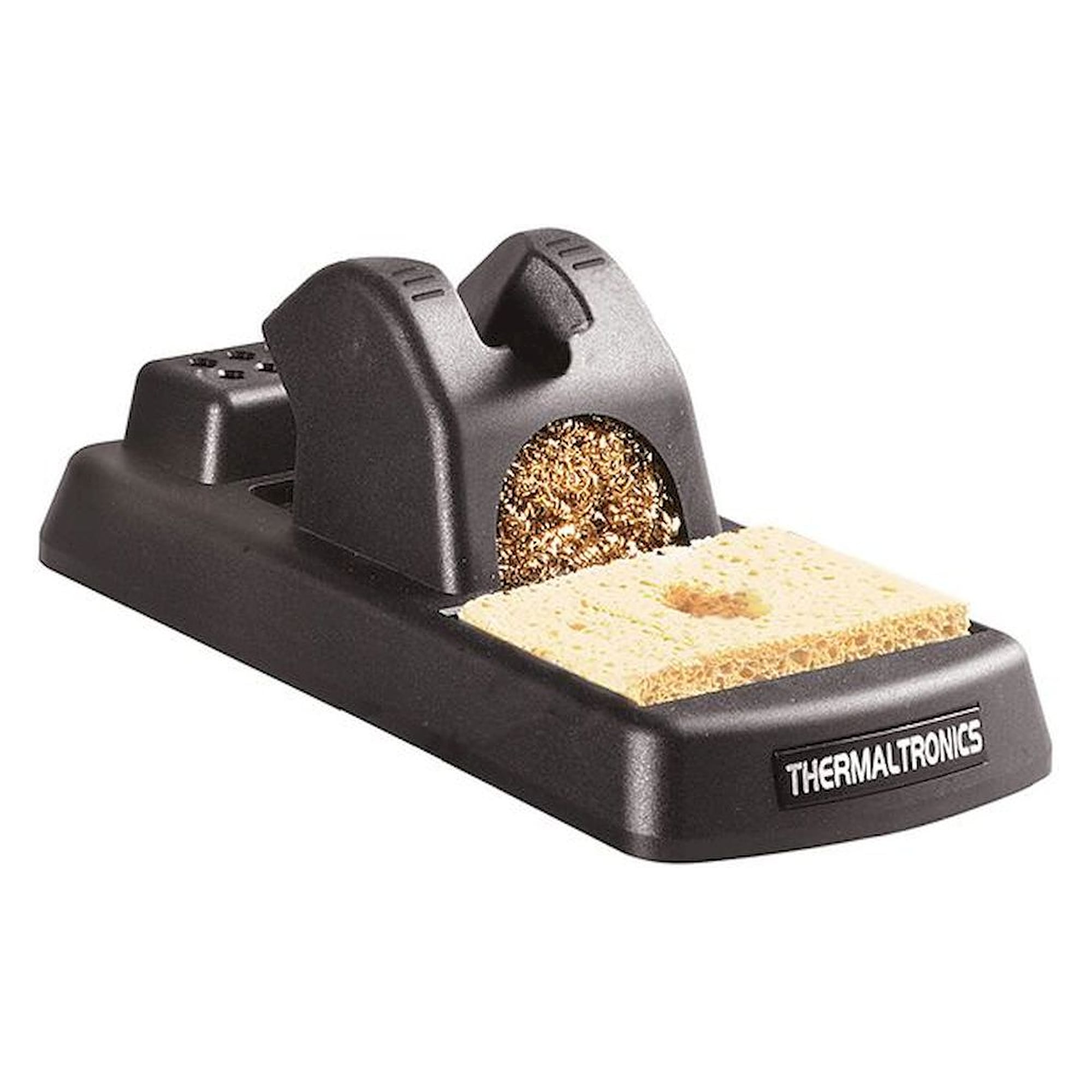

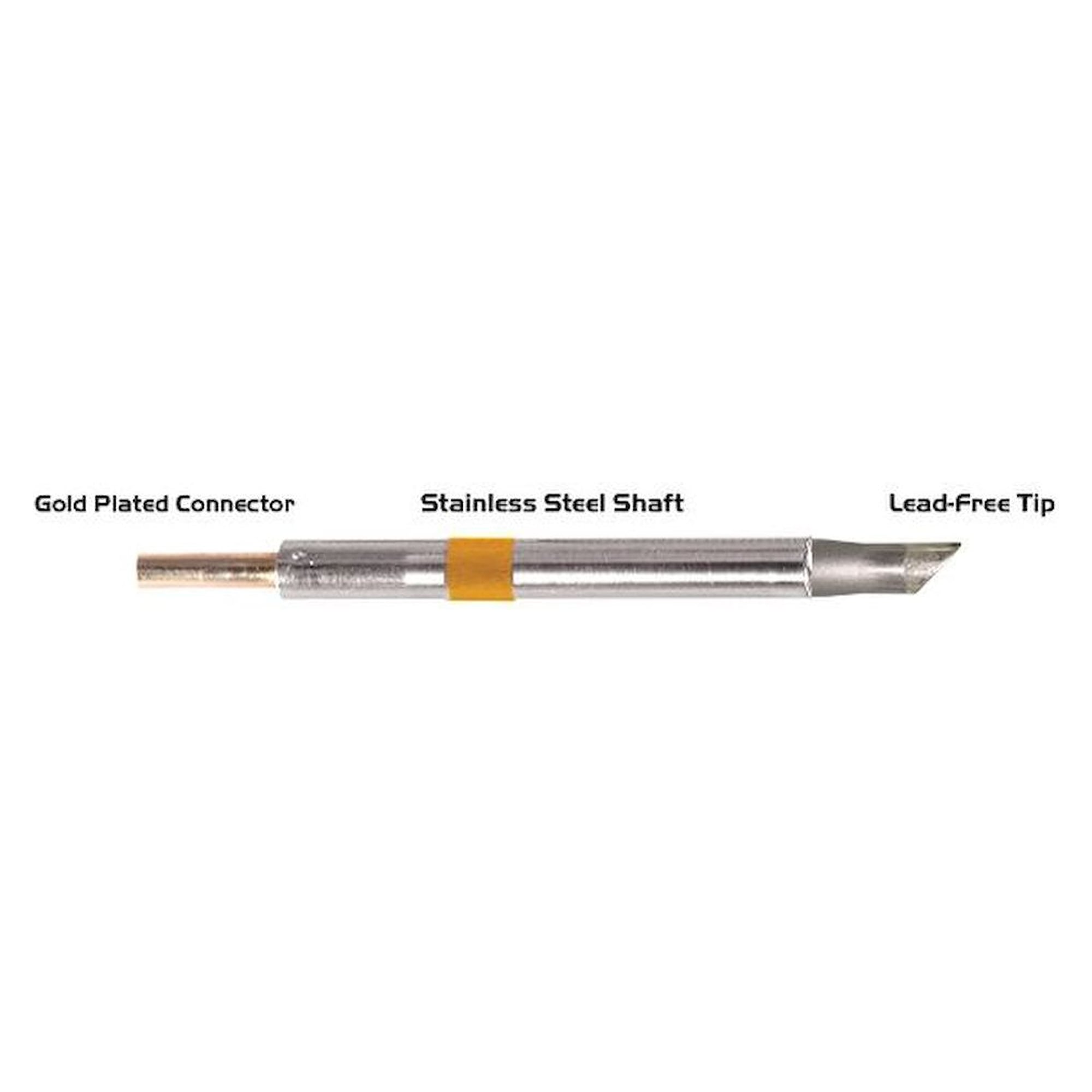

Delivery covers the TMT-2000PS power supply, the SHH-4 stand (SHH-5 optional), the SHP-K soldering handpiece, the RMP-1 protective cloth for tip removal, the BC-1 brass braid, the SPG-1 sulfide-free sponge and the CC-1 connection cable. K series tips are used and chosen by shape and width to match the joint.

Tip to ground voltage and resistance meet the requirements placed on hand soldering tools inside an EPA to IEC 61340-5-1.
