Soldering station 50 W with slim SHP-KM handpiece, K series tips - Thermaltronics TMT-2000S-KM

The TMT-2000S-KM is the 2000 line build for users who prefer a thinner grip and a pen-like hold. The technology stays the same proven Curie control: 470 kHz output frequency, up to 50 W at the tip and idle stability of +/- 1.1 °C.

Benefits

• Slim SHP-KM soldering handpiece for long sessions on small joints
• Curie heat technology at 470 kHz, the cartridge carries the target temperature
• Idle temperature stability +/- 1.1 °C, maximum enclosure temperature 50 °C
• Tip to ground voltage below 2 mV, resistance below 2 Ohms DC
• Wide range 100-240 VAC input on the TMT-2000PS power unit at 55 W

Technical data

Applications

Fine soldering on densely populated assemblies, SMD rework, prototype building and test departments, and every bench where many short joints are made across a shift.

Compatibility and scope of delivery

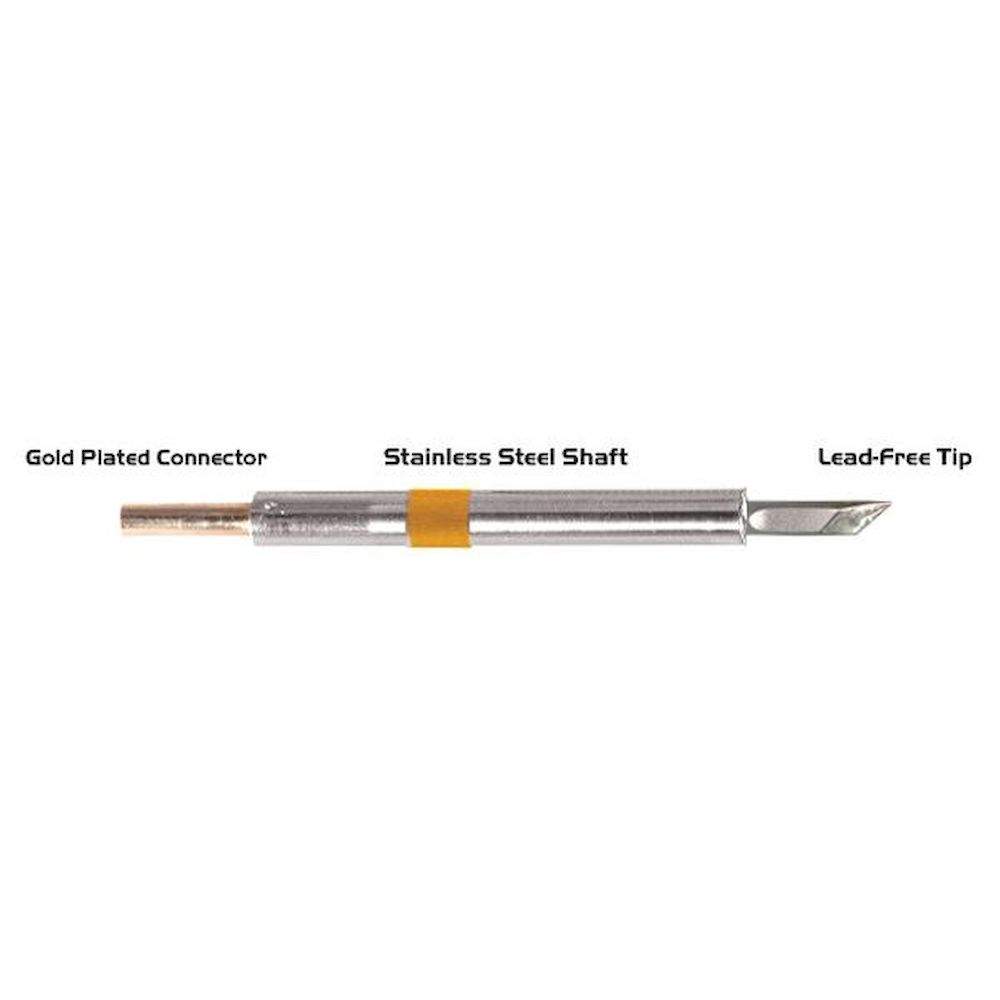

Delivered with the TMT-2000PS power supply, the SHH-4 stand (SHH-5 optional), the SHP-KM soldering handpiece, the RMP-1 protective cloth, the BC-1 brass braid, the SPG-1 sulfide-free sponge and the CC-1 connection cable. Tips are K series cartridges, the same range used on the SHP-K handpiece.

Tip to ground voltage and resistance meet the requirements for soldering tools inside an EPA to IEC 61340-5-1.
