PCB depaneling machines are precision cutting systems that separate individual circuit boards from production panels without damaging components or creating micro-cracks in the substrate material. The cab Maestro series offers cutting lengths from 450mm to 1500mm for high-volume electronics manufacturing, automotive ECU production, medical device assembly, and telecommunications equipment manufacturing. These machines eliminate manual breaking stress that can cause latent failures in sensitive circuits, particularly critical for IPC Class 3 applications requiring maximum reliability standards.

Depaneling machine selection depends on your maximum panel dimensions and production volume requirements, with cutting lengths available in 450mm, 600mm, 900mm, 1200mm, and 1500mm configurations in the Maestro series. The Maestro 4S models handle smaller panels up to 600mm with enhanced precision for fine-pitch components, while Maestro 6 series accommodates larger automotive and industrial panels up to 1500mm length. Aluminum setup variants like the 8936570520 provide improved rigidity and thermal stability for high-precision applications requiring positioning accuracy within ±0.02mm tolerances.

Industrial PCB depaneling machines must comply with IEC 61010-1 electrical safety standards for measurement and laboratory equipment, along with ISO 9001 quality management requirements for consistent cutting performance. The equipment operates under CE marking compliance for European markets, incorporating safety interlocks that prevent operation with protective covers removed. Machine vision systems integrated into advanced models ensure IPC-A-610 acceptability criteria are maintained, preventing component damage through automated cut path verification and force monitoring during the separation process.

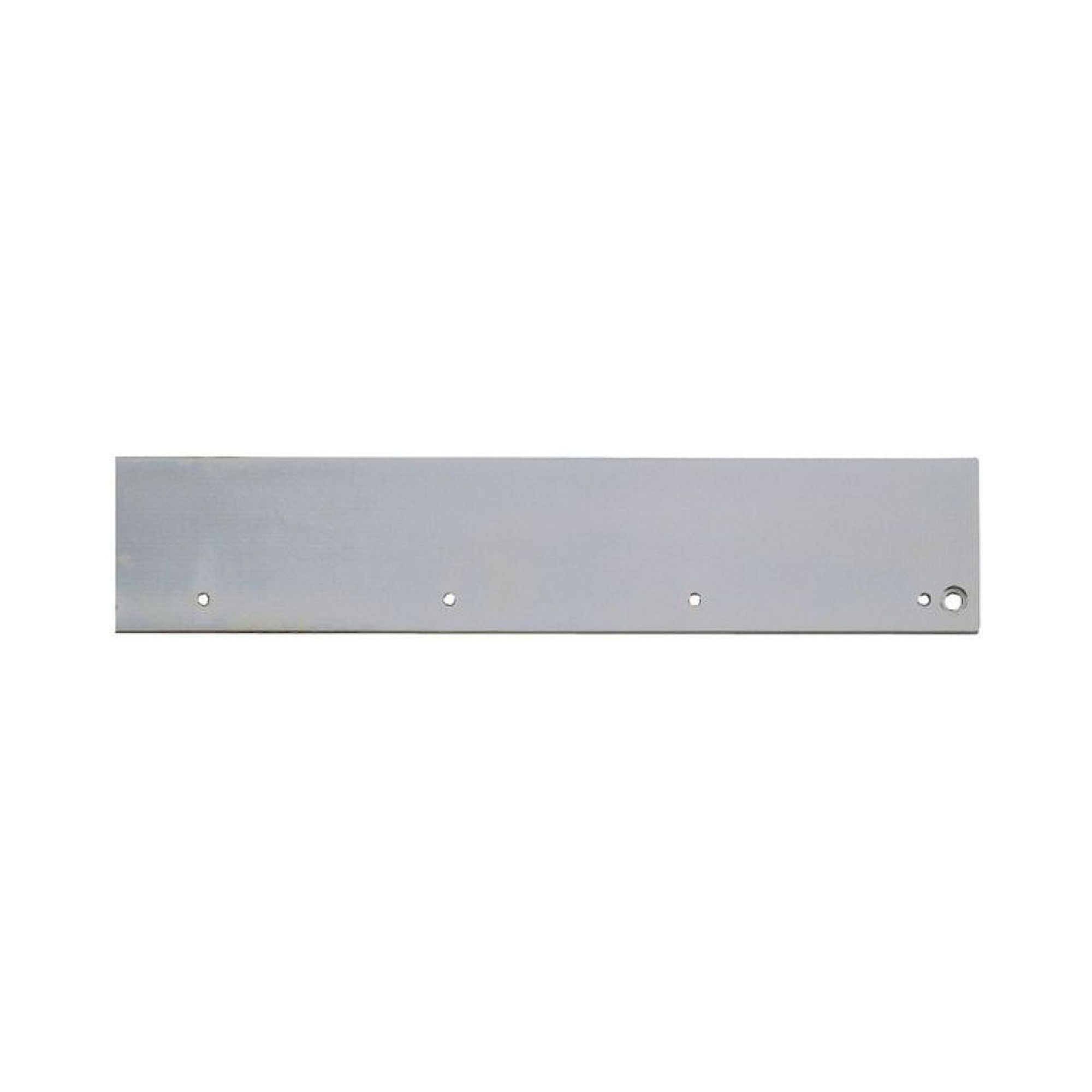

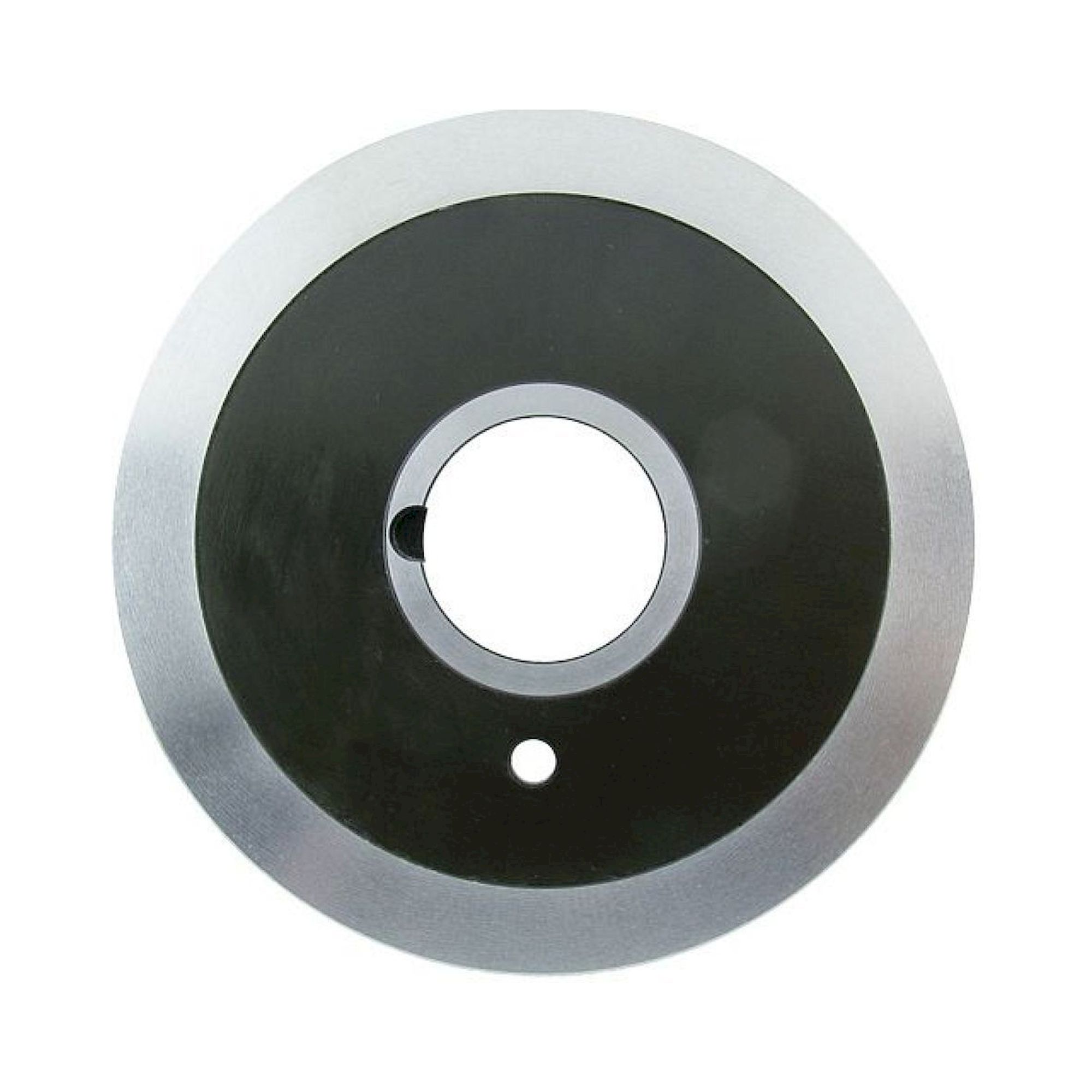

The Maestro 4S series is optimized for smaller PCB panels up to 600mm cutting length with enhanced precision control for fine-pitch BGA and QFN components, featuring four-axis servo control for complex cutting patterns. Maestro 6 models accommodate larger panels from 600mm to 1500mm cutting lengths with six-axis positioning capability, suitable for automotive ECUs, power modules, and multi-board assemblies. Both series offer aluminum setup variants that provide superior mechanical stability and thermal expansion compensation, with the 4S achieving ±0.01mm repeatability compared to ±0.02mm for standard Maestro 6 configurations.

PCB depaneling machines require stable foundation mounting with vibration isolation pads, 230V single-phase or 400V three-phase power supply depending on model size, and compressed air supply at 6 bar pressure for pneumatic clamping systems. The machines integrate with Industry 4.0 environments through Ethernet TCP/IP connectivity, supporting OPC-UA communication protocols for production data exchange and remote monitoring. Standard I/O interfaces include 24VDC digital inputs for upstream conveyor integration, barcode scanner connections for traceability, and emergency stop circuits compliant with EN ISO 13849-1 Category 3 safety requirements.

PCB depaneling machines operate in controlled production environments with ambient temperatures from 15°C to 35°C and relative humidity below 80% non-condensing to maintain cutting precision and prevent static discharge. The systems feature IP54 protection rating against dust ingress and water splashing, with enclosed cutting chambers providing IP65 protection for the blade mechanism. Pneumatic systems operate at 6 bar working pressure with filtration to ISO 8573-1 Class 2 air quality standards, while electrical components maintain UL certification for North American installations and comply with EMC Directive 2014/30/EU for electromagnetic compatibility.

PCB depaneling machine blades require replacement every 50,000 to 100,000 cuts depending on substrate material hardness, with FR4 standard boards allowing maximum blade life while ceramic and metal-core PCBs reducing service intervals by 40%. Daily maintenance includes compressed air system moisture drainage and cutting chamber cleaning to remove debris that can affect cut quality, while weekly lubrication of linear guides and ball screws maintains positioning accuracy within specified tolerances. Monthly calibration verification using reference PCB panels ensures cutting force remains within 2-5 Newtons per millimeter of cut length, preventing substrate damage while maintaining separation quality compliant with IPC-A-600 visual inspection criteria.
