Festo VABF-S6-1-P5A4-N12-4-1 (558231) Soft-Start Valve
€29,354.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-558231
Manufacturer Nr.
VABF-S6-1-P5A4-N12-4-1
Soft-Start Valve
Frequently Bought Together
-
This Item:
€29,354.00Excl. 19% VAT , excl. Shipping Cost
-
Festo VABF-S1-2-R3C2-C-10 (555762) Regulator Plate
€17,452.00Excl. 19% VAT , excl. Shipping Cost
-
Festo VABF-S1-1-R5C2-C-10 (546826) Regulator Plate
€25,024.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| Product weight [g] | 590 |
| Material information | RoHs compliant |
| Max. positive test impulse at 0 signal [µs] | 2.500 |
| Max. negative test impulse for 1 signal [µs] | 1.400 |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Based on standard | ISO 5599-2 |
| Actuation type | Electrical |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | Ratcheting Self-resetting by electrical control signal |
| Construction set up | Piston pusher |
| Reset mode | Mechanical spring |
| Control type | pilot operated |
| Control air supply | Internal |
| Flow direction | Not reversible |
| Valve function | Pressure build-up function |
| Information about force dynamic sampling | Switching frequency at least 1/month |
| Operating pressure [bar] | 2 to 12 |
| Pre-setting switching pressure [bar] | 4 |
| Normal nominal flow venting [l/min] | 3.000 |
| Normal nominal flow vent. [l/min] | 3.300 |
| Nominal operating voltage DC [V] | 24 |
| Coil characteristic value | 24 V DC: 2,5 W |
| Permitted voltage oscillations | ± 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Protection category | IP65 NEMA 4 |
| ambient temperature [°C] | -5 to 50 |
| Electrical connection | Wiring diagram Form C acc. to EN 175301-803 Plug Square shape acc. to EN 175301-803 |
| Fastening type | on connection plate |
| Support air control connection 12/14 | Connection plate Size 1 to ISO 5599-2 |
| Pneumatic connection 1 | Connection plate Size 1 to ISO 5599-2 |
| Pneumatic connection 2 | Connection plate Size 1 to ISO 5599-2 |
| Pneumatic connection 3 | G1/2 |
| Pneumatic connection 4 | Connection plate Size 1 to ISO 5599-2 |
| Seals material | HNBR NBR |
| Housing material | Aluminium wrought alloy |
| Screws material | Steel zinc plating |
| Manufacturer Nr. | VABF-S6-1-P5A4-N12-4-1 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568205102 |
| Weight | 0.650000 |
| HS-Code | 84812090 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

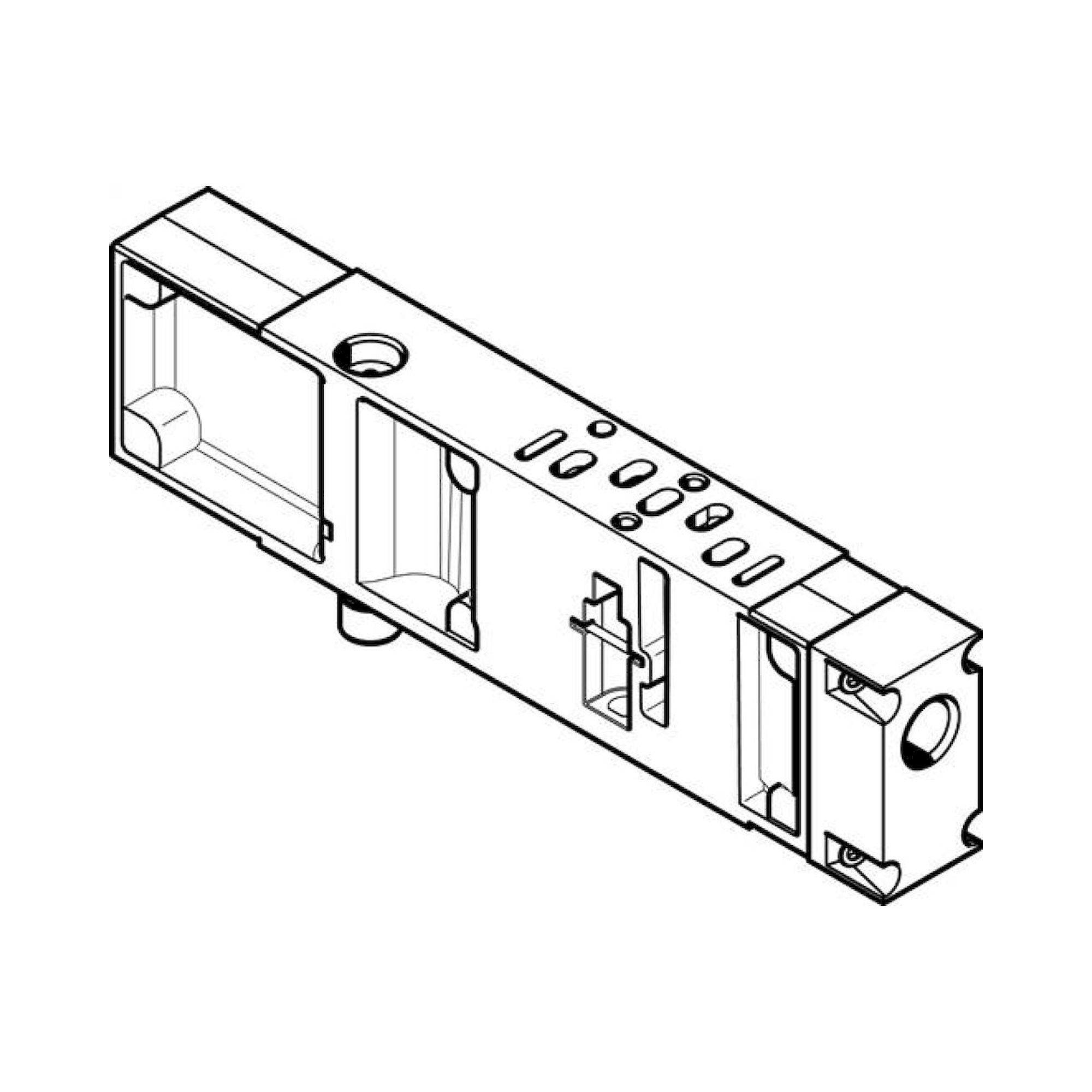

Festo VABF-S4-2-P1A14-G18 (8000693) Vertical Pressure Su
