Drawer units and cabinets
Reeco workstations

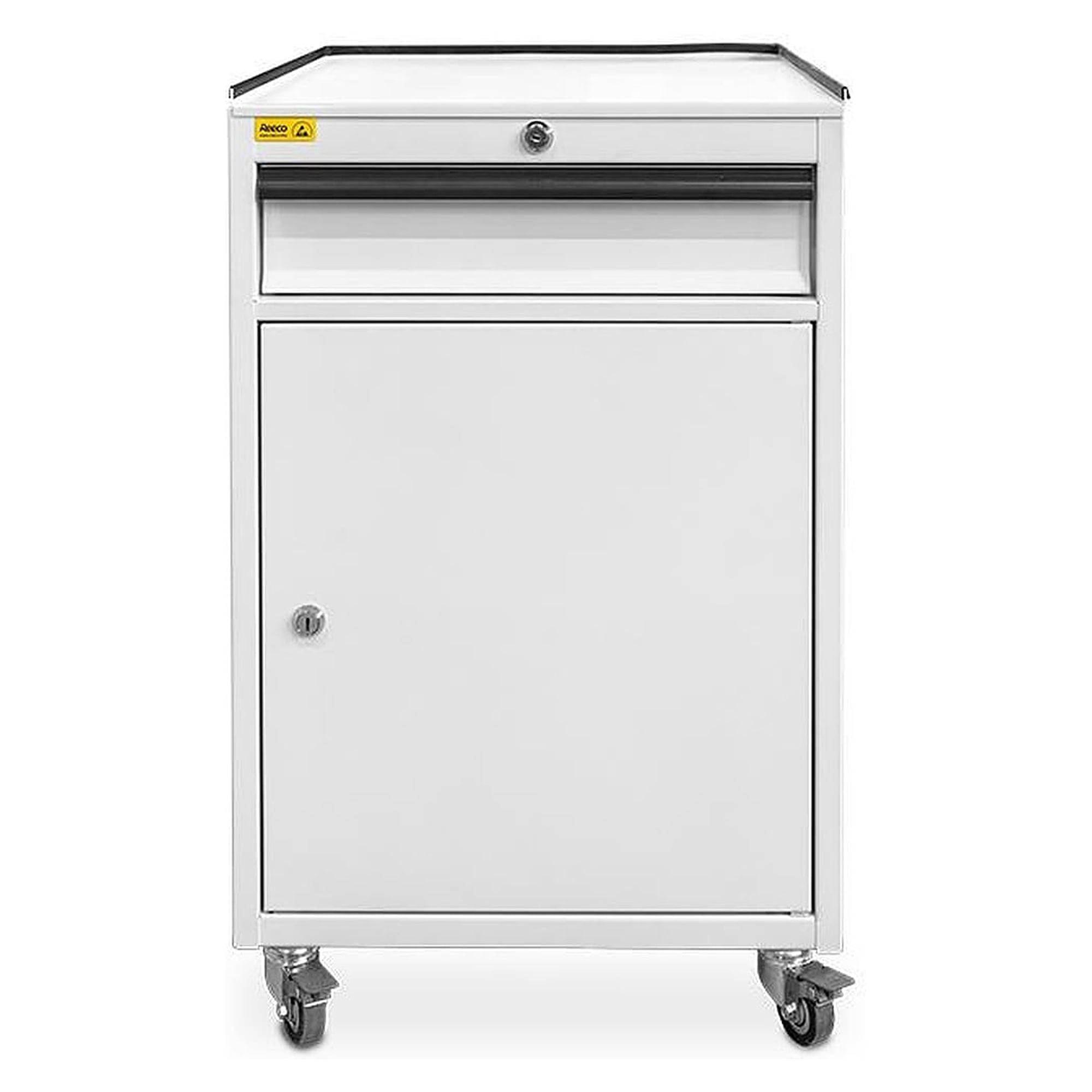

The space under the worktop is the only storage at a workstation that costs no extra floor area. Reeco offers suspended drawer units with two or four drawers, combinations of drawer and cabinet section, and mobile units that move between benches.
The versions are matched to the frame depth, with separate variants for Classic 750 and 900 mm, for Premium, for Premium Electric and for the reinforced Classic frame. All bodies are steel with an antistatic RAL 9003 coating and the drawers run on slides.
| Version | Body | Drawers | Lock |
|---|---|---|---|

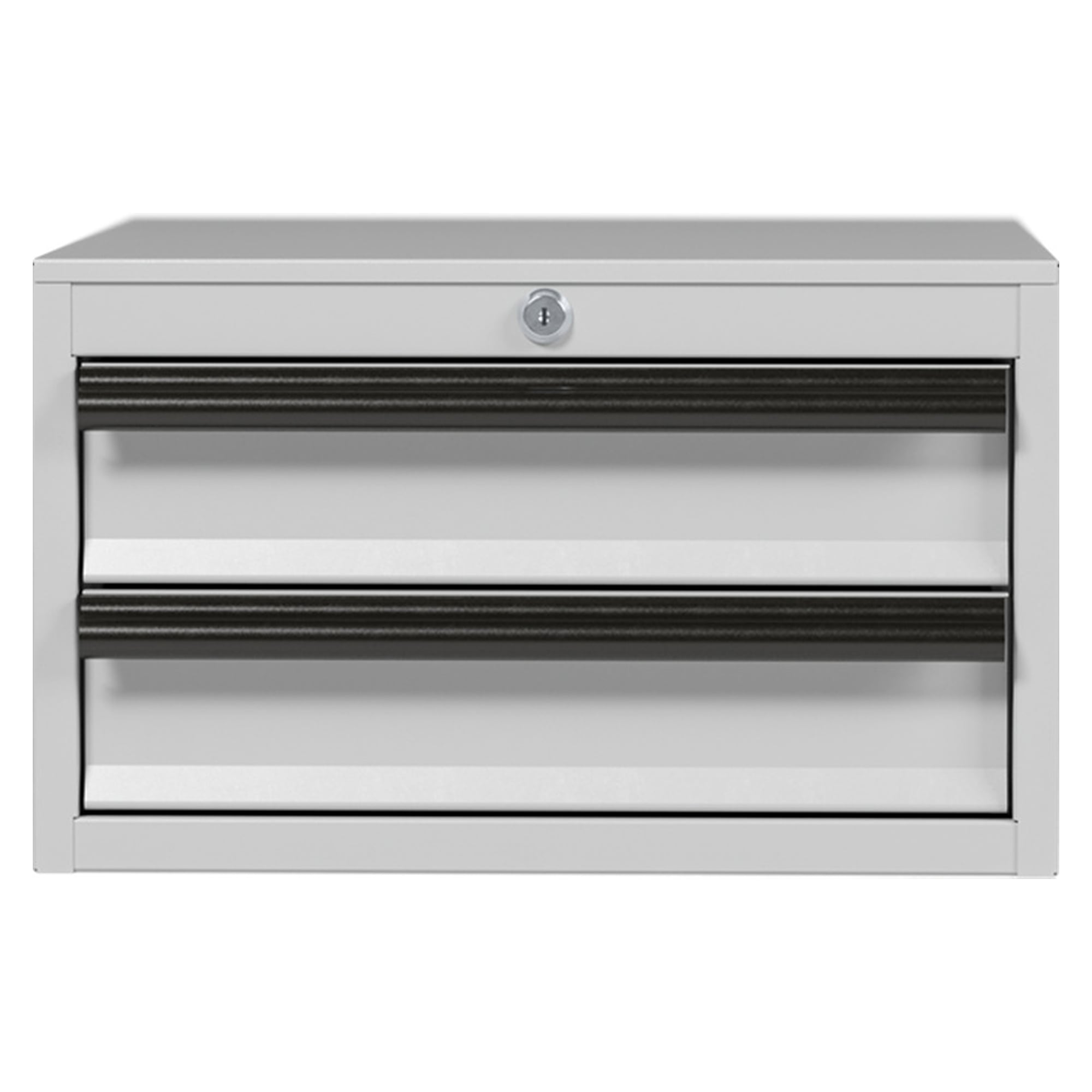

| 2 drawers | 380 x 520 x 260 mm | 2 x 277 x 445 x 70 mm | with or without |
| 4 drawers | 455 x 520 x 700 mm | 70, 110, 110 and 147 mm high | central lock |
| Dual unit | 2 x 380 x 520 x 260 mm | 4 x 277 x 445 x 70 mm | without |

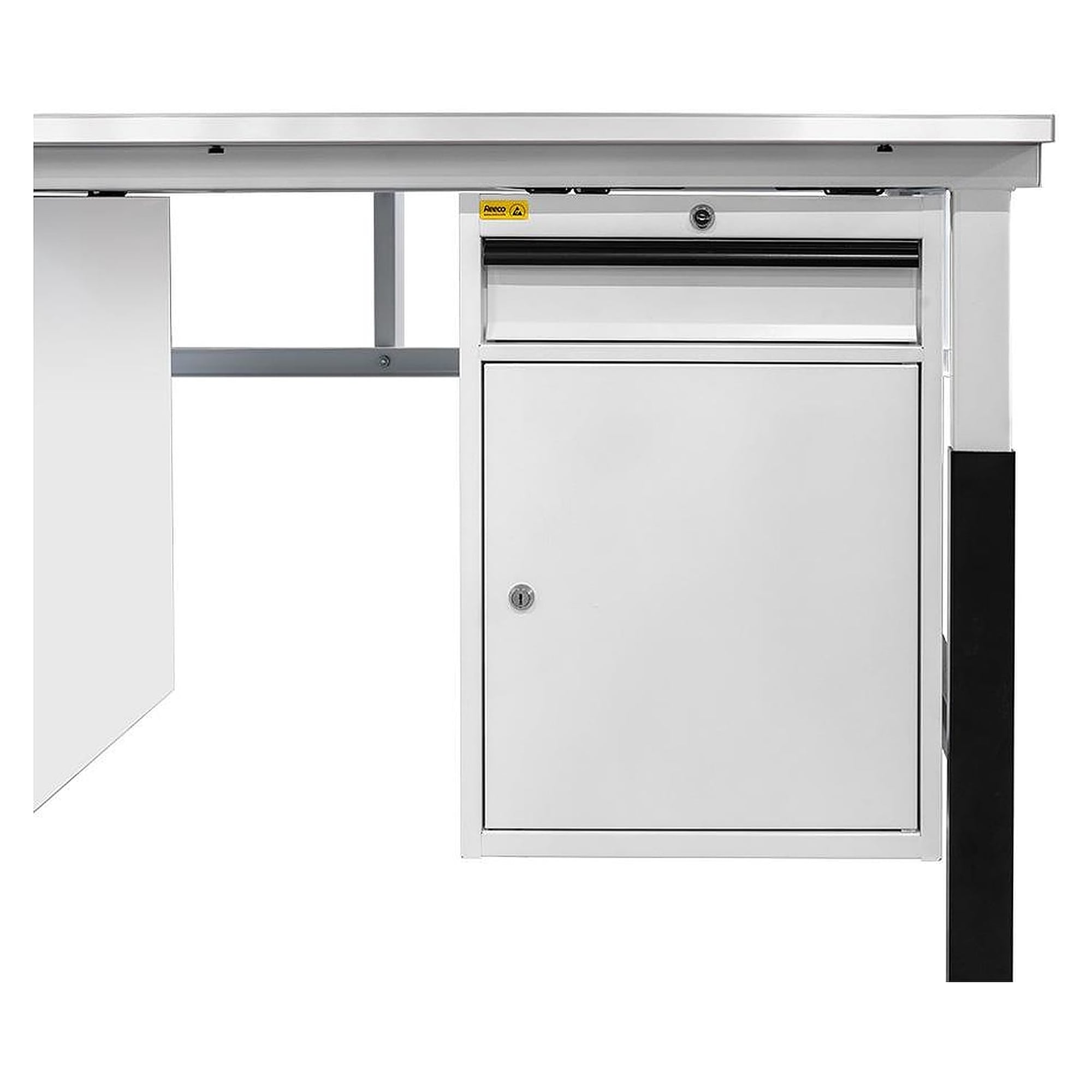

| Drawer with doors | 445 x 495 x 480 mm | 1 x 345 x 445 x 70 mm | doors and drawer |
| Under-bench drawer | 590 x 300 x 55 mm | 1 shallow drawer | without |

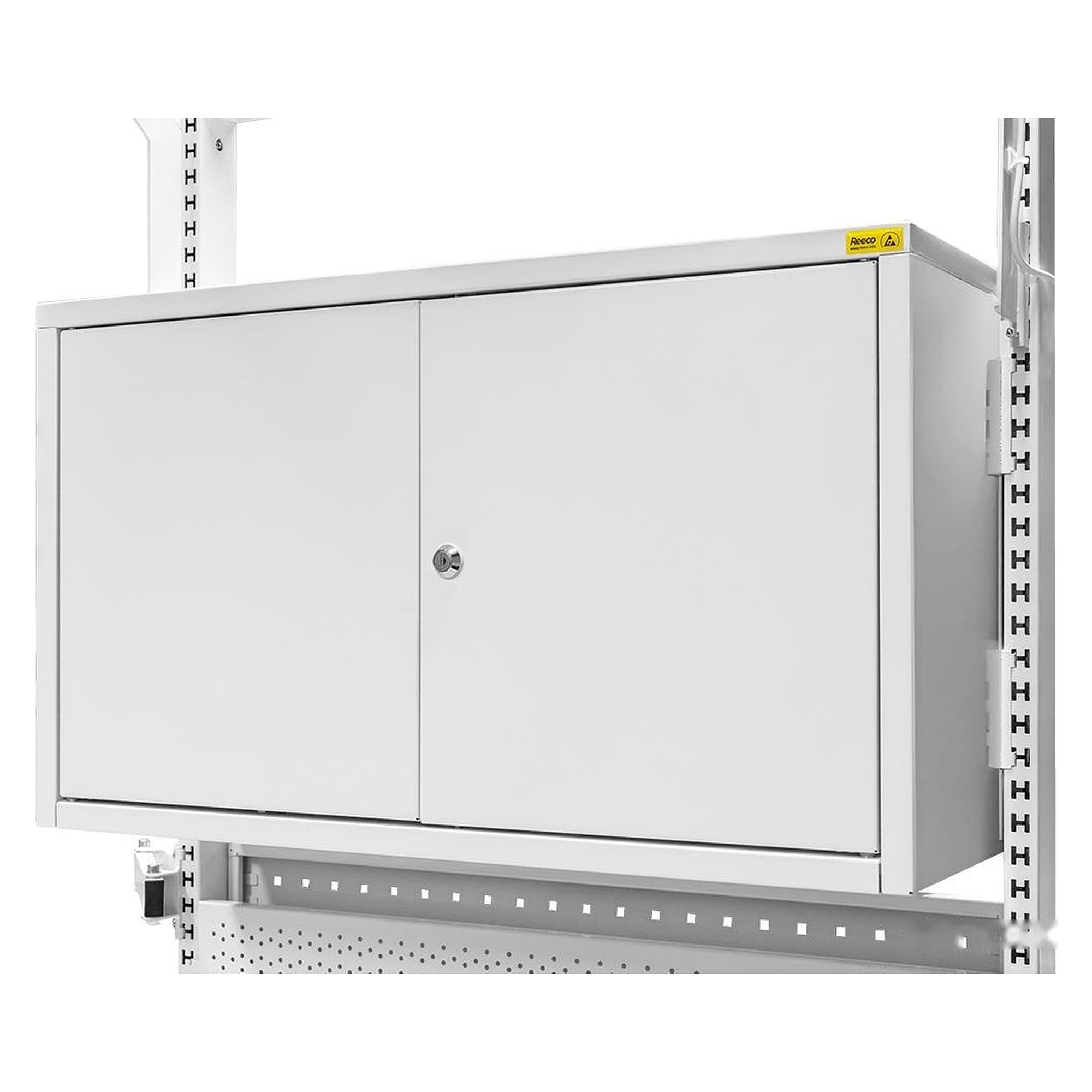

| Wall cabinet | depth 300, height 500 mm | 1 shelf | two-point lock |
Typical applications: Assembly and service benches with a personal tool set, test benches with calibrated gauges under lock, rework positions with a high part count, and SMT production with stencil storage in the 615 x 610 mm format.
