Reeco workstations
The worktop decides whether a bench is ESD capable. On Reeco tops not only the surface is dissipative, the core itself is conductive. Protection therefore survives even when the laminate has worn through after years of shift work.
The resin and particle board build carries load up to the frame maximum, and the edges are finished all round with ABS, making them impact and scratch resistant. Standard thickness is 25 mm in RAL 7036, decor U1188 Light Grey. For benches outside the protected area the same formats are available as HPL tops without ESD properties.
| Version | Widths | Depth | Thickness | ESD |
|---|---|---|---|---|
| Rectangular ESD | 1000 to 1830 mm | 600 to 900 mm | 25 mm | yes |
| Ergonomic ESD | 1200 to 1830 mm | 800 mm | 25 mm | yes |

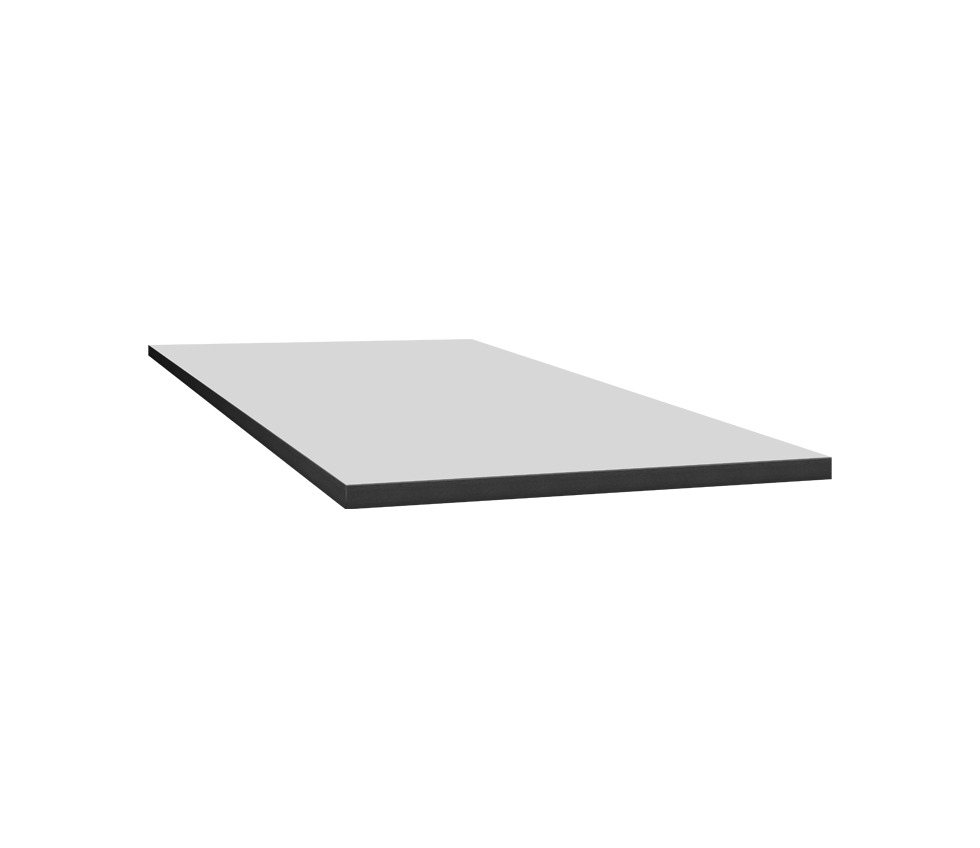

| HPL without ESD | 1200 to 1830 mm | 750 and 900 mm | 25 mm | no |
| L-shape for corner bench | 2000 x 2000 mm | 750 and 900 mm | 25 mm | yes |
Typical applications: Building and retrofitting Reeco workstations, replacing worn tops on existing frames, corner benches with a one-piece L-shaped top, and positions outside the EPA where the HPL version without ESD properties is sufficient.
