ESD high-resistance meter measuring kit digital - Warmbier Metriso B530

The Metriso B530 measuring kit from Warmbier is a digital high-resistance meter for measuring point-to-point resistance and leakage resistance of people, footwear, mats and floor systems in an ESD protected area (EPA). With a range from 1 kOhm to 199 GOhm and three selectable test voltages, the set covers the recurring tests needed to demonstrate compliant ESD control measures.

Key benefits

• High-resistance range from 1 kOhm to 199 GOhm for assessing dissipative and insulating materials.
• Three test voltages (10 V, 100 V, 500 V) for correct measurement in each range.
• Analogue and digital readout as bargraph or pointer for quick reading.

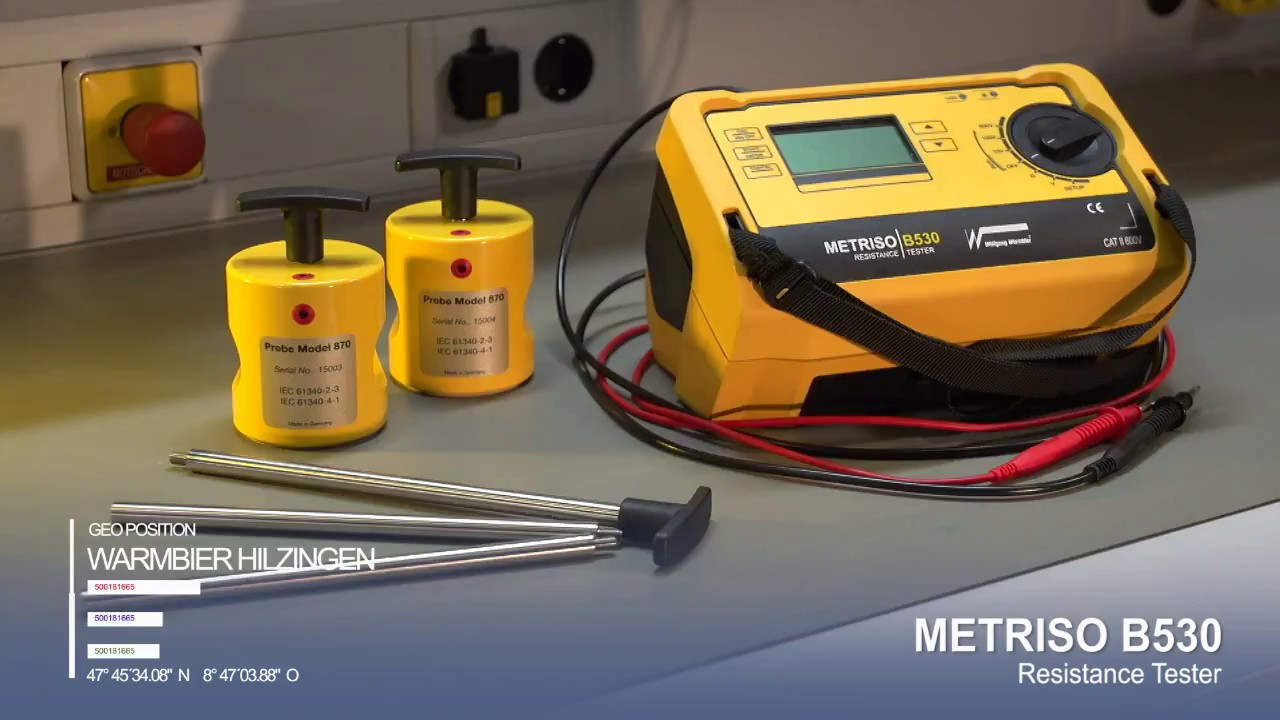

• Complete audit set with two Model 870 electrodes, hand electrode and measuring leads.
• Battery operation for mobile use directly at the workplace.
• Supplied in a conductive carrying case with factory calibration certificate.

Technical data

• Low-resistance range: 0 to 10 kOhm
• High-resistance range: 1 kOhm to 199 GOhm
• Measuring current ohm range: 1 mA to 1.3 mA
• High-resistance test voltage: 10 V, 100 V, 500 V DC
• Display: analogue and digital readout (bargraph or pointer)
• Internal memory: no
• Power: battery operation
• Dimensions (L x W x H): 140 x 225 x 130 mm

Applications

• Recurring testing of ESD workstations, table mats and floor systems.
• Measurement of leakage resistance of people and ESD footwear.
• Incoming and quality inspection of packaging and flooring materials.

Scope of delivery

• Digital high-resistance meter Metriso B530
• 2 measuring electrodes Model 870 (2.27 kg each, 63.5 mm dia., grey conductive contact rubber with silver particles) with extension rod
• 1 hand electrode Model 45
• Measuring leads
• Operating manual (German, English, French)
• Factory calibration certificate
• Conductive carrying case with dissipative pink foam

Standards and compliance

Meets DIN EN 61340-4-1, DIN EN 61340-2-3 and DIN EN 61340-4-5 (IEC 61340).
