What are JBC automated soldering processes and where are they primarily used in industrial applications?

JBC automated soldering processes are precision robotic soldering systems designed for high-volume electronics manufacturing, prototyping facilities, and repair service centers. These systems like the HA470A-5B and HA245A-5B automatic soldering units provide programmable temperature control, adjustable soldering timing, and repeatable joint quality for SMD components, through-hole assemblies, and complex PCB layouts. The technology is extensively deployed in automotive electronics production, medical device manufacturing, telecommunications equipment assembly, and aerospace applications where consistent solder joint integrity meets IPC-A-610 acceptance criteria.

What are the key technical selection criteria for choosing between JBC automated soldering systems?

Selection of JBC automated soldering systems depends on cartridge compatibility, power rating, and application complexity requirements. The HA470A-5B handles difficult soldering applications with R470 cartridges offering higher thermal mass, while the HA245A-5B uses R245 cartridges for general-purpose work with faster thermal recovery. Critical factors include maximum tip temperature range up to 450°C, power consumption specifications, cartridge change frequency supported by CS2R470-B and CS2R245-B automatic changers, and integration capability with existing production line control systems through the SMR-A serial multiplexer interface.

Which international standards and certifications apply to JBC automated soldering equipment?

JBC automated soldering systems comply with IEC 61010-1 electrical safety standards for industrial measurement and control equipment, plus ISO 9001 quality management certification for consistent manufacturing processes. The equipment meets EN 61000-6-2 electromagnetic compatibility requirements for industrial environments and adheres to RoHS 2011/65/EU directive for hazardous substance restrictions. Temperature control accuracy follows IEC 60584 thermocouple standards, while ESD protection capabilities align with IEC 61340-5-1 requirements essential for sensitive electronic component handling in automated assembly environments.

What are the main differences between JBC HA470A-5B and HA245A-5B automated soldering units?

The HA470A-5B automated soldering unit targets difficult soldering applications requiring higher thermal capacity with R470 cartridge compatibility, while the HA245A-5B handles general soldering tasks using R245 cartridges with faster heat-up characteristics. The HA470A-5B delivers superior performance for thermal mass components, ground planes, and multilayer PCB assemblies, whereas the HA245A-5B provides optimal efficiency for standard SMD work and fine-pitch components. Both units integrate with their respective UCR470-5A and UCR245-5A supply units, but cartridge changing systems CS2R470-B and CS2R245-B are application-specific and non-interchangeable between platforms.

What are the installation requirements and system compatibility specifications for JBC automated soldering systems?

JBC automated soldering systems require 230V AC single-phase power supply with maximum current draw varying by model configuration, plus compressed air supply at 6 bar minimum pressure for pneumatic actuators and tip cleaning functions. The TRA245-B and TRA470-B soldering irons connect via proprietary 7-pin cables to their respective supply units, while the SMR-A serial multiplexer enables RS-232 or Ethernet communication with PLC control systems. Installation demands stable mounting surfaces with vibration isolation, ambient temperature range 10-40°C, and adequate ventilation for fume extraction integration with existing factory air handling systems.

What safety ratings and environmental operating specifications do JBC automated soldering systems provide?

JBC automated soldering systems operate within ambient temperature ranges of 10-40°C with relative humidity up to 80% non-condensing, while tip temperatures reach controllable maximums of 450°C with ±2°C accuracy. The equipment carries IP20 ingress protection rating suitable for controlled industrial environments with overhead protection from dripping liquids. ESD-safe design maintains less than 2V static potential during operation, while thermal safety features include automatic standby mode activation and over-temperature protection circuits that disconnect power when tip sensors detect temperatures exceeding 480°C threshold limits.

What maintenance schedules and service life expectations apply to JBC automated soldering equipment?

JBC automated soldering systems require daily tip cleaning using the CLMR-A automatic cleaning device with fiber brush replacement every 50,000 cleaning cycles, while cartridge life expectancy ranges from 200-500 hours depending on operating temperature and application severity. The SFR-B automatic solder wire feeding mechanism needs monthly calibration verification and quarterly wire path cleaning to maintain consistent feed rates. Annual preventive maintenance includes thermocouple calibration verification, pneumatic actuator lubrication, and electrical connection torque inspection, with cartridge changers CS2R470-B and CS2R245-B requiring bearing replacement after approximately 100,000 change cycles under normal production conditions.

JBC Automated processes

JBC Soldering Technology

Add to Wish List Add to Compare

JBC R470038. Soldering tip R470, bevelled, 4 mm, R470038
€50.30
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R470039. Soldering tip R470, bevelled, 6 mm, R470039
€50.30
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R470040. Soldering tip R470, bevelled, 9 mm, R470040
€50.30
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R470009. Soldering tip R470, chisel, 6x1.3 mm, R470009
€45.38
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

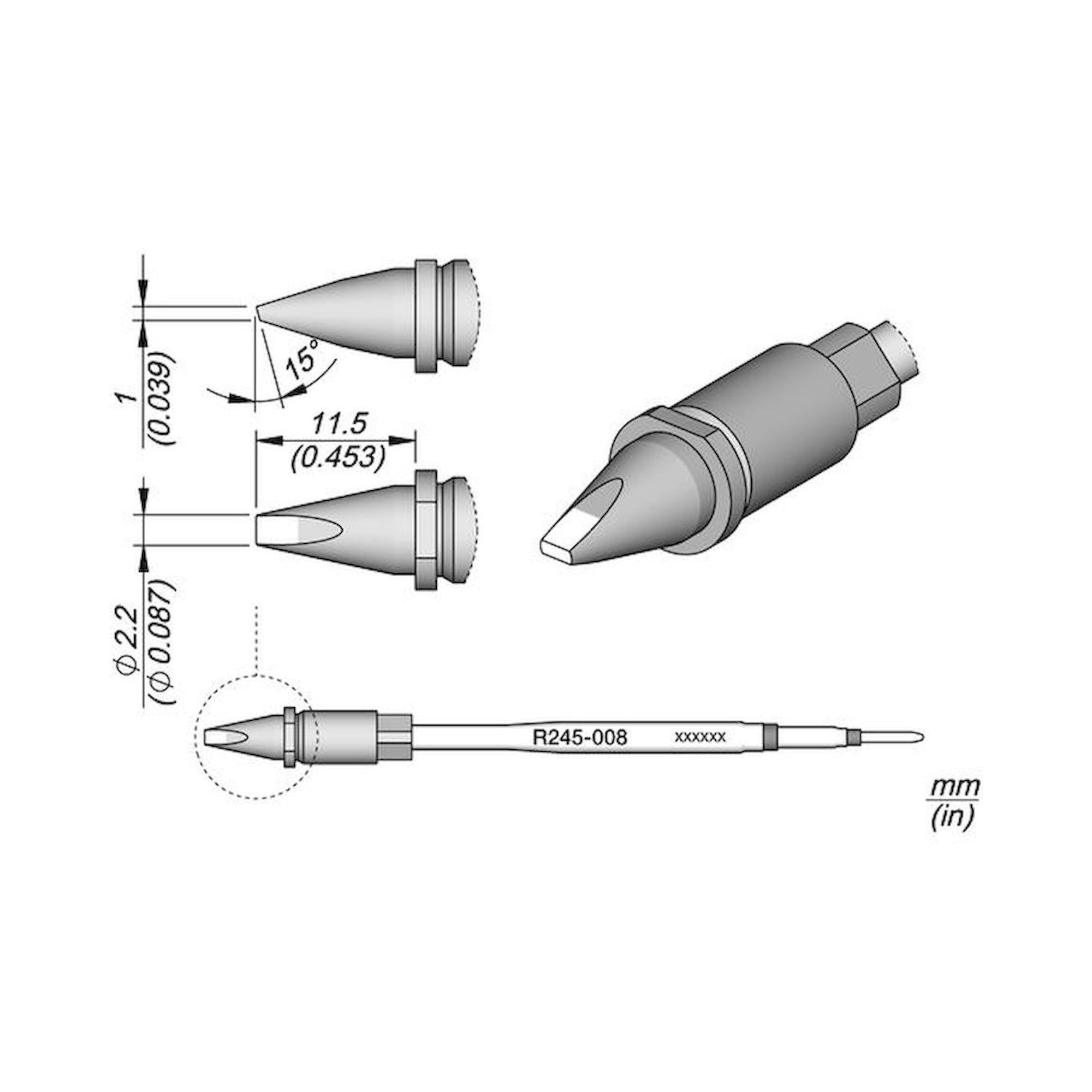

JBC R245008. Soldering tip R245, chisel, 2.2x1mm, R245008
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

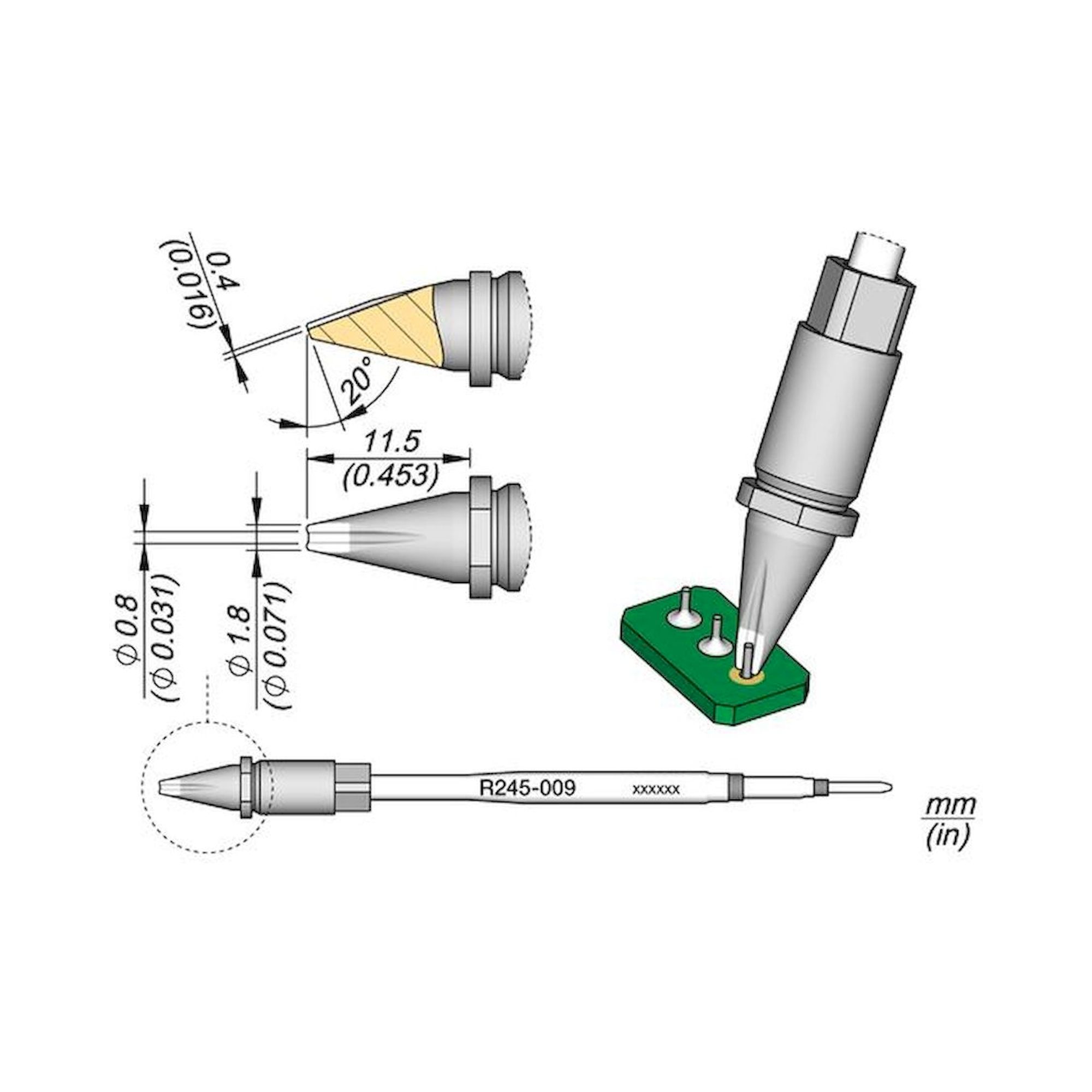

JBC R245009. Soldering tip R245, pin connector, 0.8 mm, R245009
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

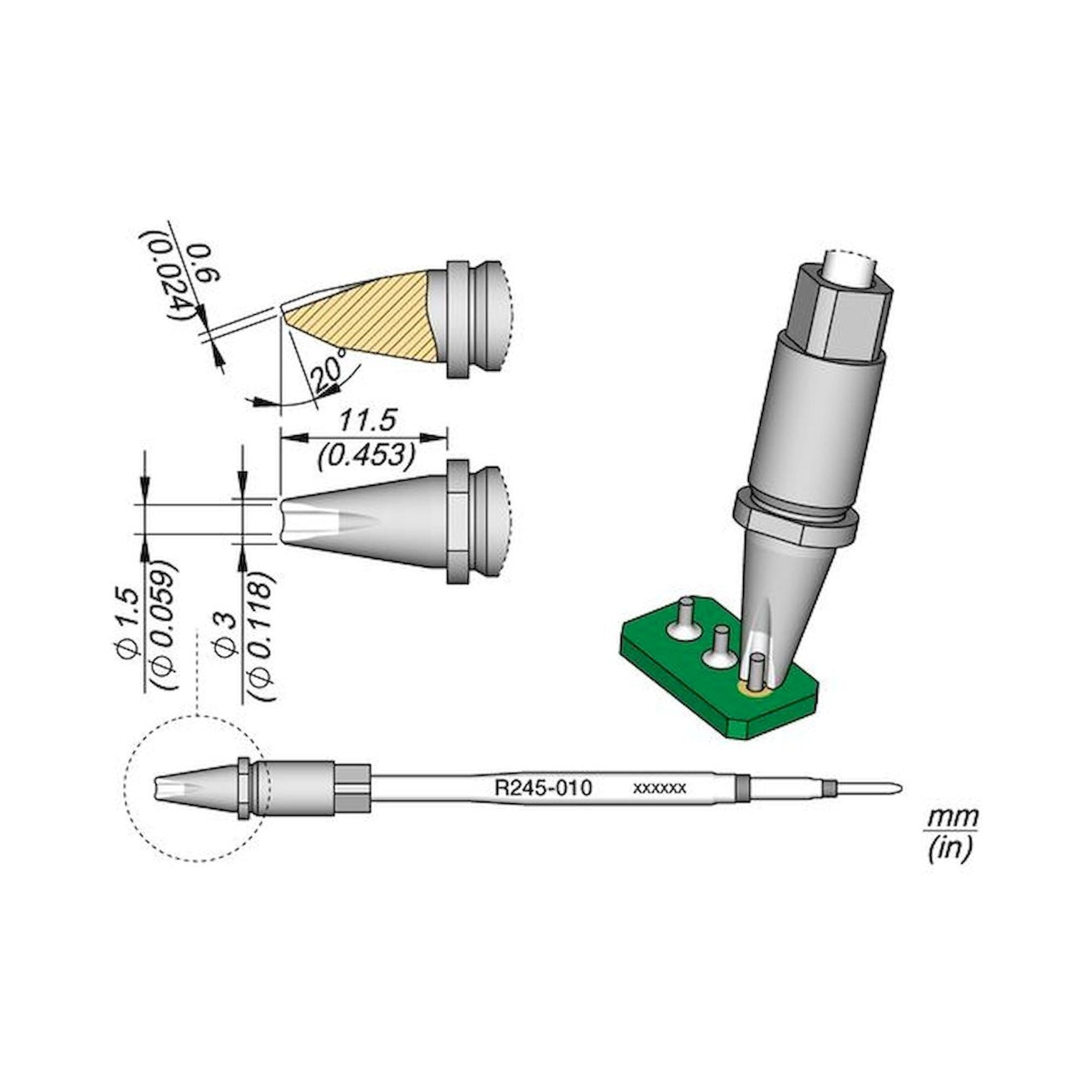

JBC R245010. Soldering tip R245, pin connector, 1.5 mm, R245010
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

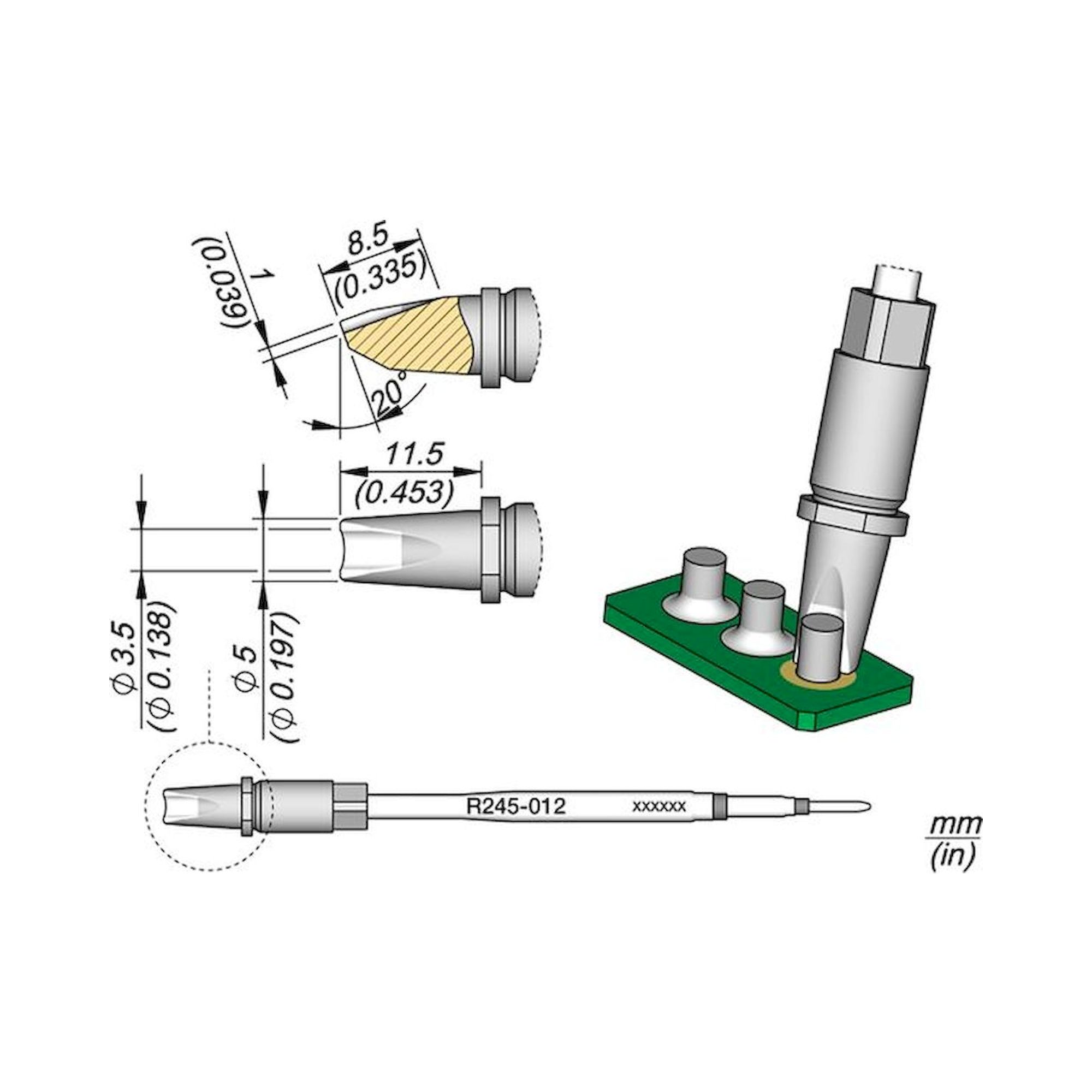

JBC R245012. Soldering tip R245, pin connector, 3.5 mm, R245012
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

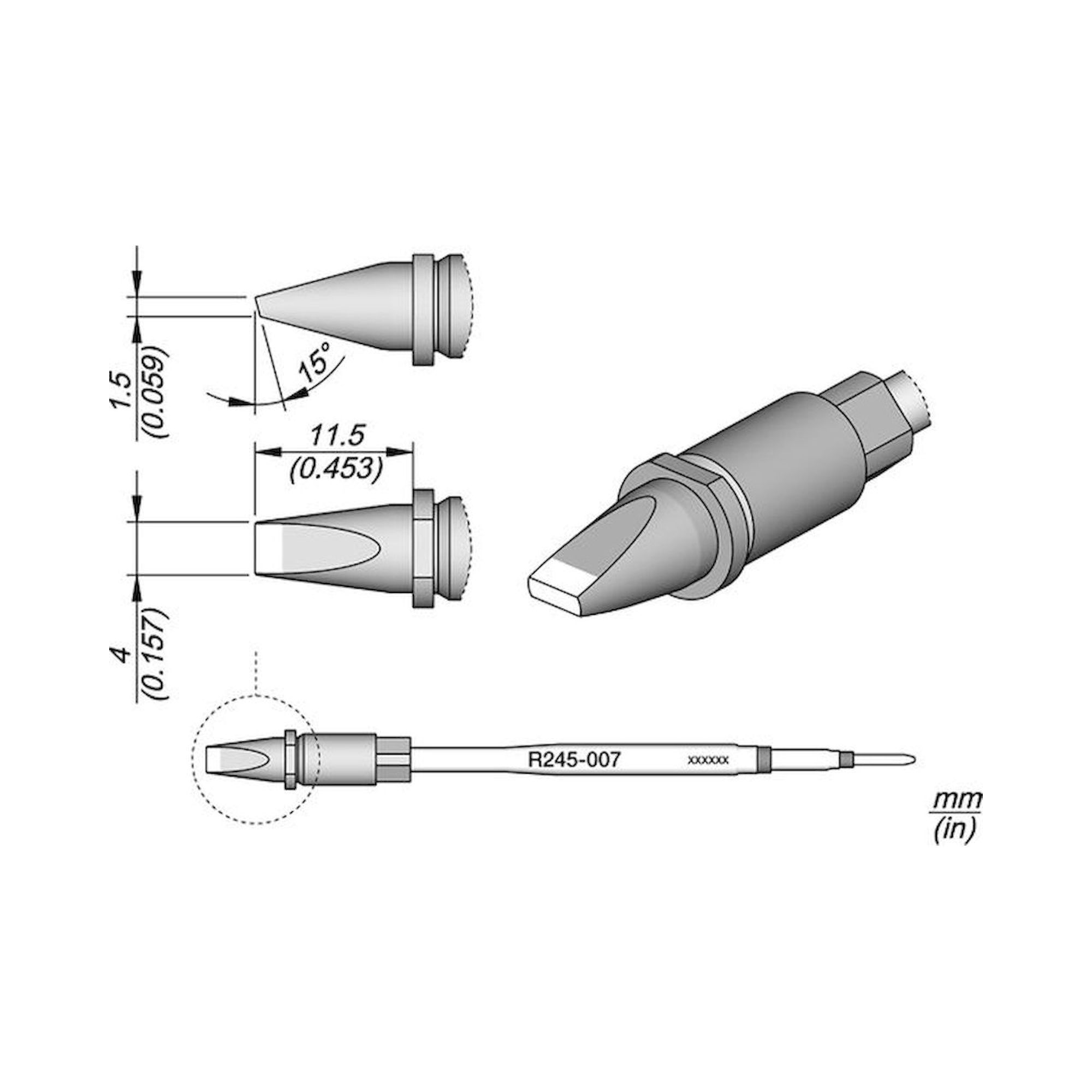

JBC R245007. Soldering tip R245, chisel, 4x1.5mm, R245007
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

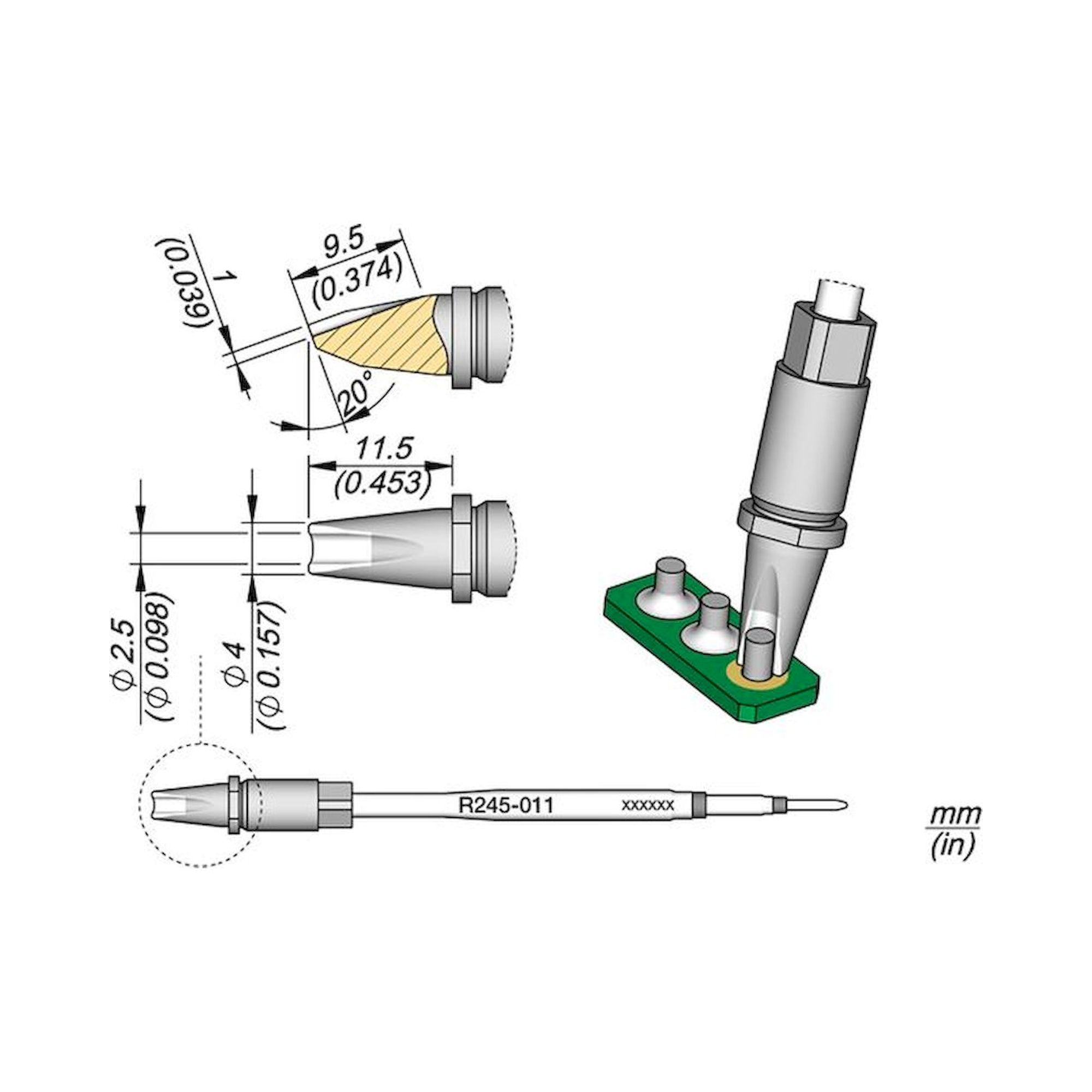

JBC R245011. Soldering tip R245, pin connector, 2.5 mm, R245011
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245002. Soldering tip R245, chisel, 2.2x1 mm, R245002
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245004. Soldering tip R245, pin connector, 1.5 mm, R245004
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245014. Soldering tip R245, pin connector, 1 mm, R245014
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245013. Soldering tip R245, drag soldering, 1.25 mm, R245013
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245016. Soldering tip R245, twin tip, 2 mm, R245016
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245017. Soldering tip R245, chisel, 1.5x0.5 mm, R245017
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245018. Soldering tip R245, chisel, 2x0.5 mm, R245018
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

JBC R245019. Soldering tip R245, chisel, 2.5x0.8 mm, R245019
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

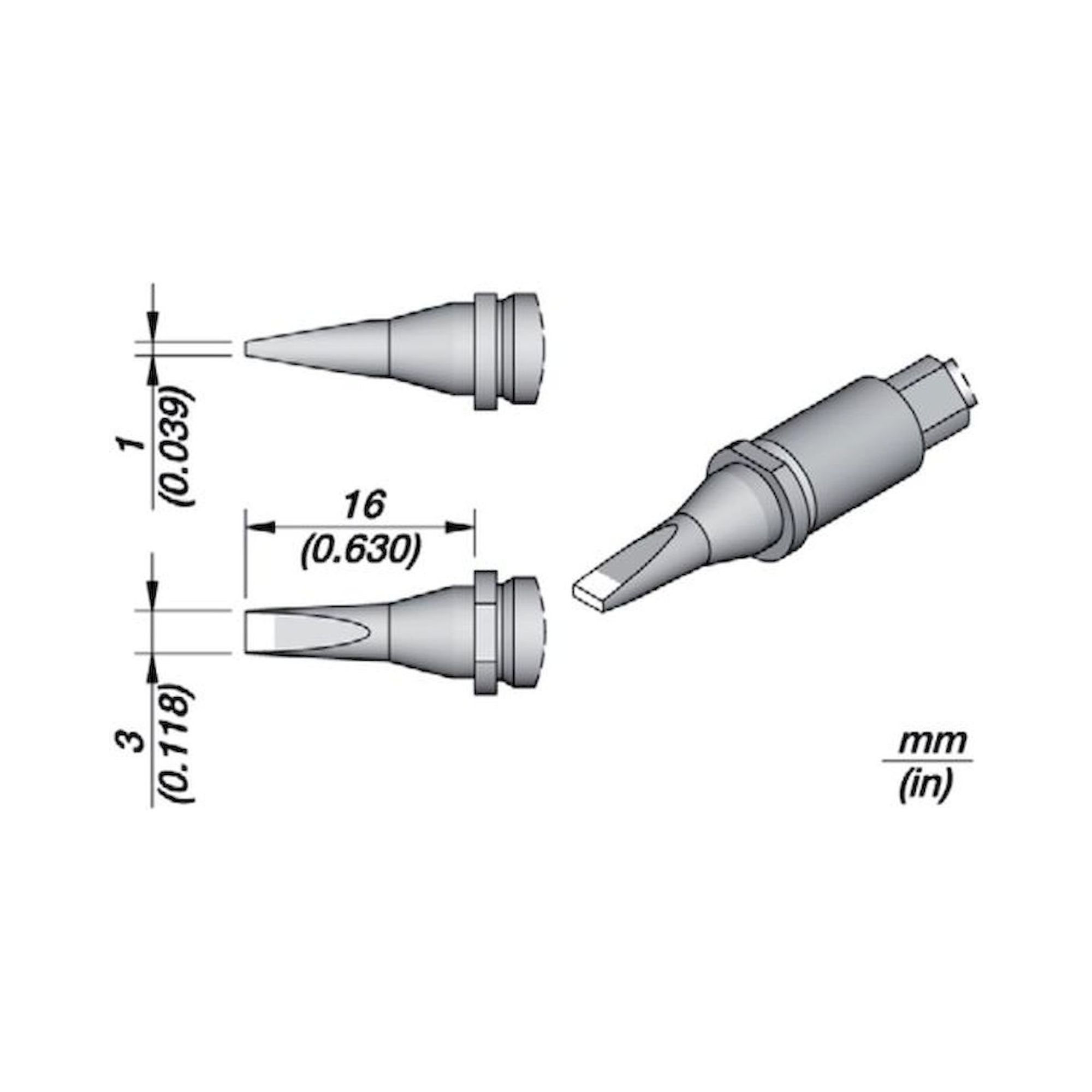

JBC R245020. Soldering tip R245, chisel, 3x1mm, R245020
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

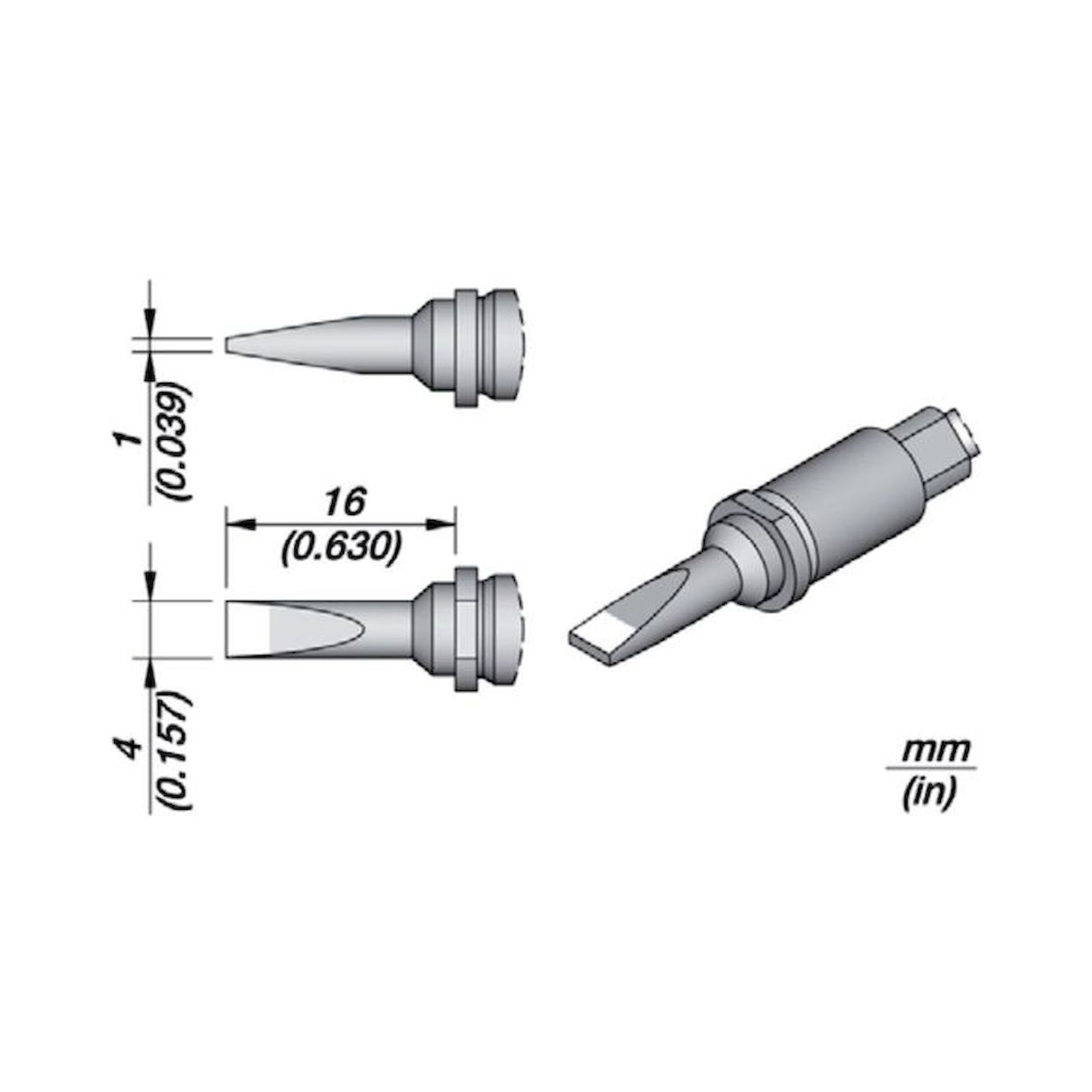

JBC R245021. Soldering tip R245, chisel, 4x1mm, R245021
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

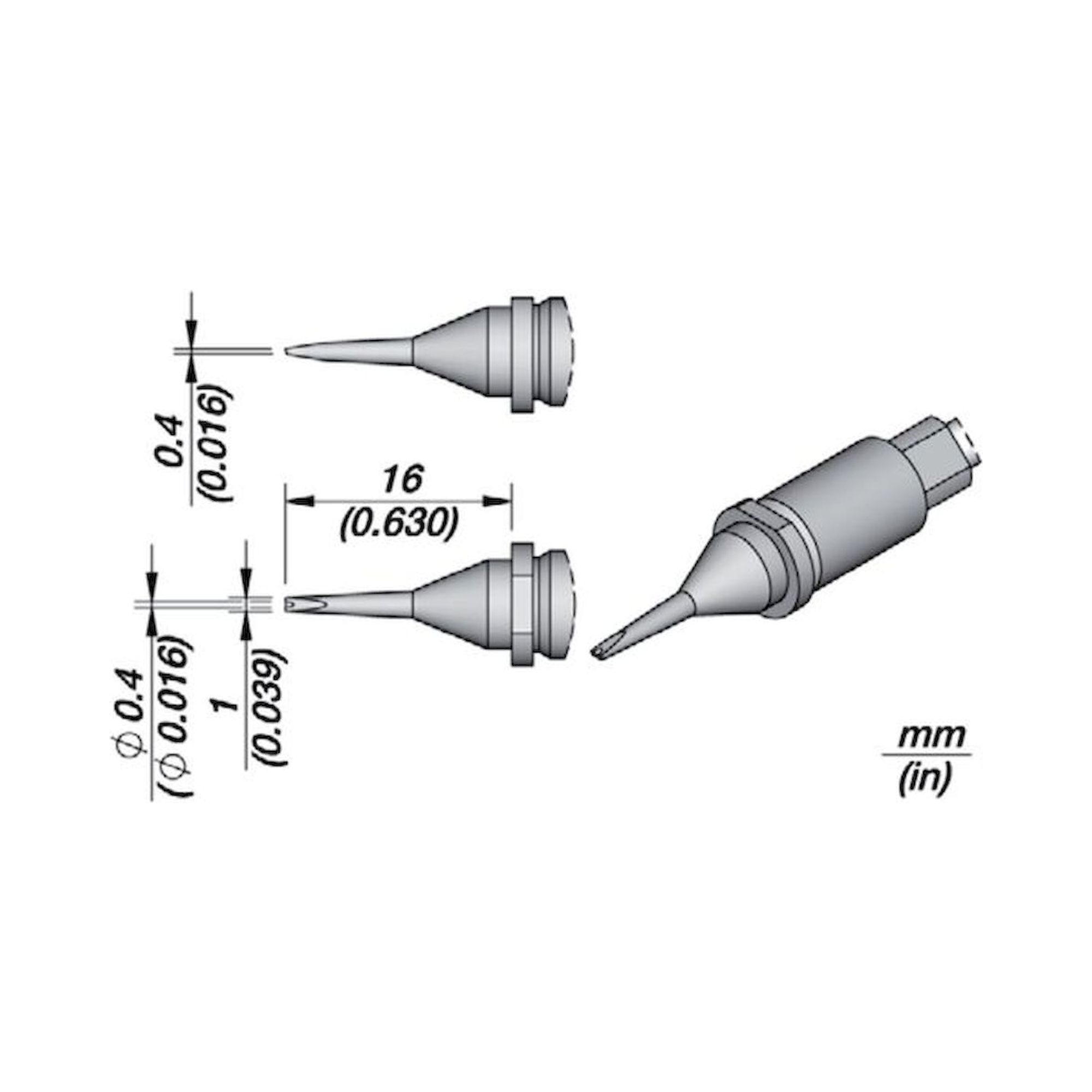

JBC R245022. Soldering tip R245, grooved chisel, 1x0.4 mm, R245022
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

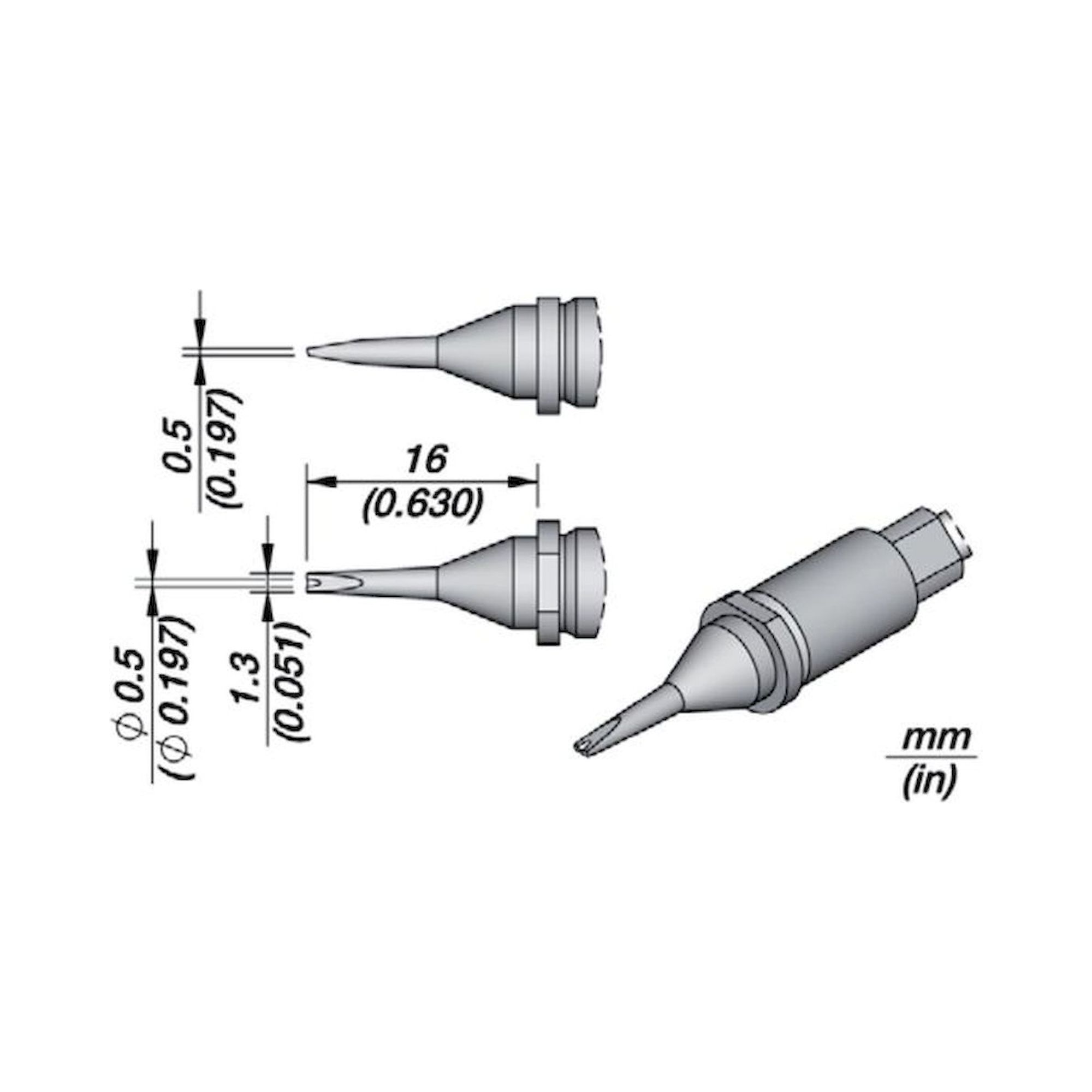

JBC R245023. Soldering tip R245, grooved chisel, 1.3x0.5 mm, R245023
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

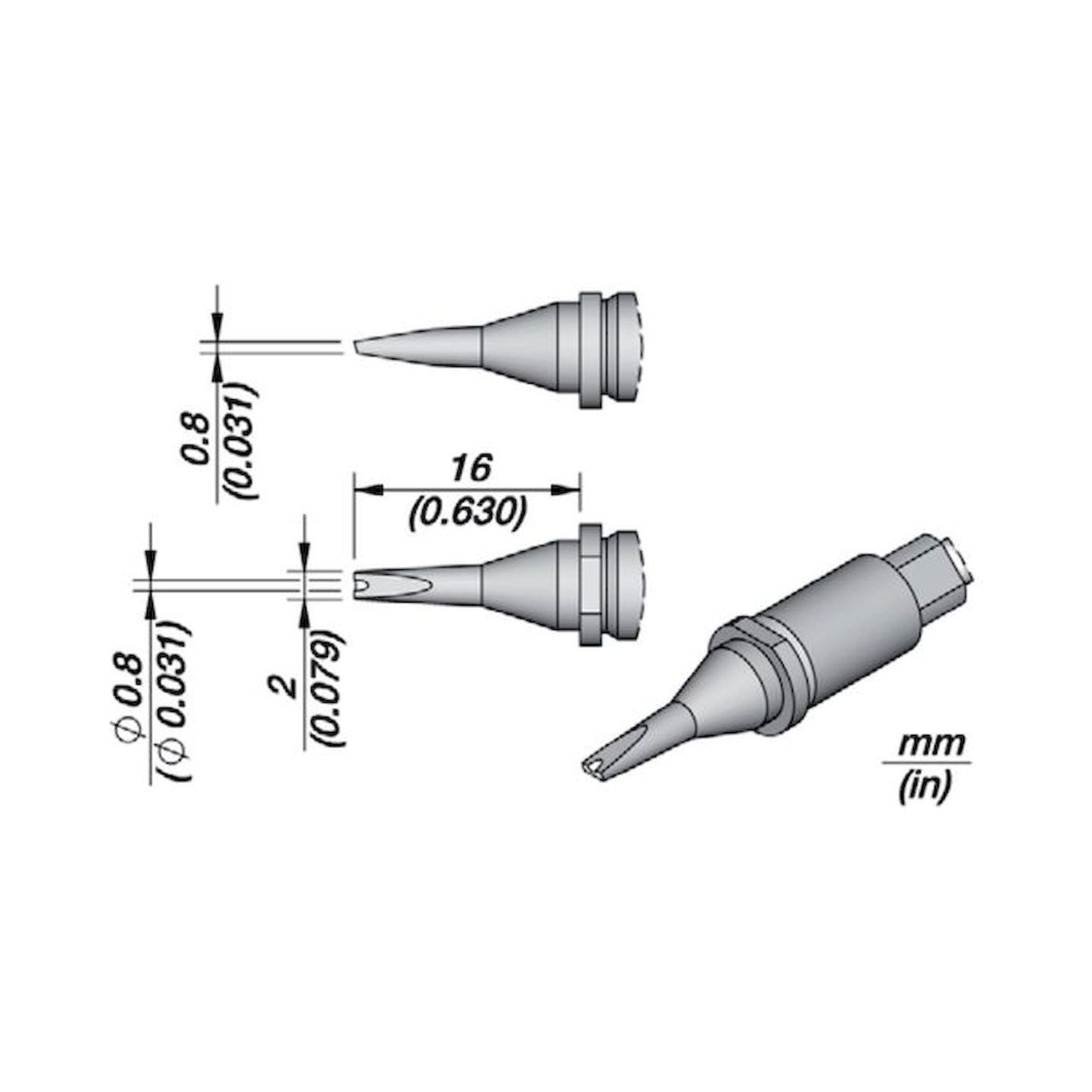

JBC R245024. Soldering tip R245, grooved chisel, 2x0.8 mm, R245024
€33.20
Excl. 19% VAT , excl. Shipping Cost
Add to Wish List Add to Compare

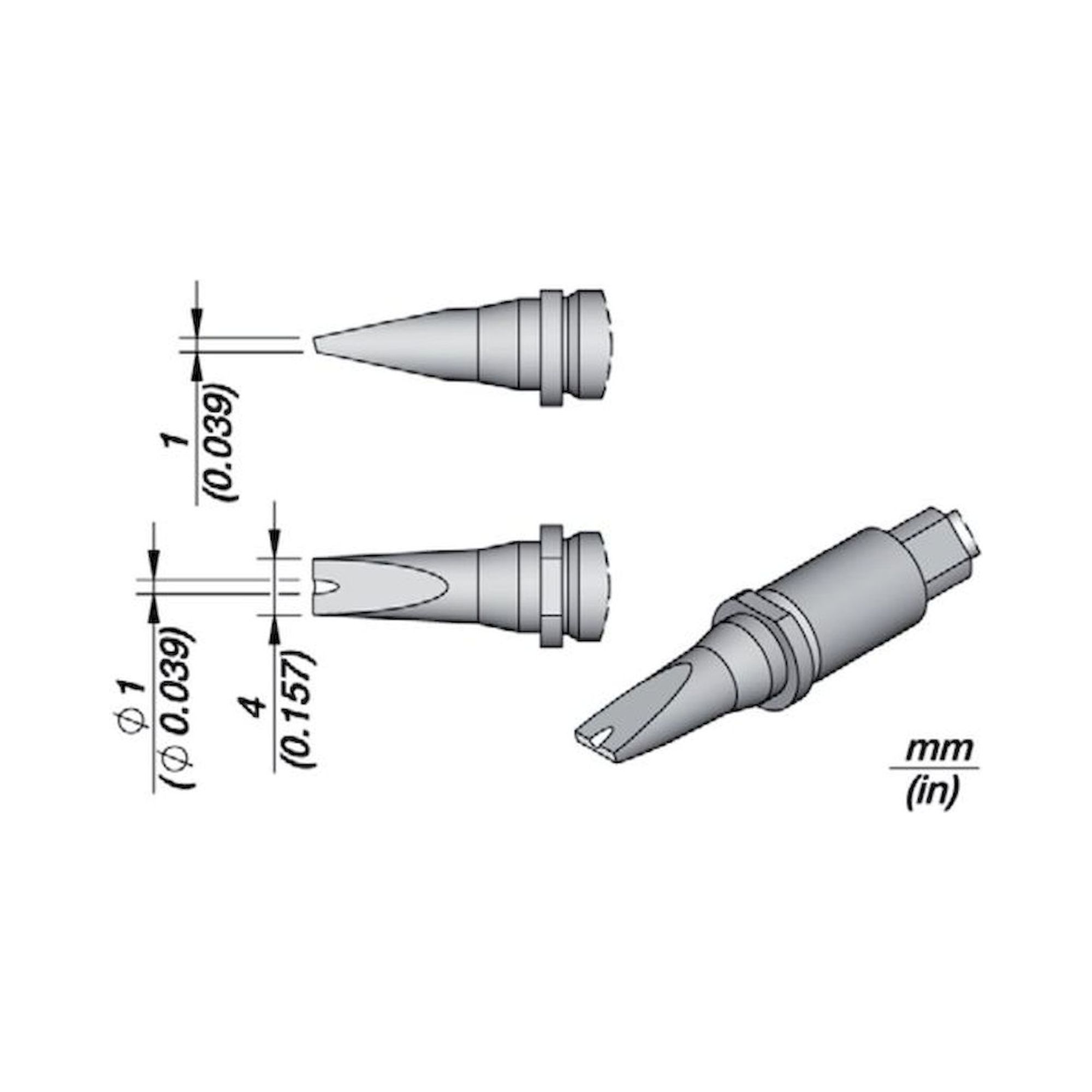

JBC R245025. Soldering tip R245, grooved chisel, 4x1 mm, R245025
€33.20
Excl. 19% VAT , excl. Shipping Cost

JBC automatic soldering systems deliver tip temperatures from 90 °C to 450 °C with a thermal recovery time under 0.5 seconds, enabling consistent joint quality at throughput rates that manual rework cannot match. The DDVE, JTSE, and HT470 platforms integrate closed-loop PID temperature control with process documentation ports, meeting IEC 61191-1 and J-STD-001 requirements for traceable, process-controlled soldering in high-reliability assemblies.

As an authorised JBC distributor, esd.equipment stocks 77 automatic soldering products including conveyor-integrated soldering robots, selective soldering modules, and automatic tip-cleaning and feed systems - fully compliant with IPC-A-610 Class 2 and Class 3 workmanship standards and compatible with lead-free SAC alloys per EN ISO 9453.

Key technical advantages - JBC Automatic Soldering at a glance

⚡ 90-450 °C tip temperature - closed-loop PID control, stable to ±1 °C under load

↕ <0.5 s thermal recovery - Sleep/Hibernate system extends tip life up to 5x

🛠 Conveyor & robot integration - DDVE/JTSE platforms, programmable XYZ axes

⚙ Lead-free SAC compatibility - optimised for SAC305/SAC405, EN ISO 9453

📝 Process data logging - USB/RS-232 output, IPC-A-610 Class 3 traceability

✓ IEC 61191-1 / J-STD-001 compliant - validated for Class 2 and Class 3 assemblies

JBC Automatic Soldering - Product Series Overview

Series / Platform	Application	Temperature Range	Key Feature
DDVE	Automatic selective soldering robot	90-450 °C	Programmable XYZ, conveyor-ready integration
JTSE	Tabletop automatic soldering station	90-450 °C	Compact footprint, <0.5 s recovery, tip cleaning
HT470	High-throughput inline soldering	200-450 °C	Continuous feed, SAC305 optimised, data logging
Automatic Tip Cleaners	Automated tip maintenance modules	N/A	Extends tip life up to 5x, flux-free cleaning cycle
Solder Feed Systems	Automatic wire feed for robotic cells	N/A	Adjustable feed rate, compatible with 0.3-1.5 mm wire

Typical application areas: Electronics manufacturing SMT lines (IPC-A-610 Class 2/3, J-STD-001), semiconductor back-end assembly (SEMI S1/S2), medical device PCB production (ISO 13485), automotive control unit manufacturing (IATF 16949, VDA 6.3), aerospace and defence electronics (AS9100D, IEC 61191-1), and high-mix low-volume rework and selective soldering cells requiring full process traceability.

✓

Authorised JBC Distributor 77 automatic soldering products - DDVE, JTSE, HT470 and accessories in stock

📦

Fast Delivery from Stock Soldering robots, tip cleaners, and feed systems dispatched same or next business day

🛡

IPC-A-610 and J-STD-001 Compliant All systems validated for Class 2 and Class 3 high-reliability soldering processes
