Screwdrivers Softfinish ESD
Screwdrivers
Wiha SoftFinish ESD screwdrivers are antistatic and suitable for use in EPA zones. The blade is manufactured from premium-grade steel; the handle uses two-component SoftFinish material with permanent ESD dissipation. The range covers slotted blades (2.5-5.5 mm blade width), cross-head PH0-PH2 and Torx T6-T20. Overall lengths range from 164 mm (PH0/T6) to 236 mm (5.5 mm slotted), with handle diameters of 23-36 mm.
Permanent ESD dissipation - antistatic SoftFinish handle, suitable for EPA zones per DIN EN 61340-5-1

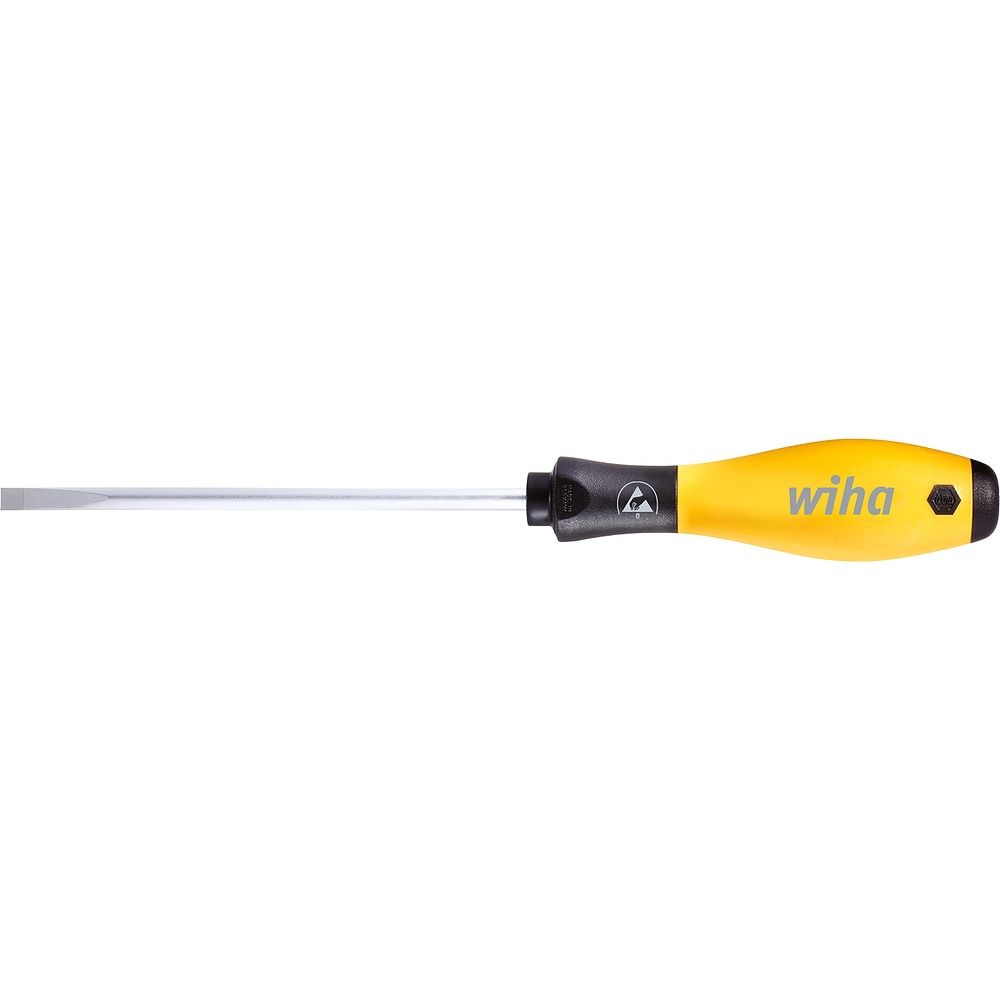

Slotted 2.5-5.5 mm - blade widths 2.5 mm (75 mm blade, item 08179) to 5.5 mm (125 mm blade, item 08182)

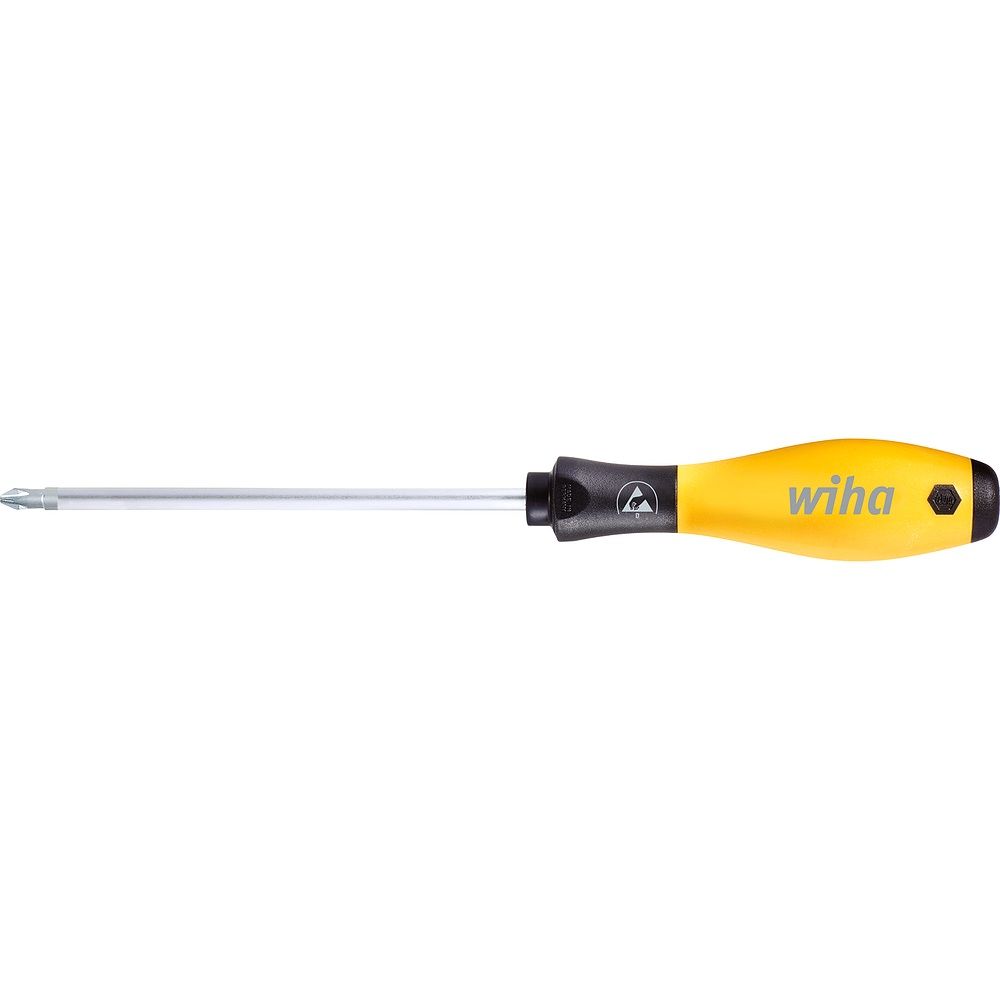

Cross-head PH0-PH2 - PH0 60 mm (08184), PH1 80 mm (08185), PH2 100 mm (08186)

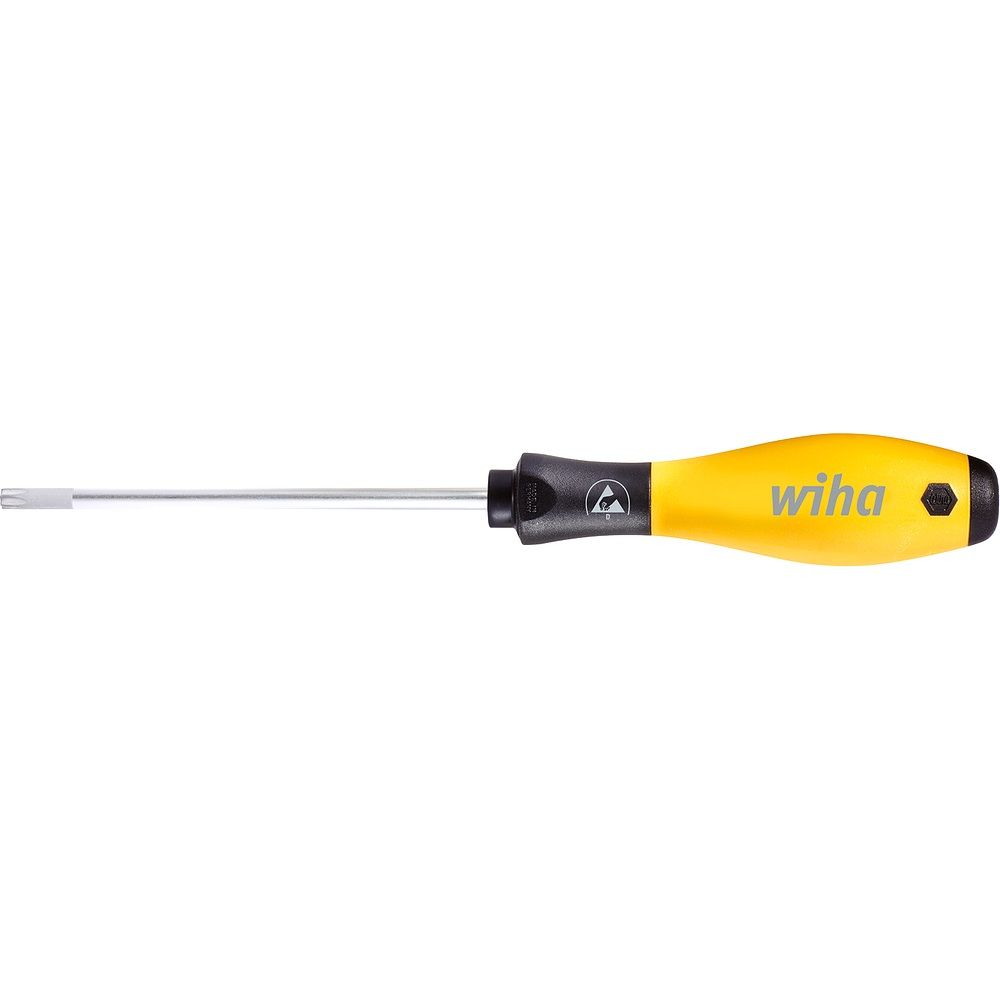

Torx T6-T20 - T6/T8/T9/T10/T15/T20, blade lengths 60-100 mm, handle diameter 23-36 mm

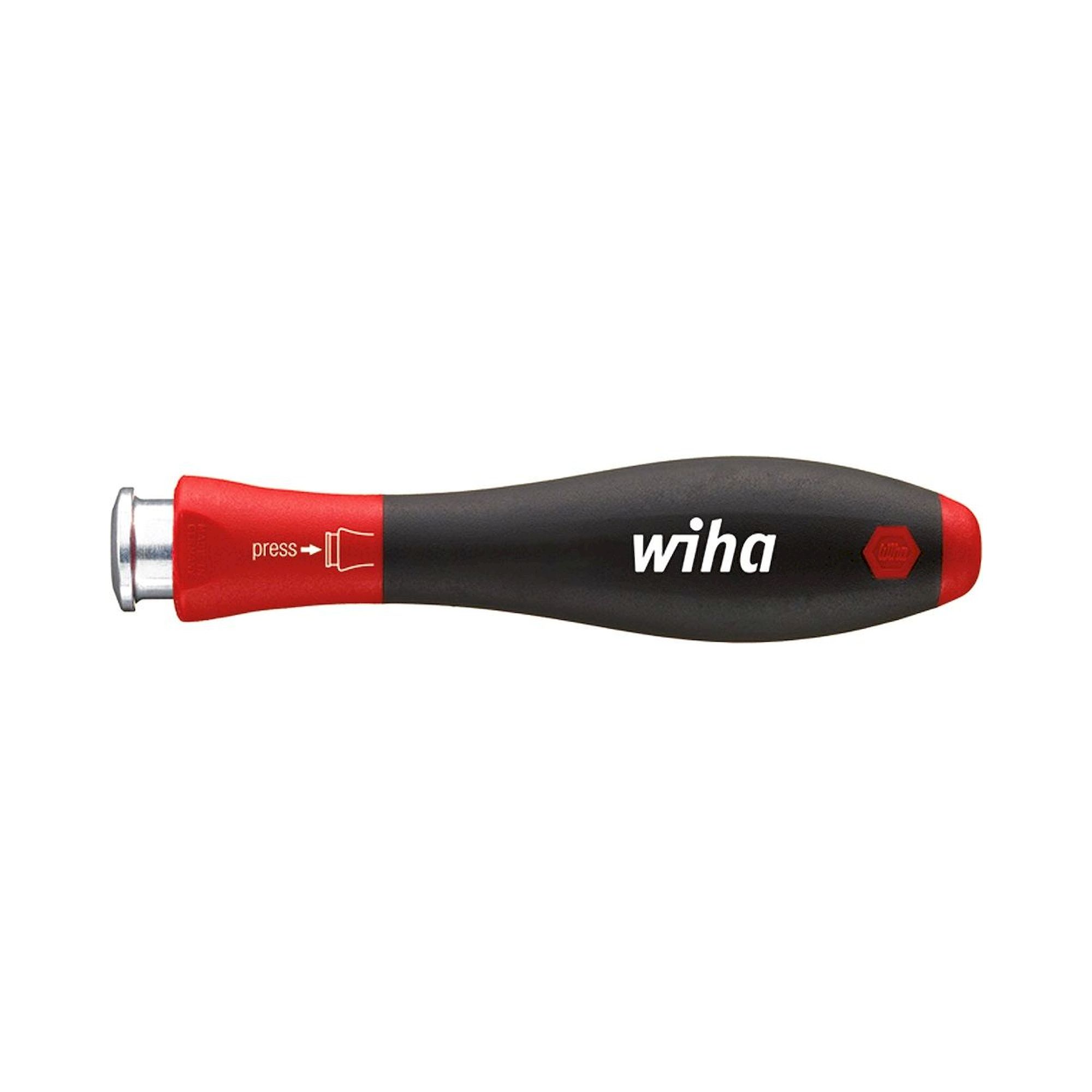

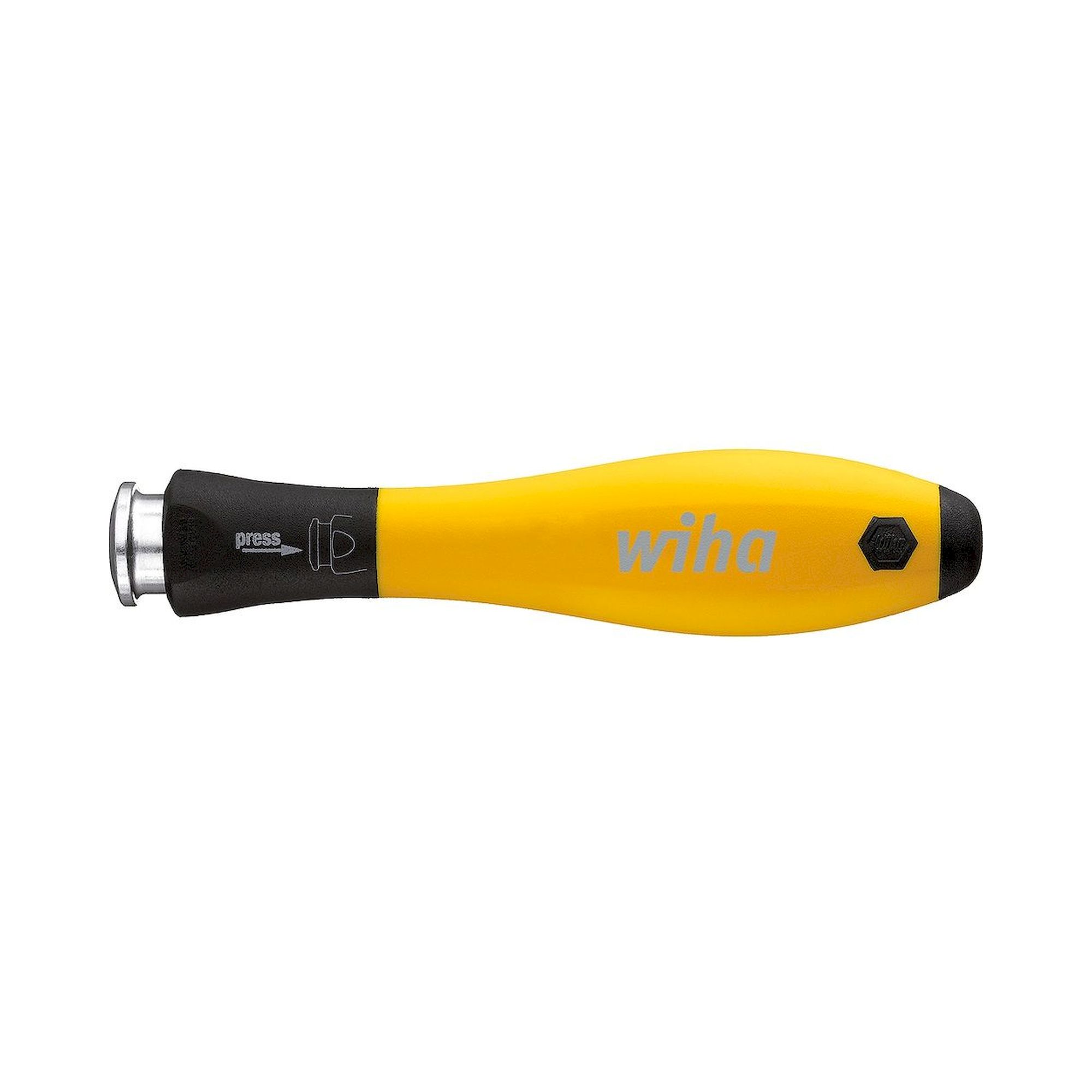

Telescopic handles - SoftFinish telescopic (30373) and ESD telescopic (31498), 4.0 mm output, 105 mm

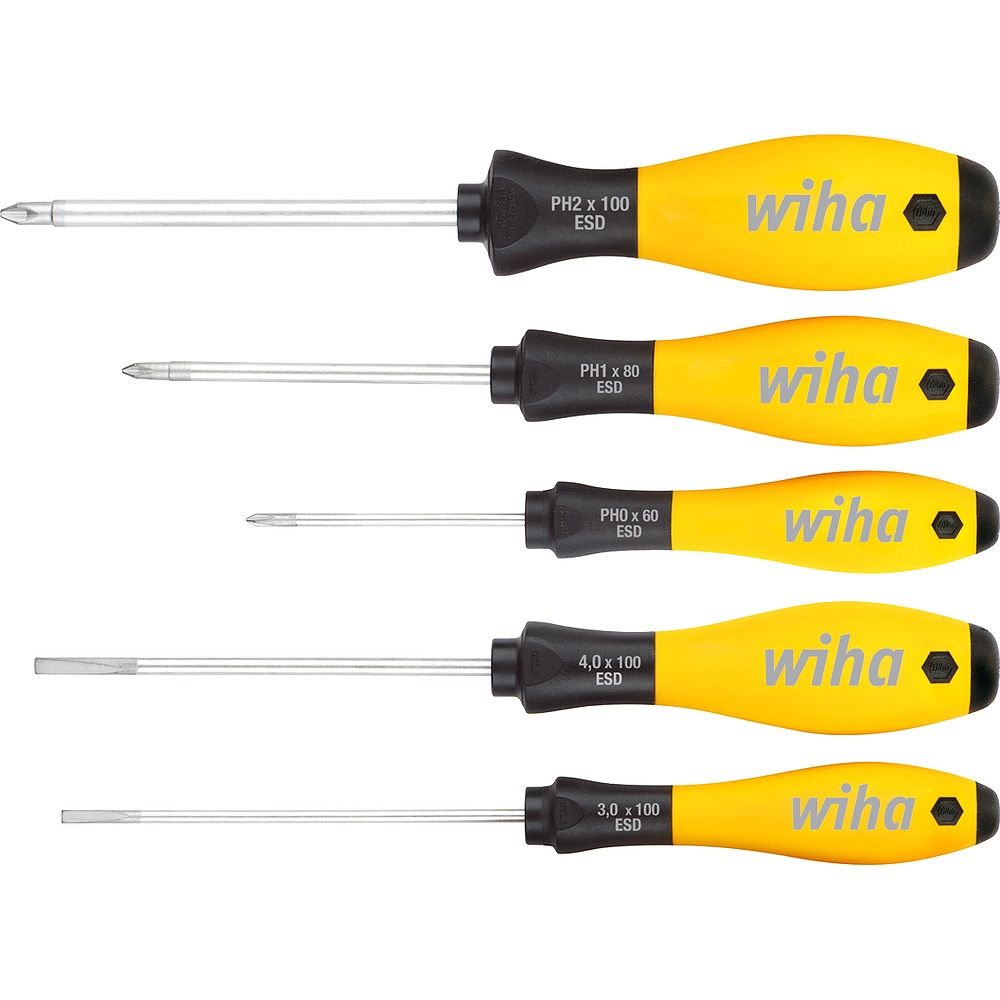

Sets - SoftFinish ESD screwdriver sets (27252, 27253) for range entry
| Item | Type | Blade mm | Overall mm | Handle dia. mm |
|---|---|---|---|---|
| 08179 | Slotted 2.5 | 75 | 179 | 23 |
| 27150 | Slotted 3.0 | 100 | 204 | 23 |
| 27151 | Slotted 4.0 | 100 | 211 | 30 |
| 08182 | Slotted 5.5 | 125 | 236 | 30 |
| 08184 | PH0 | 60 | 164 | 23 |
| 08185 | PH1 | 80 | 191 | 30 |
| 08186 | PH2 | 100 | 218 | 36 |
| 27149 | T6 | 60 | 164 | 23 |
| 27145 | T9 | 60 | 171 | 30 |
| 27147 | T20 | 100 | 218 | 36 |
Typical applications: Screwdriving tasks in electrostatically protected areas (EPA) for assembly and maintenance of circuit boards, control units and measuring equipment, repair of flat-panel devices with Torx fixings, and service work on ESD-sensitive assemblies in automotive electronics and medical technology.
