PD-410 verification unit for calibration check of the PD-400 - A1-ESD EP0206042

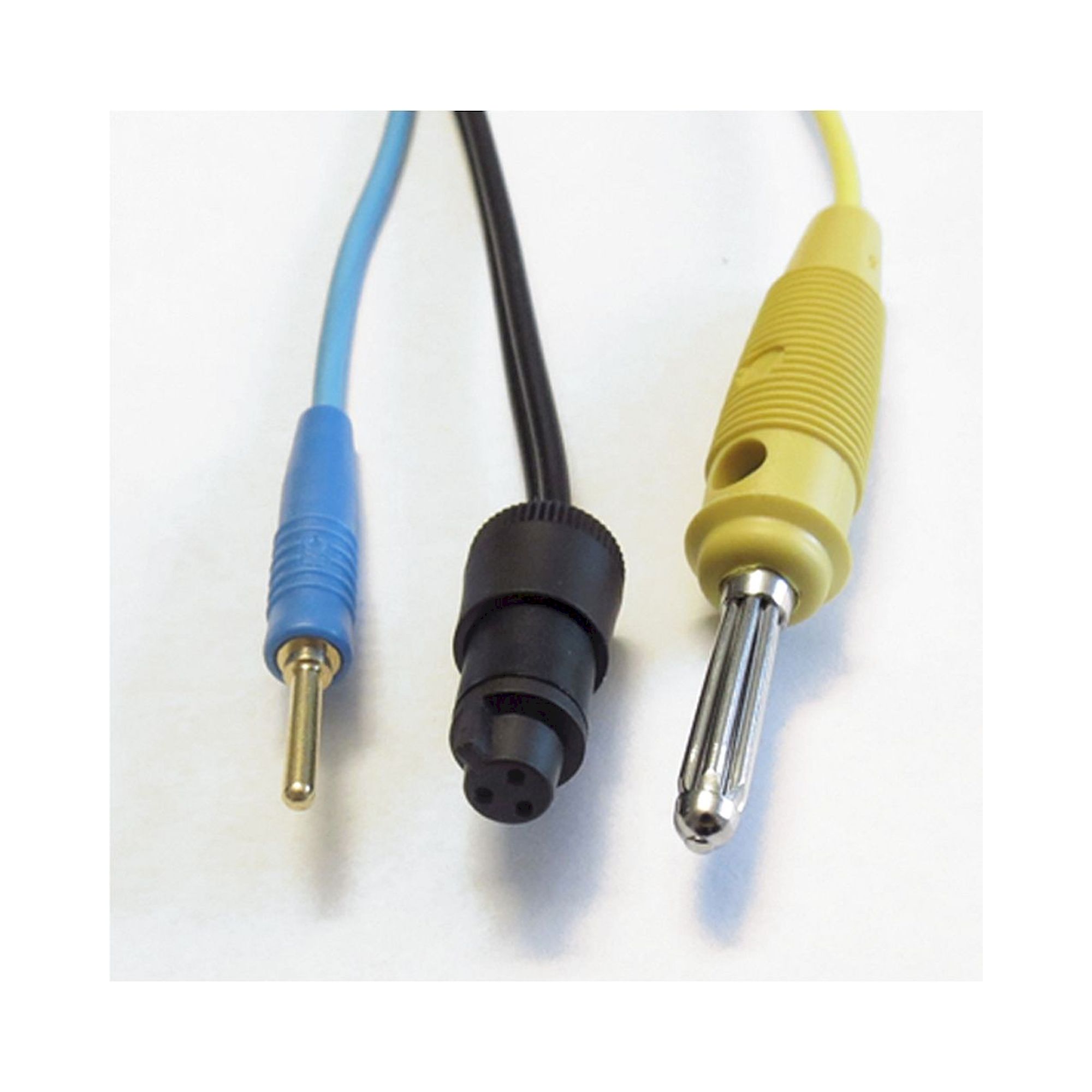

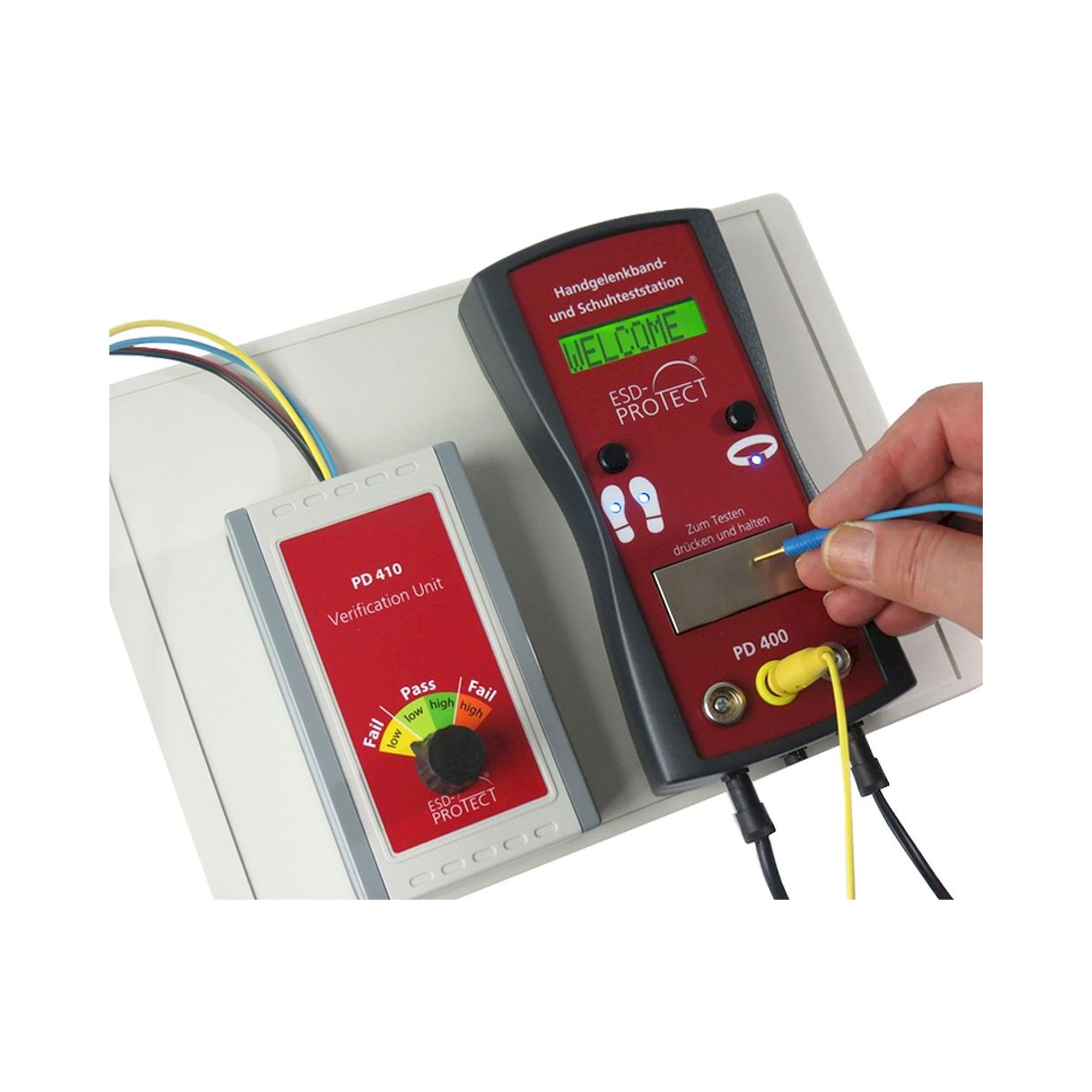

The PD-410 verification unit is used for the regular validation of the PD-400 personnel tester (item EP0206024). It lets you check tolerances and limit values quickly, keeping the measurement reliability of the personnel grounding control verifiable.

Benefits

• Fast functional check of the limit values for wrist strap and footwear
• Defined reference resistors for Fail Low to Fail High modes
• Rotary switch to select the test mode, measurement via contact pin

Technical data (reference resistors)

• Wrist strap 35 MΩ: Fail Low 680 kΩ, Pass Low 816.0 kΩ, Pass High 91.8 MΩ, Fail High 38.2 MΩ
• Footwear left 100 MΩ: Fail Low 91 kΩ, Pass Low 109.0 kΩ, Pass High 91.0 MΩ, Fail High 109.0 MΩ
• Footwear right 100 MΩ: Fail Low 91 kΩ, Pass Low 109.0 kΩ, Pass High 91.0 MΩ, Fail High 109.0 MΩ
• Weight: 0.1 kg

Application

Validation tool for personnel grounding control to IEC 61340-5-1. Each of the four modes is selected with the rotary switch and measured with the contact pin.
