Horizontal rotating laser 800 m with manual slope and case - Leica Rugby 620

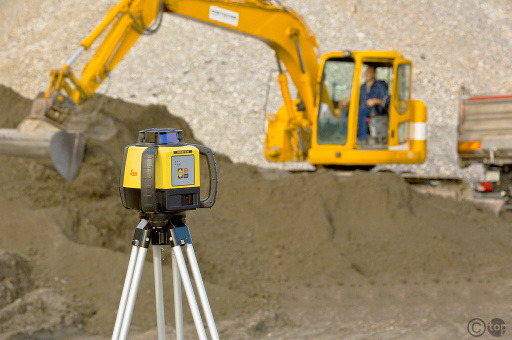

Transferring heights, aligning formwork and checking excavation depths should be a one-person job on site. The Rugby 620 self-levels within ±5° and holds the horizontal plane to ±2.2 mm at 30 m. With the Rod Eye 120 the plane reaches over a working diameter of 800 m, with the Rod Eye 140 or 160 over 1100 m.

Benefits

• Working diameter 800 m with the Rod Eye 120, up to 1100 m with the Rod Eye 140 Classic or Rod Eye 160 Digital. Even a large site area is covered from one set-up.
• Accuracy ±2.2 mm at 30 m with a self-levelling range of ±5°, so the laser absorbs tripod set-up deviations on its own.

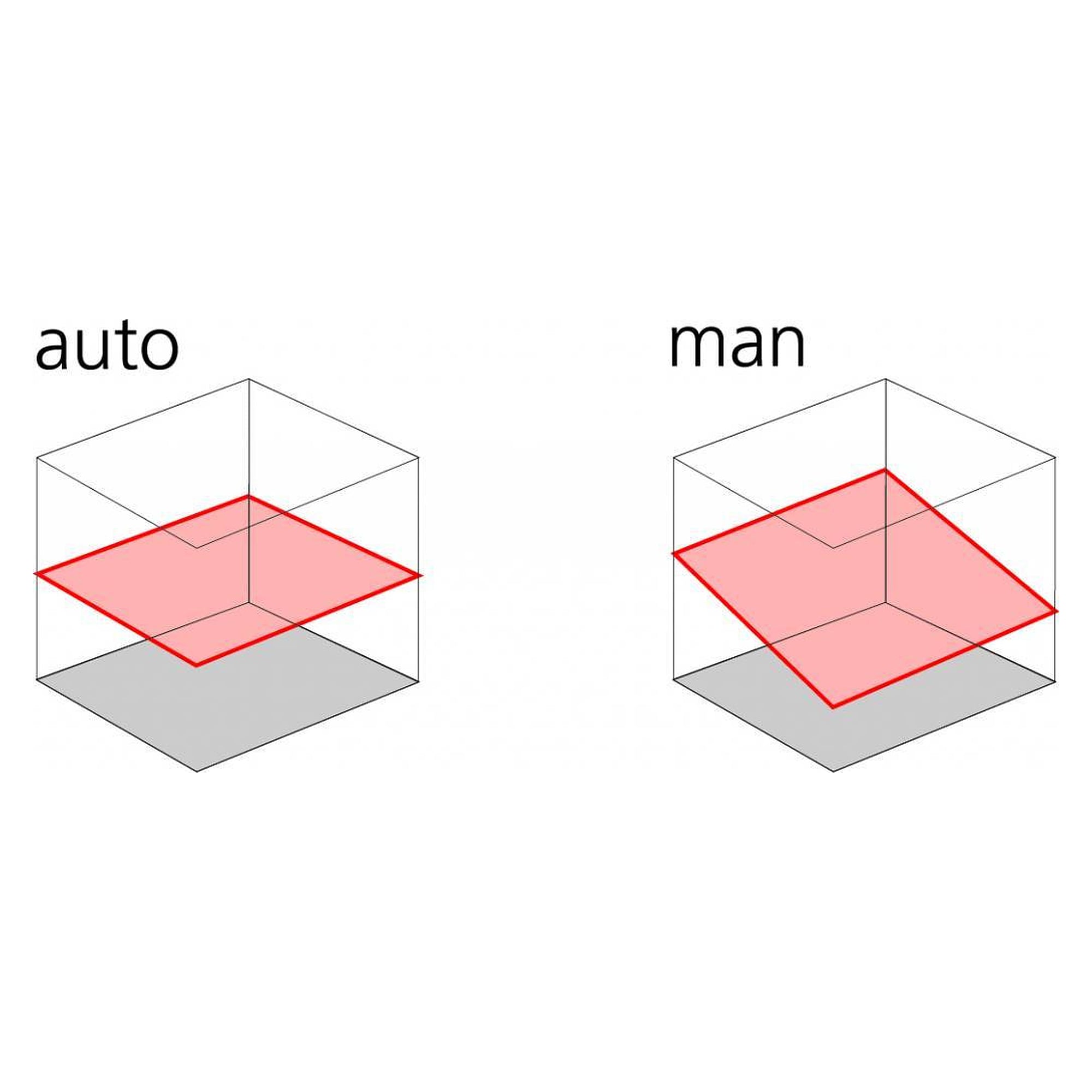

• Manual slope in one axis for simple falls, for example on drainage runs, ramps or embankments.
• IP67 protection with and without battery, dust tight and protected against temporary immersion. Rain and concrete dust do not affect the housing.
• 40 hours of operation on the Li-Ion battery, 60 hours on alkaline cells. One charge carries through a full working week.
• Class 1 laser at 635 nm, the red beam stays eye-safe under all operating conditions.

Technical data

Applications

Setting foundations and strip footings, aligning formwork and framing, checking excavation depths and subgrade, transferring heights in shell construction, marking out suspended ceilings and stud walls in interior fit-out. The manual single-axis slope covers simple falls for drainage and ramps.

Compatibility and scope of delivery

The Rugby 620 works with the complete Leica Rod Eye receiver family. Rod Eye 120 and 120G cover 800 m diameter, Rod Eye 140 Classic and Rod Eye 160 Digital extend the range to 1100 m and offer a wider catch with a 120 mm detection window. Power comes either from the Li-Ion battery of the Rugby 600 series or from alkaline cells.

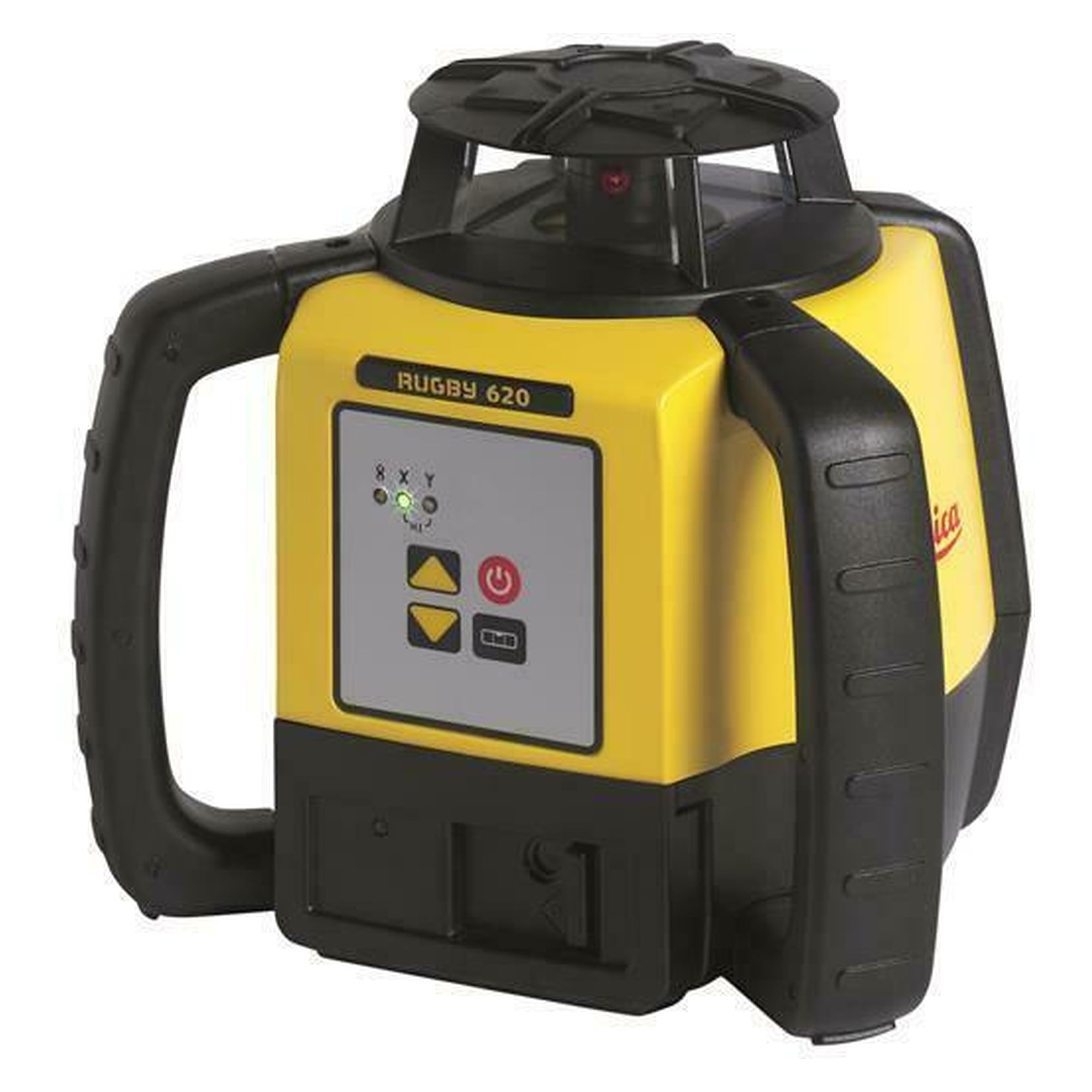

• Leica Rugby 620 rotating laser, 1 piece

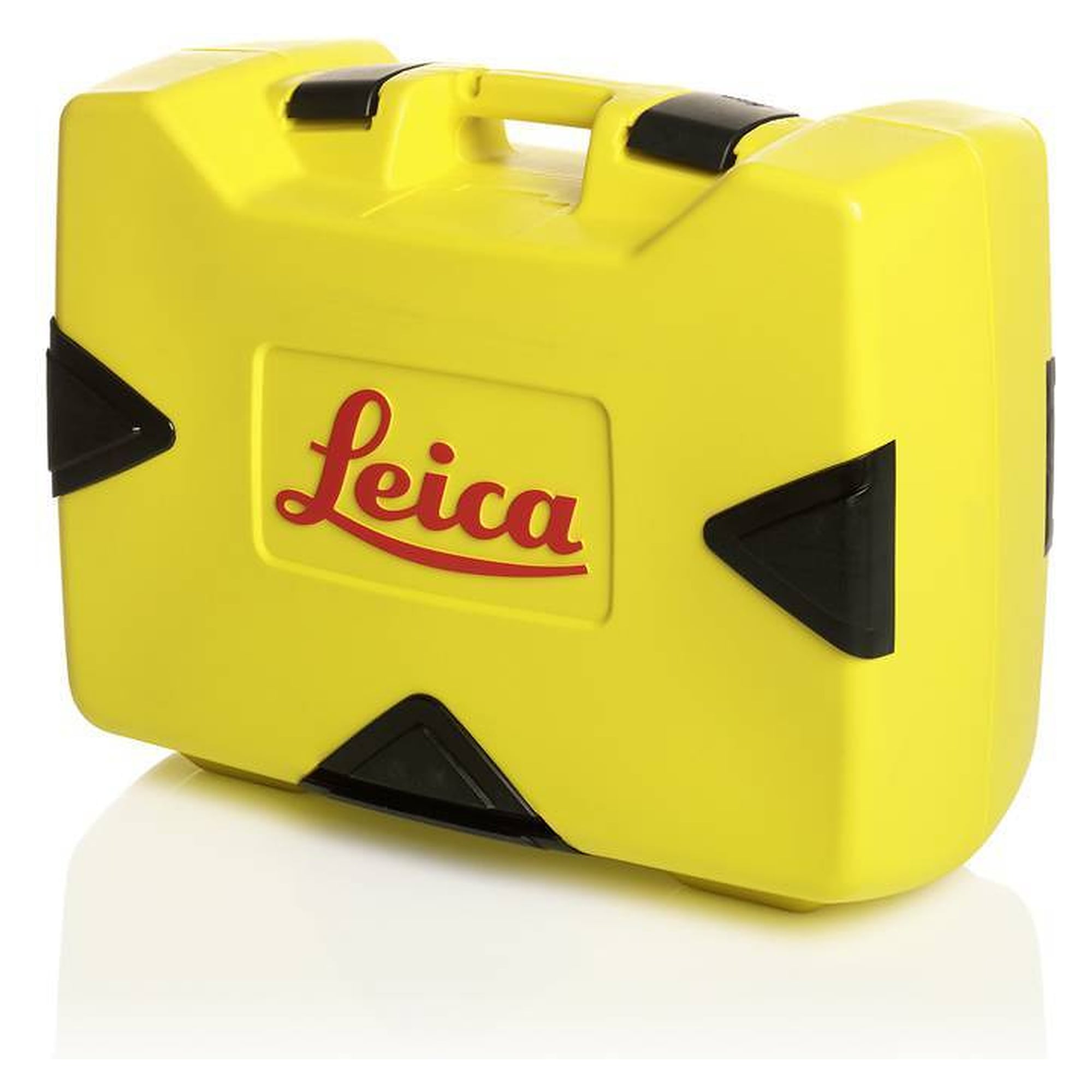

• Carrying case, 1 piece
• User manual, 1 piece

Standards and origin

Laser class 1, protection IP67 with and without battery. Country of origin China, customs code 9015301000, EAN 7640110693414. Manufacturer warranty 3 years under the terms of PROTECT by Leica Geosystems.
