Self-levelling horizontal rotating laser up to 1100 m diameter in case - Leica Rugby 610

Transferring heights, aligning formwork and setting footings has to work without training, including for changing crews. The Leica Rugby 610 self-levels within ±5 degrees, then holds ±2.2 mm at 30 m and is started with a single button.

Key benefits

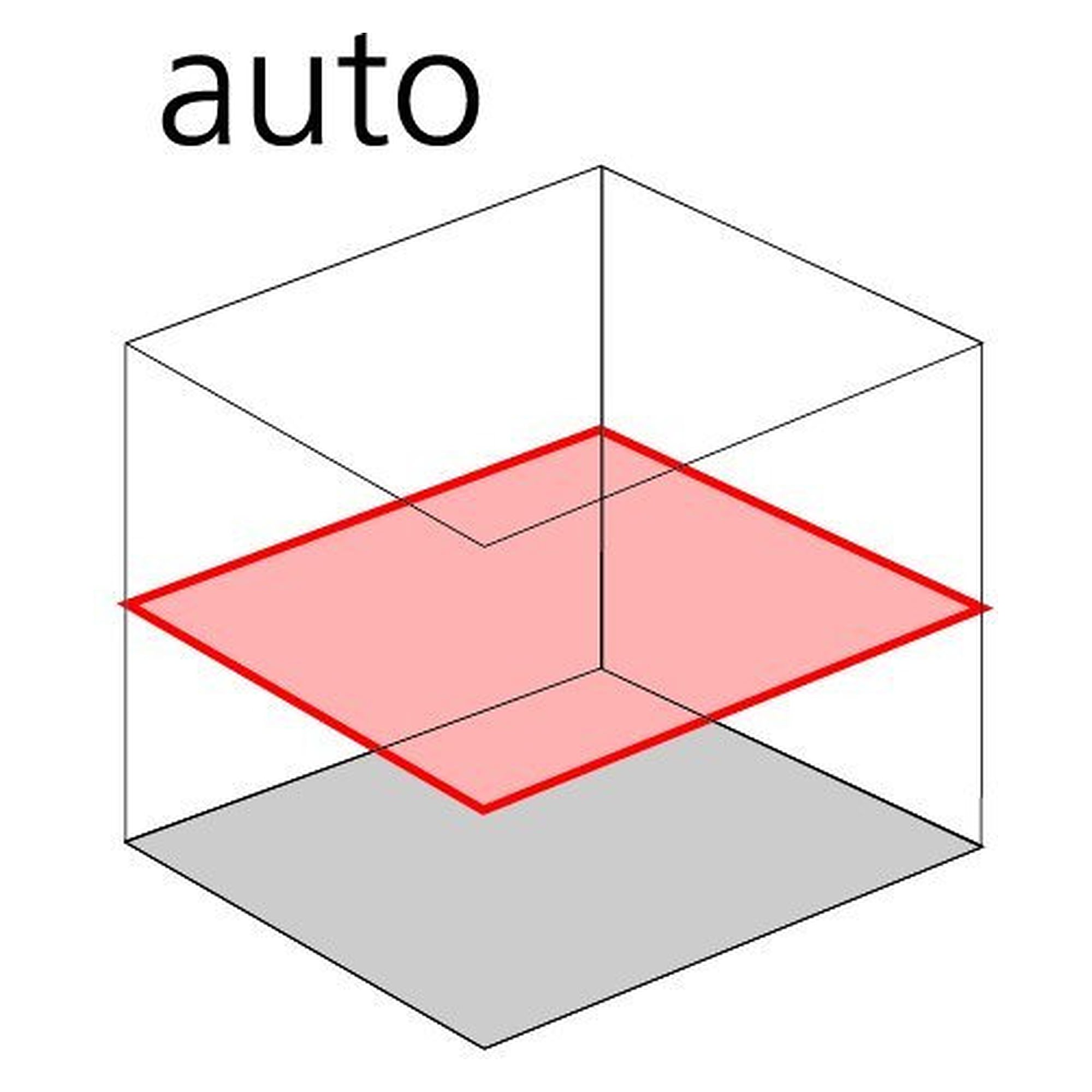

• One button interface without menus, the unit self-levels within ±5 degrees after switching on
• Levelling accuracy of ±2.2 mm at 30 m, defined at 25 °C
• Working diameter of 500 m with the Rod Eye Basic, 800 m with the Rod Eye 120 or 120G and 1100 m with the Rod Eye 140 or 160
• IP67 protection, the housing is dust tight and protected against temporary immersion
• Operating time of 40 h on the Li-Ion battery and 60 h on alkaline cells, so one charge covers several working days
• Laser class 1 at 635 nm, no laser safety officer and no protective eyewear required under IEC TR 60825-14
• 3 years of no cost service under PROTECT by Leica Geosystems

Technical data

Applications

• Setting footings, strip foundations and floor slabs

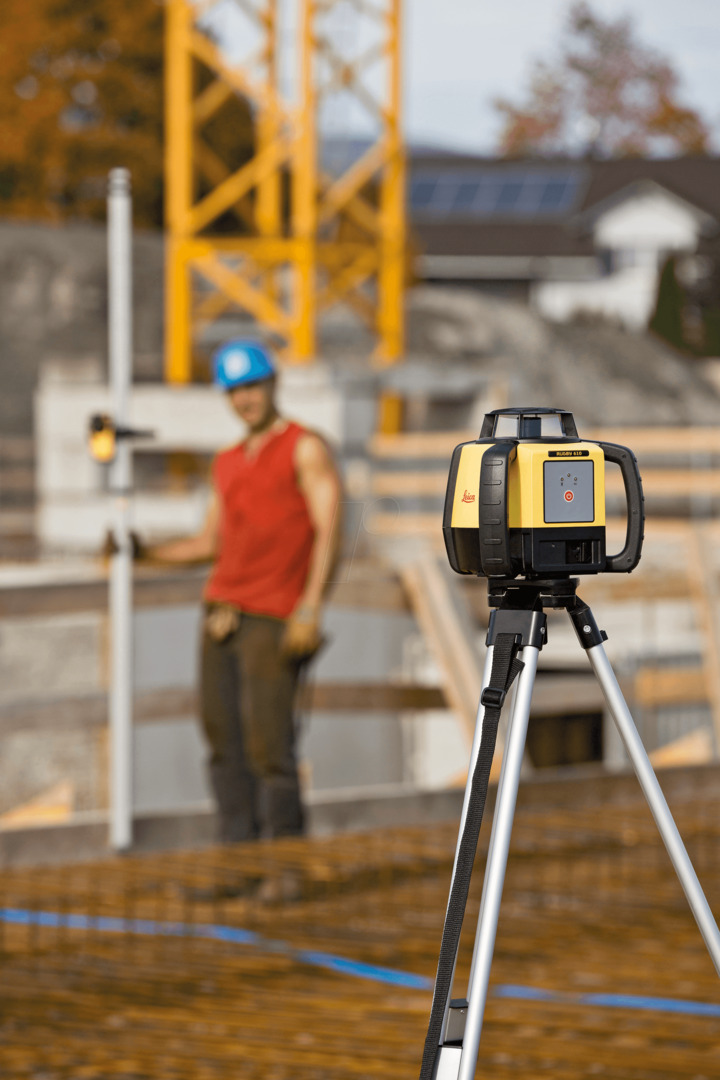

• Formwork and height transfer on the structural shell
• Excavation and ground control in civil engineering
• Interior fit out, stud walls and suspended ceilings
• Checking height marks over longer distances

Compatibility and scope of delivery

The Rugby 610 works with the complete Leica Rod Eye receiver range. The receiver defines the usable range, a Rod Eye 140 or Rod Eye 160 raises the working diameter to 1100 m.

• Leica Rugby 610 rotating laser

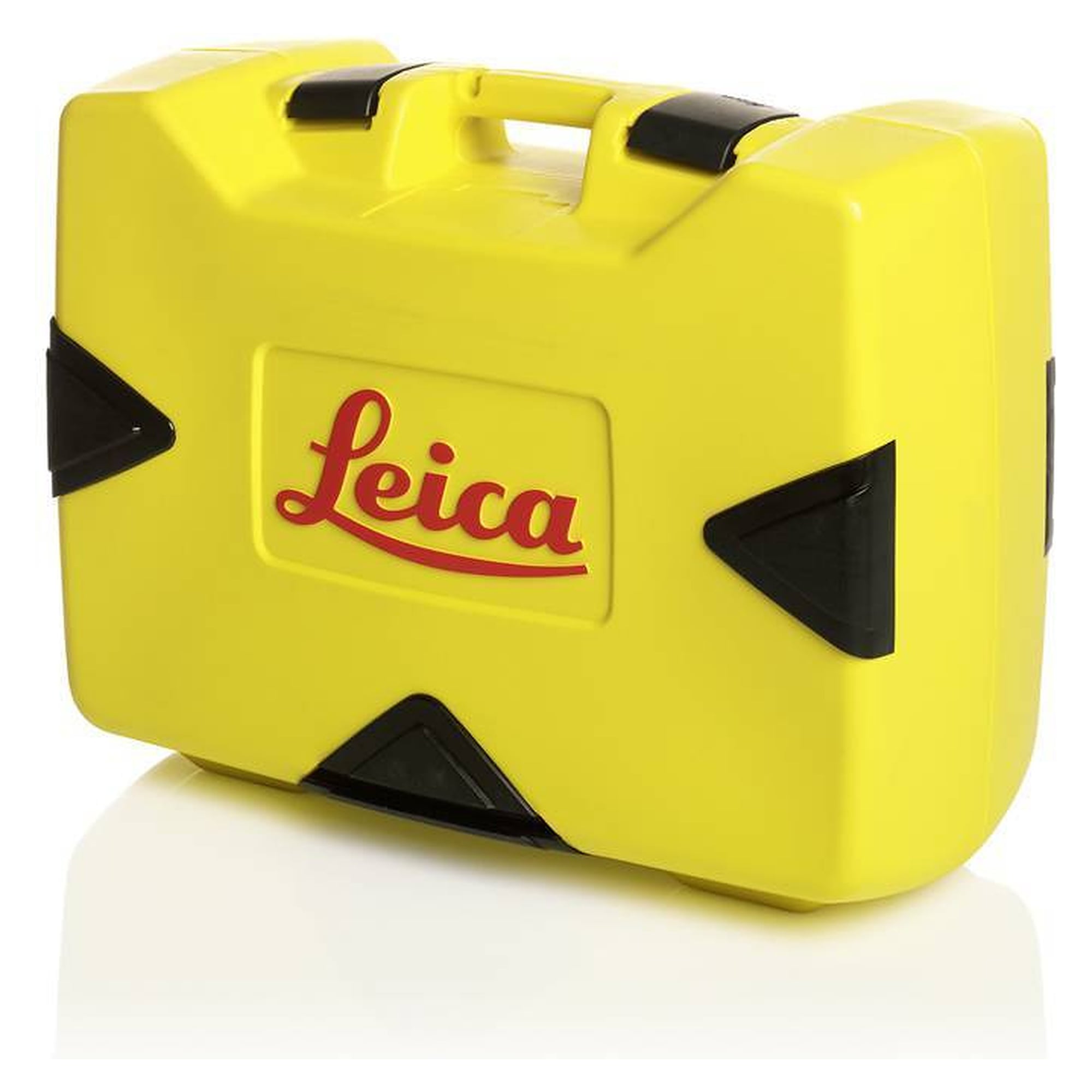

• Carrying case
• User manual
• Receiver, tripod, staff and further accessories are not included

Standards and origin

Laser class 1 to IEC 60825-1 (2014-05). IP67 protection to IEC 60529. Country of origin China. Customs code 9015301000. EAN 7640110694589. Shipping weight 7.40 kg in a 54 x 26.5 x 43 cm carton.
