Festo DFM-100-160-P-A-KF (170972) Guided Drive
€116,487.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-170972
Manufacturer Nr.
DFM-100-160-P-A-KF
Guided Drive
Frequently Bought Together
-
This Item:
€116,487.00Excl. 19% VAT , excl. Shipping Cost
-

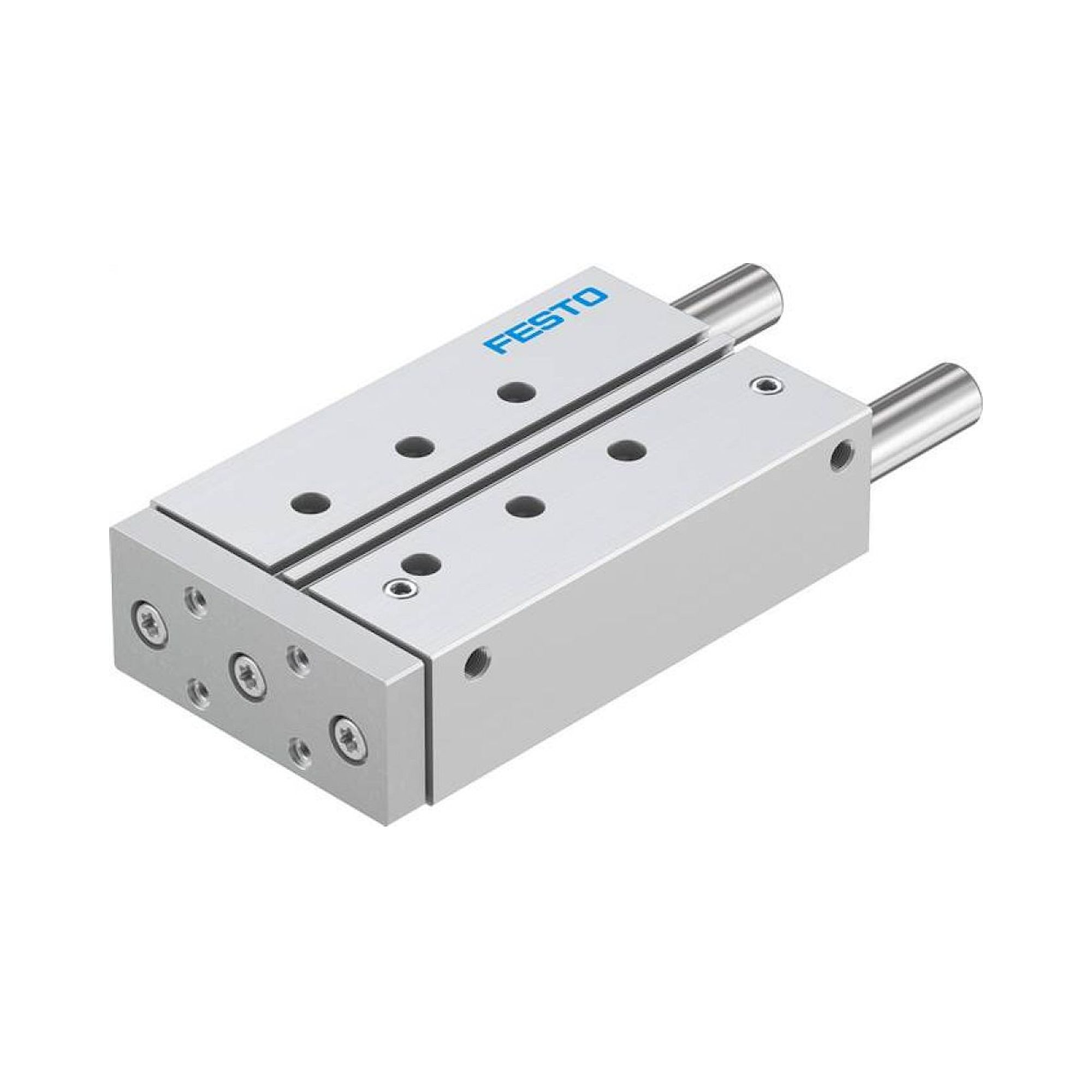

Festo DFM-32-125-P-A-GF (170861) Guided Drive
€36,729.00Excl. 19% VAT , excl. Shipping Cost
-
Festo DPZ-10-10-P-A-KF (162001) Twin-Piston Cylinder
€45,553.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Centre of mass distance of payload to Joch plate [mm] | 125 |
| Stroke [mm] | 160 |
| Piston diameter | 100 mm |
| Operating mode actuator unit | Joch |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Guide |
| Position detection | For proximity switch |
| Operating pressure [bar] | 0.5 to 10 |
| Max. speed [m/s] | 0,4 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| ambient temperature [°C] | -5 to 60 |
| Impact energy at the end positions [J] | 1,000 |
| Max. permitted moment load Mx depending on stroke [Nm] | 34,200 |
| Max. usable load depending on the stroke at a defined distance xs [N] | 442,00 |
| Theoretical force at 6 bar, Return flow [N] | 4.418 |
| Theoretical force at 6 bar, flow [N] | 4.712 |
| Moving mass [g] | 8.308,0 |
| Product weight [g] | 17.545,0 |
| Alternative connections | See product drawing |
| Pneumatic connection | G3/8 |
| Material information | Copper and PTFE-free RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | NBR |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Max. force Fy [N] | 3.043 |
| Max. force Fy static [N] | 5.400 |
| Max. force Fz [N] | 3.043 |
| Max. force Fz static [N] | 5.400 |
| Max. torque Mx [Nm] | 286,02 |
| Max. torque Mx static [Nm] | 507,60 |
| Max. torque My [Nm] | 155,16 |
| Max. torque My static [Nm] | 275,40 |
| Max. torque Mz [Nm] | 155,16 |
| Max. torque Mz static [Nm] | 275,40 |
| Centre of mass of the moved mass depending on stroke [mm] | 99,5 |
| Manufacturer Nr. | DFM-100-160-P-A-KF |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568140526 |
| Weight | 18.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
