How are system luminaires mounted?

As a pendant above the workplace, in the T-slot of a profile, on the wall, recessed flush or surface mounted. Profile mounting ties the luminaire firmly into the existing workstation system.

What does DALI dimmable mean?

DALI is a digital interface through which a central control addresses and dims every luminaire individually. Beyond that there are conventionally dimmable luminaires and versions that can be switched with an HF switch.

What is tunable white good for?

With tunable white you set the light colour steplessly, warm in the early morning and cool for inspection tasks. The function appears both in the light colour attribute and in the control attribute.

Which colour rendering do I need?

Ra 80 is enough for general assembly. For colour and surface checks, choose luminaires with Ra 90 or Ra 95.

Are there system luminaires for the EPA?

Yes, in the ESD attribute luminaires are marked TEC. For a supply from the workstation system there are also versions running on 24 V.

Workplace lighting

System luminaires

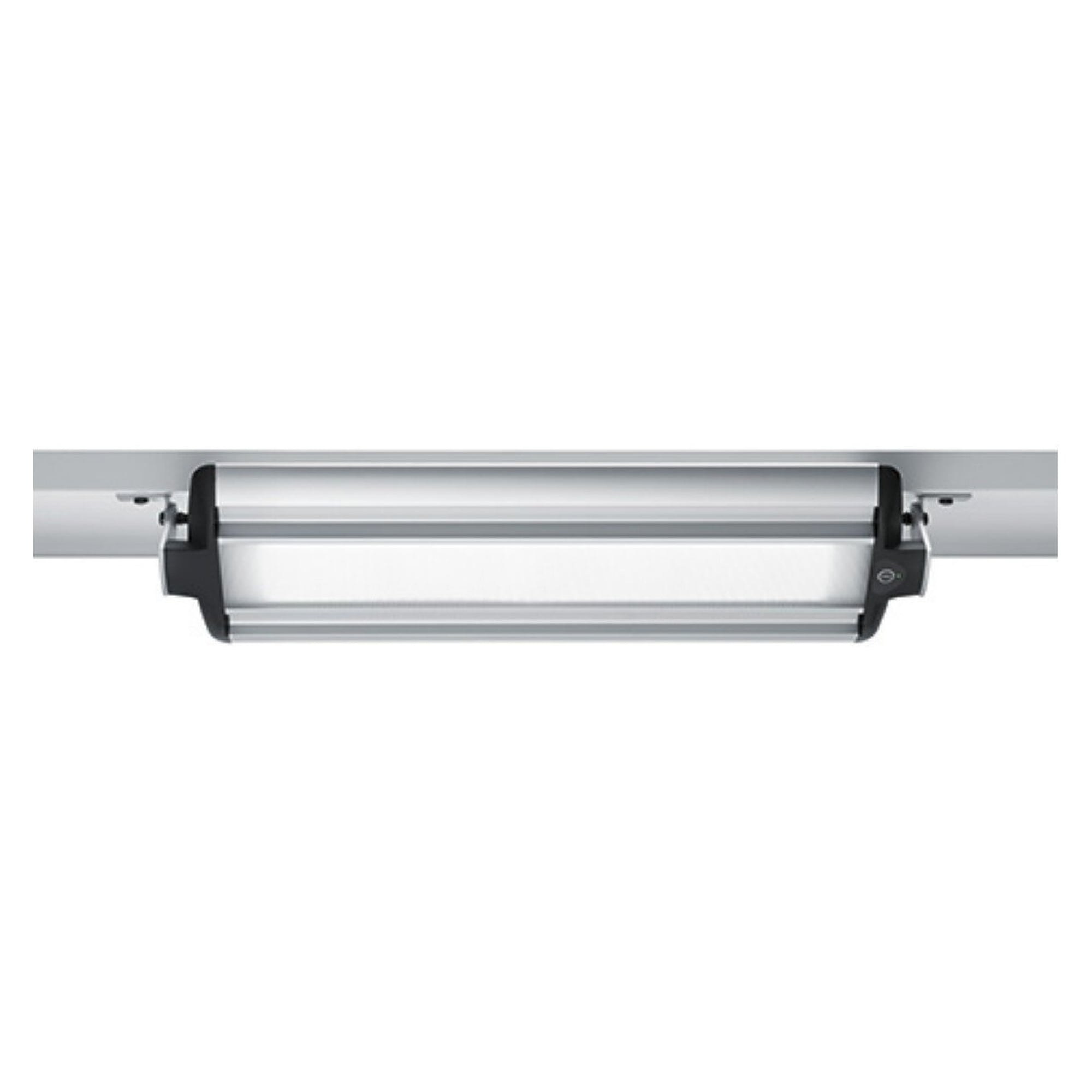

System luminaires become part of the furniture: they sit in the T-slot of a profile, hang above the work table or light up a shelf. The range covers short profile luminaires as well as long pendant versions, among others from Glamox, LED2WORK, Spelsberg and Waldmann. Luminous flux runs from 1500 lm to 10000 lm at 13 W to 41 W, and light colour from 3000 K to 5700 K plus tunable white. Control goes through DALI, conventional dimming or an HF switch, and luminaires for the EPA carry the TEC marking.

Straight to the right system luminaire

The most common requirements as ready-made filters inside this category.

T-slot and profileStraight into the profile of the bench system. PendantAbove assembly lines, work tables and packing stations.suspended DALI dimmableAddressed individually from the lighting control.digital interface Tunable whiteLight colour changed across the working day.adjustable light colour 4000 KNeutral light for assembly and order picking.neutral white Ra 90For colour checks and fine visual inspection. IP40Protected against foreign bodies in dry rooms. TECMarked for use inside an EPA.

611 items
6 manufacturers
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose System luminaires

What matters when choosing: properties, comparison and typical applications.

Selection criteria

Criterion	In this category	Note
Mounting	Pendant, T-slot / profile, wall mounted, recessed, surface mounted	Profile mounting ties the luminaire firmly into the existing system.
Luminous flux	1500 lm to 10000 lm	The demand grows with table width and distance to the work surface.
Light colour	4000 K, 3000 K, 5700 K, 5000 K, tunable white	Tunable white allows warm light in the morning and cool light for inspection.
Colour rendering	Ra 80, Ra 90, Ra 85, Ra 95, Ra 70	Ra 90 and above for colour and surface checks.
Control	DALI dimmable, switchable (HF), tunable white, dimmable	DALI links every luminaire individually to a central lighting control.
Protection rating	IP20, IP40, IP67, IP50, IP54	IP20 and IP40 for dry interiors, IP67 for damp areas.
Beam angle	30° to 100°	Wide angles for broad tables, narrow ones for precisely lit zones.
Power	13 W to 41 W	Wattage follows the luminaire length, brightness is set by the luminous flux.
Supply voltage	120-277 V, 220-240 V, 24 V, 100-240 V, 230 V, 18-30 V, 20-28 V	24 V suits a supply taken from the workstation system.
Series	C80-PR1122, C80-PR1402, C80-PR1682, C80-PR2242, C80-PR842, APL Universal, TAMETO	Within one series, body, accessories and connection stay the same.
ESD	TEC	Marking for workplaces inside an EPA.
