Festo DFM-12-80-P-A-KF (170905) Guided Drive

Name: Festo DFM-12-80-P-A-KF (170905) Guided Drive
Brand: Festo
SKU: FES-170905
Price: 26829 EUR
Availability: InStock

€26,829.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-170905

Manufacturer Nr.

DFM-12-80-P-A-KF

Guided Drive

The product may differ from the illustration

Frequently Bought Together

This Item: Festo DFM-12-80-P-A-KF (170905) Guided Drive
€26,829.00
Excl. 19% VAT , excl. Shipping Cost

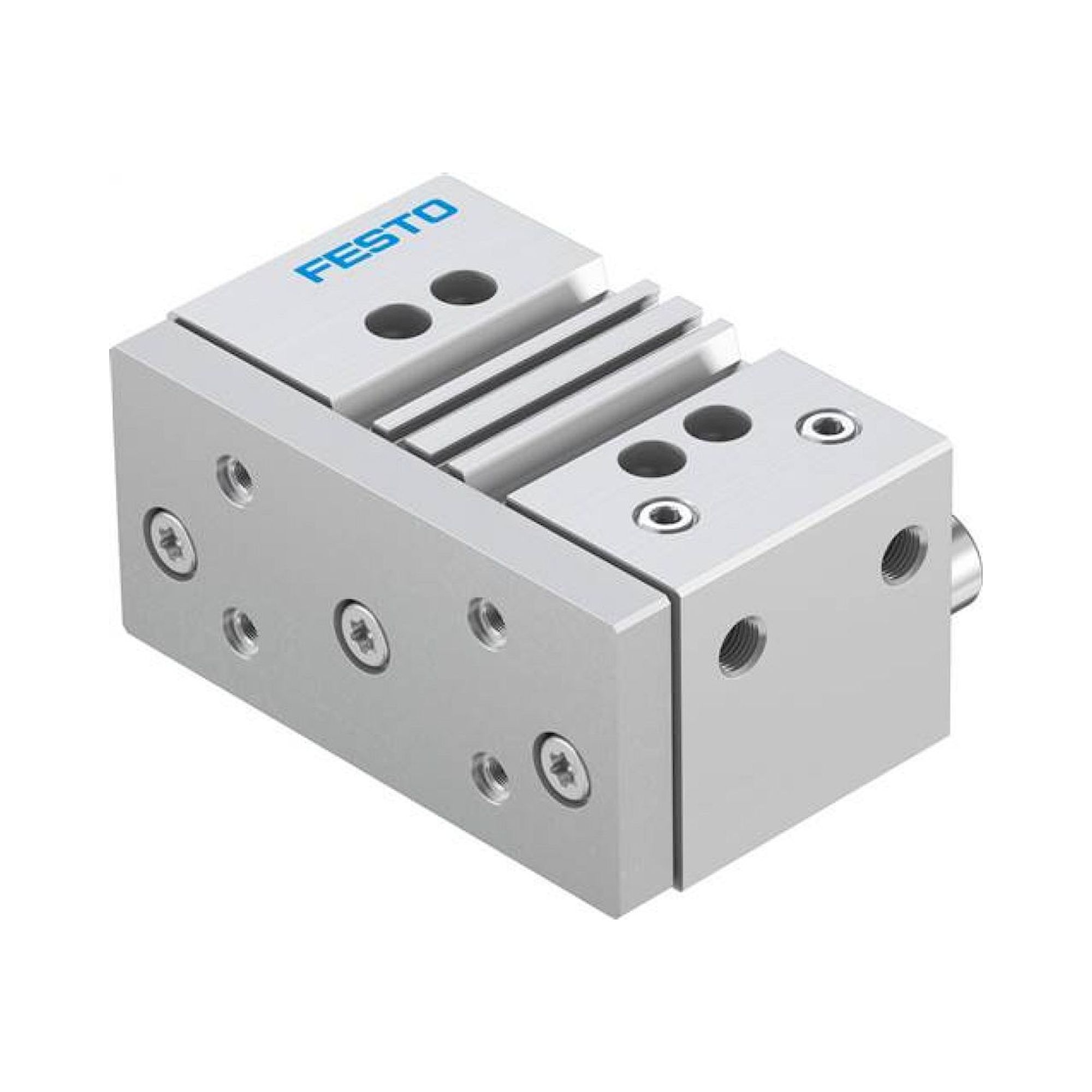

Festo DFM-63-25-P-A-GF (170878) Guided Drive
€37,535.00
Excl. 19% VAT , excl. Shipping Cost
Festo DFM-20-25-P-A-GF (170841) Guided Drive
€22,091.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Centre of mass distance of payload to Joch plate [mm]	25
Stroke [mm]	80
Piston diameter	12 mm
Operating mode actuator unit	Joch
Dampening	P: Elastic silencer rings / plates double-sided
installation position	arbitrary
Guide	ball guide
Construction set up	Guide
Position detection	For proximity switch
Operating pressure [bar]	2 to 10
Max. speed [m/s]	0,8
Principle of operation	double acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	0 - No corrosion stressing
ambient temperature [°C]	-5 to 60
Impact energy at the end positions [J]	0,070
Max. permitted moment load Mx depending on stroke [Nm]	0,560
Max. usable load depending on the stroke at a defined distance xs [N]	23,00
Theoretical force at 6 bar, Return flow [N]	51
Theoretical force at 6 bar, flow [N]	68
Moving mass [g]	237,0
Product weight [g]	655,0
Alternative connections	See product drawing
Pneumatic connection	M5
Material information	Copper and PTFE-free RoHs compliant
Cover material	Aluminium wrought alloy
Seals material	NBR
Housing material	Aluminium wrought alloy
Piston rod material	High-alloyed stainless steels
Max. force Fy [N]	292
Max. force Fy static [N]	804
Max. force Fz [N]	292
Max. force Fz static [N]	804
Max. torque Mx [Nm]	5,99
Max. torque Mx static [Nm]	16,48
Max. torque My [Nm]	3,07
Max. torque My static [Nm]	8,44
Max. torque Mz [Nm]	3,07
Max. torque Mz static [Nm]	8,44
Centre of mass of the moved mass depending on stroke [mm]	40,6

More Information
Manufacturer Nr.	DFM-12-80-P-A-KF
Manufacturer	Festo
EAN	4052568139995
Weight	0.650000
HS-Code	84123100
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
