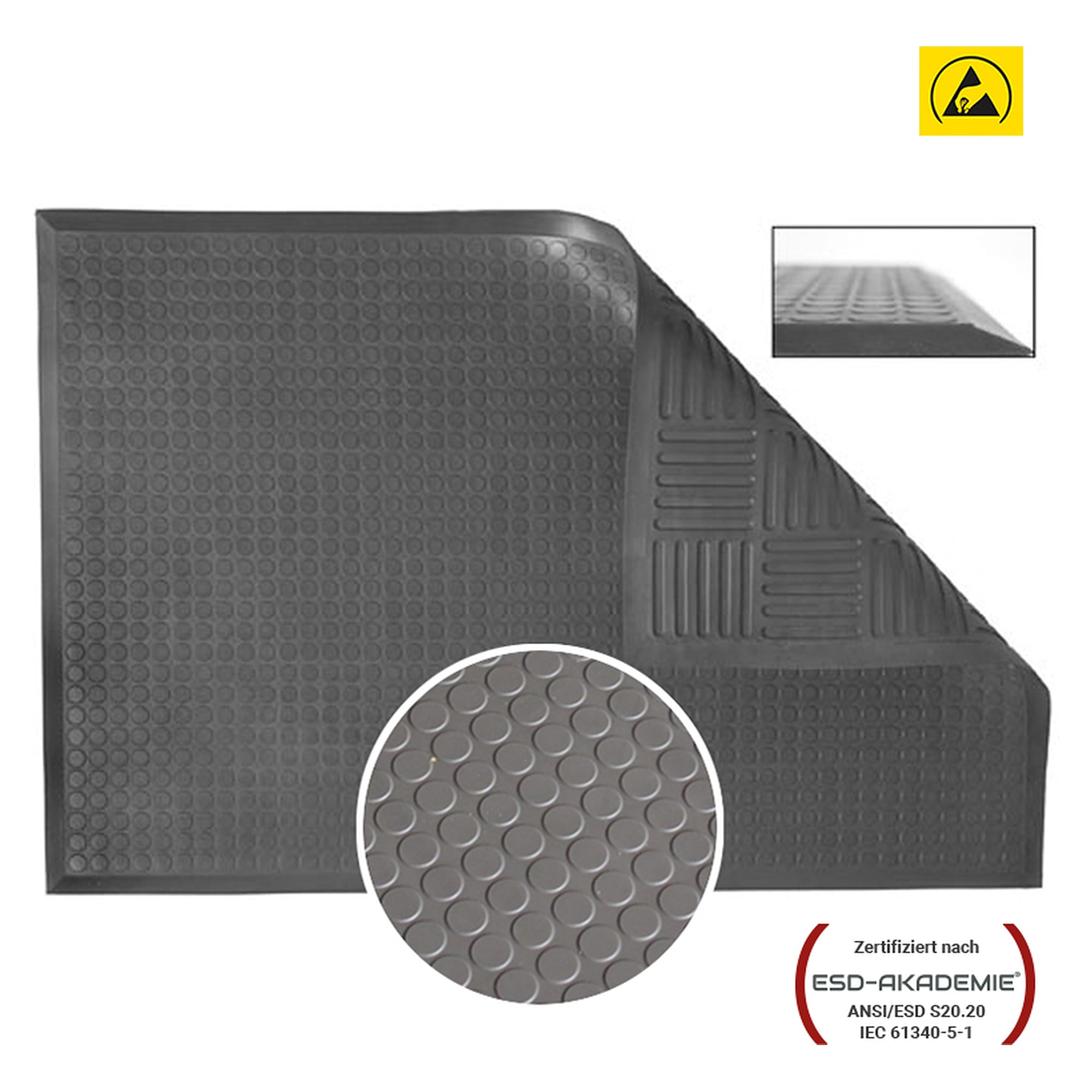

ESD Workstation Mat EFS Smooth, Flat Stud, 900 x 600 mm - A1-ESD EP0503004

The EFS Smooth is an ergonomic ESD workstation mat made of foamed polyurethane (PUR) for dry areas. Its open-pore, matt surface and flat-stud profile relieve standing fatigue and safely dissipate electrostatic charges.

Your benefits

• Point-to-ground resistance of 2 x 10⁷ ohm, within the dissipative range
• Flat-stud profile, 11 mm thick, for low-fatigue standing
• Open-pore matt surface, silicone and latex free
• Fire-retardant to Cfl-s1 (B)
• Suitable for cleanroom ISO class 5 (class 100)

Technical data

• Dimensions 900 x 600 mm with a 2 cm bevel all round
• Material PUR (foamed polyurethane)
• Stud shape flat studs
• Thickness 11 mm
• Surface open-pore, matt, dry cleaning only
• Dissipation resistance 2 x 10⁷ ohm
• Fire behaviour Cfl-s1 (B), fire-retardant
• Colour anthracite
• Temperature range 0 to 25 deg C, briefly up to 40 deg C
• Weight approx. 2.6 kg

Applications

For dry standing workstations in electronics manufacturing, test areas and cleanrooms where ergonomic relief and ESD safety are required.

Standards and compliance

Supports an EPA per IEC 61340-5-1. Silicone and latex free, fire-retardant Cfl-s1 (B). 5 year warranty.
