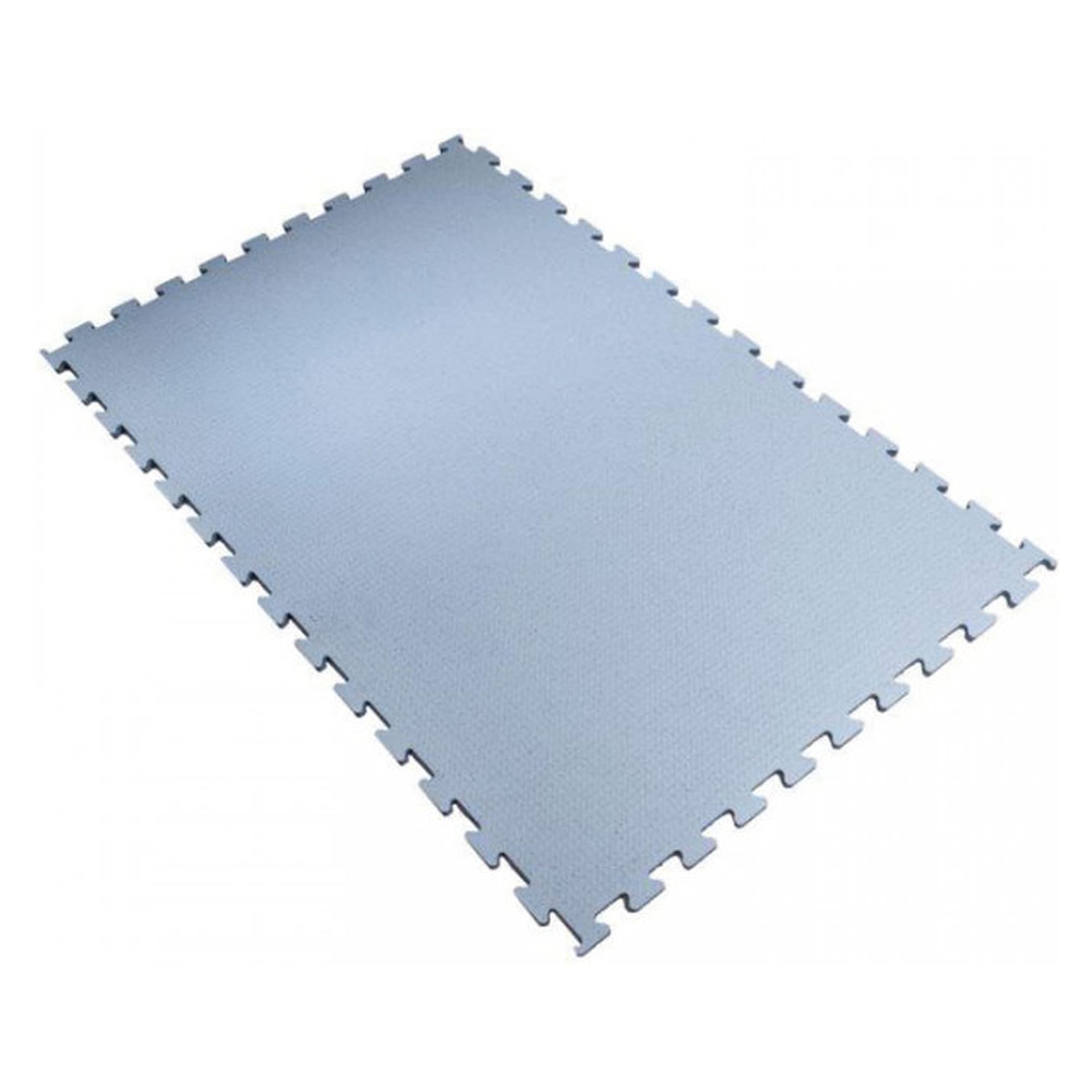

Ergolastec Vario Plus ESD Floor Mat DRY (A), 1350 x 1000 mm, NBR, with DK10
Ergonomic, electrically conductive ESD floor mat made of NBR rubber for dry work environments, with DK10 grounding connector. Format 1350 x 1000 mm, 16 mm thick, surface resistance 10⁷ Ω. Cushioning dome structure, AGR seal of quality.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

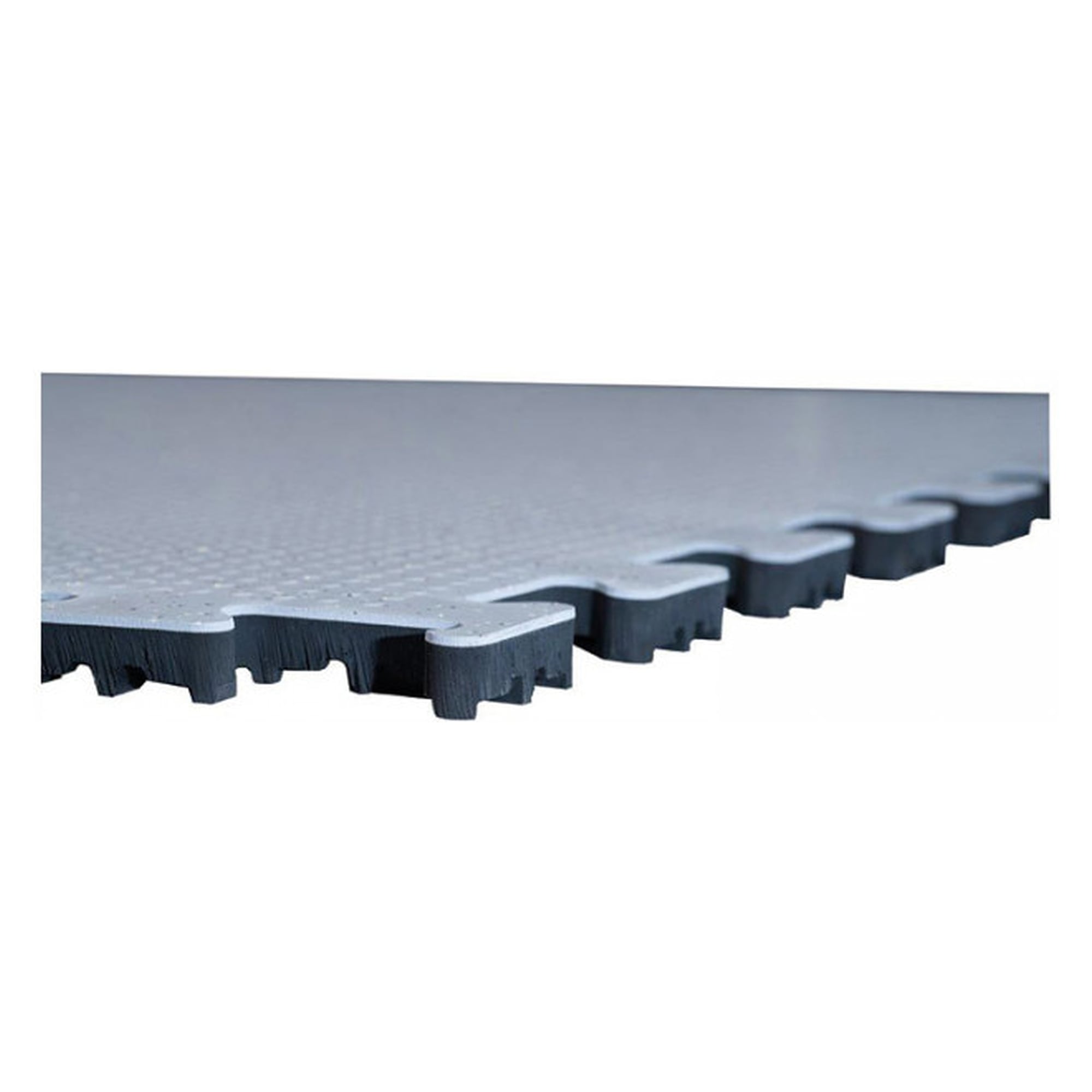

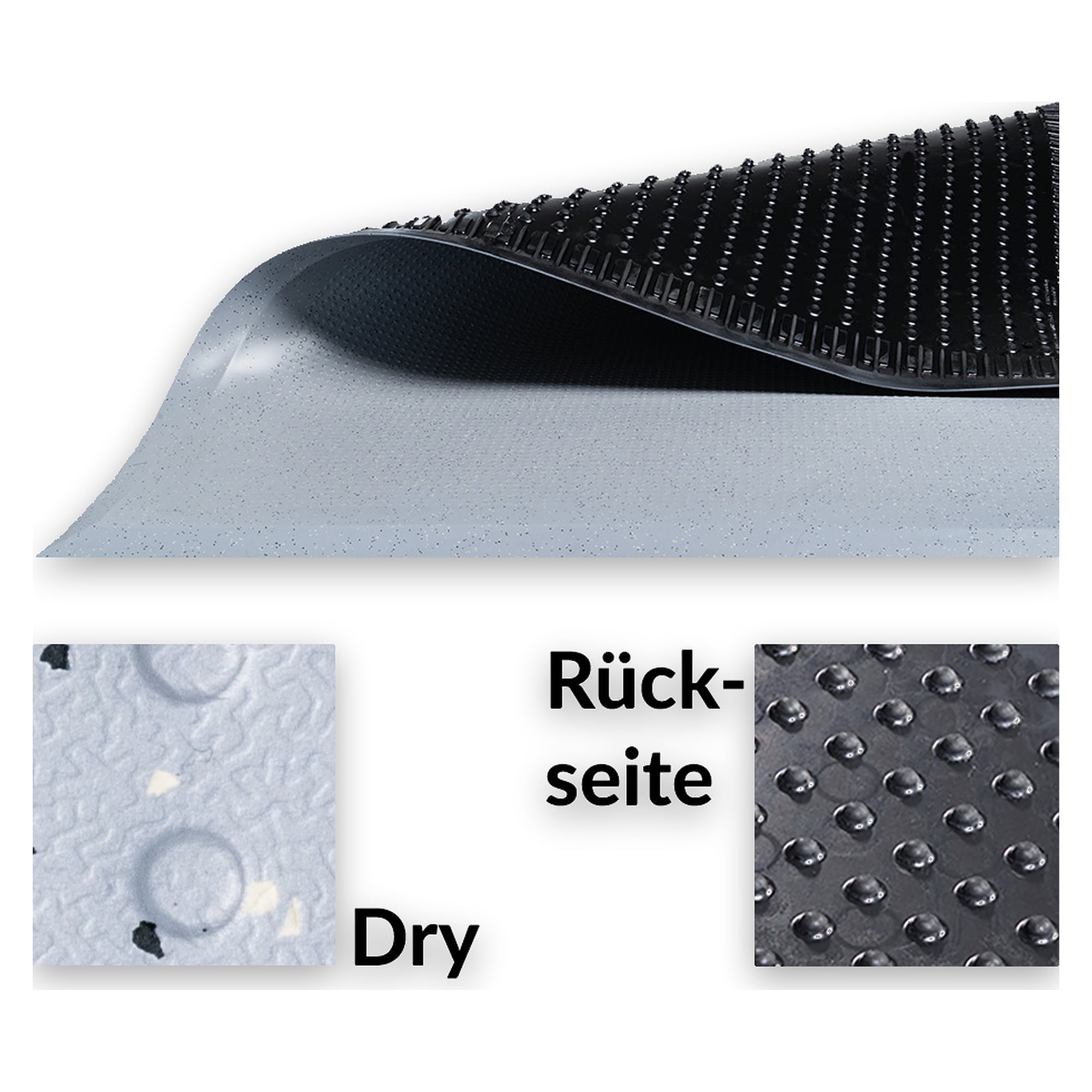

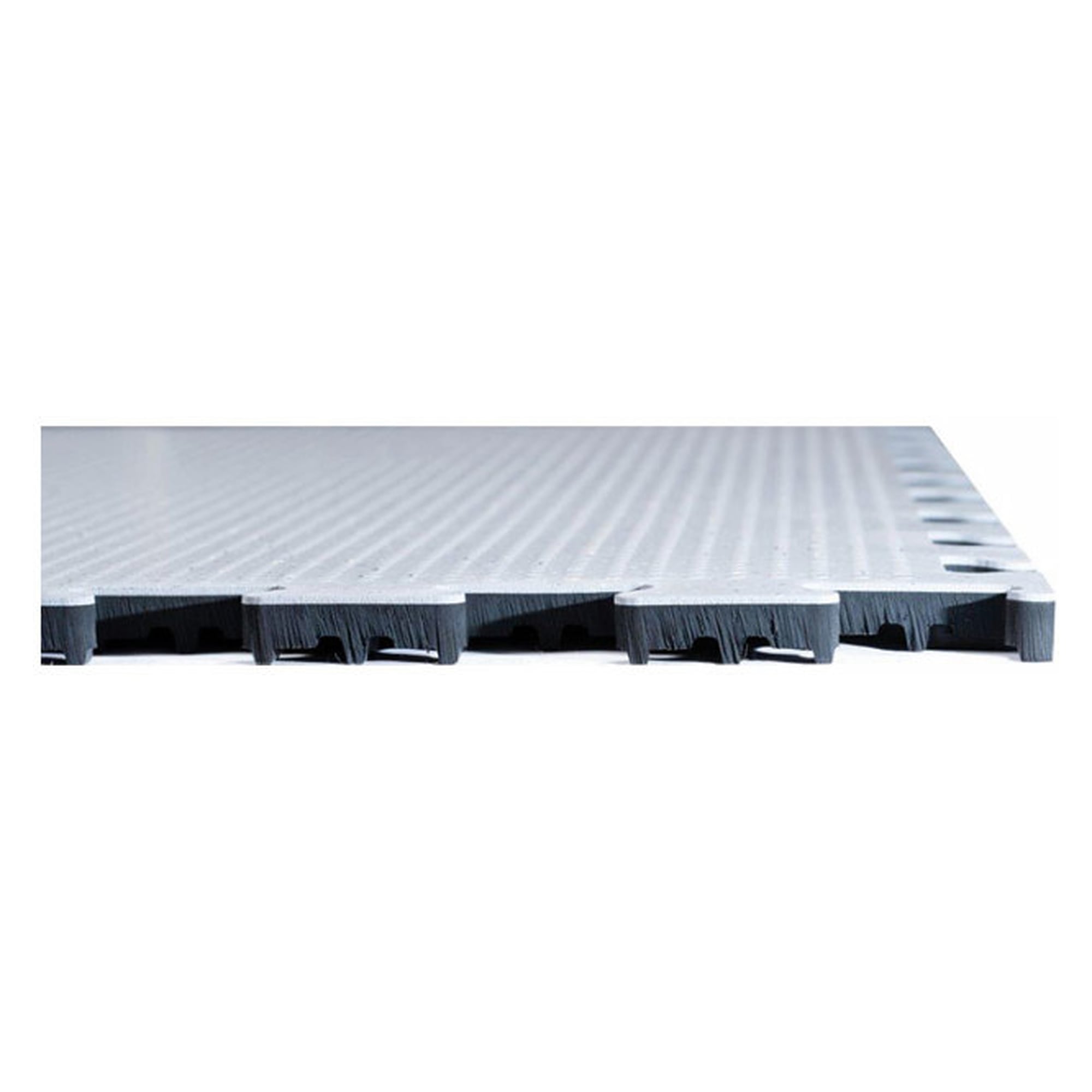

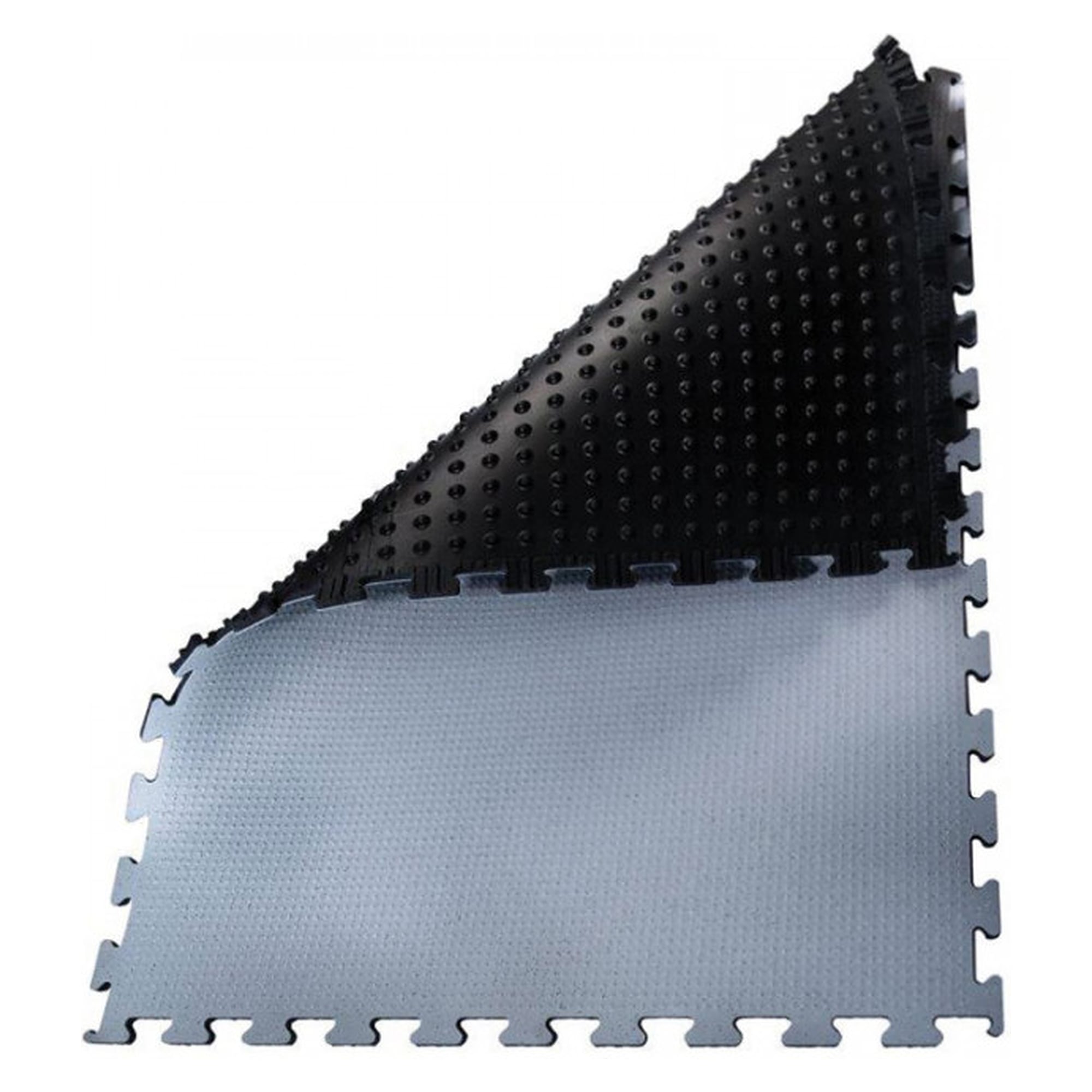

The Ergolastec Vario Plus is an ergonomic, electrically conductive ESD floor mat for workplaces with walking, standing and turning movements. The cushioning domes on the underside activate blood circulation and provide appropriate pressure relief. This DRY type is intended for dry work environments and comes prepared with the DK10 grounding connector.
Benefits
- Dome structure on the underside relieves the back and joints and prevents standing fatigue
- Pre-fitted DK10 grounding connector for direct grounding
- Awarded the AGR seal of quality for promoting back health
- Electrically conductive per EN 61340-4-1, oil, grease and fuel resistant, flame retardant and antibacterial
Application
Standing and walking workstations in ESD protected electronics and microelectronics manufacturing.
Standards and compliance
Electrically conductive per EN 61340-4-1, suitable for integration into an EPA per IEC 61340-5-1.
Technical data
| Material | NBR rubber |
|---|---|
| Size | 1350 x 1000 mm |
| Thickness | 16 mm |
| Type | DRY, for dry work environments |
| Grounding | DK10 grounding connector |
| Surface resistance | 10⁷ Ω |
| Properties | anti-fatigue, oil, grease and fuel resistant, flame retardant, antibacterial |
| Weight | 20 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0503042 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| Height | 16 |
| Width | 1350 |
| Depth | 1000 |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-4-1, IEC 61340-5-1 |
