Festo ADVC-80-10-I-P-A (188308) Short-Stroke Cylinder

Name: Festo ADVC-80-10-I-P-A (188308) Short-Stroke Cylinder
Brand: Festo
SKU: FES-188308
Price: 18292 EUR
Availability: InStock

€18,292.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-188308

Manufacturer Nr.

ADVC-80-10-I-P-A

Short-Stroke Cylinder

The product may differ from the illustration

Frequently Bought Together

This Item: Festo ADVC-80-10-I-P-A (188308) Short-Stroke Cylinder
€18,292.00
Excl. 19% VAT , excl. Shipping Cost
Festo ADVC-63-10-I-P (188288) Short-Stroke Cylinder
€12,407.00
Excl. 19% VAT , excl. Shipping Cost

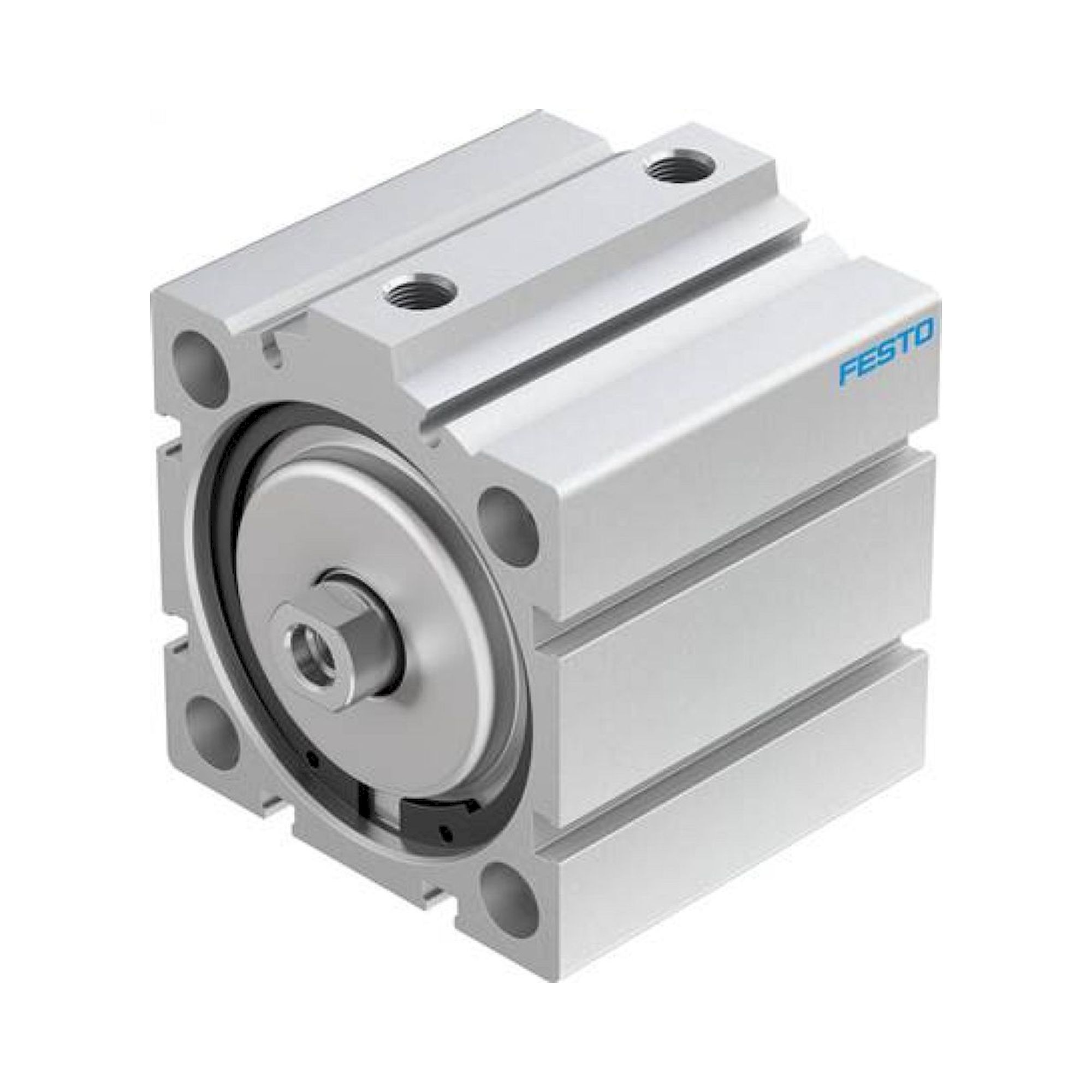

Festo ADVC-63-25-I-P-A (188287) Short-Stroke Cylinder
€14,503.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Stroke [mm]	10,0
Piston diameter	80 mm
Dampening	P: Elastic silencer rings / plates double-sided
installation position	arbitrary
Principle of operation	double acting
Construction set up	Piston piston rod
Position detection	For proximity switch
Operating pressure [bar]	1 to 10
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
ambient temperature [°C]	-20 to 80
Theoretical force at 6 bar, flow [N]	3.016,0
Moving mass [g]	277,00
Product weight [g]	1.855,0
Fastening type	With throughway bores With Accessories Selectively:
Pneumatic connection	G1/8
Material information	Copper and PTFE-free
Cover material	Aluminium wrought alloy anodized
Seals material	TPE-U(PU)
Housing material	Aluminium wrought alloy anodized
Piston rod material	High-alloyed steel
Theoretical force at 6 bar, Return flow [N]	2.827,0
Based on standard	ISO 6431 VDMA 24562 hole pattern

More Information
Manufacturer Nr.	ADVC-80-10-I-P-A
Manufacturer	Festo
EAN	4052568149123
Weight	1.100000
HS-Code	84123100
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
