Festo SDE3-D10D-B-FQ4-2P-M8 (540210) Pressure Sensor
€19,697.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-540210
Manufacturer Nr.
SDE3-D10D-B-FQ4-2P-M8
Pressure Sensor
Frequently Bought Together
-
This Item:
€19,697.00Excl. 19% VAT , excl. Shipping Cost
-

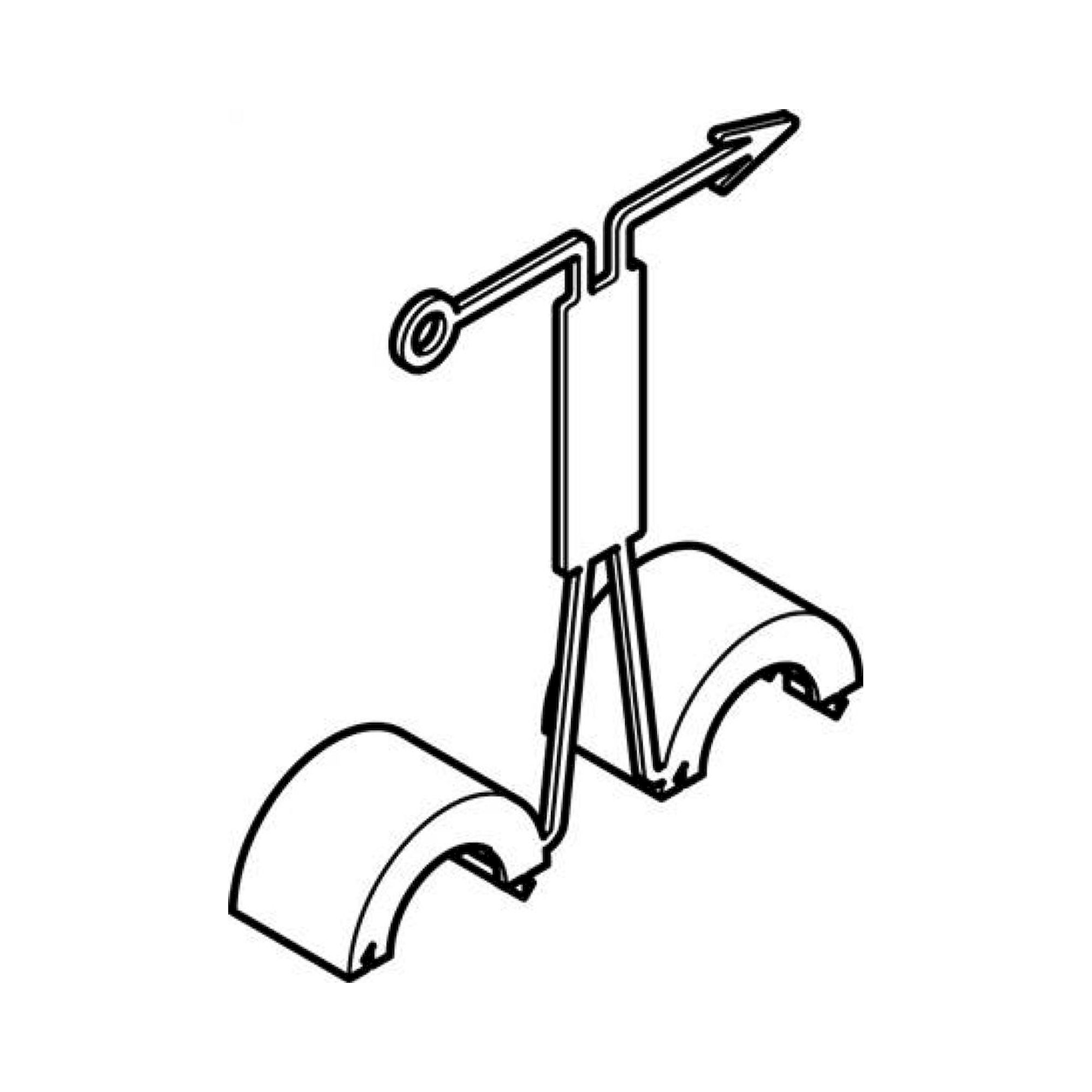

Festo NEAU-M12-GD (548068) Safety Clip
€312.00Excl. 19% VAT , excl. Shipping Cost
-
Festo SPAW-P16R-G14F-2N-M12 (8022763) Pressure Sensor
€2,403.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Permission | RCM mark |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Material information | Copper and PTFE-free RoHs compliant |
| Measured parameter | 2 x Relative pressure |
| Measurement process | Piezoresistive pressure sensor with display |
| Pressure measurement range starting value [bar] | 0 |
| Pressure measurement range end value [bar] | 10 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible |
| Medium temperature [°C] | 0 to 50 |
| ambient temperature [°C] | 0 to 50 |
| Accuracy FS [%FS] | 2 |
| Control output | 2xPNP |
| Switch function | Freely programmable |
| Switching element function | Switchable |
| Reproducibility switching value [%] | 0,3 |
| Max. output current [mA] | 100 |
| Short circuit resistance | Cycling |
| Operating voltage range DC [V] | 15 to 30 |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | M8x1 4 pin Cable with plug acc. to EN 60947-5-2 Round shape |
| Fastening type | Front panel integration |
| installation position | arbitrary |
| Pneumatic connection | QS-4 |
| Product weight [g] | 61 |
| Housing material | PC PA reinforced |
| Display type | Illuminating LCD |
| Switching status indicator | LCD yellow |
| Setting options | Teach-in |
| Tamper-proof fuse | PIN code |
| Settings range threshold value [%] | 0 to 100 |
| Settings range hysteresis [%] | 0 to 90 |
| Protection category | IP65 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Cable length [MTR] | 0,3 |
| Manufacturer Nr. | SDE3-D10D-B-FQ4-2P-M8 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568178710 |
| Weight | 0.190000 |
| HS-Code | 90262020 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
