Pressure and vacuum sensor
Sensors
Festo pressure and vacuum sensors of the PE, PEV and VPEV series monitor operating pressure and vacuum in pneumatic systems, generating a switching signal when a set threshold is exceeded or not reached. Pressure transducers PE/PEV with G1/8 and G1/4 ports function as electromechanical pressure switches, while VPEV acts as a vacuum switch for suction cups and vacuum pumps. Mounting plate systems APL-2N simplify multiple-sensor arrangements on a manifold plate.
Angled connector variants PEV-WD with LED indicator allow visual monitoring of the switching state directly at the mounting point. The series covers single-output (1-N) and dual-output (2-N) versions, NPN/PNP switching, covering both simple switching tasks and differentiating control functions.
| Type | Function | Connection |
|---|---|---|

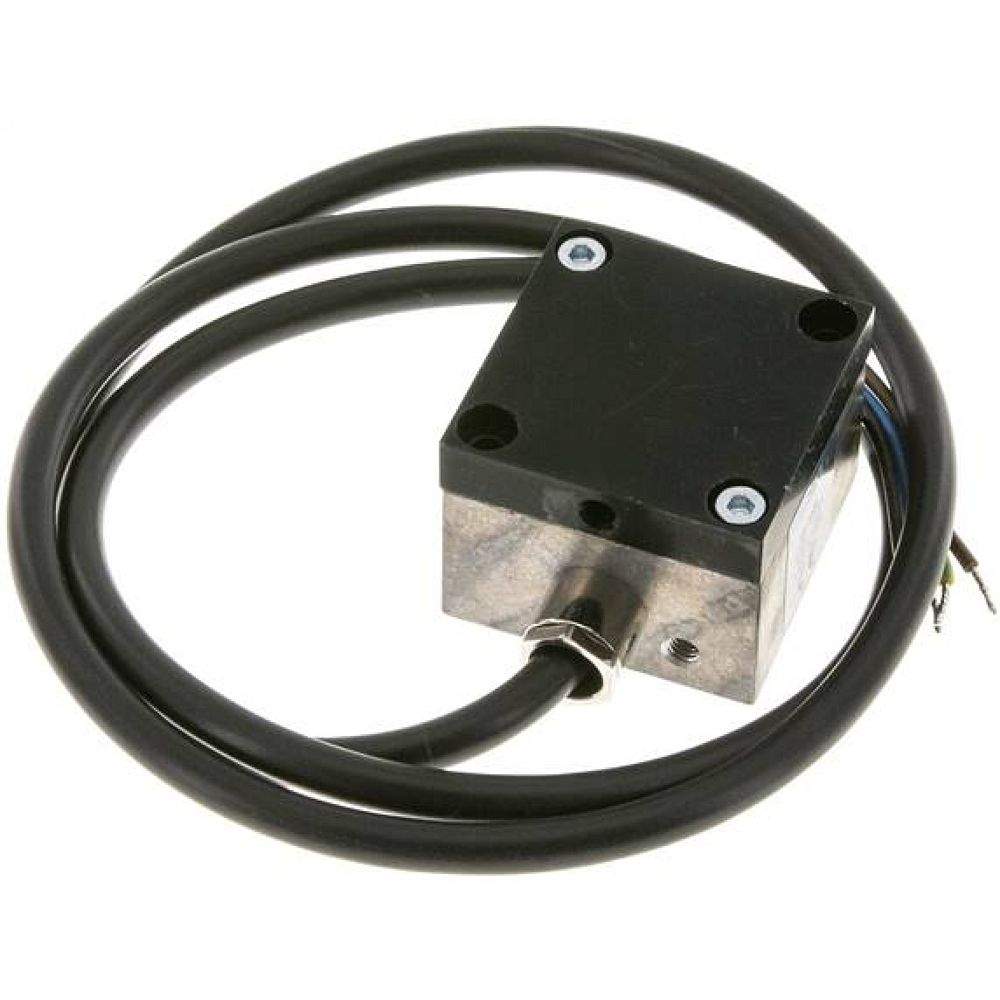

| PE-1/8 | Pressure transducer, basic | G1/8, cable exit |
| PEV-1/4-B | Pressure switch, 1-N | G1/4, cable exit |
| PEV-1/4-B-M12 | Pressure switch, 1-N | G1/4, M12 connector |
| PEV-1/4-WD-LED-24 | Pressure switch with angled connector | G1/4, LED 24 V |
| VPEV-1/8 | Vacuum switch | G1/8, cable exit |
| VPEV-W-KL-LED-GH | Vacuum switch panel mount | Cable exit, LED |
Typical applications: Pressure monitoring in pneumatic supply circuits and manifold blocks, vacuum monitoring at suction cups in handling and pick-and-place systems, pressure drop detection in accumulators and pressure vessels, min/max pressure monitoring in machine tool coolant circuits, and safety shutdown on pressure loss in clamping fixtures.
