Festo SPAU-P10R-T-G18M-LK-V-M12D (8003345) Pressure Sensor

Name: Festo SPAU-P10R-T-G18M-LK-V-M12D (8003345) Pressure Sensor
Brand: Festo
SKU: FES-8003345
Price: 11757 EUR
Availability: InStock

€11,757.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-8003345

Manufacturer Nr.

SPAU-P10R-T-G18M-LK-V-M12D

Pressure Sensor

Skip to the end of the images gallery

Skip to the beginning of the images gallery

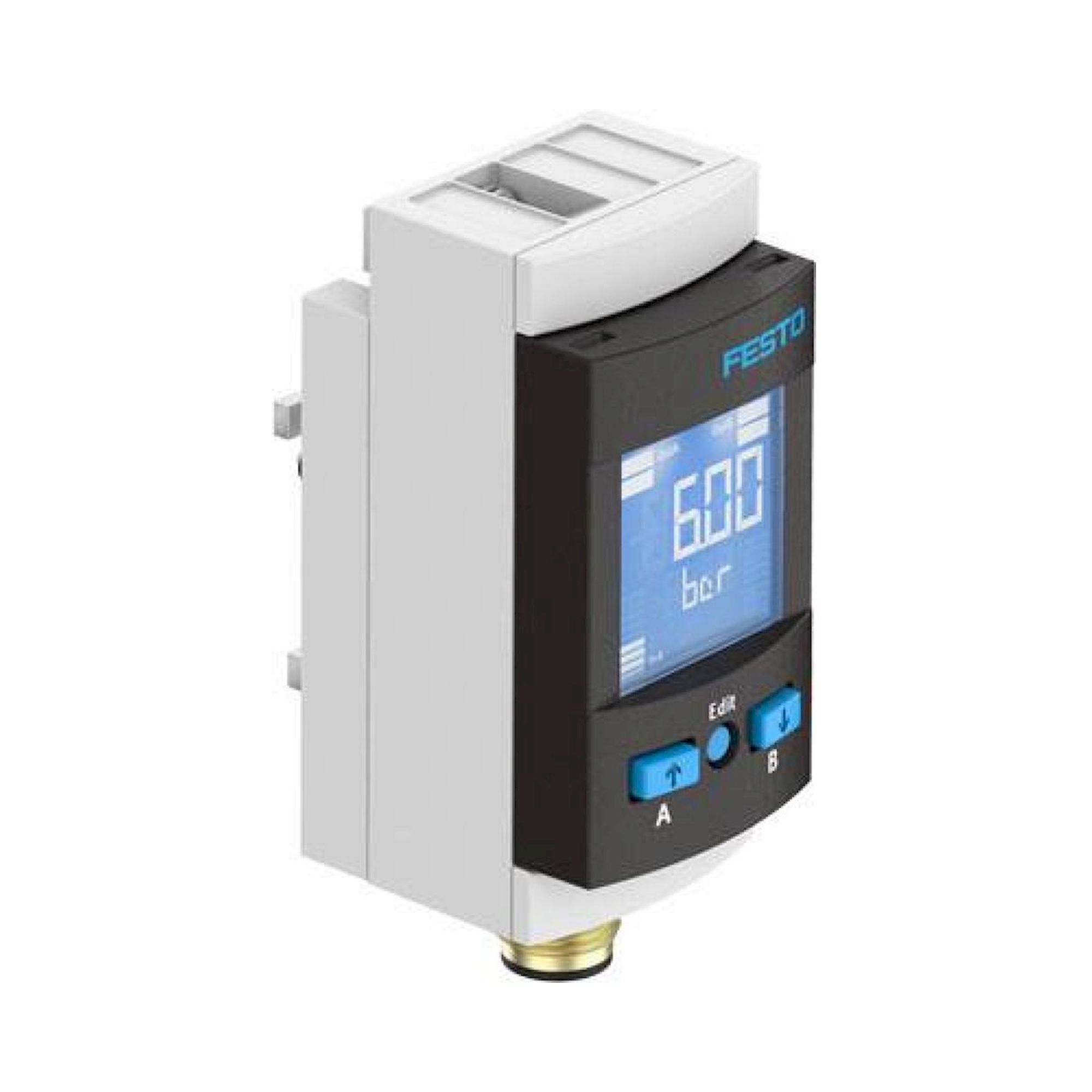

The product may differ from the illustration

Frequently Bought Together

This Item: Festo SPAU-P10R-T-G18M-LK-V-M12D (8003345) Pressure Sensor
€11,757.00
Excl. 19% VAT , excl. Shipping Cost
Festo SPAW-B2R-G14F-2PA-M12 (8022776) Pressure Sensor
€29,934.00
Excl. 19% VAT , excl. Shipping Cost
Festo SPTE-V1R-S6-V-2.5K (571475) Pressure Transmitter
€3,895.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Permission	RCM mark c UL us - Listed (OL)
CE certificate (see declaration of conformity)	acc. to EU-EMV Directive acc. to EU-RoHS Directive
KC-mark	KC-EMV
Material information	RoHs compliant
Measured parameter	Relative pressure
Measurement process	Piezoresistive pressure sensor
Pressure measurement range starting value [bar]	0
Pressure measurement range end value [bar]	10
Overload range [bar]	15
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Information about operating and control medium	Oiled operation possible
Medium temperature [°C]	0 to 50
ambient temperature [°C]	0 to 50
Resolution analogue-digital converter [Bit]	12
Accuracy FS [%FS]	1,5
Repeatability in ± %FS [%FS]	0,3
Temperature coefficient in ± %FS/K [%FS/K]	0,05
Control output	2xPNP
Switch function	Freely programmable
Switching element function	Opener/closer switchable
Max. output current [mA]	100
Analogue output	0 - 10 V
Rise time [ms]	3
Max. load resistance current output [Ohm]	500
Min. load resistance voltage output [kOhm]	10
Short circuit resistance	yes
Report	IO-Link
IO-Link, report	Device V 1.1
IO-Link, profile	Smart sensor profile
IO-Link, function classes	Teach channel Diagnosis Identification Binary data channel (BDC) Process data variables (PDV)
IO-Link, communication mode	COM2 (38.4 kBaud)
IO-Link, SIO mode support	yes
IO-Link, port type	A
IO-Link, process data width OUT	0 Bytes
IO-Link, process data width IN	2 Bytes
IO-Link, process data contents IN	14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring)
IO-Link, minimum cycle time	3 ms
IO-Link, data memory needed [Byte]	500
Operating voltage range DC [V]	20 to 30
Reverse polarity protection	for all electrical connections
Electrical connection 1, connection type	Plug
Electrical connection 1, connection technology	M12x1 A coded to EN 61076-2-101
Electrical connection 1, number of pins / wires	4
Fastening type	With thread
installation position	arbitrary
Pneumatic connection	G1/8
Product weight [g]	80
Display type	LED
Presentable unit(s)	MPa Bar inchH2O inch Hg kPa kgf/cm² mmHg psi
Setting options	IO-Link
Tamper-proof fuse	IO-Link
Settings range threshold value [%]	0 to 100
Settings range hysteresis [%]	0 to 90
Protection category	IP65 IP67
Corrosion resistant class KBK	2 - moderate corrosion stress

Information

More Information
Manufacturer Nr.	SPAU-P10R-T-G18M-LK-V-M12D
Manufacturer	Festo
EAN	4052568277277
Weight	0.180000
HS-Code	90262020
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
