Indoor luminaires
Lighting
Glamox indoor luminaires for offices, corridors, stairwells, schools and healthcare buildings. Mounting type is the first decision: recessed luminaires for suspended ceilings, surface-mounted luminaires for solid ceilings, suspended luminaires above desks and wall luminaires for corridors and stairwells. Luminous flux runs from 1000 to 12 000 lm at 11 to 46 W, and colour temperature covers 3000 K, 4000 K and Tunable White. Control is by DALI or as a switchable HF version with presence and daylight detection.
Straight to the right mounting type
The mounting type decides the ceiling cut-out, the suspension and the look of the installation. Pick the entry that matches your ceiling, or start from colour temperature, control and colour rendering instead.

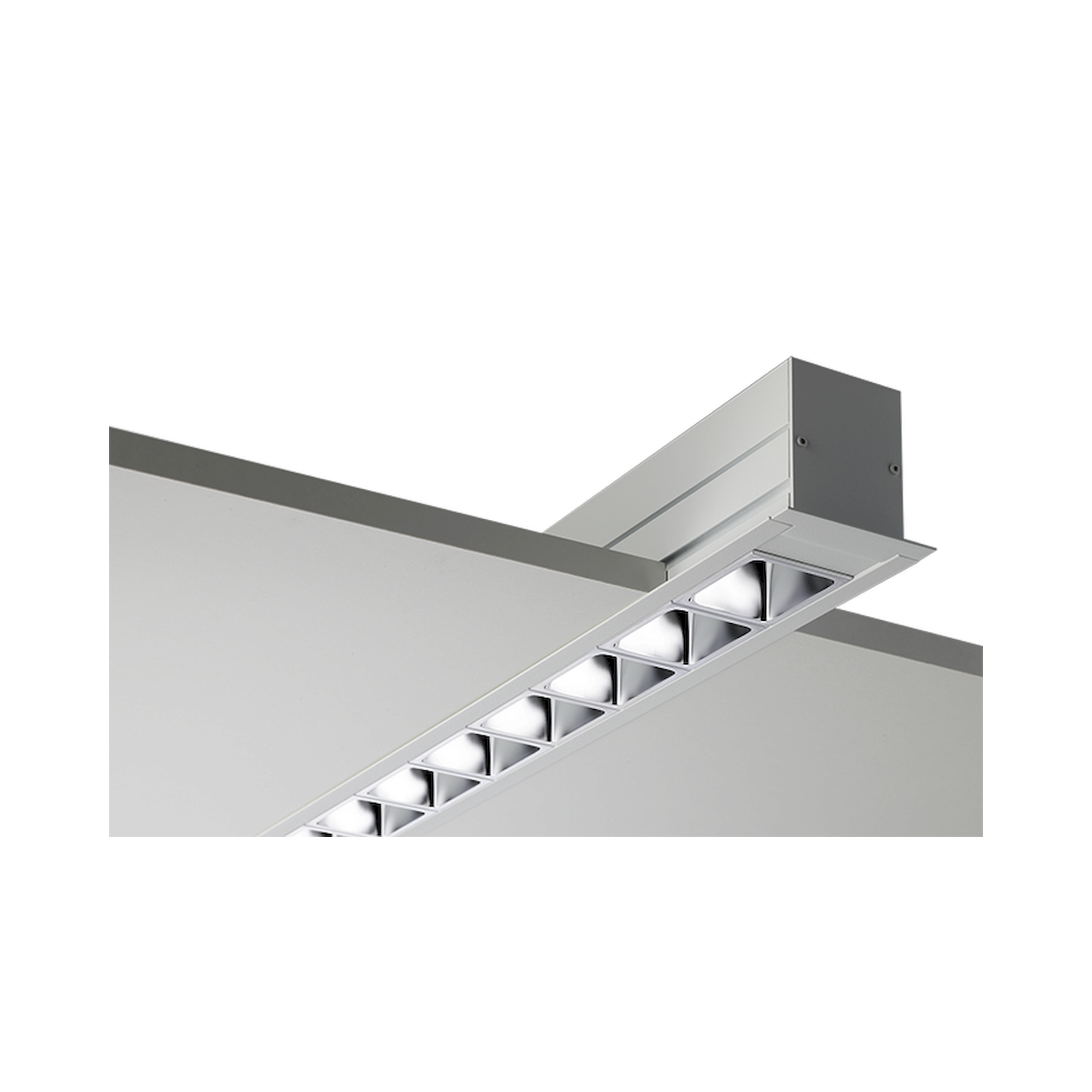

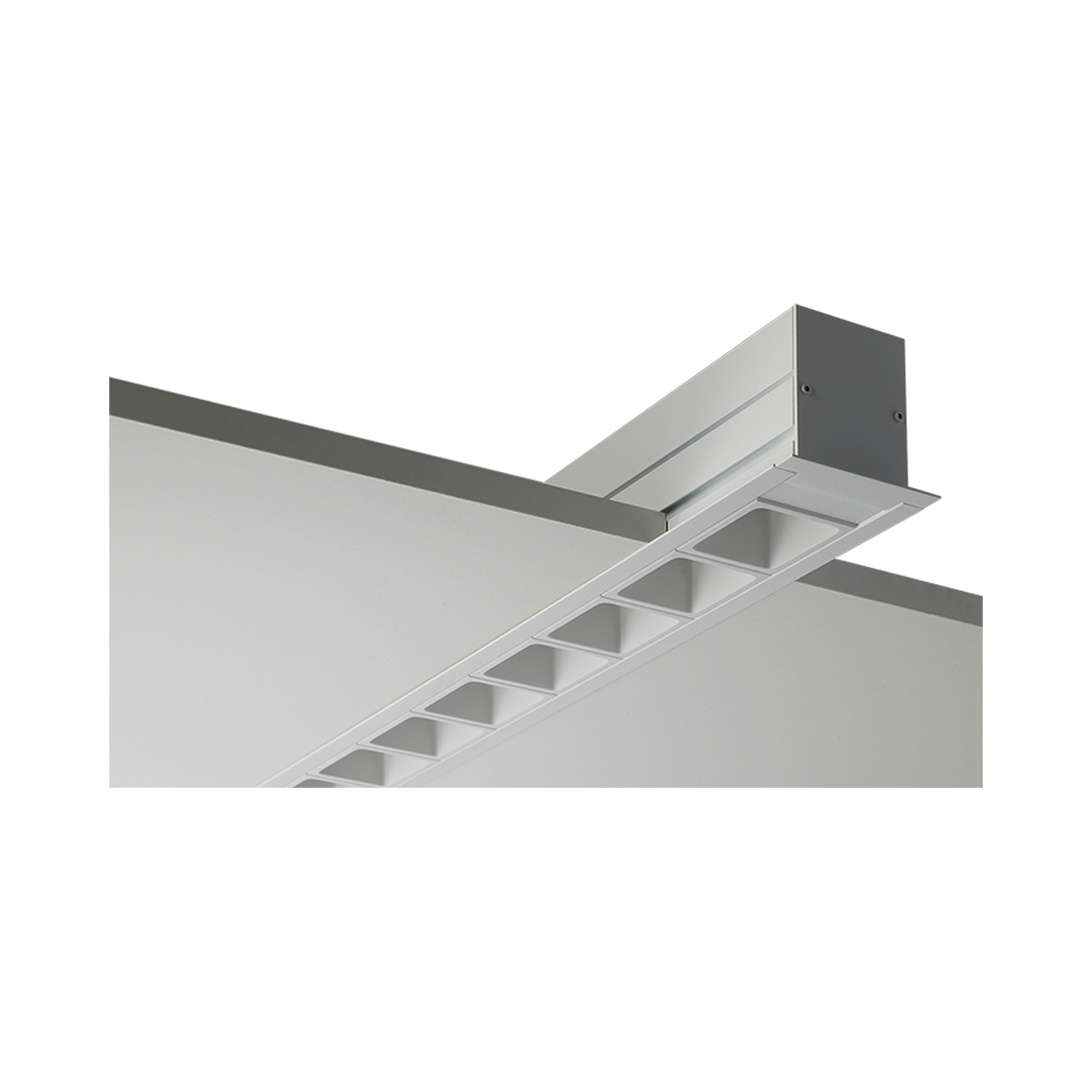

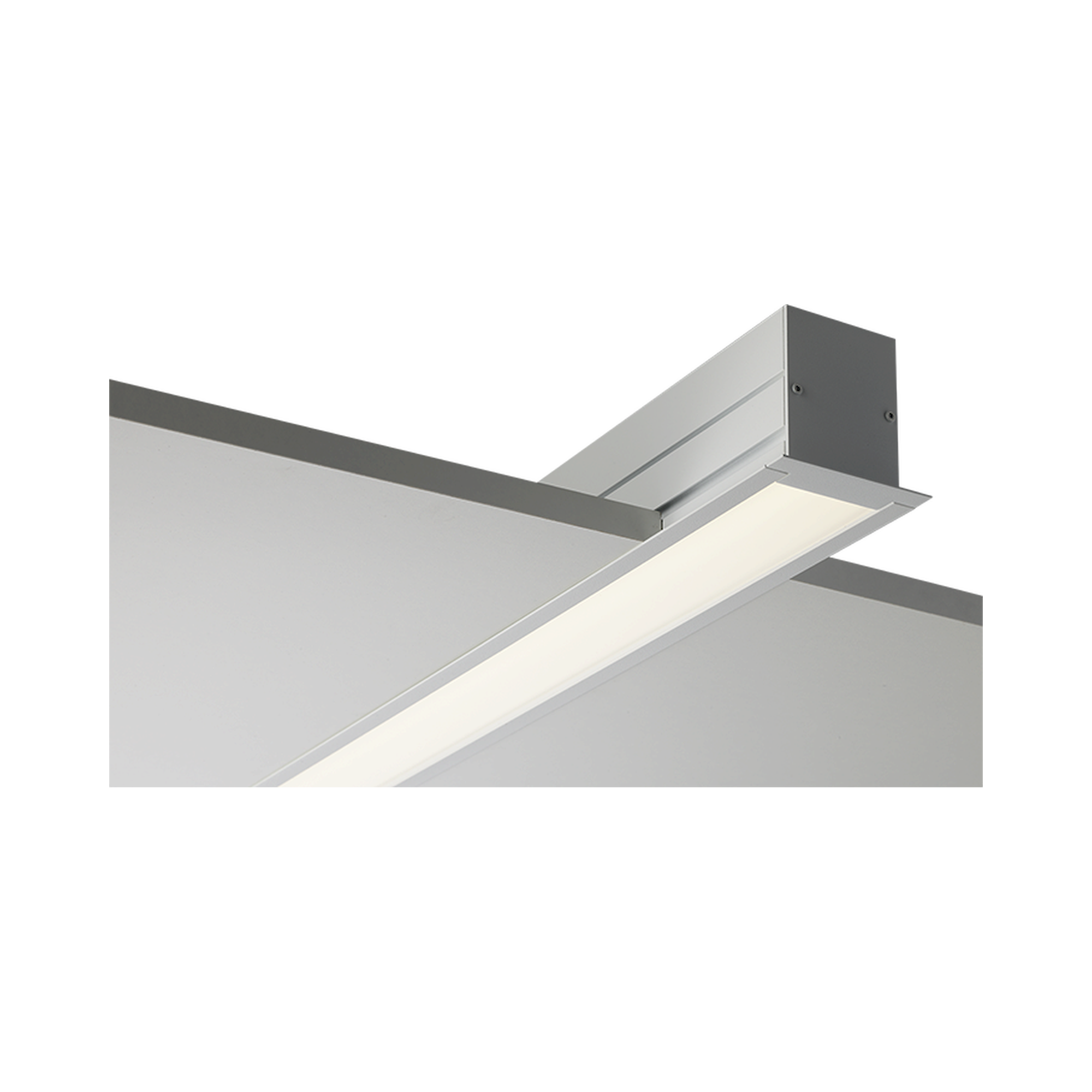

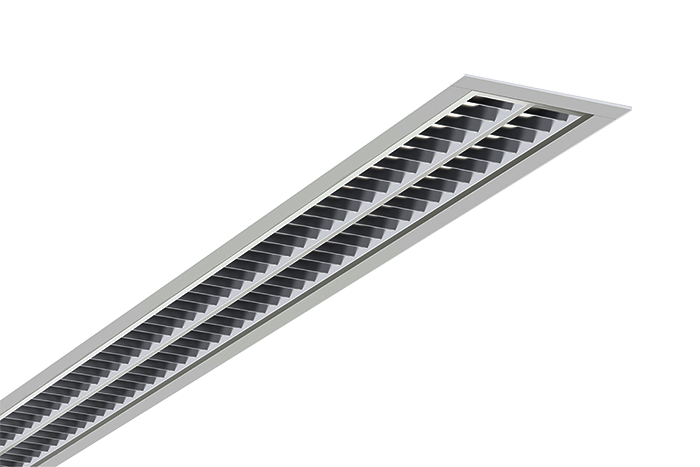

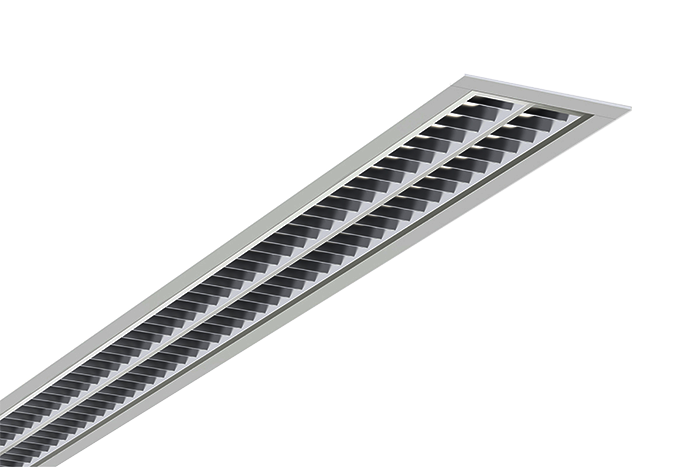

Recessed luminairesFor suspended grid and plasterboard ceilings with a prepared cut-out.flush in the ceiling
Surface-mounted luminairesFixed straight to a solid ceiling where there is no void above.no ceiling void needed
Suspended luminairesHung above desks, meeting tables and reception counters.on suspension wires
Wall luminairesFor corridors, stairwells and areas with no usable ceiling.wall mounted
Colour temperature 4000 KNeutral white light for offices, schools and healthcare.4000 K
Tunable WhiteColour temperature follows the day, for schools and care areas.adjustable colour temperature
DALI dimmableAddressed digitally and controlled in groups or scenes.DALI dimmable
Colour rendering Ra 90High colour fidelity for examination, display and colour checks.Ra 90
| Criterion | Values in the range | What matters |
|---|---|---|
| Mounting type | Recessed, surface-mounted, suspended, wall | Ceiling build-up and the available void define the body shape. |
| Luminous flux | 1000 to 12 000 lm, commonly 4000 lm, 3000 lm, 5000 lm and 6000 lm | Match the flux per luminaire with the planned quantity and the room height. |
| Colour temperature | 4000 K, 3000 K, Tunable White, 2700 K | 4000 K for working areas, 3000 K for lounges and reception. |
| Colour rendering | Ra 80, Ra 90, Ra 70 | Ra 90 wherever colours are judged. |
| Control | DALI dimmable, switchable (HF), Tunable White, dimmable | DALI for groups and scenes, HF for presence and daylight switching. |
| IP rating | IP20, IP40, IP55, IP65, IP54, IP44, IP43 | IP20 and IP40 for dry rooms, IP44 upwards for damp and wash-down areas. |
| Power | 11 to 46 W, with 35 W, 28 W and 16 W as the usual steps | Read the power input together with the luminous flux. |
| Series | ALIGN-F, C80-S1150, ALIGN-P1550, C77-R312x1250, C95-R625x625 | Within one series the body shape and the dimensions stay the same. |
- Which mounting type suits a suspended grid ceiling?
- A suspended grid or plasterboard ceiling calls for a recessed luminaire that sits flush in the prepared cut-out. The grid dimensions are part of the series name, as in C95-R625x625, C77-R600x600 and C64-R625X625. For a solid ceiling, or where the ceiling stays closed, choose a surface-mounted luminaire.
- What is the difference between DALI and the switchable version?
- DALI dimmable means the luminaire is addressed over a digital bus and controlled in groups or scenes. The switchable version with HF sensor works without a bus and reacts to presence and daylight. There is also a plain dimmable version without any bus connection.
- When does Tunable White pay off?
- Tunable White shifts the colour temperature during operation and is mainly used in schools, care areas and meeting rooms. It is listed both as a colour temperature and as a control type, so both filters can be combined.
- Which colour temperature is usual for offices and schools?
- 4000 K is neutral white and the customary colour temperature in offices, schools and healthcare buildings. 3000 K appears warmer and suits foyers, break areas and corridors. Where both are needed, Tunable White is the option.
- Which IP rating do I need in a stairwell or a tea kitchen?
- Dry interiors are covered by IP20 and IP40. Where moisture or cleaning water occurs, for instance in tea kitchens and sanitary rooms, choose IP43, IP44, IP54, IP55 or IP65. The range in this category runs from IP20 to IP65.
