This category holds 370 mounting parts and add-ons for luminaires, 366 of them from the Glamox range and 4 from LED2WORK: mounting frames and recessing kits, suspension tubes and wire suspensions, end caps, reflectors, diffusers and louvres, connectors, junction boxes and drivers. 53 items belong to the MNT mounting range alone, 22 to the TRACK system, 21 to the C52-S series and 15 to the QC connector range. 44 parts are assigned to recessed luminaires, 38 to surface-mounted ones and 19 to mast and bracket mounting. The choice follows the luminaire series and the mounting type, then the connection, the pin count and the IP rating, not the look of the part.
- Selection criteria
- Frequently asked questions
- Indoor luminaires
- Spotlights and track systems
- Light management and control
Find the right mounting part
Each shortcut filters within this category. Start from the rating plate of your luminaire and narrow down by series or mounting type.
MNT seriesMounting frames, recessing kits and brackets of the MNT range.53 itemsRecessedFrames, springs and recessing kits for ceiling and wall cut-outs.44 itemsSurface-mountedMounting rails, spacers and covers for surface installation.38 itemsDALI dimmableComponents for luminaires with DALI control.29 itemsTrackAdapters, feed-ins and couplers for the TRACK system.22 itemsMast and bracketSpigots, brackets and adapters for outdoor pole mounting.19 itemsIP68Junction boxes and connectors for permanently wet locations.16 itemsQC seriesConnectors and lead sets for quick wiring.15 items
| Criterion | What matters | Available here |
|---|---|---|
| Luminaire series | Mounting frames, end caps and reflectors are cut to one series. The series name on the rating plate is the safest entry point, since parts that look alike differ in cut-out size and latching. | MNT: 53, TRACK: 22, C52-S: 21, QC: 15, WIELAND: 13, O4X-245/290: 12, O48/O55: 9, C25-R: 9 |

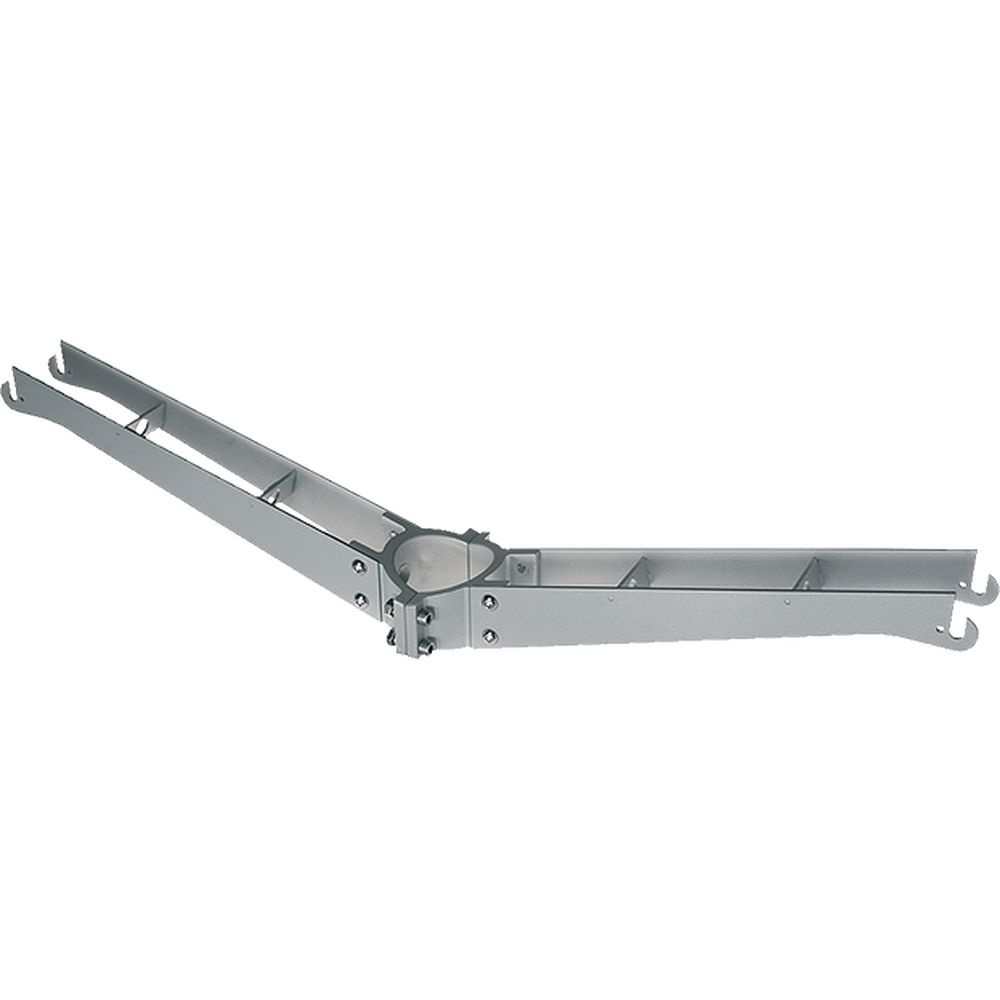

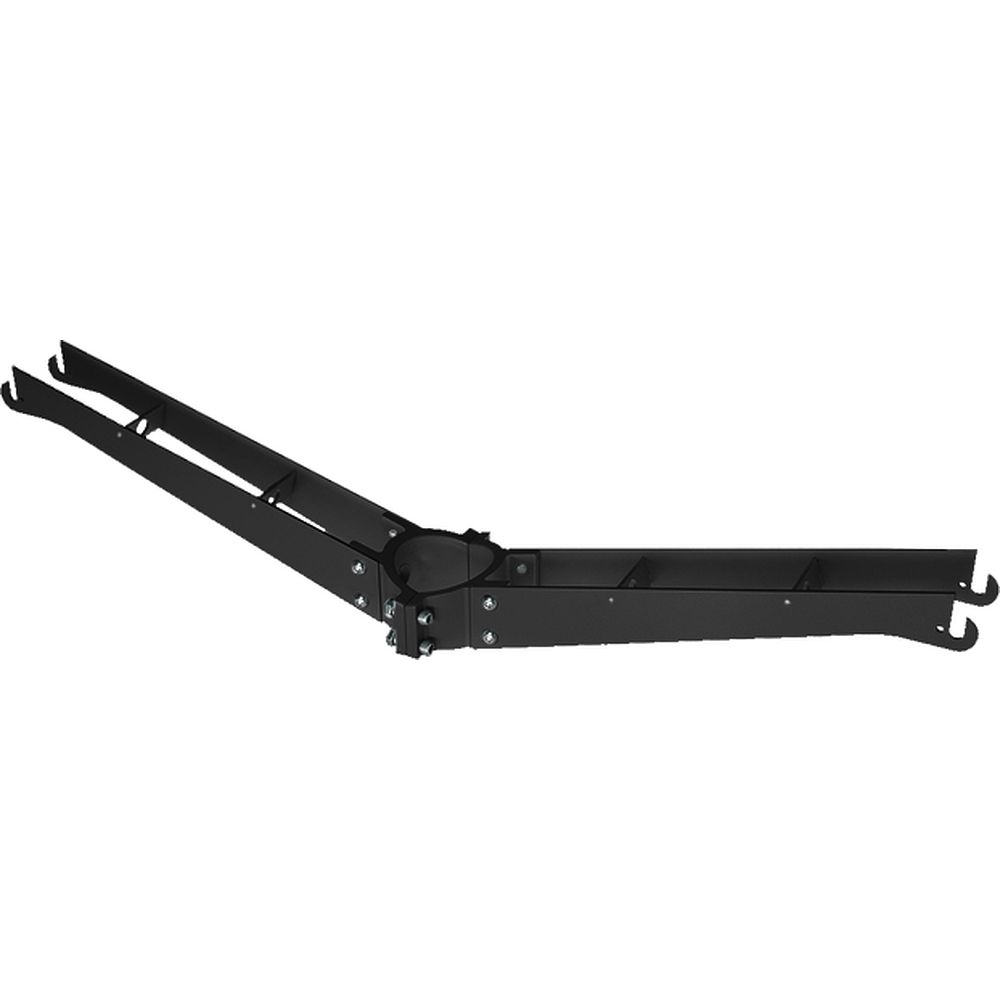

| Mounting type | Recessed, surface, pendant or mast decide the accessory. A recessing frame needs a matching ceiling cut-out, a pendant kit a load-bearing ceiling and the right drop length. | Recessed: 44, surface-mounted: 38, track: 22, mast and bracket: 19, pendant: 9, wall: 8 |
| Connection and pin count | Connectors and junction boxes come with 2, 3 and 4 poles. The pin count has to suit the wiring: three poles for switched light, four or five where a DALI control line runs along. | Connectors, terminal blocks and junction boxes, among others from the QC and WIELAND series |
| Cable diameter | Junction boxes are approved for a range of cable diameters. Below that range the gland does not seal, above it the gland cannot be closed. | Junction boxes for cables from 5.5 to 12 mm diameter |
| IP rating | The installation place sets the rating. Dry interiors are served by IP20, while outdoor and damp areas call for IP67 and IP68; the accessory must not lower the rating of the luminaire. | IP20: 2, IP40: 1, IP43: 2, IP64: 1, IP67: 5, IP68: 16 |
| Driver and wattage | Drivers are picked by output rating and by the number of luminaires connected. Add up the loads and leave headroom if the run is to be extended later. | Ratings from 7 W to 54 W, most often 17 W with 3 items; PSU driver series with 7 items |
| Control | Accessory and luminaire have to speak the same control language. DALI needs its own control line, 1-10 V an extra pair of cores, switched luminaires need neither. | DALI dimmable: 29, switched (HF): 4, with driver (PSU): 3, 1-10V dimmable with driver: 2 |
| Optical accessories | Reflectors concentrate the light, diffusers and louvres cut glare. Both change the output, so it is worth checking the figures of the finished luminaire. | Reflectors, diffusers and louvres; outputs from 80 lm to 4600 lm, colour temperature 4000K on 10 items |
- How do I know which mounting frame fits my luminaire?
- Through the series name on the rating plate. Mounting frames are designed per series: 53 items belong to the MNT series alone, 21 to the C52-S series and 12 to the O4X-245/290 series. Check the ceiling cut-out as well, because frames that look alike differ in diameter.
- Which suspension do I need for pendant mounting?
- Suspension tubes hold the luminaire rigidly at a fixed height, wire suspensions can be adjusted in length and compensate for uneven ceilings. 9 items in this category are assigned to pendant mounting. Drop length, the weight of the luminaire and whether the supply runs inside the tube decide the choice.
- How do I choose connectors and junction boxes?
- By pin count and cable diameter. Three poles are enough for switched light, four or five are needed where a DALI control line runs along. The junction boxes take cables from 5.5 to 12 mm diameter; 16 items reach IP68 and another 5 reach IP67.
- What are reflectors, diffusers and louvres for?
- Reflectors direct the light downwards and raise the illuminance on the surface. Diffusers and louvres spread it wider and cut glare, for instance at screen workplaces. Both change the output of the luminaire, and the figures in this range run from 80 lm to 4600 lm.
- Do I need an additional driver?
- Only if the luminaire has no control gear of its own. 3 items are listed explicitly with a driver, and the PSU driver series covers 7 items. The output has to carry the sum of all luminaires connected; ratings from 7 W to 54 W are available.
- Does Glamox mounting material fit luminaires of other makes?
- As a rule it does not. 366 of the 370 items come from the Glamox range and are matched to its series, while 4 items come from LED2WORK. Only junction boxes and connectors are universal, since they are defined by pin count and cable diameter.
