Glamox C90231603. Interior General Lighting C90-P420 20/80 BL 2000 DALI 840 PRE C2 OP

Name: Glamox C90231603. Interior General Lighting C90-P420 20/80 BL 2000 DALI 840 PRE C2 OP
Brand: Glamox
SKU: GL-C90231603
Price: 449.4 EUR
Availability: InStock

Lead time

3 weeks

€449.40

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C90231603

Manufacturer Nr.

C90231603

C90-P420 20/80 BL 2000 DALI 840 PRE C2 OP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C90231603. Interior General Lighting C90-P420 20/80 BL 2000 DALI 840 PRE C2 OP
€449.40
Excl. 19% VAT , excl. Shipping Cost
Glamox C90230551. Interior General Lighting C90-P1170 10/90 WH 16000 HF 840 PRE C5 OP
€1,709.40
Excl. 19% VAT , excl. Shipping Cost
Glamox C90230525. Interior General Lighting C90-P570 20/80 GR 3600 HF 840 PRE C2 MP
€611.10
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Round
Certificates
1. Certification
  ENEC
Electrical Data
1. Leakage current (mA)
  0.50
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  16
7. Number of luminaires on a 10A MCB type B (80% load)
  13
8. Number of luminaires on a 10A MCB type C (80% load)
  22
9. Number of luminaires on a 16A MCB type B (80% load)
  22
10. Number of luminaires on a 16A MCB type C (80% load)
  36
LMS System
1. Number of DALI addresses
  1
2. LMS Protocol
  DALI
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2,024
3. Lumen per Watt (lm/W)
  127
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. Light distribution up %
  20
7. Light distribution down %
  80
8. MacAdam step
  3
9. Energy class light source
  D
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. L90 Median useful life LED Ta25 (hr)
  50 000
3. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
3. Diffuser material design
  Opal
Housing
1. Main body material
  Recycled aluminium
2. Body colour
  Black
3. Main body colour name
  Black

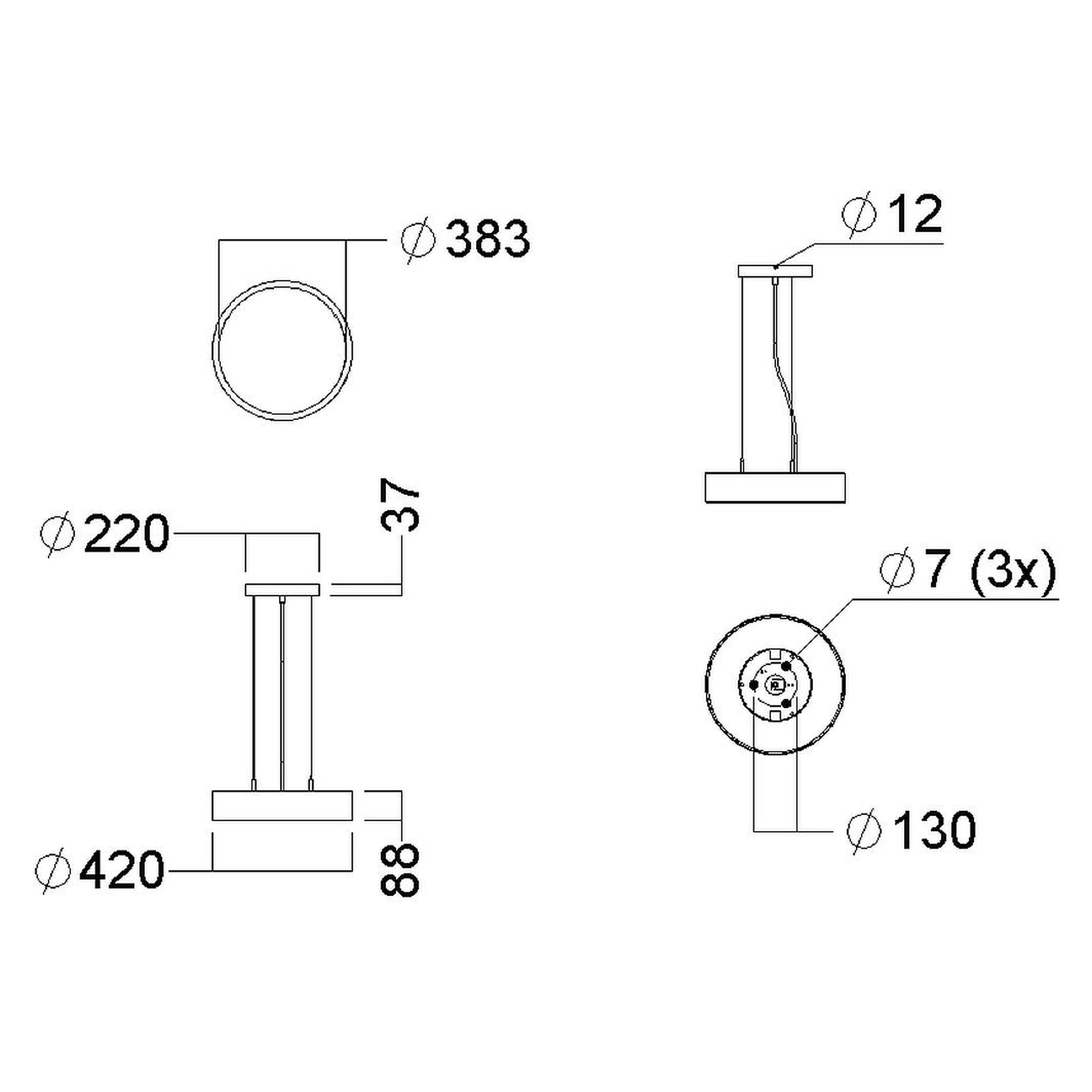

Dimensions
1. Height (mm)
  88
2. Diameter (mm)
  420
3. Net weight (kg)
  3.55
Termination
1. Termination
  5x2x2.5mm2 Push In
Cable
1. Cable Cross section (mm²)
  0.75
2. Cable End / Plug Name
  Open End
3. Cable length (m)
  2
4. Cable material
  PVC
5. No of leads
  5
6. Cable diameter variation max (mm)
  8
Mounting
1. Product mounting
  Pendant
2. Mounting included
  2m wire
Logistic Data
1. Item gross weight (kg)
  3.86

Information

More Information
Execution	TEC
Manufacturer Nr.	C90231603
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	7332402316032
Lead time	3 weeks
Weight	3.860000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
