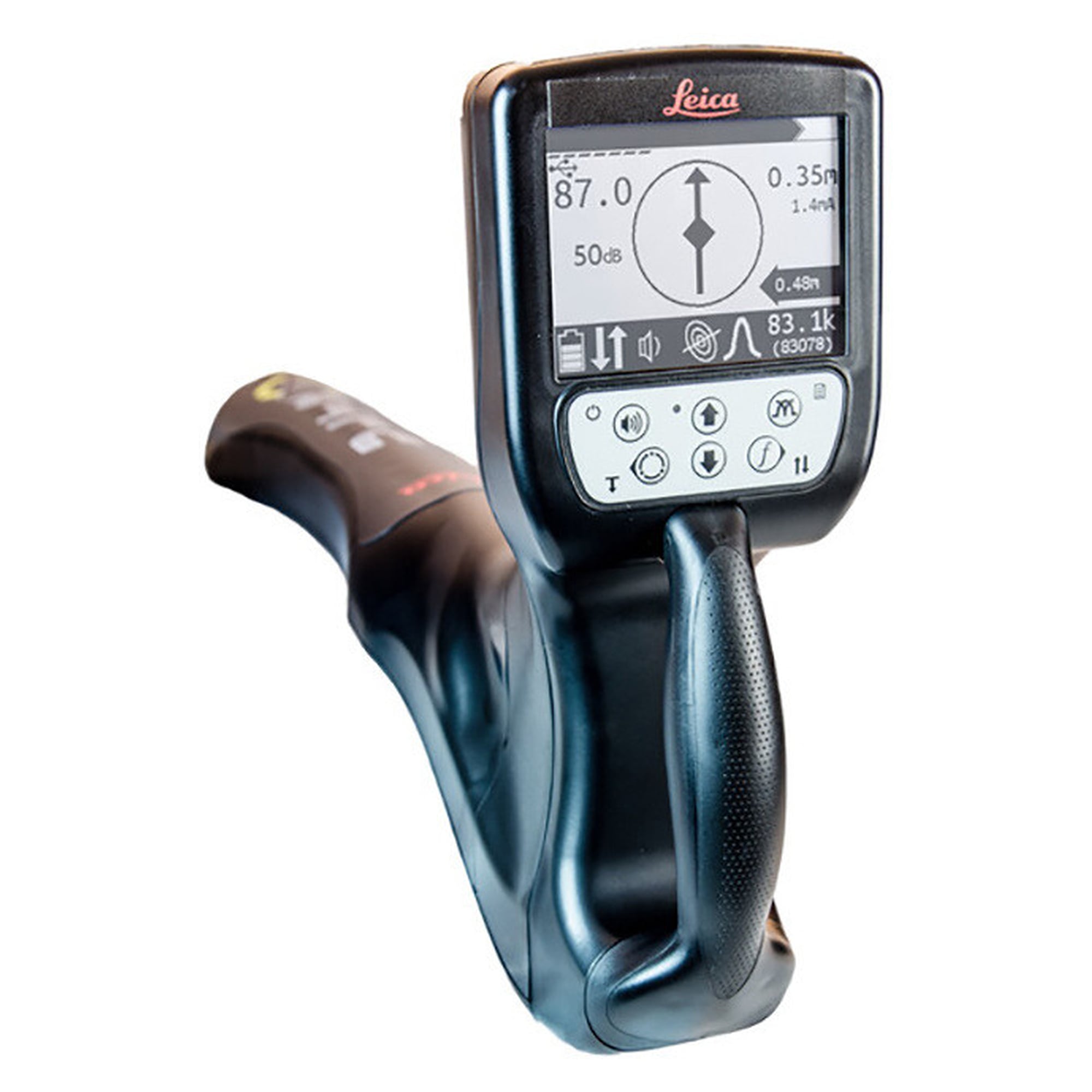

Cable locator to 4.6 m depth with AIM interference measurement and Bluetooth - Leica Ultra Advanced

Before any ground is broken, the position of cables and pipes has to be known. The Leica Ultra Advanced locates cables down to 4.6 m and sondes down to 3.0 m, and reports depth in active mode within a tolerance of ± 5 percent. AIM measures ambient interference across every enabled frequency first, so the operator sees which frequency is the quietest on that site.

Key benefits

• Locating range of 4.6 m on cables and 3.0 m on sondes, depth estimate within ± 5 percent in active mode and ± 10 percent on passive signals.
• AIM Ambient Interference Measurement scans the noise level on all enabled frequencies of the selected mode, so frequency choice follows a reading instead of a guess.

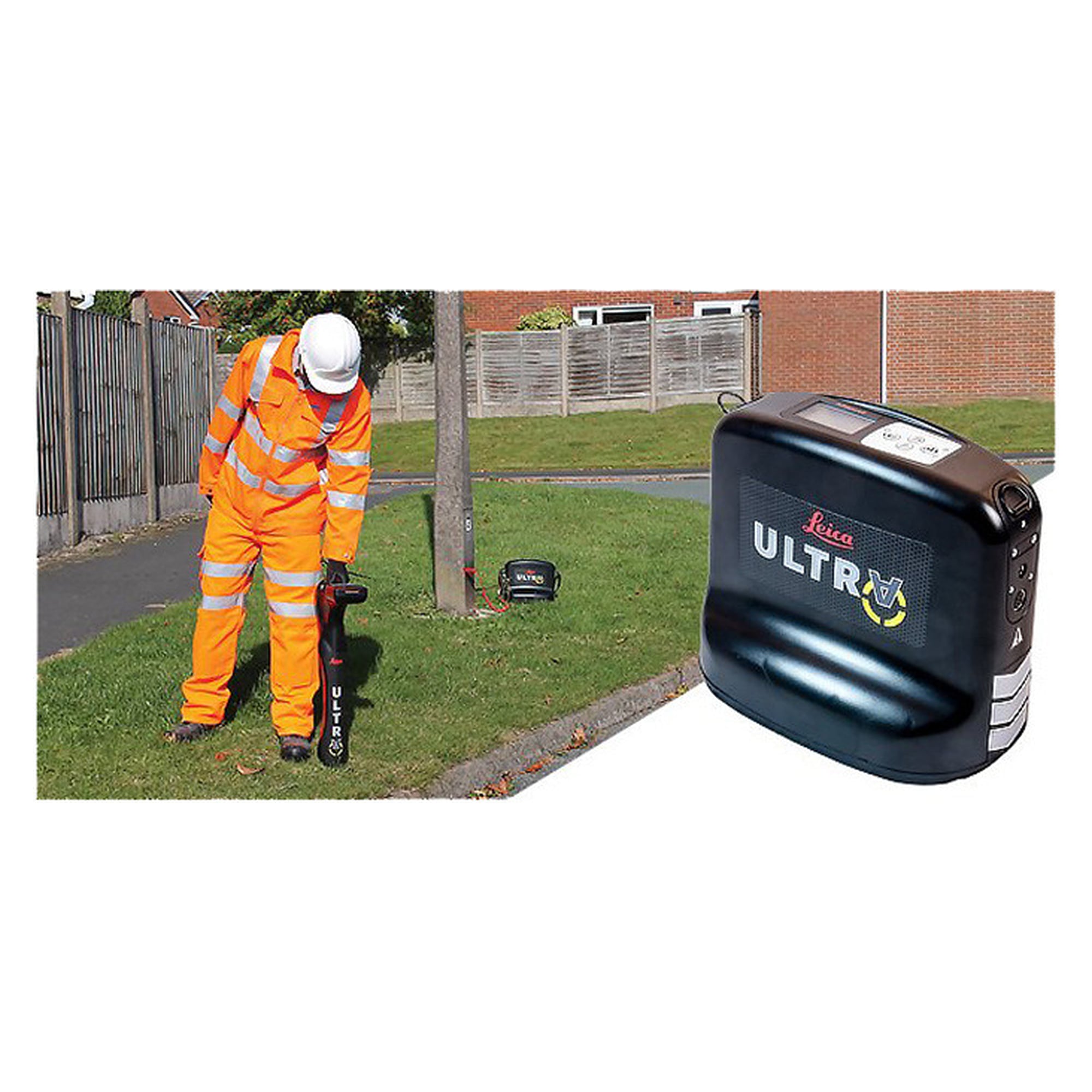

• Wireless link to the transmitter, the operator changes transmitter settings from the locator without walking back to the signal generator.
• Offset depth estimates horizontal distance and depth when an obstruction prevents walking directly over the line.
• Five antenna configurations, from twin peak for the highest precision through null for a sharp response to total field for sweeping an area.
• More than 100 selectable transmitter frequencies, plus passive power tracing and VLF radio mode.
• IP65 protection, working temperature from -20 to +50 °C, 60 hours of intermittent use per set of D cells.

Technical data

Applications

Route survey ahead of excavation, cable laying and service connections, checking power cables, gas and water mains and telecom routes. With a sonde, non-metallic pipes and ducts are traced to 3.0 m, with the receiver clamp the right line is identified among several in a chamber, and the EML accessory finds electronic markers.

Compatibility

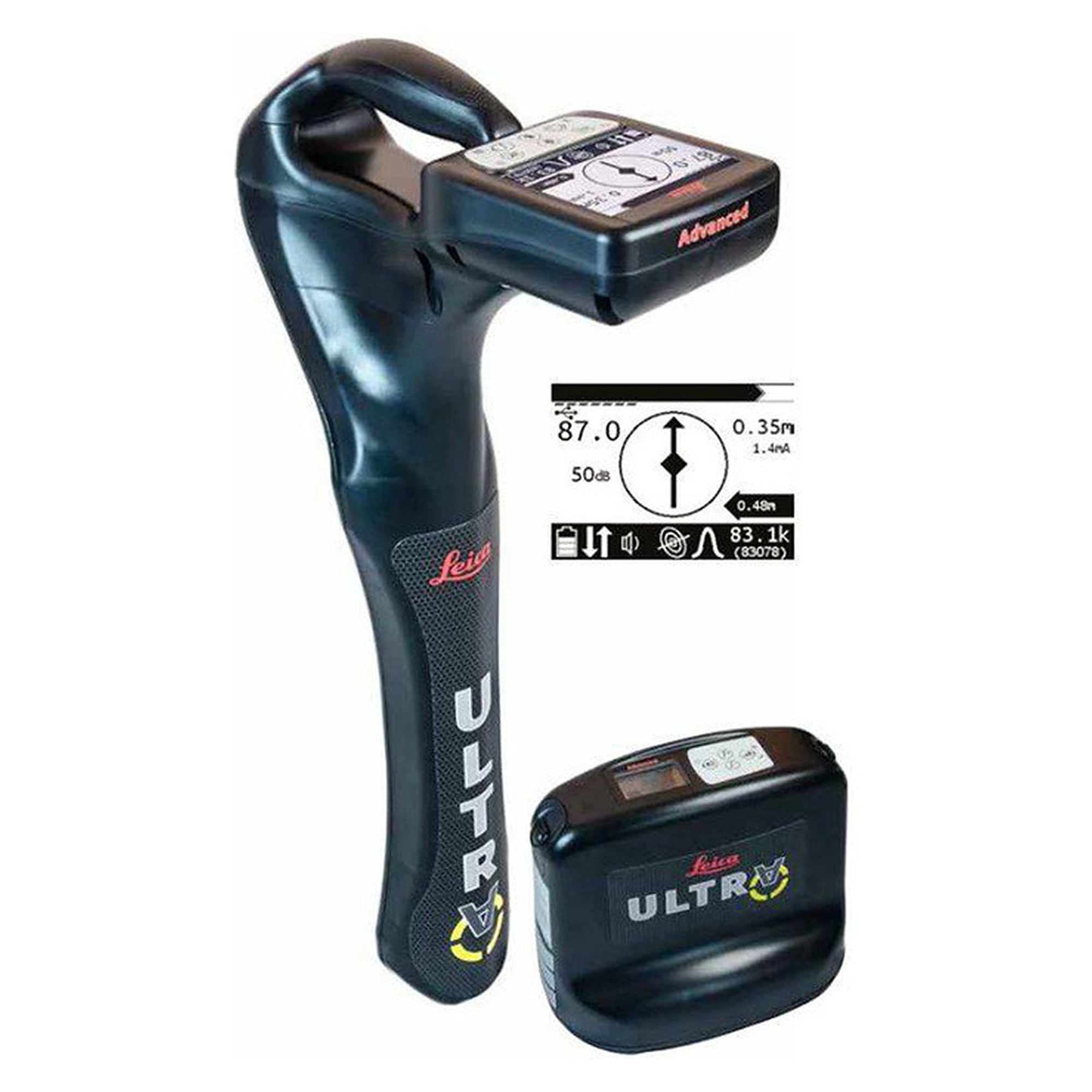

The locator works with the Leica Ultra 5 W and 12 W signal generators and with the Ultra 12 W Advanced. Cable fault finding requires transmitter firmware v2.0 or higher and locator firmware v6.0 or higher, the EML accessory needs locator software v7.0 or higher. Signal clamps are available in 80, 125 and 175 mm, alongside the receiver clamp, the standard sonde and the maxi sonde at 8 kHz or 33 kHz.

Standards, origin and shipping

Conformity to FCC Part 15 and the applicable European directives, protection class IP65 to IEC 60529. The mains frequency of the country of use must be set before work, options are 50 and 60 Hz. Shipping weight 2.180 kg, EAN 7640110697610, customs tariff number 8543709099, country of origin USA.
