Festo MLO-POT-1750-TLF (152635) Displacement Encoder
€126,075.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-152635
Manufacturer Nr.
MLO-POT-1750-TLF
Displacement Encoder
Frequently Bought Together
-
This Item:
€126,075.00Excl. 19% VAT , excl. Shipping Cost
-
Festo SPC11-POT-TLF (192216) End-Position Controll
€55,875.00Excl. 19% VAT , excl. Shipping Cost
-
Festo MME-MTS-1250-TLF-AIF (178302) Displacement Encoder
€185,441.00Excl. 19% VAT , excl. Shipping Cost
Total price
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Measurement principle travel measurement system | Analogue |
| ambient temperature [°C] | -30 to 100 |
| Recommended grinder current [µA] | < 1 µA |
| Max. grinder current short term [µA] | 10.000 |
| Max. movement speed [m/s] | 10 |
| Max. movement acceleration [m/s²] | 200 |
| Resolution travel [mm] | 0,01 |
| Independent linearity | 0.03 % |
| Temperature coefficient [ppm/K] | 5 |
| Stroke [mm] | 1.750 |
| output signal | Analogue |
| Connection resistance [kOhm] | 20 |
| Tolerance connection resistance [%] | 20 |
| Nominal operating voltage DC [V] | 10 |
| Max. operating voltage DC [V] | 42 |
| Permitted voltage oscillations | < 1 % |
| Max. power input [mA] | 4 |
| Electrical connection | 4-pin Wiring diagram Form A acc. to EN 175301-803 acc. to DIN 43650 plug Square shape |
| Construction set up | With masking tape With Sliding carriage Open profile |
| Parallel offset coupling | ± 1,5 mm |
| Angle offset carrier | ± 1 ° |
| installation position | arbitrary |
| Product weight [g] | 3.500 |
| Housing material | Aluminium wrought alloy anodized |
| Cover material | Steel |
| Sliding carriage housing material | Aluminium die casting plastic |
| Sliding carriage coupling material | Steel |
| Cover material | Plastic |
| Assembly clamps material | PEI |
| Protection category top | acc. to IEC 60529 |
| Protection category bottom | acc. to IEC 60529 |
| Oscillation strength to DIN/IEC 68 part 2-6 | Tested to severity class 2 |
| Continuous impact strength DIN&EC 68 parts 2-82 | Tested to severity class 2 |
| Manufacturer Nr. | MLO-POT-1750-TLF |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568117597 |
| Weight | 3.500000 |
| HS-Code | 90318020 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Festo MLO-POT-2000-TLF (152636) Displacement Encoder
€159,411.00
Excl. 19% VAT ,
excl. Shipping Cost

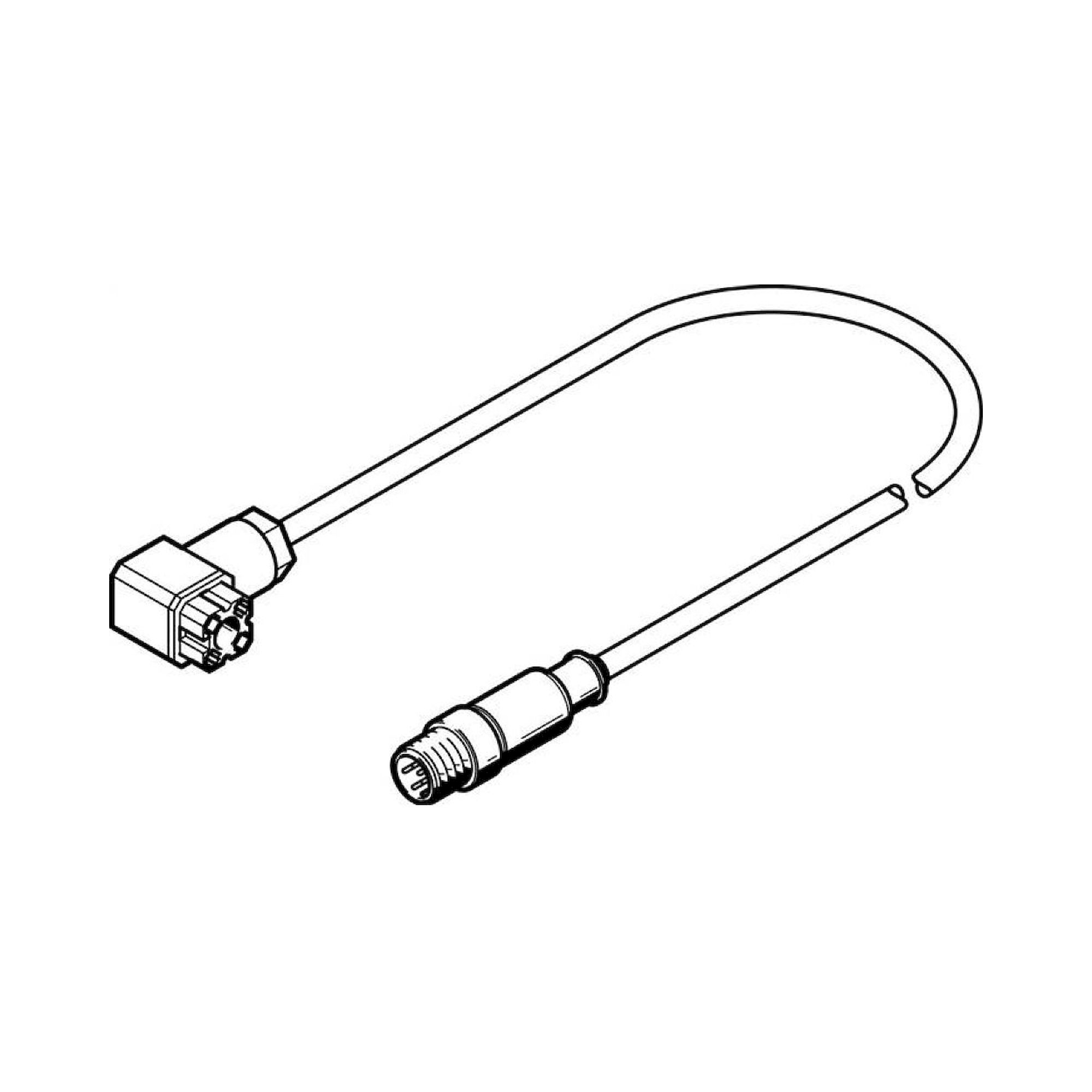

Festo NEBC-P1W4-K-0.3-N-M12G5 (549293) Connecting Cable
