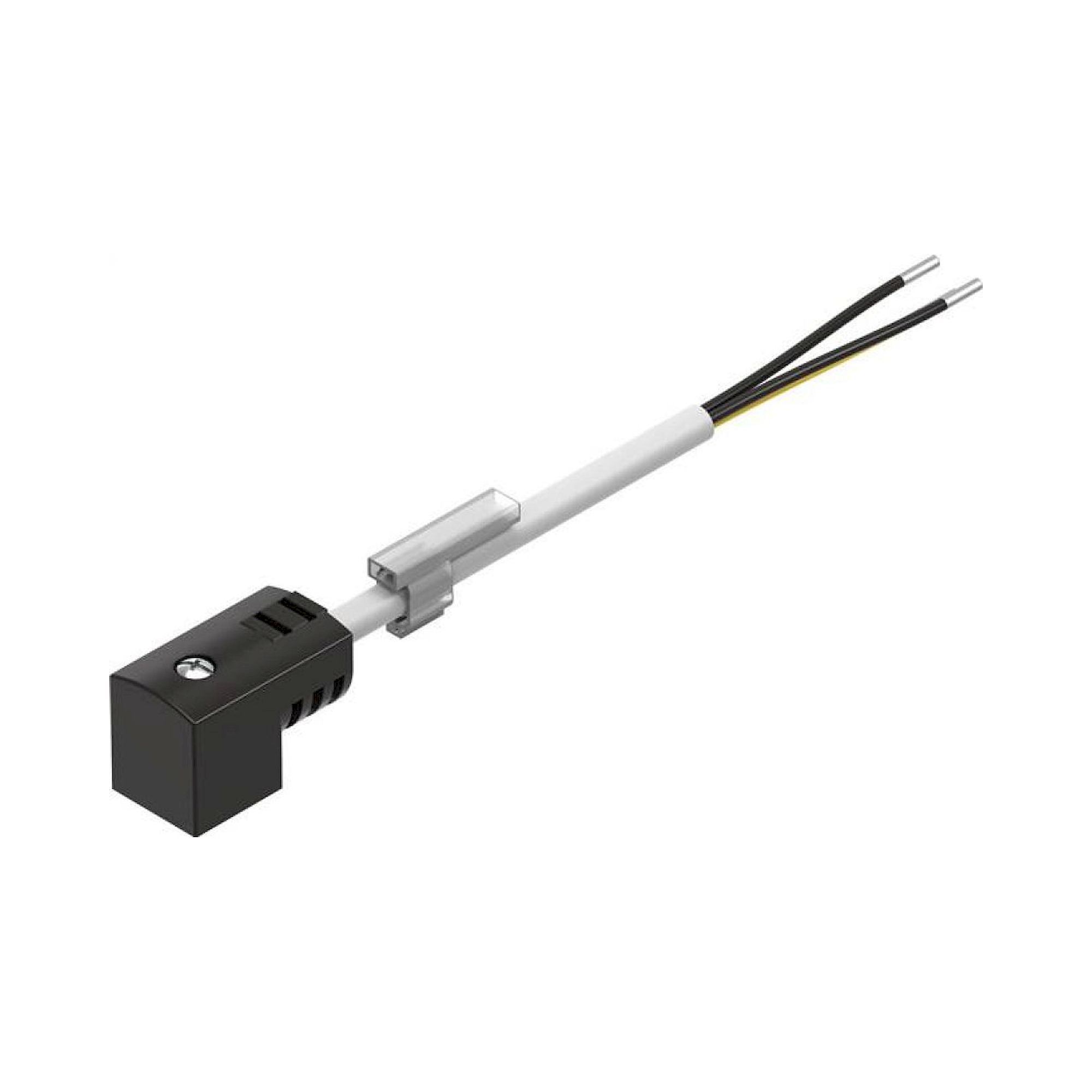

The product may differ from the illustration
Festo fitting or line component for fast, leak-tight and pressure-resistant compressed-air connections.
Connecting Cable NEBV-Z3WA2L-R-E-5-N-LE2-S1 - Festo 8047677
FESTO
Original product
Net price (excl. VAT)
€19.97
Excl. 19% VAT ,
excl. Shipping Cost
Available
Fast shipping
Item
FES-8047677
Manufacturer no.
NEBV-Z3WA2L-R-E-5-N-LE2-S1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.NEBV-Z3WA2L-R-E-5-N-LE2-S1
EAN4052568287665
Customs tariff number85444290
ConditionNew
Article
FES-8047677
Frequently Bought Together
-
This Item:
€19.97Excl. 19% VAT , excl. Shipping Cost
-
Connecting Cable NEBB-M12G5-P-10-LE4 - Festo 8066675
€12.29Excl. 19% VAT , excl. Shipping Cost
-
Connecting Cable NEBB-M8W3-P-5-LE3 - Festo 8066665
€8.61Excl. 19% VAT , excl. Shipping Cost
Total price
Festo fitting or line component for fast, leak-tight and pressure-resistant compressed-air connections. The key technical data of this genuine Festo article are listed below.
| Line designation | Without sign holder |
| Product weight [g] | 90 |
| Electrical connection 1, function | Field device screen |
| Electrical connection 1, design | Angular |
| Electrical connection 1, connection type | socket / container / …. |
| Electrical connection 1, cable output | Angled |
| Electrical connection 1, connection technology | Wiring diagram ZC, Furch screw |
| Electrical connection 1, number of pins / wires | 2 |
| Electrical connection 1, occupied pin / wire | 2 |
| Electrical connection 1, fastening type | on solenoid valve with self-cutting screw |
| Electrical connection 2, function | Control screen |
| Electrical connection 2, connection type | cable |
| Electrical connection 2, connection technology | Open end |
| Electrical connection 2, number of pins / wires | 2 |
| Electrical connection 2, occupied pin / wire | 2 |
| Operating voltage range DC [V] | 20.4 to 26.4 |
| Nominal operating voltage DC [V] | 24 |
| Surge voltage strength [kV] | 2,4 |
| Protection line connection | Not available |
| Cable length [MTR] | 5,0 |
| Line properties | Cable track capable |
| Test conditions line | Test conditions on request |
| Cable diameter [mm] | 2,9 |
| Tolerance cable diameter | ± 0,1 mm |
| Cable set up | 2x0,14 |
| Protection category | IP65 |
| Information about protection category | In mounted condition |
| ambient temperature [°C] | -10 to 50 |
| CE certificate (see declaration of conformity) | acc. to EU-EMV Directive<br>acc. to EU-RoHS Directive |
| Material information | RoHs compliant |
| Degree of contamination | 3 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Cable sleeve material | TPE-U(PUR) |
| Cable shield colour | <span class="farbe" style="background-color:#C6C6C6"></span> Grey |
| Housing material | TPE-U(PU) |
| Housing colour | <span class="farbe" style="background-color:#000000"></span> black |
| Insulation sleeve material | PP |
| Additional functions | Holding current reduction<br>protection circuit |
| Conductor - nominal cross-section [mm²] | 0,14 |
| Plug contacts material | Material of coupler tin plated |
| Bending radius, moving cable placement [mm] | >= 29 mm |
| Signal condition display | LED yellow |
| Connection frequency | 50 |
| Reverse polarity protection | Bipolar |
| Screws material | Steel |
| Manufacturer Nr. | NEBV-Z3WA2L-R-E-5-N-LE2-S1 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568287665 |
| Weight | 0.090000 |
| HS-Code | 85444290 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Schutzart | IP65 |
