Festo VZBE-11/4-T-63-D-2-M-V15V15 (4745220) Ball Valve

Festo
€6,423.00
Excl. 19% VAT , excl. Shipping Cost
Article
FES-4745220

Manufacturer Nr.
VZBE-11/4-T-63-D-2-M-V15V15
Ball Valve
Add to Wish List Add to Compare

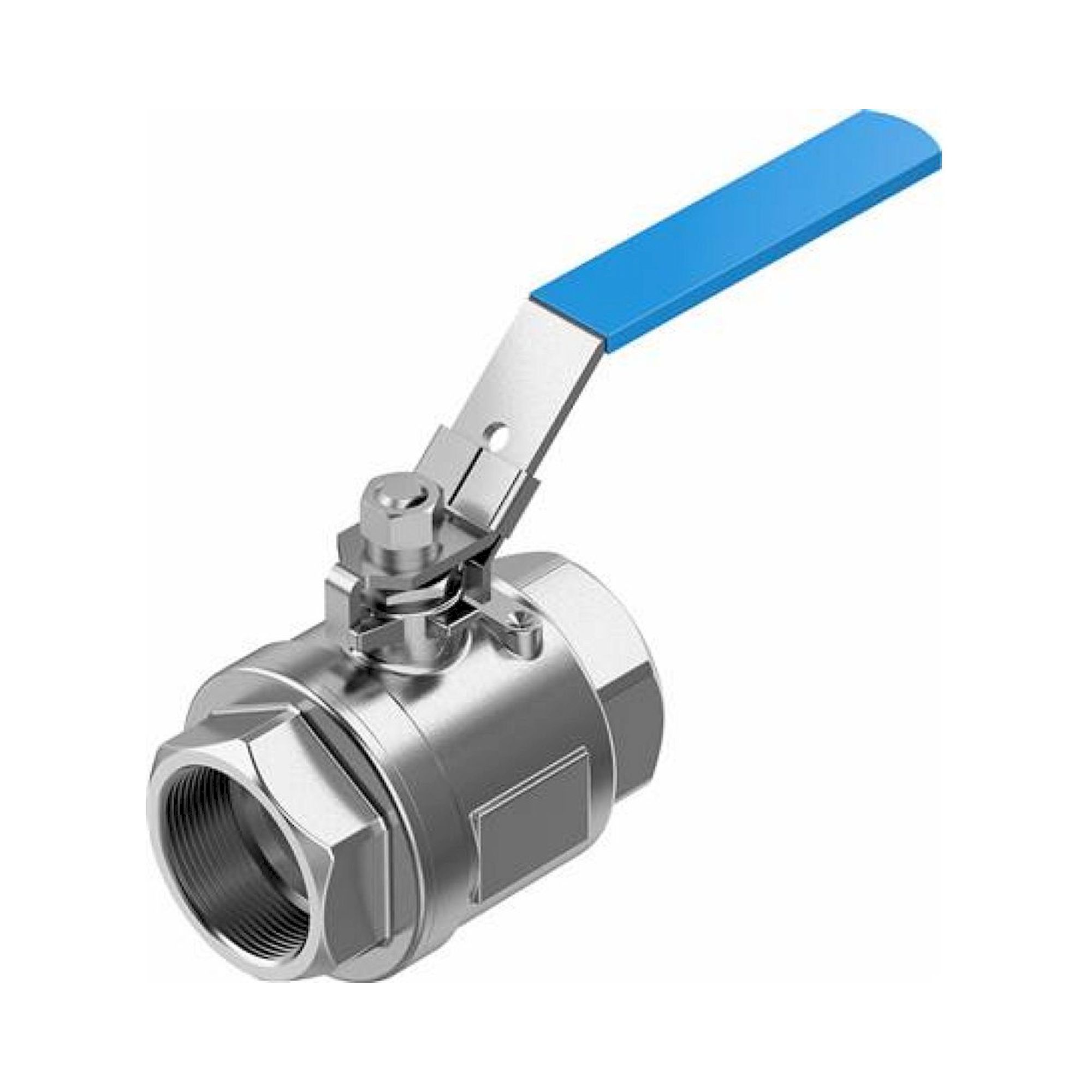

main product photo
The product may differ from the illustration
Frequently Bought Together
Total price
Construction set up 2-Wege-Kugelhahn mit Handhebel
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection 1 1/4 NPT
Switching position display Carriage direction = flow direction
Inside diameter [mm] 32,0
Nominal width DN 32
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 63
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 15,0
Based on standard ASME B1.20.1
medium Compressed air acc. to ISO8573-1:2010 [-:-:-]
Inert gasses
Neutral liquids
Water
Steam
Medium temperature [°C] -20 to 200
Flow Kv [m³/h] 42,6
Material information LABS containing materials included
RoHs compliant
Housing material Cast stainless steel
Material number housing 1.4408
Seat seal material PTFE
Seals material PTFE
Ball material Cast stainless steel
Material number ball 1.4408
Shaft material High-alloyed stainless steels
Material number shaft 1.4401
Product weight [g] 1.100
Permission CRN
Corrosion resistant class KBK 3 - severe corrosion stress
CE certificate (see declaration of conformity) to EU pressure vessel directive
More Information
Manufacturer Nr. VZBE-11/4-T-63-D-2-M-V15V15
Manufacturer Festo
EAN 4052568275129
Weight 1.200000
HS-Code 84818081
GPSR manufacturer information Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity Original product
Condition of article New
