Festo VZQA-C-M22U-25-S5S5-V4V4E-4 (3968924) Pinch Valve
€59,007.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-3968924
Manufacturer Nr.
VZQA-C-M22U-25-S5S5-V4V4E-4
Pinch Valve
Frequently Bought Together
-
This Item:
€59,007.00Excl. 19% VAT , excl. Shipping Cost
-
Festo VZXF-L-M22C-M-A-G112-350-M1-V# (1002520) Angle Seat Val.
€41,696.00Excl. 19% VAT , excl. Shipping Cost
-
Festo VZBD-3-S1-16-T-2-F0710-V14V14 (4795672) Ball Valve
€102,297.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Construction set up | Pinch valve pneumatically actuated |
| Actuation type | pneumatic |
| Sealing principle | Soft |
| installation position | arbitrary |
| Fastening type | pipe installation |
| Fitting connection | Clamp acc. to DIN 32676 row A |
| Nominal width DN | 25 |
| Valve function | 2/2 open monostable |
| Flow direction | Reversible |
| Medium pressure [bar] | 0 to 4 |
| Operating pressure [bar] | 1 to 6.5 |
| Nominal pressure fitting | 10 |
| Differential pressure [bar] | 2,5 |
| Burst pressure [bar] | 16 |
| Overload pressure [bar] | 7,8 |
| Reset mode | Return impact elasticity |
| Control type | Remote controlled |
| Support air control connection 12 | G1/8 |
| control medium | Compressed air to ISO 8573-1:2010 [7:4:1] |
| medium | Water Compressed air to ISO 8573-1:2010 [-:-:1] |
| Max. viscosity [mm²/s] | 4.000 |
| Medium temperature [°C] | -5 to 100 |
| ambient temperature [°C] | -5 to 60 |
| Bearing temperature [°C] | 6 to 8 |
| Flow Kv [m³/h] | 18,0 |
| Shifting time on [ms] | 250 |
| Shifting time off [ms] | 250 |
| Material information | LABS containing materials included RoHs compliant |
| Housing material | High-alloyed stainless steels |
| Material number housing | 1.4435 |
| Housing cover material | High-alloyed stainless steels |
| Material number housing cover | 1.4435 |
| Seals material | FPM |
| Blocking element material | EPDM |
| Product weight [g] | 1.474,0 |
| Food compatibility | See expanded material information |
| Clamps material | PA6 |
| Manufacturer Nr. | VZQA-C-M22U-25-S5S5-V4V4E-4 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568273880 |
| Weight | 1.500000 |
| HS-Code | 84818073 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

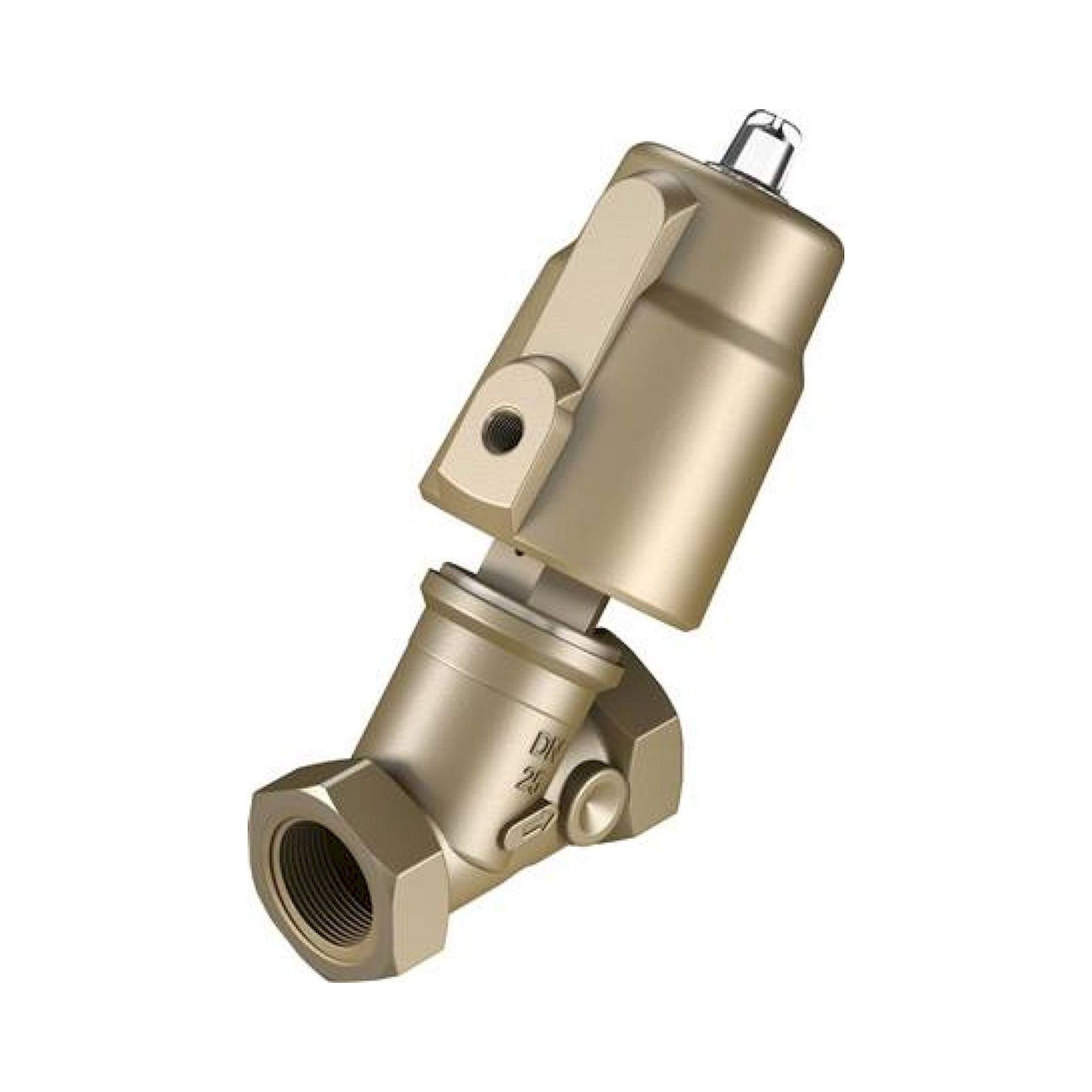

Festo VZXF-L-M22C-M-B-G1-230-H3B1-5# (1002505) Angle Seat Val.
