Decorative C90
Decorative lights
The Glamox C90 pendant luminaire series covers models in housing lengths P570, P870 and P1170 with luminous outputs from 3,600 to 27,000 lm. The direct/indirect light ratio is selectable as 10/90 or 20/80; covers are available in OP (opal) and OP/PC. Control options include DALI, HF sensor, PRE (DALI ballast) and a CCT variant (827-865) for colour temperature adjustment. Motion sensor models (MPW-SEN, SMC-SEN) extend control to presence-based operating modes.
The optional micro-prismatic optic (MPW) reduces glare and improves luminance uniformity; housing colours white (WH), grey (GR) and black (BL) are available. With up to 27,000 lm (C90-P1170 GR, DALI 830), the C90 range is suited to large open-plan office areas and industrial spaces.
| Model | Dir./Indir. | Colour | Flux | Control | Example part |
|---|---|---|---|---|---|

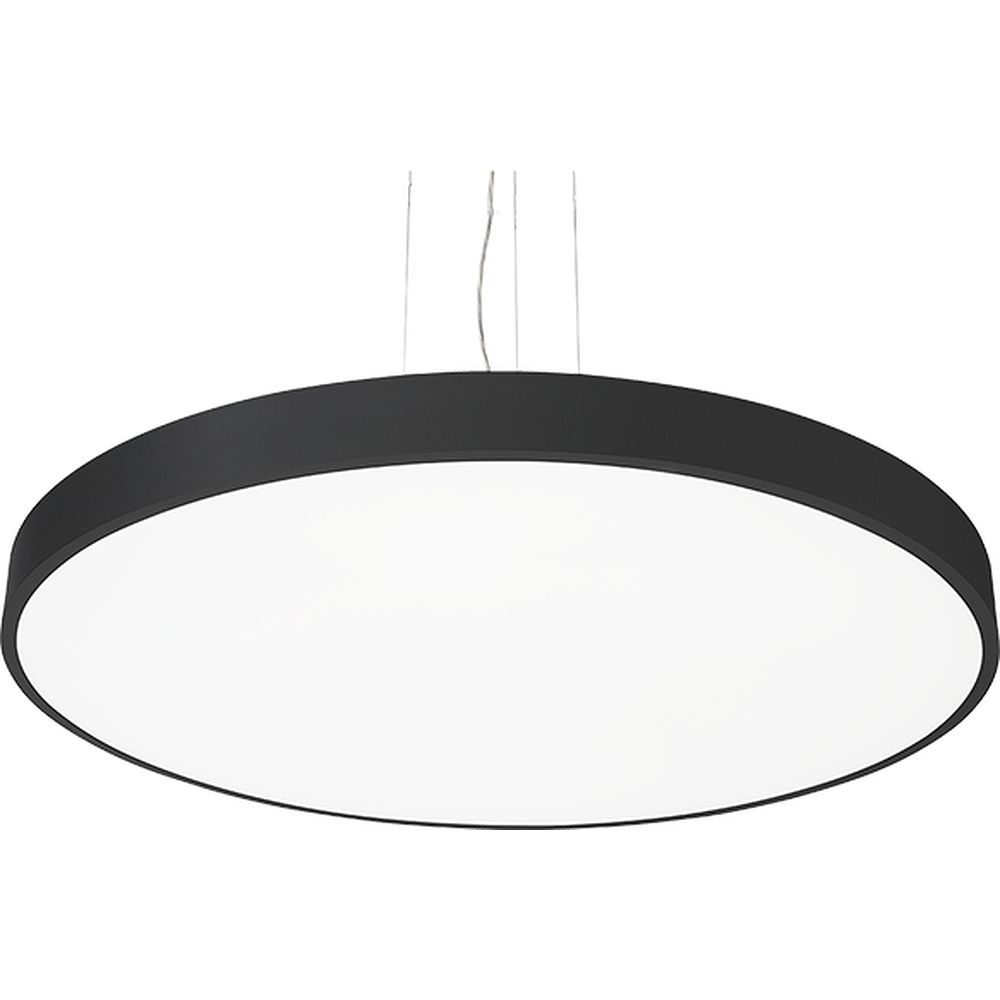

| C90-P1170 | 10/90 | BL | 16,000 lm | DALI 830 | C90231801 |
| C90-P1170 | 10/90 | GR | 16,000 lm | DALI 830 | C90230560 |
| C90-P1170 | 10/90 | GR | 22,000 lm | DALI CCT | C90232119 |
| C90-P1170 | 10/90 | GR | 27,000 lm | DALI 830 | C90230996 |
| C90-P570 | 20/80 | WH | 3,600 lm | DALI 830 | C90233833 |
| C90-P570 | 20/80 | WH | 6,200 lm | PRE 830 | C90233457 |
| C90-P870 | 20/80 | WH | 9,000 lm | PRE 830 | C90233467 |
Typical applications: Open-plan offices and large workspace environments with DALI zone lighting control (C90-P870/P1170), conference halls and foyers requiring high luminous flux and CCT colour temperature adjustment, educational and research facilities with illuminance uniformity requirements, and industrial halls or production areas needing broad direct/indirect area illumination.
