Glamox A20531209. Interior General Lighting A20-SQ400 LED 2500 HF 840 SMW-SEN

Name: Glamox A20531209. Interior General Lighting A20-SQ400 LED 2500 HF 840 SMW-SEN
Brand: Glamox
SKU: GL-A20531209
Price: 404.6 EUR
Availability: InStock

Lead time

6 weeks

€404.60

Excl. 19% VAT , excl. Shipping Cost

Article

GL-A20531209

Manufacturer Nr.

A20531209

A20-SQ400 LED 2500 HF 840 SMW-SEN

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox A20531209. Interior General Lighting A20-SQ400 LED 2500 HF 840 SMW-SEN
€404.60
Excl. 19% VAT , excl. Shipping Cost
Glamox A20800002. A20-S420/620 SUSPENTION KIT 5P
€63.70
Excl. 19% VAT , excl. Shipping Cost

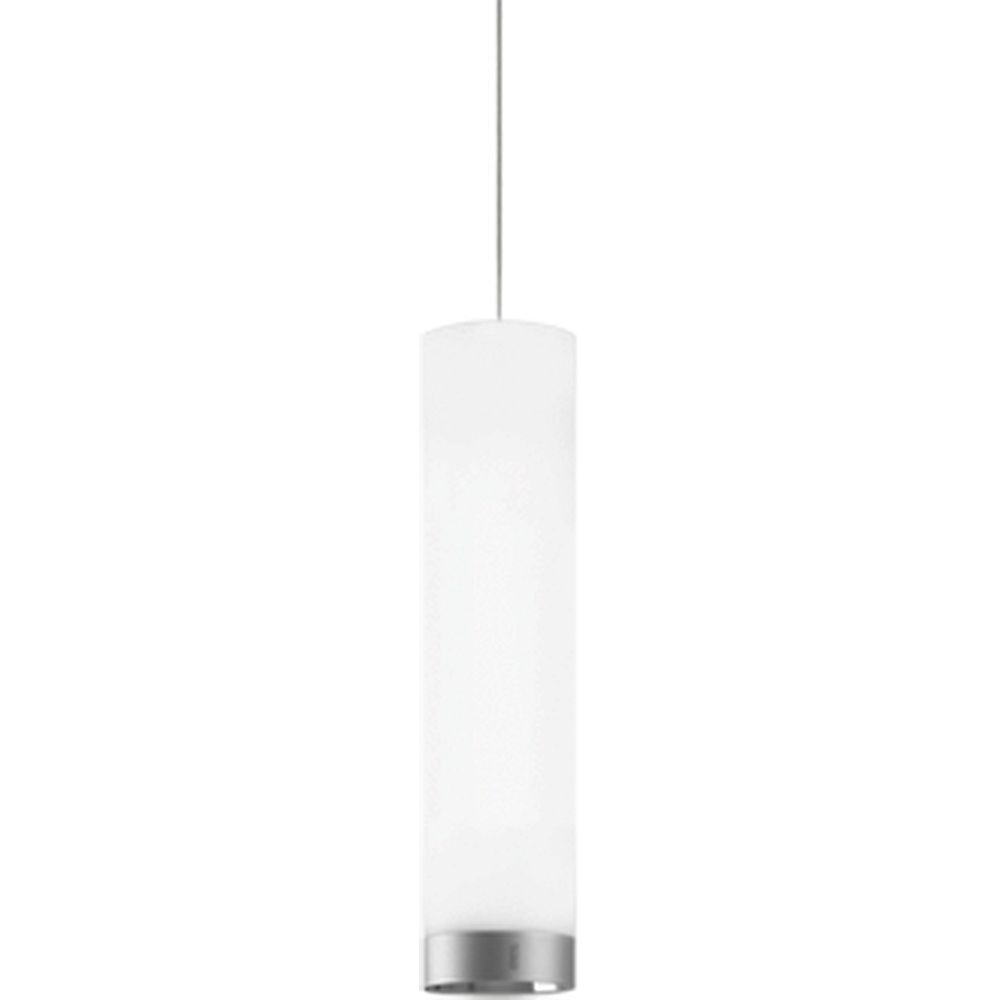

Glamox A20613530. Architectural Lighting A20-P166 L=675 LED 4000 DALI 830 C2,5
€358.40
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
LMS System
1. LMS Wireless solution
  868 MHz
2. LMS Protocol
  Wireless
Electrical Data
1. Leakage current (mA)
  0.13
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Main Feed DC (V) Min
  180
7. Main Feed DC (V) Max
  270
8. Total consumption (W)
  26.20
9. Number of luminaires on a 10A MCB type B (80% load)
  20
10. Number of luminaires on a 10A MCB type C (80% load)
  33
11. Number of luminaires on a 16A MCB type B (80% load)
  32
12. Number of luminaires on a 16A MCB type C (80% load)
  53
Technical Data
1. Maximum ambient temperature (°C)
  25
2. IP classification
  20
Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  2,601
3. Lumen per Watt (lm/W)
  104
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  HF: High Frequency
2. Number of Driver
  1
Lifetime
1. L90 Median useful life LED Ta25 (hr)
  60 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.90

Optic
1. Optic
  OP - Opal diffuser in acrylic
2. Material of diffuser
  Acrylic
Housing
1. Main body material
  Aluminium
2. Body colour
  Grey
3. Main body colour name
  Silver grey
Dimensions
1. Length (mm)
  400
2. Width (mm)
  400
3. Height (mm)
  100
4. Net weight (kg)
  4.49
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Surface,Wall Surface
Logistic Data
1. Item gross weight (kg)
  4.88

Information

More Information
Execution	TEC
Manufacturer Nr.	A20531209
Manufacturer	Glamox
Country of Manufacture	Germany
EAN	4741145334464
Lead time	6 weeks
Weight	4.880000
Colour	4000K
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
