Industry iG200
Industry lighting
The Glamox iG200 series in the 1160 mm format is a two-profile industrial luminaire range for halls and manufacturing environments. Luminous flux levels range from 2,300 to 7,200 lm per unit, available in housing widths of 109 mm and 159 mm. All variants operate at 4,000 K colour temperature (840) with an opal diffuser (OP), selectable with HF presence sensor ballast or DALI control input.
Two control options are available: HF ballast for simple automatic switch-off on absence, and DALI input for addressable lighting control within a building management system. Both ballast variants share the same housing dimensions of 1,160 x 109 mm and 1,160 x 159 mm respectively.
| Model | Luminous flux | Housing (mm) | Control |
|---|---|---|---|

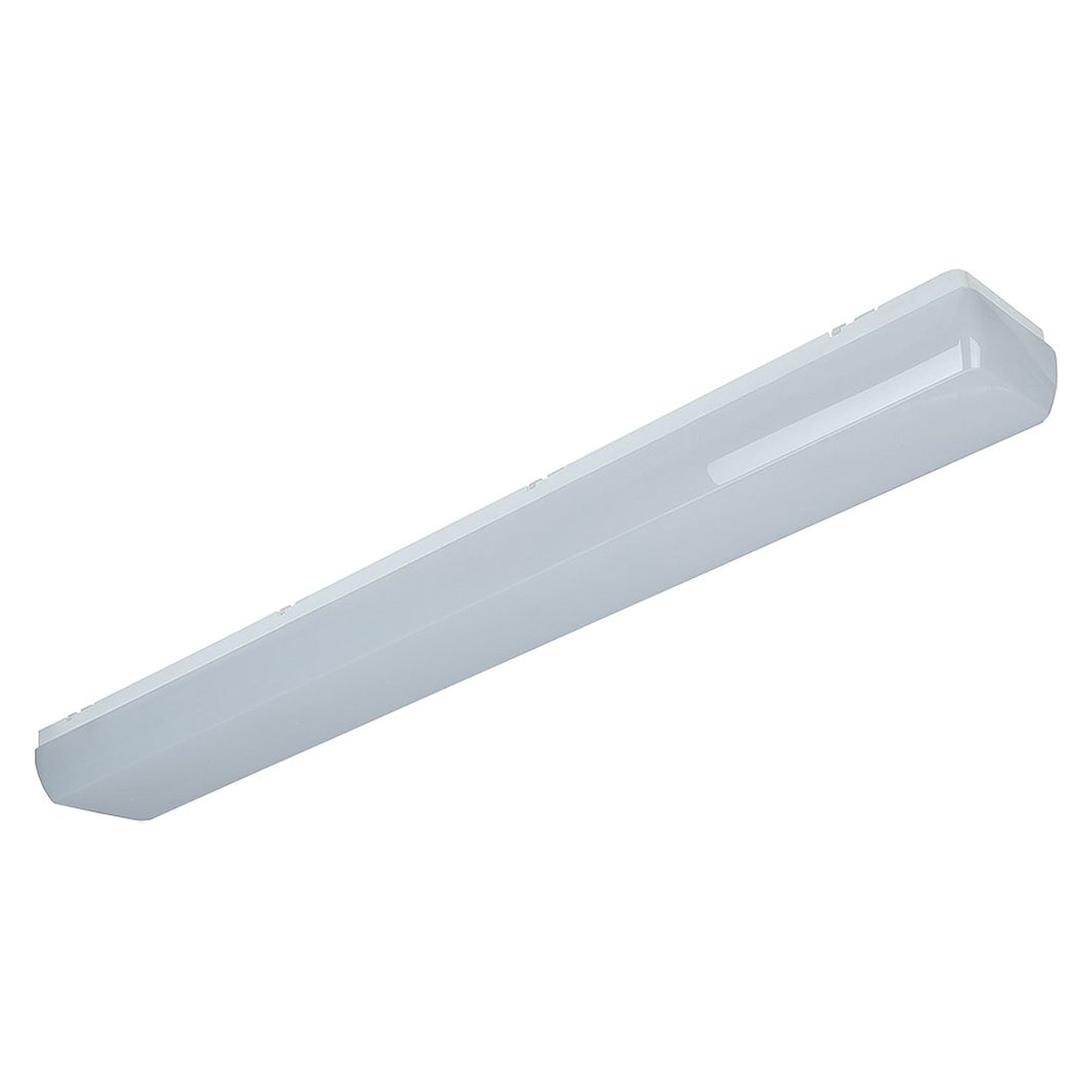

| iG200-1160x109 | 2,300 lm | 1160 x 109 | HF / DALI |
| iG200-1160x109 | 2,900 lm | 1160 x 109 | HF / DALI |
| iG200-1160x109 | 3,800 lm | 1160 x 109 | HF / DALI |
| iG200-1160x159 | 4,300 lm | 1160 x 159 | HF |
| iG200-1160x159 | 5,300 lm | 1160 x 159 | HF |

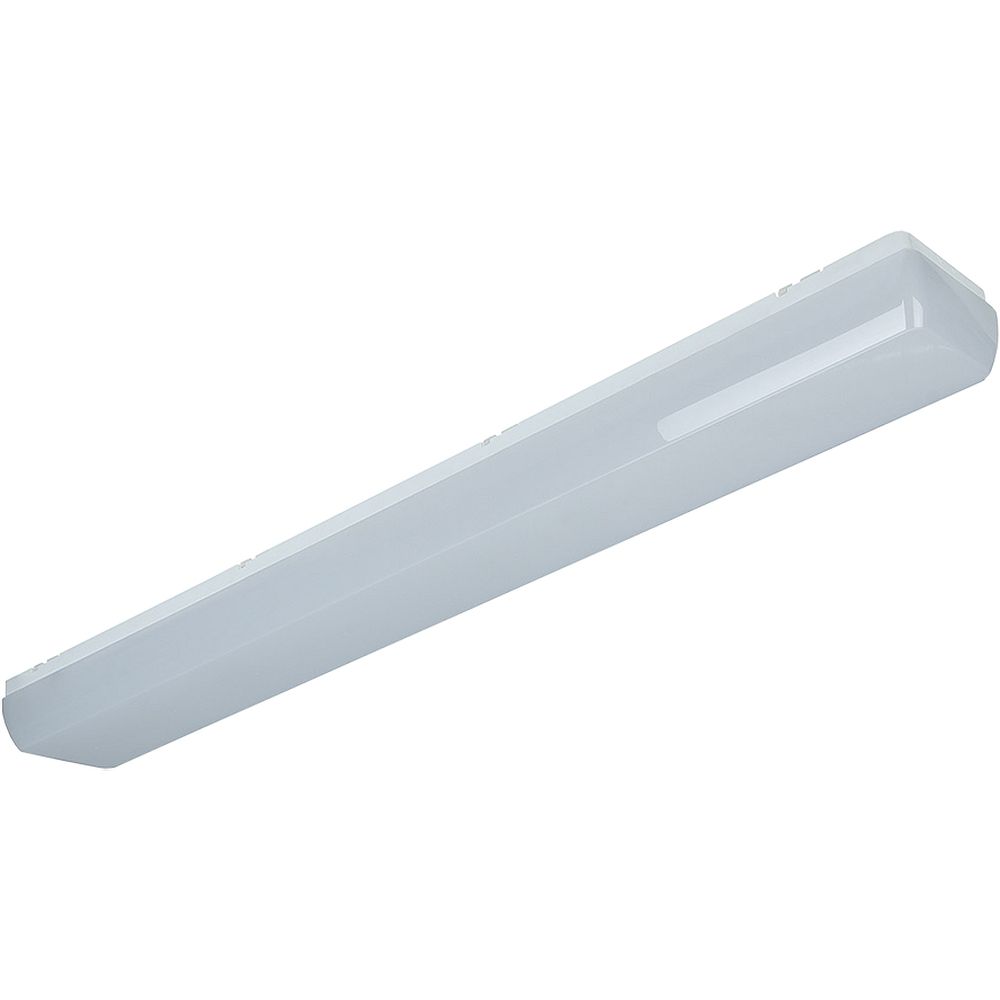

| iG200-1160x159 | 7,200 lm | 1160 x 159 | HF / DALI |
Typical applications: Production halls and assembly areas at medium to high mounting heights, warehouses with HF-controlled presence switching, DALI-networked lighting installations in industrial buildings, and areas requiring uniform neutral-white illumination for visual inspection tasks.
