Glamox C64092897. Medical C64-R300X1200 LED 6000DALI 840 MP/GL

Name: Glamox C64092897. Medical C64-R300X1200 LED 6000DALI 840 MP/GL
Brand: Glamox
SKU: GL-C64092897
Price: 719.6 EUR
Availability: InStock

Lead time

4 weeks

€719.60

Excl. 19% VAT , excl. Shipping Cost

Article

GL-C64092897

Manufacturer Nr.

C64092897

C64-R300X1200 LED 6000DALI 840 MP/GL

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Glamox C64092897. Medical C64-R300X1200 LED 6000DALI 840 MP/GL
€719.60
Excl. 19% VAT , excl. Shipping Cost
Glamox RDX901114. Linear System Lighting REDOX-4468 B-L-B 1X8750 HF 840 NB L2
€415.80
Excl. 19% VAT , excl. Shipping Cost
Glamox HMX360032. Industry Lighting HI-MAX IP20 2X22000 WR-D 840 CHW-SEN-15 WB
€826.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

General
1. Product shape
  Square
Electrical Data
1. Leakage current (mA)
  0.50
2. Voltage from (V)
  220
3. Maximum voltage (V)
  240
4. Minimum frequency (Hz)
  50
5. Maximum frequency (Hz)
  60
6. Total consumption (W)
  57
7. Number of luminaires on a 10A MCB type B (80% load)
  13
8. Number of luminaires on a 10A MCB type C (80% load)
  22
9. Number of luminaires on a 16A MCB type B (80% load)
  21
10. Number of luminaires on a 16A MCB type C (80% load)
  35
LMS System
1. Number of DALI addresses
  1
Technical Data
1. Maximum ambient temperature (°C)
  45
2. IK classification
  09
3. IP classification
  65

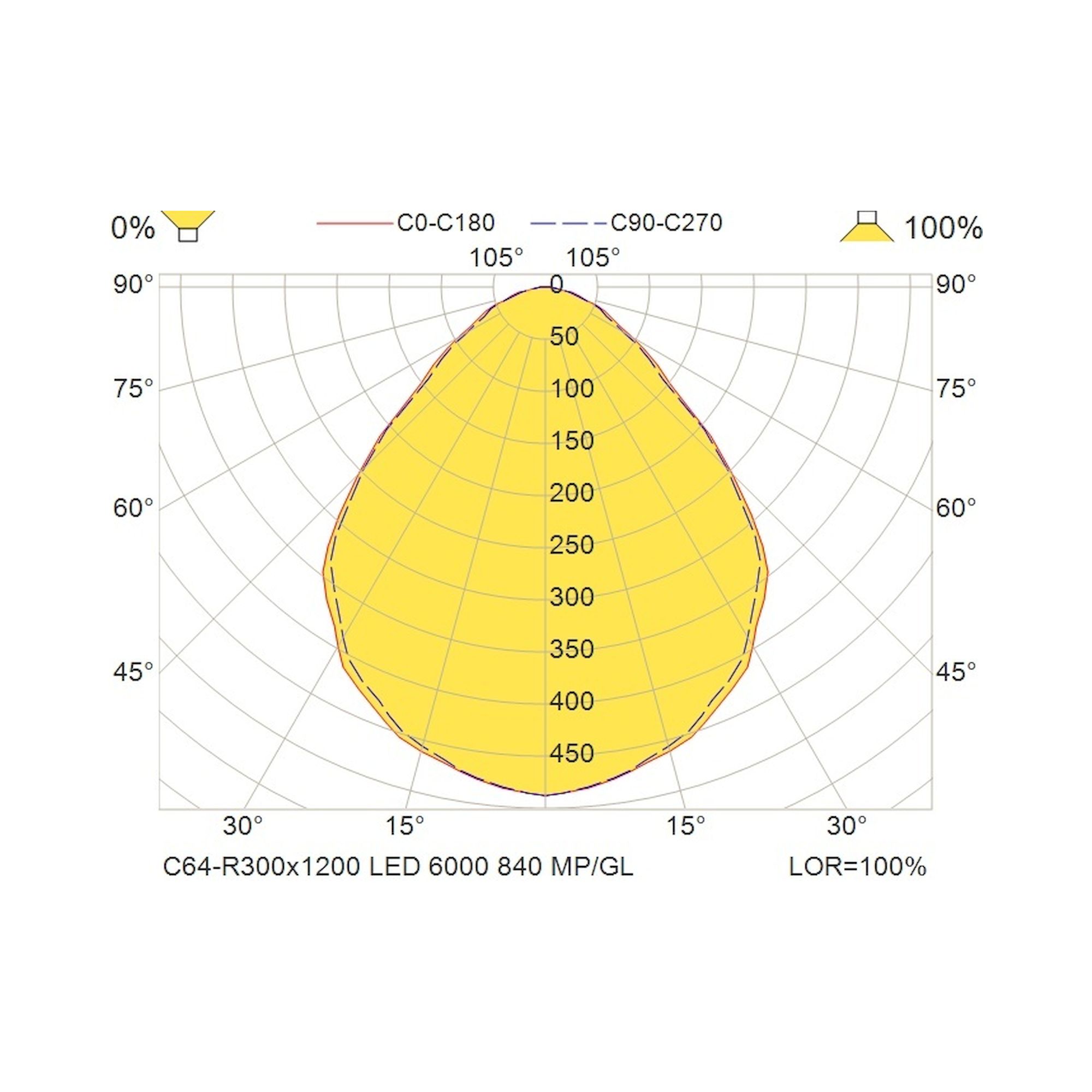

Light Technical Data
1. Light source
  LED
2. Lumen out (lm)
  5,750
3. Lumen per Watt (lm/W)
  101
4. Lamp colour temp (K)
  4000
5. CRI Colour rendering index
  80
6. MacAdam step
  3
7. Energy class light source
  C
Driver / Ballast
1. Type of LED Driver
  DALI: Dimming
2. Number of Driver
  1
Lifetime
1. L80 Median useful life LED Ta25 (hr)
  100 000
2. Luminous flux decline (LLMF) 50.000h Ta25
  0.95

Optic
1. Optic
  MP/GL - Micro prismatic diffuser with glass cover
2. Material of diffuser
  Acrylic/glass
3. Diffuser material design
  Prismatic
Housing
1. Main body material
  Steel
2. Body colour
  White
3. Main body colour name
  White

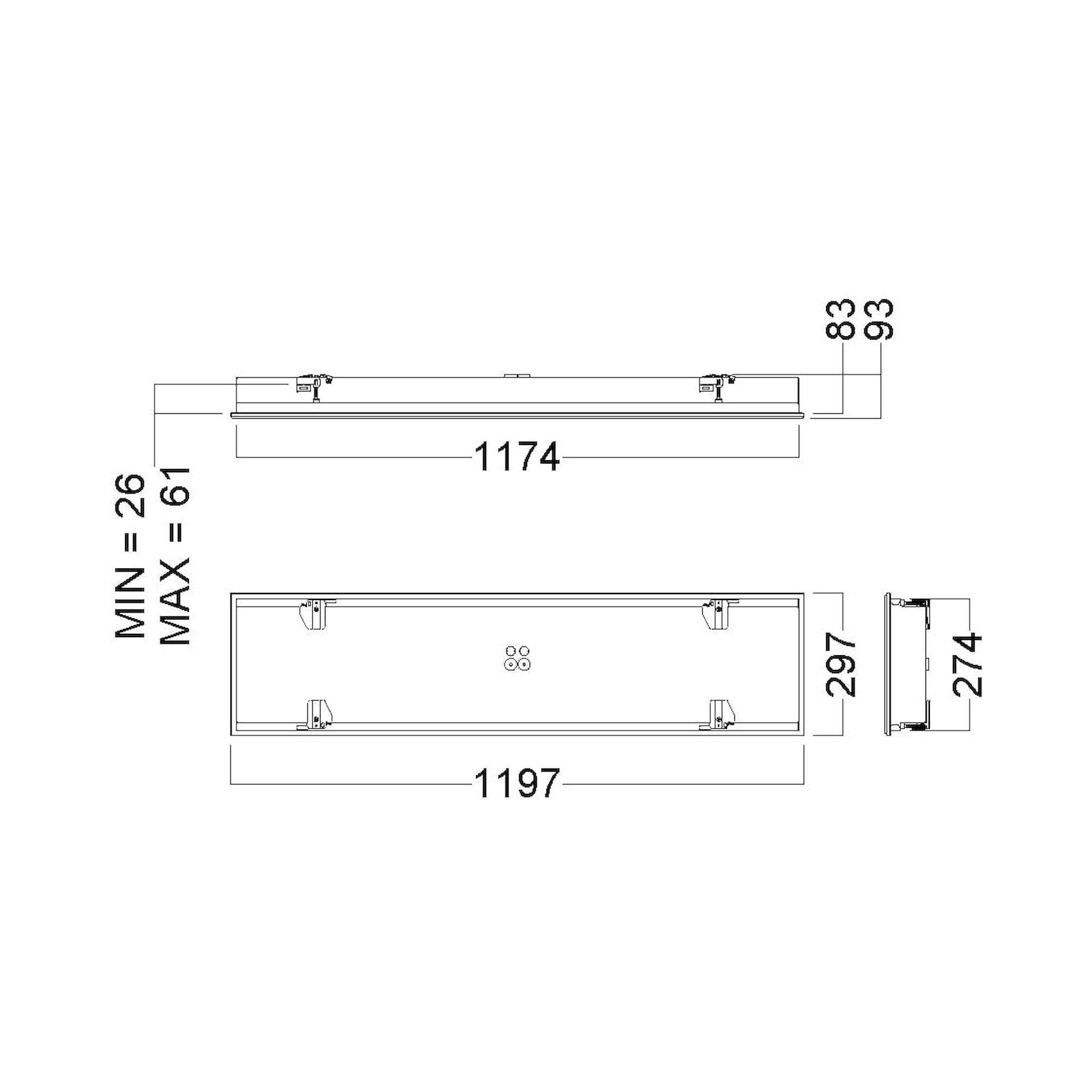

Dimensions
1. Length (mm)
  1,197
2. Width (mm)
  297
3. Height (mm)
  93
4. Net weight (kg)
  12.00
Termination
1. Termination
  5x2x2.5mm2 Push In
Mounting
1. Product mounting
  Ceiling Recessed
Logistic Data
1. Item gross weight (kg)
  13.04

Information

More Information
Manufacturer Nr.	C64092897
Manufacturer	Glamox
EAN	7054130928973
Lead time	4 weeks
Weight	13.040000
Colour	4000K
Lenght	1197
GPSR manufacturer information	Glamox GmbH Daimlerring 25 DE-31135 Hildesheim www.glamox.com
Article authenticity	Original product
Condition of article	New
