Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Ohmmeter for fast surface measurements to IEC 61340-5-1 / ANSI-ESD S20.20 on floor and table coverings, seats and trolleys. Five LED ranges, adjustable neck cord and 100 V test voltage.

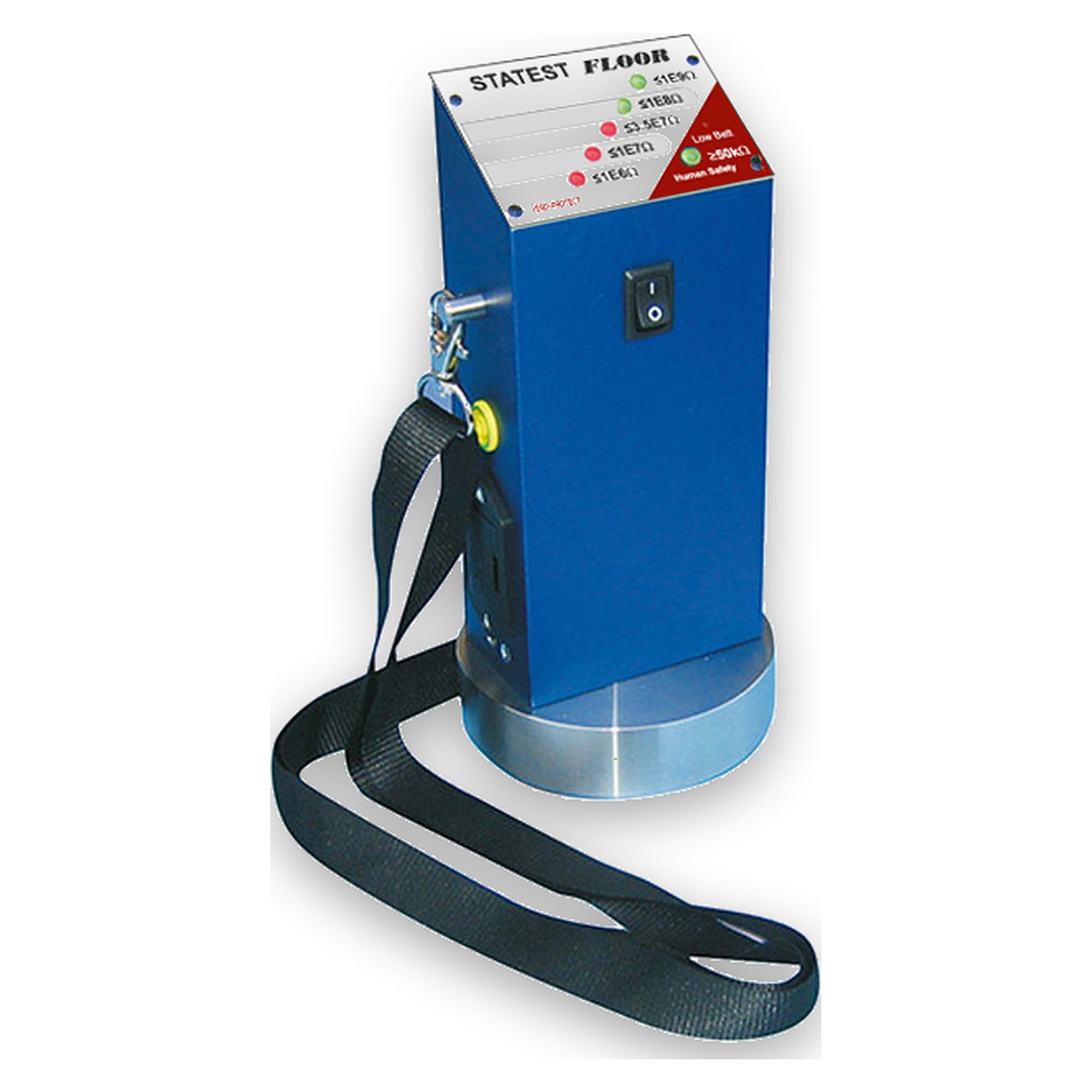

Surface tester EP-Statest-Floor with LED display
A1-ESD
Original product
Net price (excl. VAT)
€1,295.10
Item
EP0201006
Manufacturer no.
EP0201006
ESD · IEC 61340-5-1
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.EP0201006
ConditionNew
Article
EP0201006
Frequently Bought Together
-
This Item:
€1,295.10
-
Walking-test field meter BGT Visio 600 with tablet to IEC 61340-4-5
€1,940.00
-
Charged plate monitor with plate electrode and battery operation
€2,690.00
Total price
The EP-Statest Floor was developed for fast and simple surface measurements to IEC 61340-5-1 and ANSI/ESD S20.20. The ohmmeter reliably tests floor coverings, table mats, seats and trolleys and is easy to operate. The adjustable neck cord allows comfortable measuring without bending down.
Benefits
- Five LED ranges for quick surface classification
- Adjustable neck cord for comfortable measuring without bending
- Stabilised 100 V DC test voltage and low-battery indicator
Technical data
- Measuring ranges: <1x10^9 Ω, <1x10^8 Ω, <3.5x10^7 Ω, <1x10^7 Ω, <1x10^6 Ω (5 LEDs)
- Accuracy: ±5 %
- Test voltage: 100 V DC (stabilised)
- Electrode: rubber, carbon-filled, diameter 63 mm, hardness 65 Shore A
- Weight: 2.3 kg

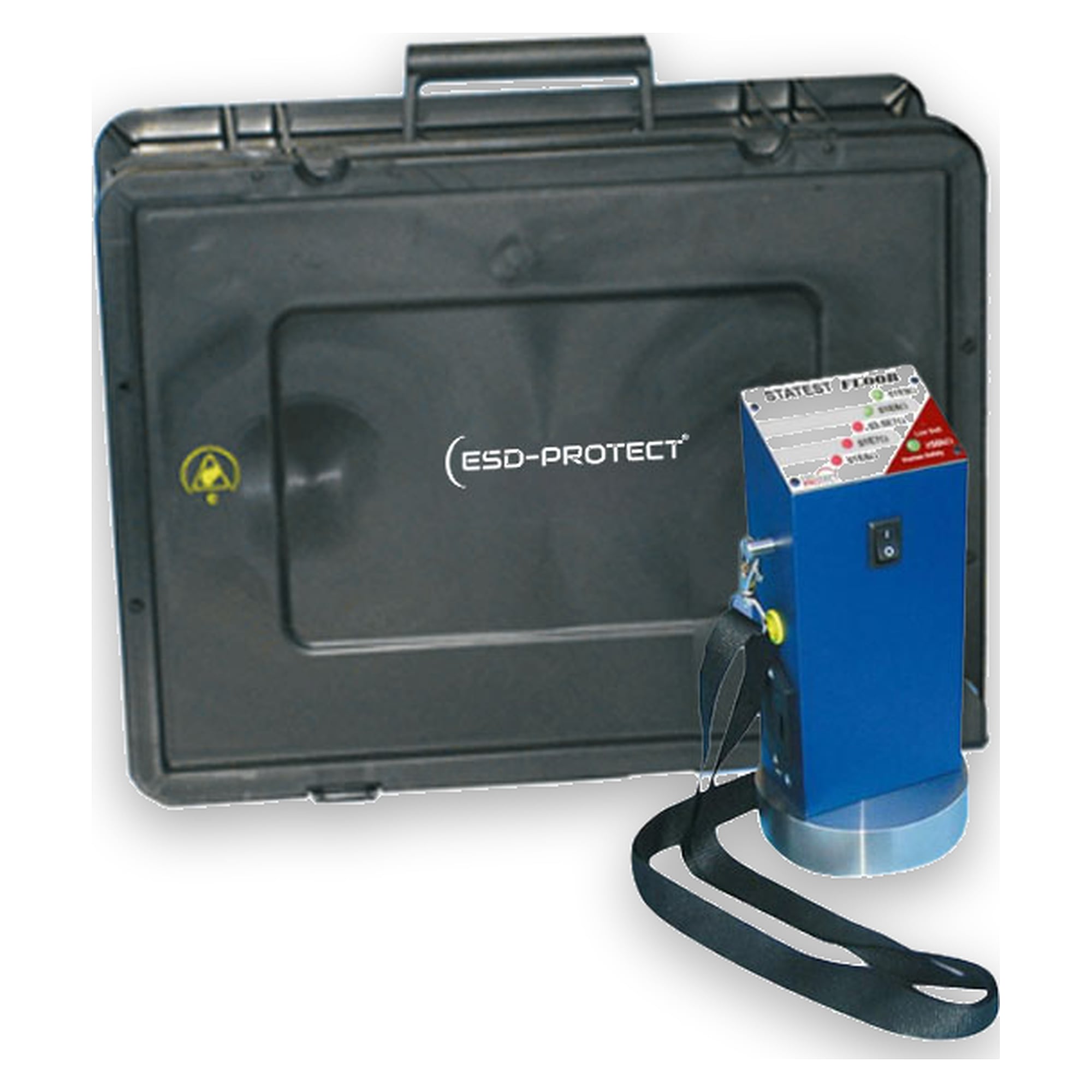

- Scope of supply: 2.50 m ground lead, calibration certificate, 9 V battery, carrying case
Applications
For testing conductive and dissipative surfaces such as floors, tables, chairs and trolleys in the EPA.
Standards and compliance
Measurement to IEC 61340-5-1 and ANSI/ESD S20.20.
| Norm | ANSI/ESD S20.20 |
|---|---|
| Certification | IEC 61340-5-1 |
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | EP0201006 |
| Manufacturer | A1-ESD |
| Weight | 2.300000 |
| Sales unit | 1 Stück |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
