Festo DFM-100-80-P-A-GF (170894) Guided Drive

Name: Festo DFM-100-80-P-A-GF (170894) Guided Drive
Brand: Festo
SKU: FES-170894
Price: 744 EUR
Availability: InStock

€744.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-170894

Manufacturer Nr.

DFM-100-80-P-A-GF

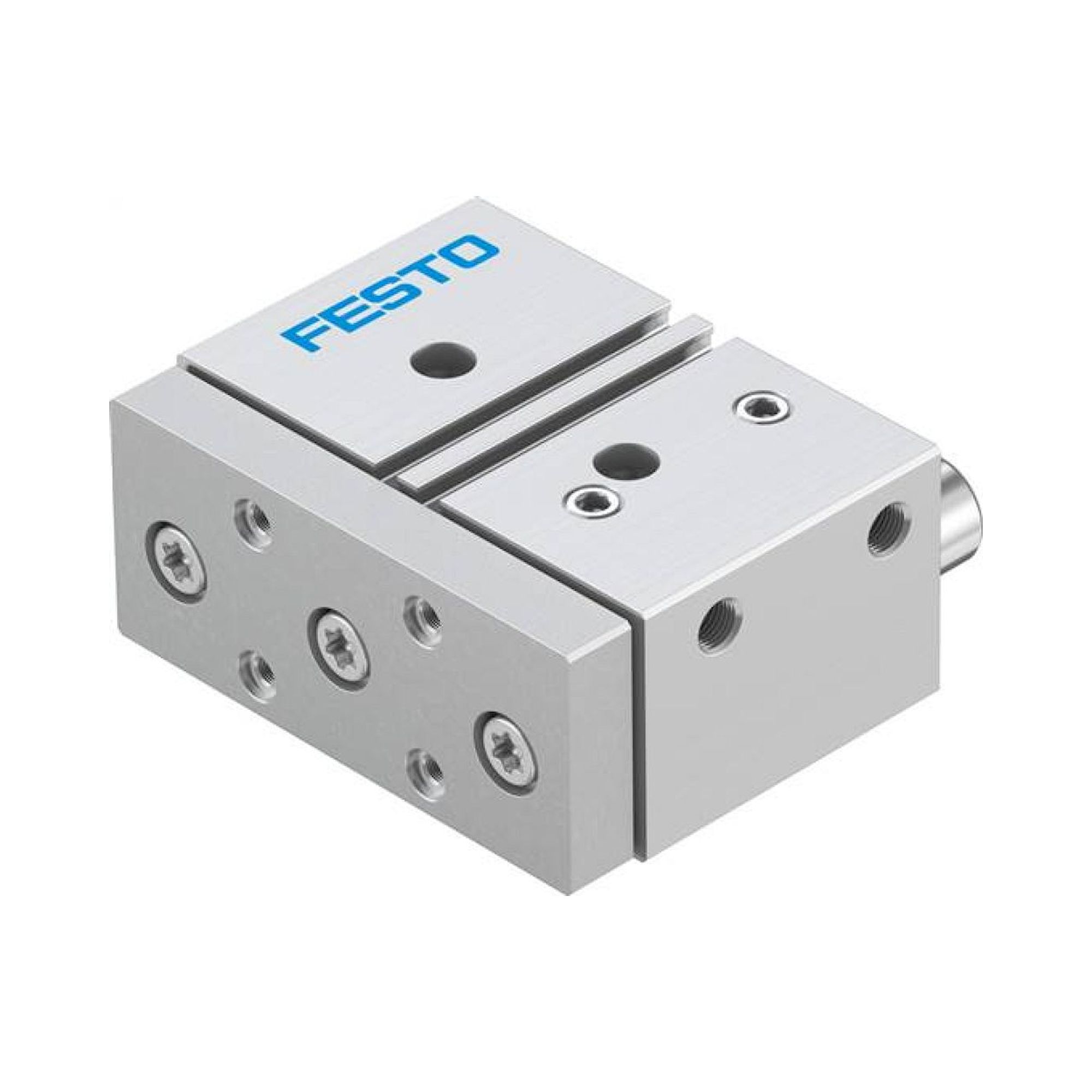

Guided Drive

The product may differ from the illustration

Frequently Bought Together

This Item: Festo DFM-100-80-P-A-GF (170894) Guided Drive
€744.00
Excl. 19% VAT , excl. Shipping Cost
Festo DPZJ-16-10-P-A-S2 (159945) Twin-Piston Cylinder
€50,727.00
Excl. 19% VAT , excl. Shipping Cost
Festo DFM-63-50-P-A-GF (170879) Guided Drive
€40,208.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Centre of mass distance of payload to Joch plate [mm]	125
Stroke [mm]	80
Piston diameter	100 mm
Operating mode actuator unit	Joch
Dampening	P: Elastic silencer rings / plates double-sided
installation position	arbitrary
Guide	sliding guide
Construction set up	Guide
Position detection	For proximity switch
Operating pressure [bar]	0.5 to 10
Max. speed [m/s]	0,4
Principle of operation	double acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	1 - low corrosion stress
ambient temperature [°C]	-20 to 80
Impact energy at the end positions [J]	1,000
Max. permitted moment load Mx depending on stroke [Nm]	53,400
Max. usable load depending on the stroke at a defined distance xs [N]	568,00
Theoretical force at 6 bar, Return flow [N]	4.418
Theoretical force at 6 bar, flow [N]	4.712
Moving mass [g]	8.141,0
Product weight [g]	14.699,0
Alternative connections	See product drawing
Pneumatic connection	G3/8
Material information	RoHs compliant
Cover material	Aluminium wrought alloy
Seals material	NBR
Housing material	Aluminium wrought alloy
Piston rod material	High-alloyed stainless steels

More Information
Manufacturer Nr.	DFM-100-80-P-A-GF
Manufacturer	Festo
EAN	4052568139889
Weight	15.000000
HS-Code	84123100
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
