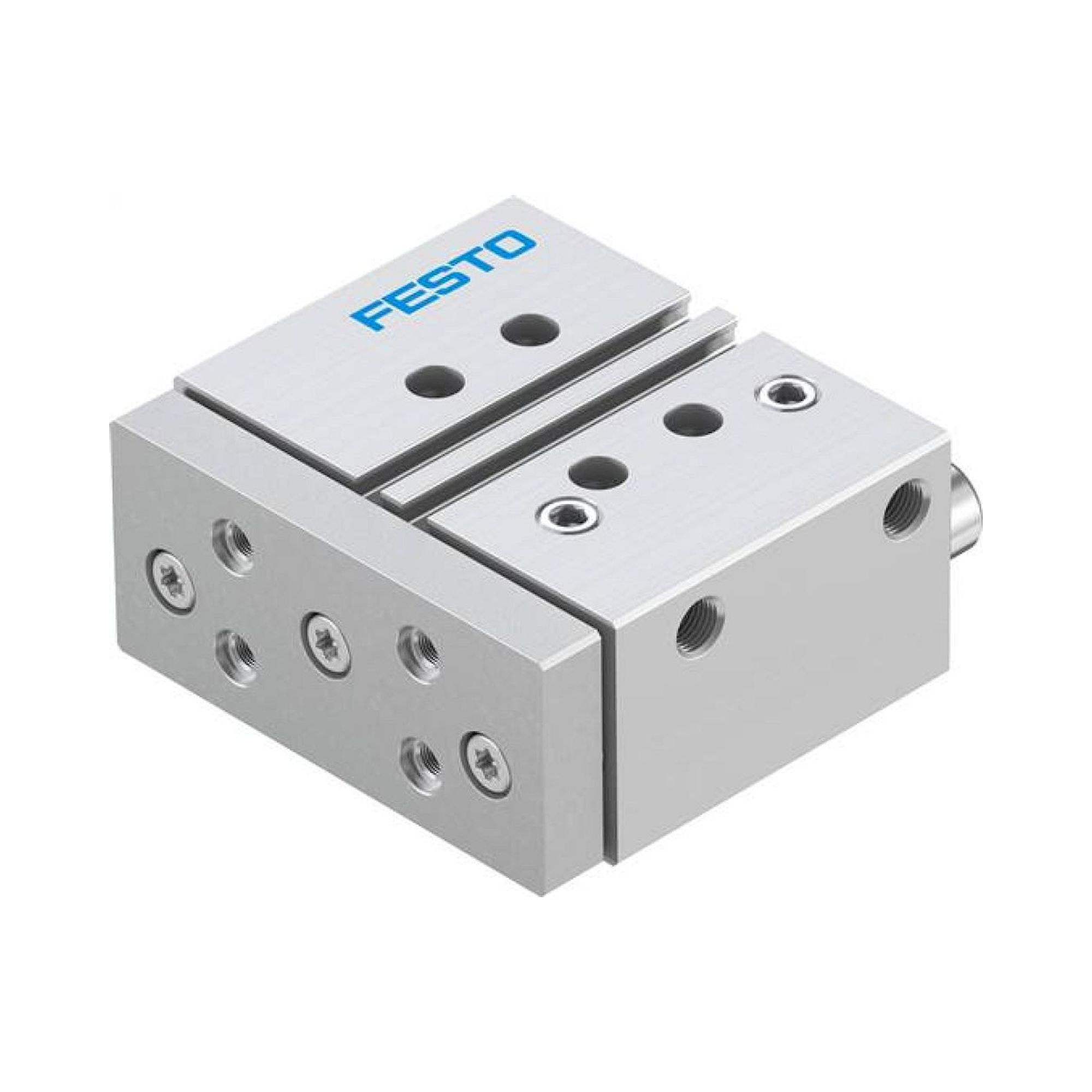

Festo DFM-50-100-P-A-GF (170874) Guided Drive
€41,661.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-170874
Manufacturer Nr.
DFM-50-100-P-A-GF
Guided Drive
Frequently Bought Together
-
This Item:
€41,661.00Excl. 19% VAT , excl. Shipping Cost
-
Festo DFM-25-80-P-A-GF (170852) Guided Drive
€27,584.00Excl. 19% VAT , excl. Shipping Cost
-
Festo DFM-6-15-P-A-GF (4149946) Guided Drive
€9,214.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Centre of mass distance of payload to Joch plate [mm] | 50 |
| Stroke [mm] | 100 |
| Piston diameter | 50 mm |
| Operating mode actuator unit | Joch |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Guide | sliding guide |
| Construction set up | Guide |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1 to 10 |
| Max. speed [m/s] | 0,6 |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Impact energy at the end positions [J] | 1,000 |
| Max. permitted moment load Mx depending on stroke [Nm] | 11,600 |
| Max. usable load depending on the stroke at a defined distance xs [N] | 212,00 |
| Theoretical force at 6 bar, Return flow [N] | 1.057 |
| Theoretical force at 6 bar, flow [N] | 1.178 |
| Moving mass [g] | 2.870,0 |
| Product weight [g] | 5.511,0 |
| Alternative connections | See product drawing |
| Pneumatic connection | G1/4 |
| Material information | RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | NBR |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Manufacturer Nr. | DFM-50-100-P-A-GF |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568139803 |
| Weight | 5.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
