Accessories for valves
Valves
Festo accessories for valves cover all components required for the mounting, connection and operation of Festo solenoid and directional control valves. The range spans sub-base plates (NAS, NAU, NAW to ISO 5599-1 and VDMA standard), solenoid coils (MSFG, MSFW in various voltages and frequencies), sealing and separating elements, end plates and blanking plates for valve terminals, as well as multipole distributors and actuation accessories.
All accessories are matched to the relevant Festo valve series, ensuring standards-compliant connection and low-maintenance operation. For valve terminal architecture (CPX, VMPA, VUVG), chaining plates, function elements and adapter plates are available.
Fastening elements and designation platesMounting screws, holders, label plates BZ, IBS

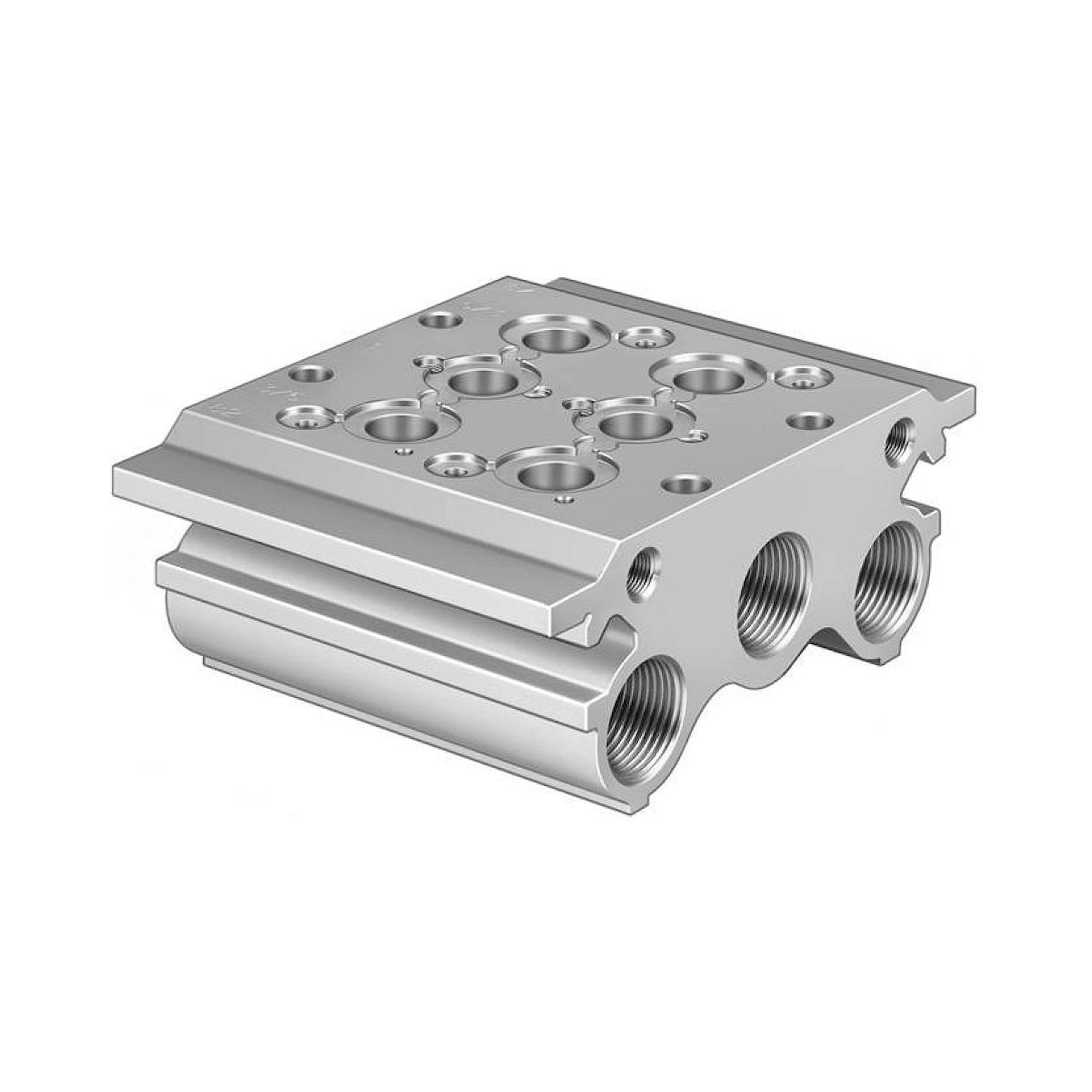

SubplatesNAS, NAU, NAW, LR-ZP to ISO 5599-1 and VDMA standard
Magnetic coilsMSFG and MSFW, 12-240 V AC/DC, ATEX EX variants
Sealing and separating elementsBlanking discs NSC, seals VMPA1-DP, separator plates CPV
End platesCPE, VABE-S6 end plates and multipole nodes for valve terminals
Cover platesCPE, VABB, PRSB blanking plates for unused valve terminal positions
Multipole distributorMPV-E/A08 and E/A12 M8 distributors for valve terminals
Terminal stripsMulti-point connections for multi-stage valve block systems
Drive attachmentsManual, roller lever and rocker lever for mechanical valve actuation
Interlinking platesNAV, NAVW chaining and angle plates to ISO 5599-1
Functional elementsFlow control check valves, pressure regulators for valve terminal integration
Adapter platesTransition plates for different valve and port formats
Valve specific accessoriesType-specific supplements for individual valve series
| Valve series | Subplates | Solenoid coil | End plate |
|---|---|---|---|
| Tiger 2000 / Classic (G1/8) | NAS/NAU/NAW-1/8-ISO, VDMA | MSFG-24/42, MSFW-24 | CEPB-1/4-B |
| Tiger 2000 / Classic (G1/4) | NAS/NAU/NAW-1/4-ISO, VDMA | MSFG-24/42, MSFW-24 | CEPB-1/4-B |
| VMPA1 valve terminal | VMPA1 base plate | - | VMPA1-DP seal |
| CPE valve terminal | - | - | CPE10/14/18-PRS-EP |
| VABE valve terminal | - | - | VABE-S6-1R/2R end plates |
Typical applications: Initial installation and expansion of valve terminal architectures (CPX, MPA, VMPA, VABE), replacement of solenoid coils without changing the valve body when a coil fails, creation of standards-compliant G1/8 to G3/4 manifold blocks with NAS/NAU/NAW plates, and extension of existing terminal configurations with pressure regulator function elements.
