What are magnetic coils for valves?

Magnetic coils for valves are components used to control the flow of fluids in pneumatic and hydraulic systems by generating a magnetic field.

Why are Festo magnetic coils used?

Festo magnetic coils are used for their reliability and efficiency in controlling valve operations within industrial automation systems.

How do I replace a magnetic coil on a Festo valve?

To replace a magnetic coil on a Festo valve, ensure the system is powered down, remove the old coil, and install the new one according to the manufacturer's instructions.

What are the benefits of using Festo valve accessories?

Using Festo valve accessories ensures compatibility, enhances system performance, and maintains the reliability of pneumatic and hydraulic operations.

Can magnetic coils be used in hydraulic systems?

Yes, magnetic coils can be used in both pneumatic and hydraulic systems to control valve operations efficiently.

What industries use Festo magnetic coils?

Industries such as manufacturing, automotive, and industrial automation frequently use Festo magnetic coils in their systems.

Where can I find replacement coils for Festo valves?

Replacement coils for Festo valves can be found at authorized Festo distributors or specialized suppliers of pneumatic and hydraulic components.

Magnetic coils

Accessories for valves

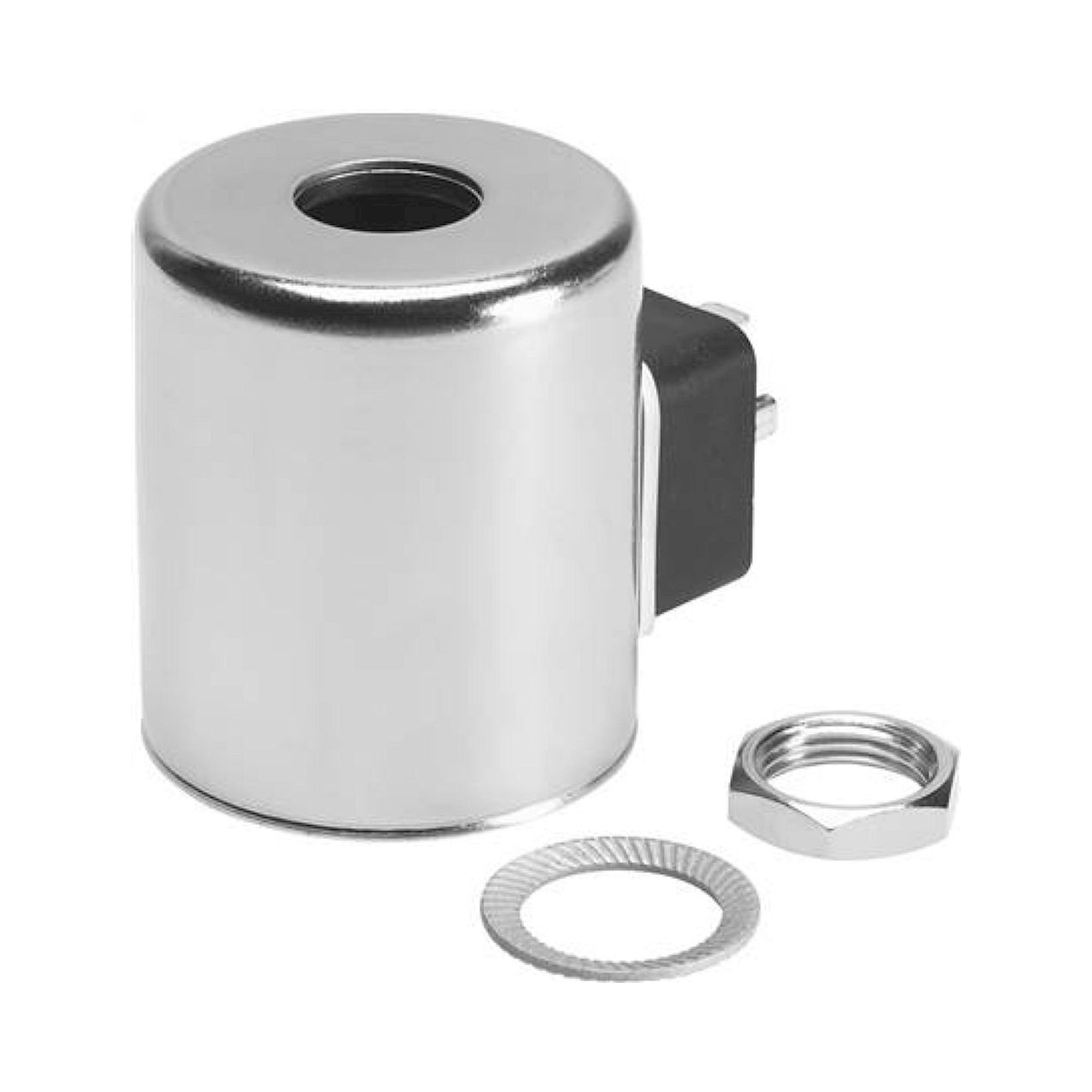

Festo solenoid coils are replacement and retrofit coils for the Tiger valve series and process valves. The 116-article range covers three main groups: MSFG (DC coils, 12 V and 24/42 V), MSFW (AC coils, 24, 48, 110, 230 and 240 V / 50-60 Hz) and MSN1G/MSN1W (compact OD coils). ATEX-certified EX variants (MSFG-24-EX, MSFW series EX) cover zone 1 and 2 applications.

Variants with the -OD suffix integrate a rectifier (AC coils) or a freewheeling diode (DC coils); -DS variants additionally include a suppression capacitor. The VACF-B-K1-3A-5-EX4-M coil is designed for process valves with explosion protection.

⚙ MSFG (DC) and MSFW (AC) - two designs for DC and AC operation, compatible with Tiger series

✓ Voltages 12-240 V, 50/60 Hz - wide range for global use with different mains voltages

⚡ -OD, -DS and -EX versions - protection circuit (OD), suppression (DS) and ATEX approval (EX) as suffixes

📦 Coil exchange without valve removal - coils can be replaced in situ, minimising downtime

Type	Voltage	Frequency	Note
MSFG-12	12 V DC	-	Standard DC coil
MSFG-24/42-50/60	24/42 V AC	50/60 Hz	Universal AC coil
MSFG-24-EX	24 V DC	-	ATEX zone 1/2
MSFW-24-50/60	24 V AC	50/60 Hz	Standard AC coil
MSFW-110-50/60	110 V AC	50/60 Hz	US mains voltage
MSFW-230-50/60	230 V AC	50/60 Hz	EU mains voltage
MSFW-240-50/60	240 V AC	50/60 Hz	UK mains voltage
MSN1G-24DC-OD	24 V DC	-	Compact OD coil

Typical applications: Replacement of failed solenoid coils on Tiger 2000 and Classic valves without removing the valve body, conversion from 24 V DC to 230 V AC operation in existing plant, ATEX-certified coil use in zone 1/2 (chemical, petrochemical industries), and process valve actuation with VACF coils in process engineering.
