Multipole distributor
Accessories for valves
Festo multipole distributors allow shared electrical signal distribution for multiple valves via a central M8 multi-pin connector, eliminating the need to wire each valve individually. The range covers two articles: MPV-E/A08-M8 (8-pin, M8) and MPV-E/A12-M8 (12-pin, M8). Both types distribute input and output signals from a single M8 supply to the individual valve coils.
The multipole distributor significantly reduces wiring effort in decentralised valve arrangements and suits installations where several valves are located close together but no valve terminal architecture is used.
| Type | Pin count | Connector format | Signal circuits |
|---|---|---|---|

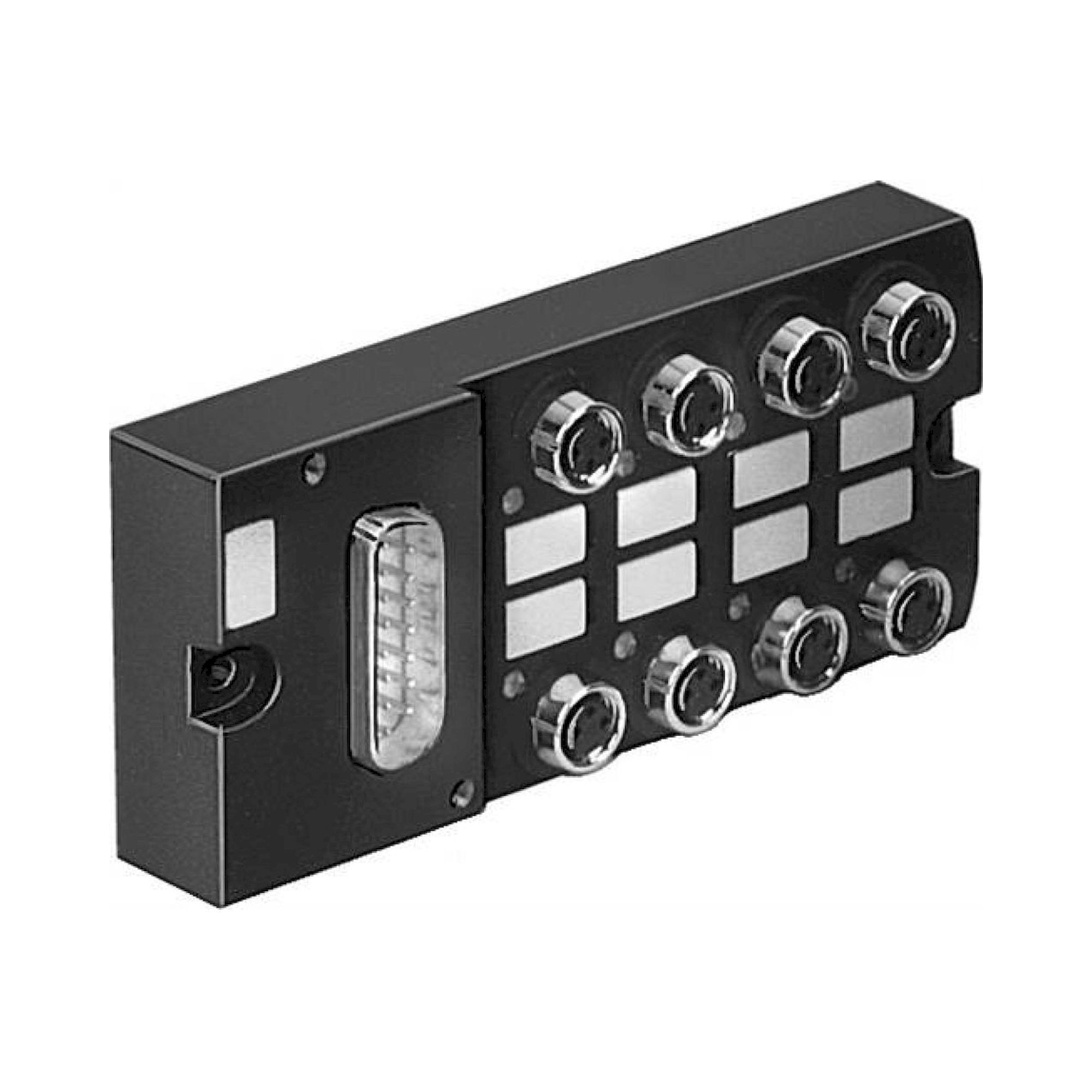

| MPV-E/A08-M8 | 8-pin | M8 | Up to 8 I/O channels |

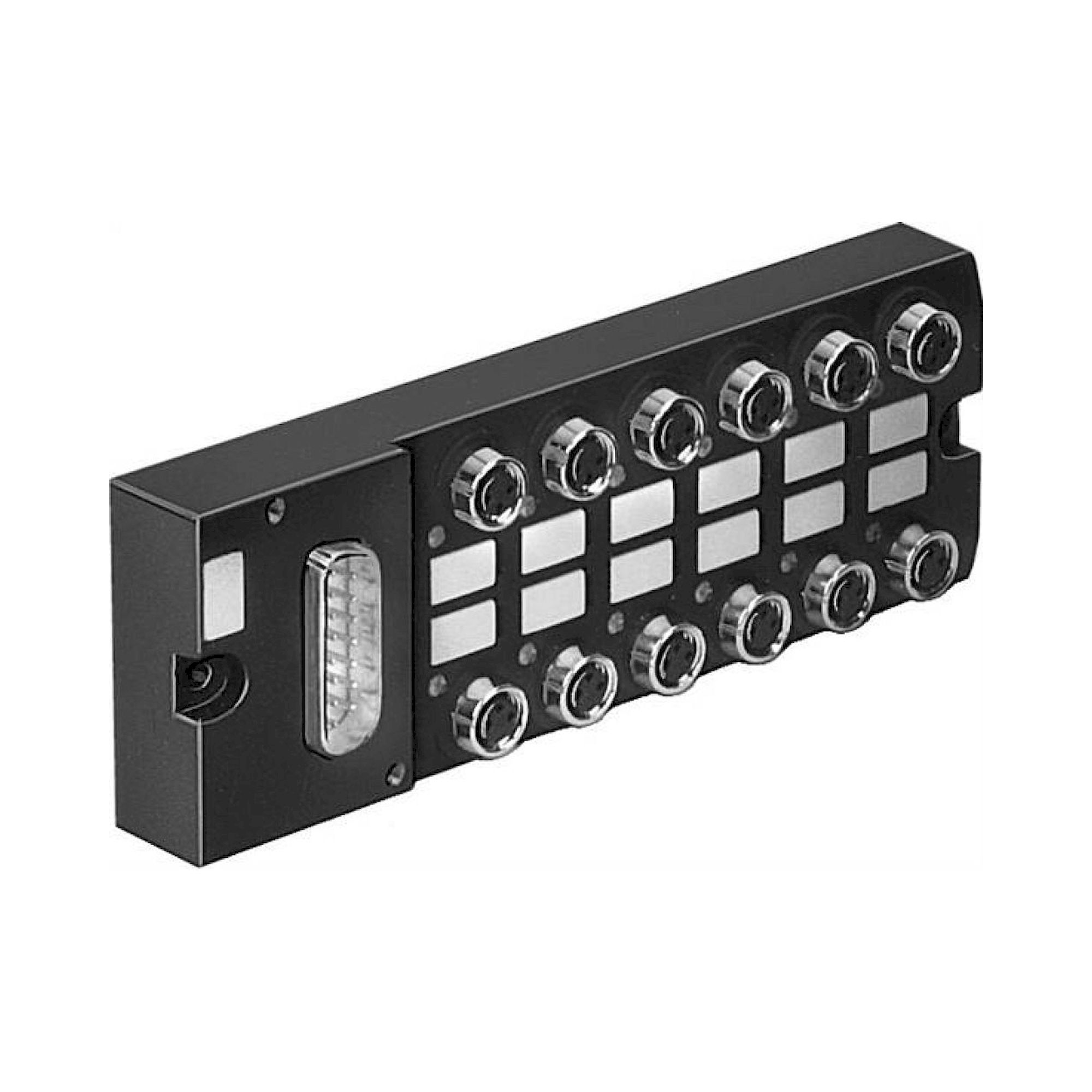

| MPV-E/A12-M8 | 12-pin | M8 | Up to 12 I/O channels |
Typical applications: Decentralised valve groups without valve terminal architecture in handling units and gripper systems, valve clustering in confined installation spaces with a single central M8 connector feed cable, and straightforward retrofit solution for existing plant without fieldbus infrastructure.
