Fastening elements and designation plates
Accessories for valves
Festo fastening elements and designation plates for valves comprise 135 articles: mounting screws (DIN 912 M3x45), blanking plugs for free ports (GRK-M5, GRK-1/8, GRK-3/8-B), hexagon nuts (GRM-M5, GRM-1/8, GRM-3/8), holders for QS push-in fittings (GR-H-QS-3-4, GR-H-QS-6-8), mounting plates (APL-2N series) and designation plates in three series: BZ (plastic plate, 22 and 30 mm), IBS (inline markers, 6x10 to 9x20 mm) and KMC/F/V-BZ-35X for DIN rail.
Designation plates are essential in Festo systems for the unambiguous assignment of valves to circuit diagrams and maintenance documentation.
| Group | Types | Application |
|---|---|---|
| Blanking plugs | GRK-M5, GRK-1/8, GRK-3/8-B | Sealing unused valve ports |
| Hexagon nuts | GRM-M5, GRM-1/8, GRM-3/8 | Lock nuts for screw-in fittings |
| Tubing holders | GR-H-QS-3-4, GR-H-QS-6-8 | Securing QS push-in fittings |

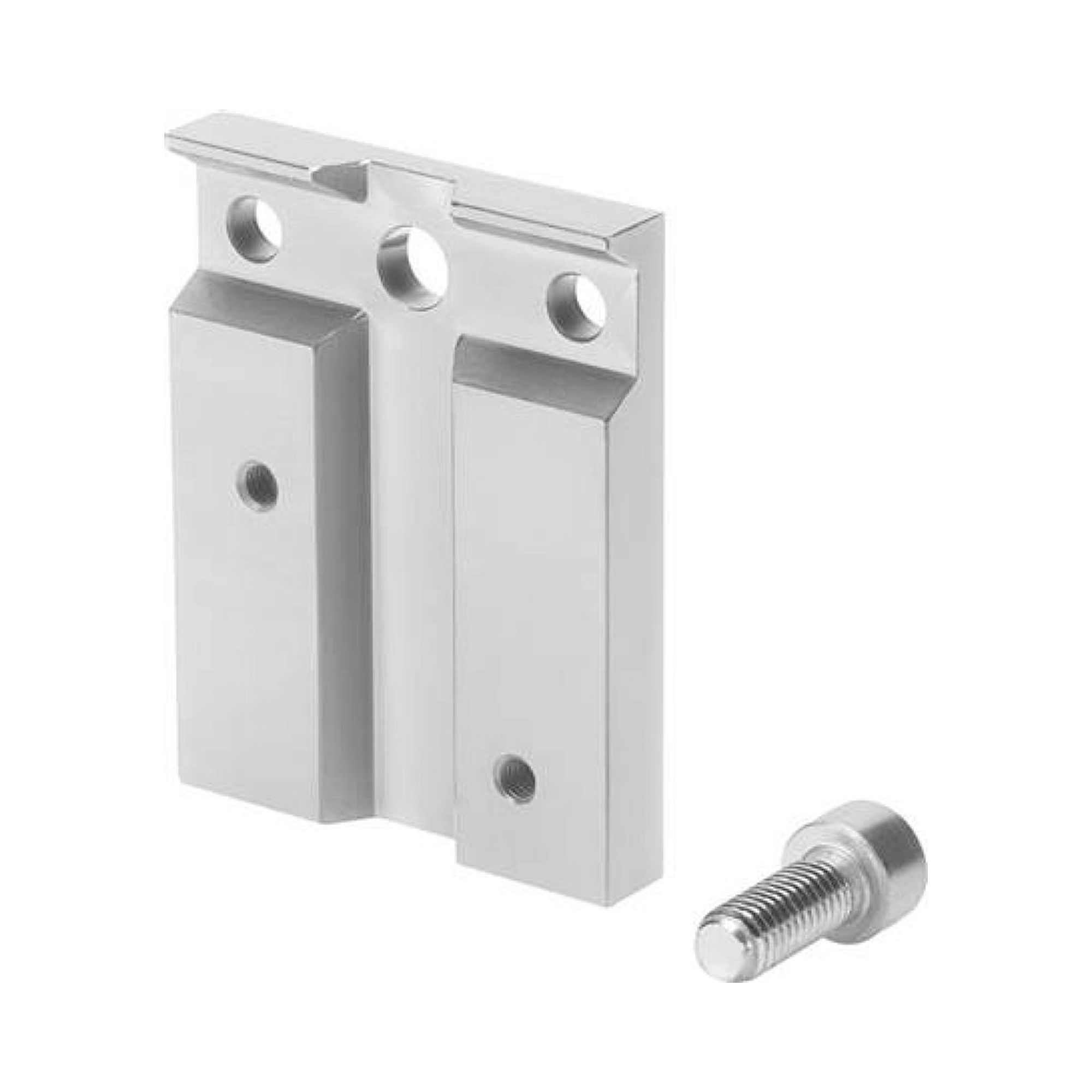

| Mounting plates | APL-2N-G/-GRP/-GRPX2/-VUZ | Fastening small valves |

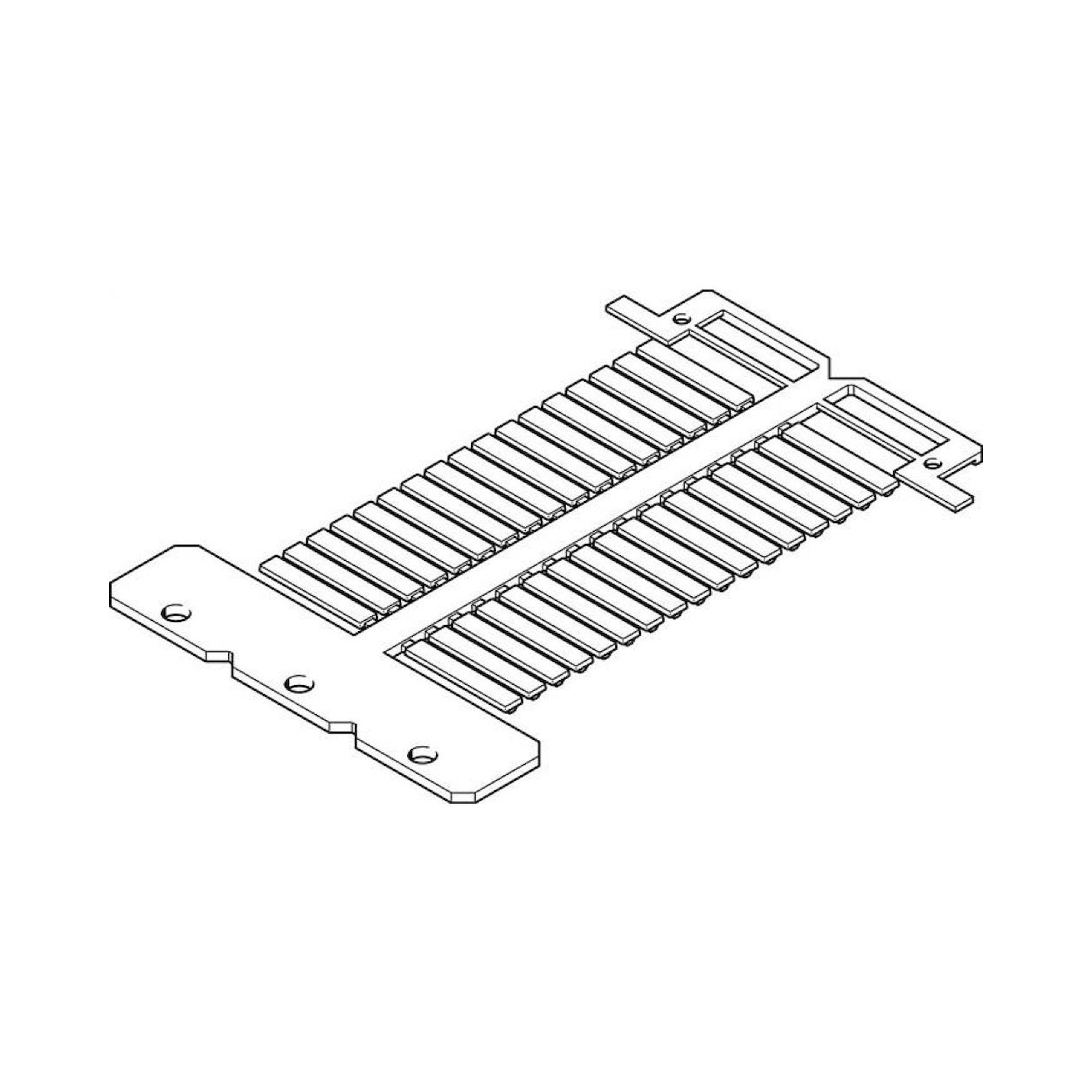

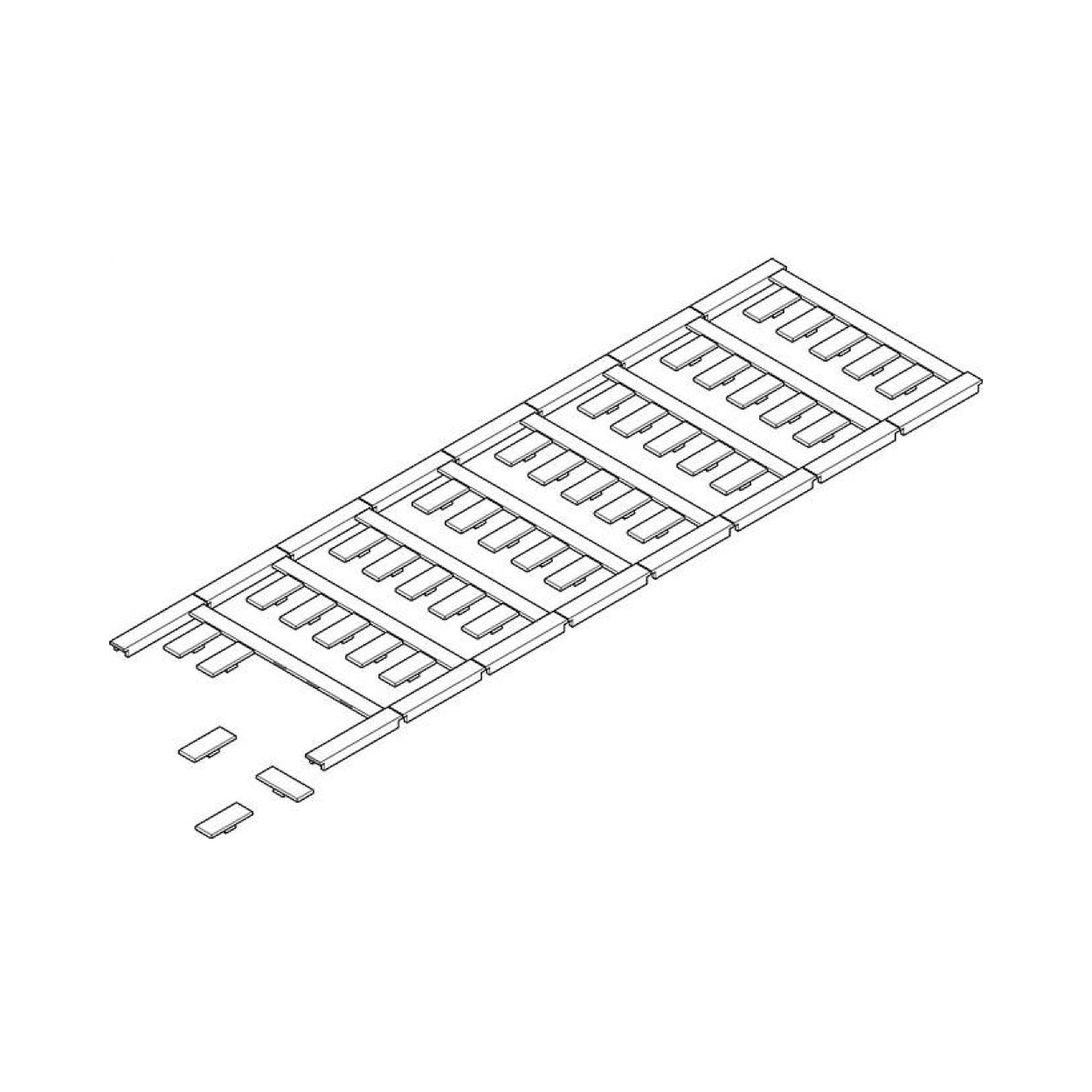

| Designation plates | BZ-1/2/3-22/30, KM-BZ, KMC/F/V-BZ-35X | Valve identification in circuit diagram |
| Inline labels | IBS-6X10, IBS-8X20, IBS-9X17, IBS-9X20 | Compact labelling in tight spaces |
Typical applications: Sealing unused ports on valve blocks and terminals, designation of directional control valves for commissioning documentation, mounting small valves on support tubes using APL-2N plates, and inline labelling for confined installations in control cabinets.
